Yb:YAG Crystal Ytterbium Doped Yttrium Aluminum Garnet
$59 - 124 /Piece/Pieces
Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY888

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
2kg
Package Type:
Standard Package

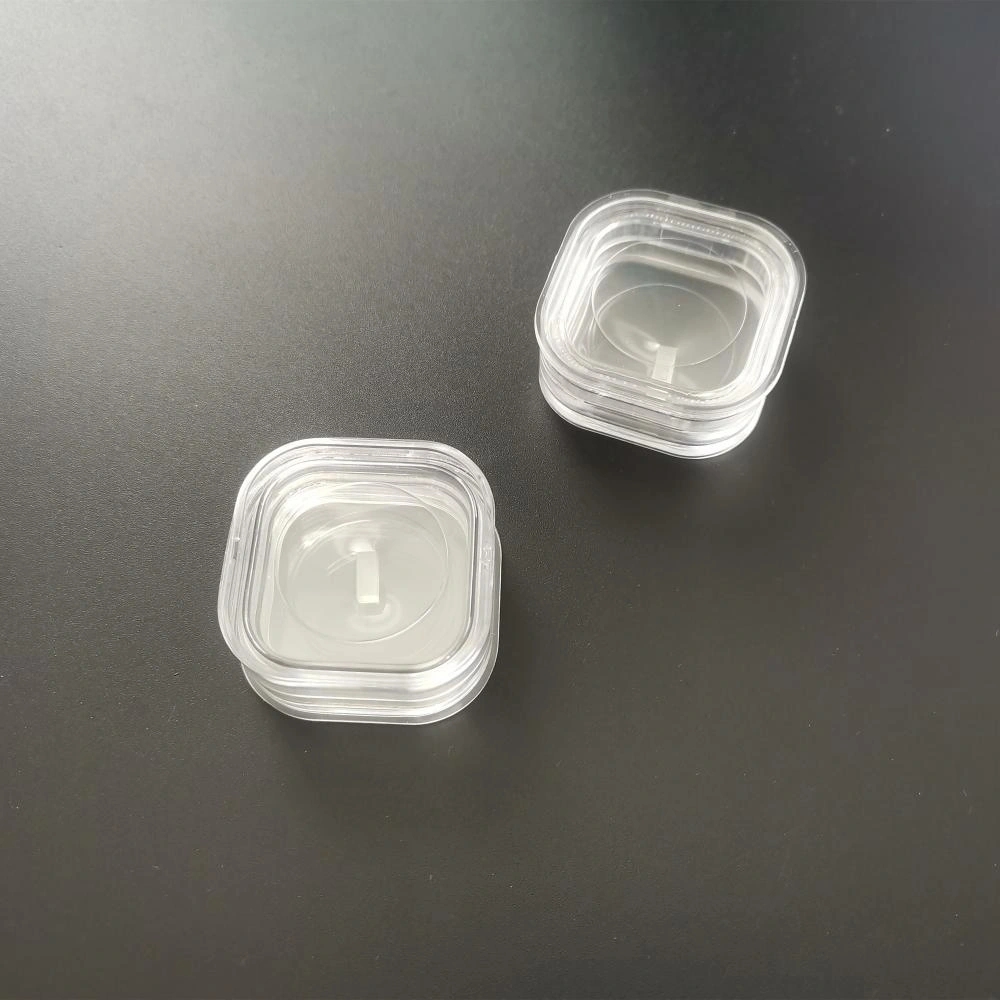

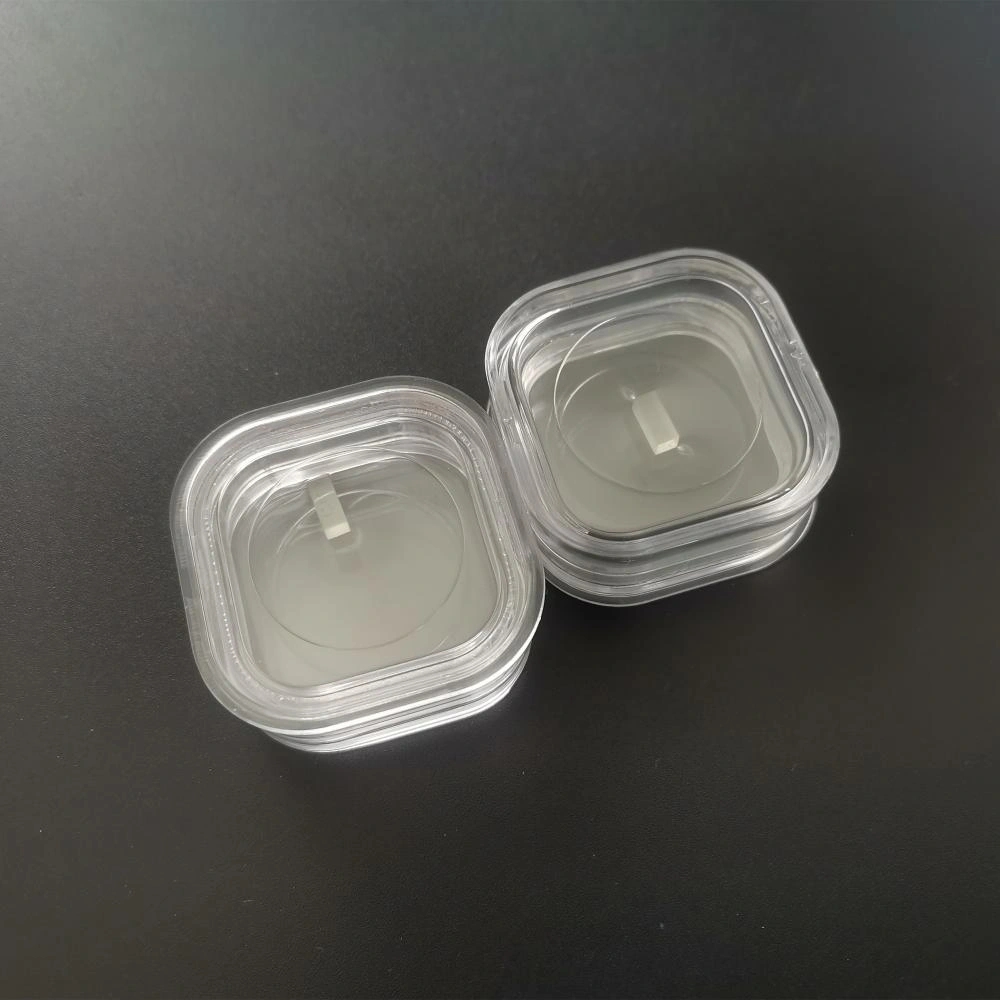

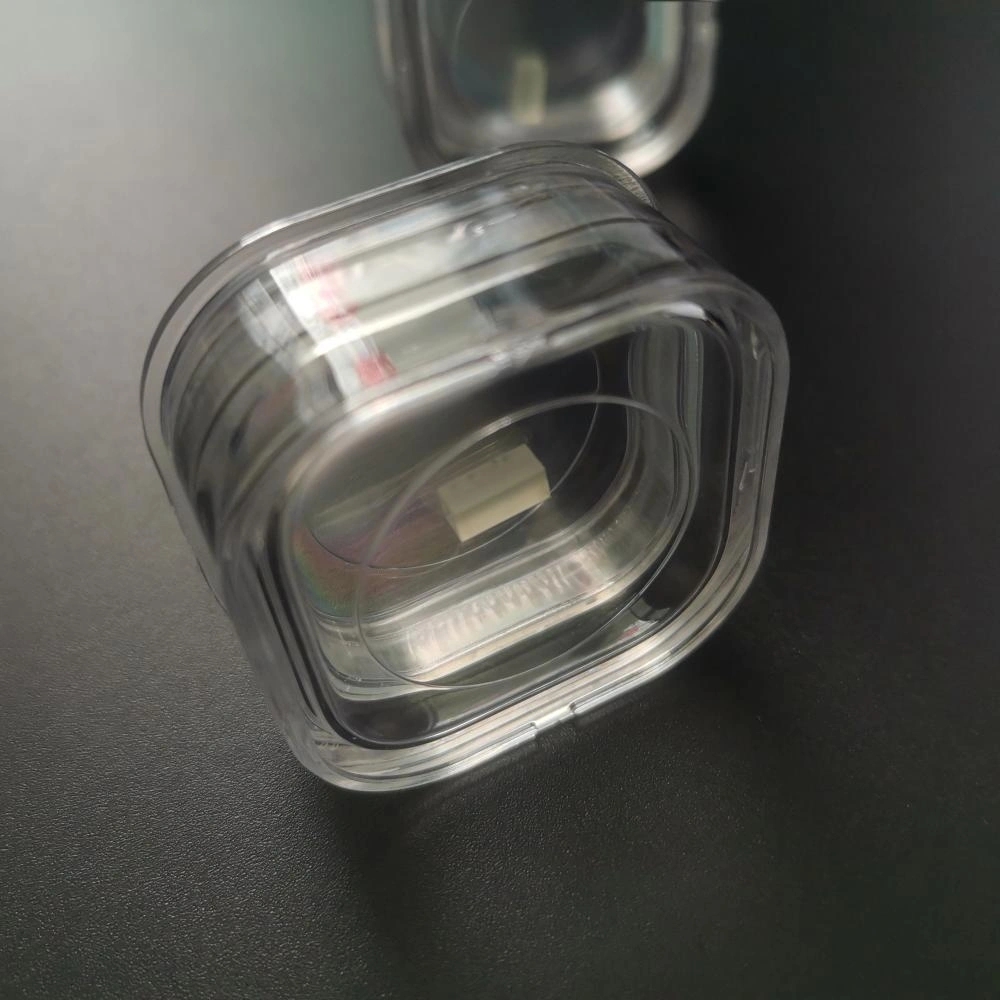

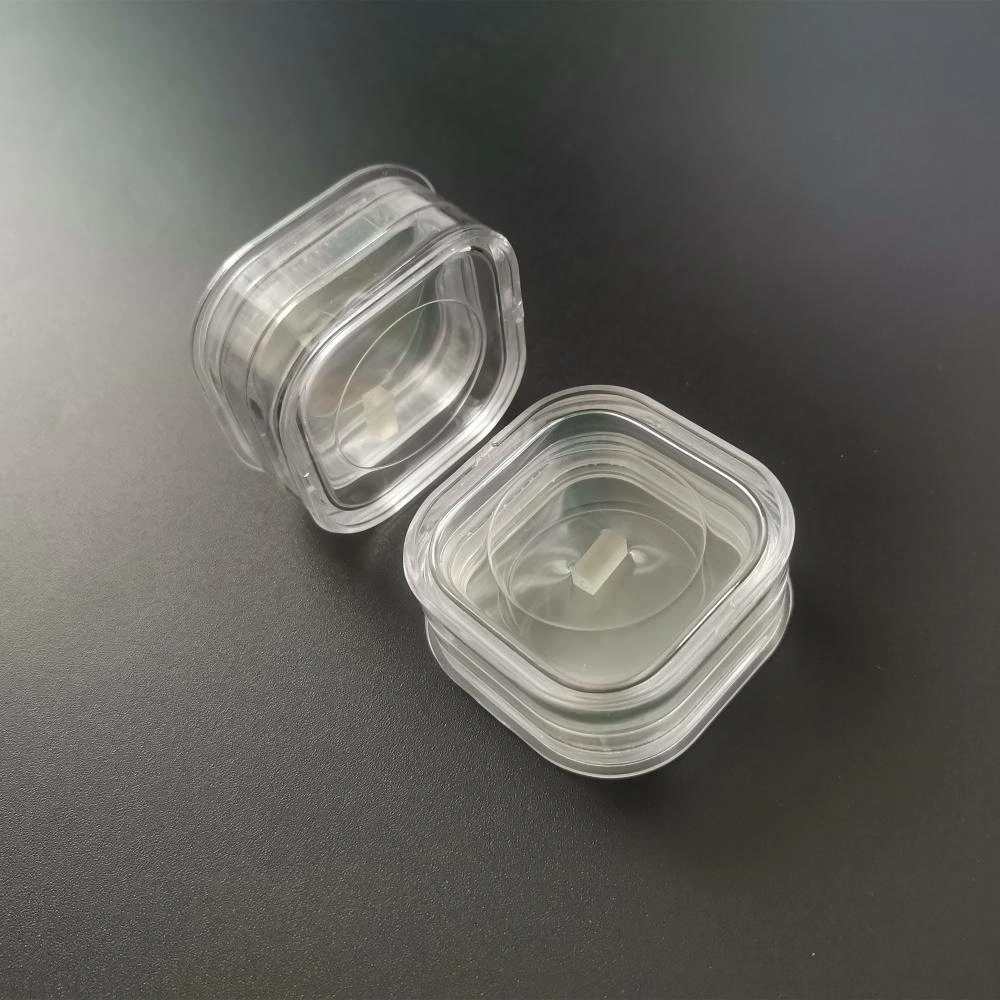

Picture Example:
It is more suitable for diode-pumping than the traditional Nd-doped systems. It can be pumped at 0.94 μm laser output. Compared with the commonly used Nd:YAG crystal, Yb:YAG crystal has a much larger absorption bandwidth to reduce thermal management
requirements for diode lasers, a longer upper-state lifetime, three to four times lower thermal loading per unit pump power. Yb:YAG crystal is expected to replace Nd:YAG crystal for high power diode-pumped lasers and other potential applications.

Advantages:
• Very low fractional heating, less than 11%
• Very high slope efficiency
• Broad absorption bands, about 8nm@940nm
• No excited-state absorption or up-conversion
• Conveniently pumped by reliable InGaAs diodes at 940nm(or 970nm)
• High thermal conductivity and large mechanical strength
• High optical quality
Zoolied has been provided Crystal Optics for many years. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as Yb:YAG Crystal Ytterbium Doped Yttrium Aluminum Garnet, CaF2 Crystals Calcium Fluoride IR OpticsNd YAG laser crystalsDiffusion bouding crystalsErbium Laser Glass and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products.
Photobank

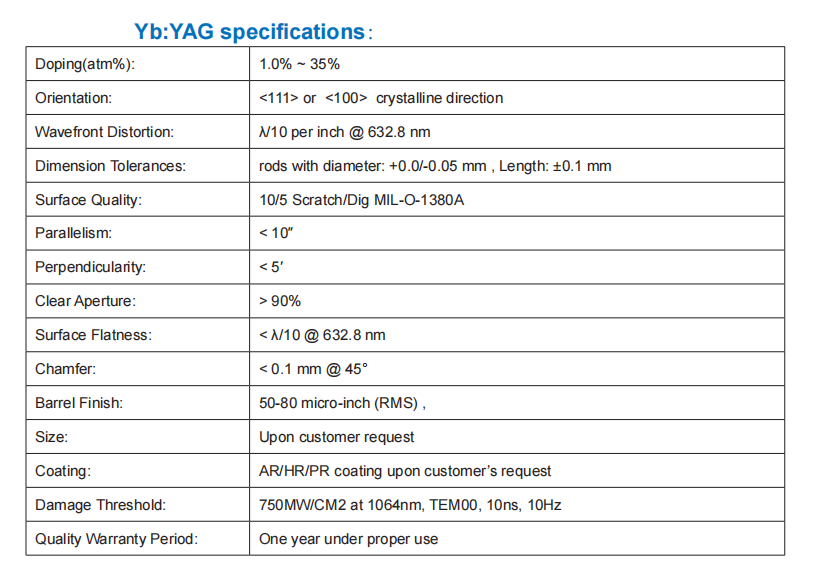

Yb YAG specifications
