CaF2 Crystals Calcium Fluoride IR Optics
$28 - 48 /Piece/Pieces
Color:
Plug type:
option:
Sample: $10000.00 /Piece/Pieces, 1 Piece/Piec...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY902

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000

Transportation: Ocean,Land,Air,Express

Place of Origin: Changchun

Supply Ability: 8000000

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
Standard Package
Picture Example:
The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good temperature stability and physical and mechanical properties. It is ideal CaF2 is a cubic crystal with an excellent transmission from 130 nm to 10 μm and has widespread applications as transparent windows in the ultraviolet and infrared spectra. Recently, CaF2 windows found a wide use for broadband continuum generation (white light generation) pumped by femtosecond lasers. HG supplies [001] cut (i.e. the surface is perpendicular to the [001] axis) high quality CaF2 windows for continuum generation. CaF2 windows cut along a random orientation and polycrystalline CaF2 are also available.

Zoolied can offer Crystal Optics such as CaF2 Crystals Calcium Fluoride IR Optics, Passive Q-switch Crystals, Nd YAG laser crystals, Diffusion bouding crystals,Erbium Laser Glass and Ti:Sapphire Crystal.


Photobank

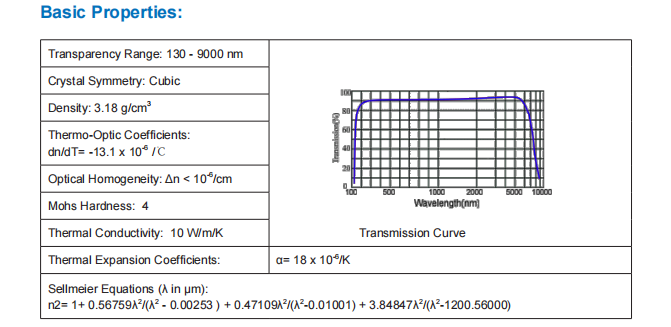

CaF2 Basic Properties

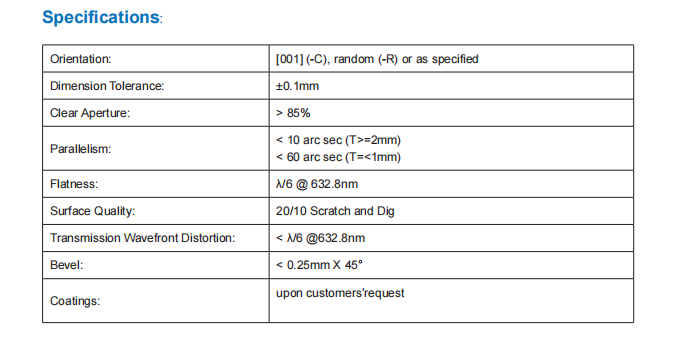

CaF2 Specifications

Zoolied Crystals Lists

ND:YAG

Ce:LuAG
 Yb∶KYW YIG
Cr:YAG
 Ho:LUGG
 Iceland crystal
 DKDP
YV04
 Nd:LuAG
 Mg0∶LiNbO3
 YAB
MD:YV04
 Tm:Ho:YLF
 Ho∶YV04
 Mg0:LiTa03
Yb:YAG
 Nd:YAP
 Nd∶YSAG
 Tm:KYW
ND∶GdV04
 V:YAG
 Er∶YLF
 Fe:LiNb03
Nd:YLF
 SGGG
 Nd:GYSGG
 RTP
Ho∶YAG
 LiL03
 Er∶KGW
 KYW
BBO
 Nd:Ce:YAG
 ND:GYSAG
 TSAG
LBO
 BLO
 Quartz
 KTA
KTP
 Er:Yb:YAB
 Tm∶YVO4
 GYSGG
TGG
 Er:YSGG
 GGG
 Cr:Nd:YAG
LiNbO3
 Ho:YAP
 Nd∶GSGG
 Yb:YAB
CaF2
 YSGG
 KDP
 Tb:YLF
LiTa03
 HGTR-KTP
 Ti∶sapphire
 Ho∶YLF
a-BB0
 Er:YAP
 YLF
 YSGG
Co∶MgAl204
 LiF
 Yb∶YLF
 MgF2
JGS1
 Er:YAG
 Yb∶CaF2
 PMN-PT
GdV04
 Cr:LiCAF
 LYSO
 Dy:YLF
Tm∶YLF
 SrWO4
 LiGa02
 Nd:KGW
Pr∶YLF
 GdSc03
 Tm∶YAP
 BiB0
Yb∶KGW
 Cr:GSGG
 KGW
 Er:Caf2
Sapphires
 TGGG
 Cr∶Er∶YSGG
 Ce:YAG
YLF
 ADP
 Cr∶LiSAF
 CBN
YAG
 LiSAF
 LiCAF
 PPKTP
