Ti:Sapphire Crystal Titanium Doped Sapphire
$123 - 241 /Piece/Pieces
Color:
Plug type:
option:
Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY890

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
2kg
Package Type:
Standard Package
Picture Example:
Ti:Sapphire Crystal is the most widely used tunable solid-state laser material combining the supreme physical and optical properties with the extremely broad lasing range. Its lasing bandwidth can support pulses < 10fs making it the crystal of choice for femtosecond modelocked oscillators and amplifiers. The absorption band of Ti:Sapphire centers at ~ 490 nm so it may be conveniently pumped by various laser sources such as argon ion lasers or frequency doubled Nd:YAG, Nd:YLF, Nd:YVO4 lasers at ~ 530nm.
Applications
• The tunable wavelengths that cover a broad range from 700 to 1000 nm make Ti:Sapphire an excellent substitute for dye lasers in many applications.
• Doubling by NLO crystals such as BBO in an ultra-thin, Ti:Sapphire can be used to generate UV and DUV (up to 193 nm ) laser with ultrafast pulses below 10fs.
• Ti:Sapphire is also widely used as the pump source of OPOs to expand the tunable range.
Zoolied can offer Ti:Sapphire crystal according to your requirements. We also produce other Crystal Optics such as Passive Q-switch Crystals, Nd YAG laser crystals, Diffusion bouding crystals and Erbium Laser Glass.

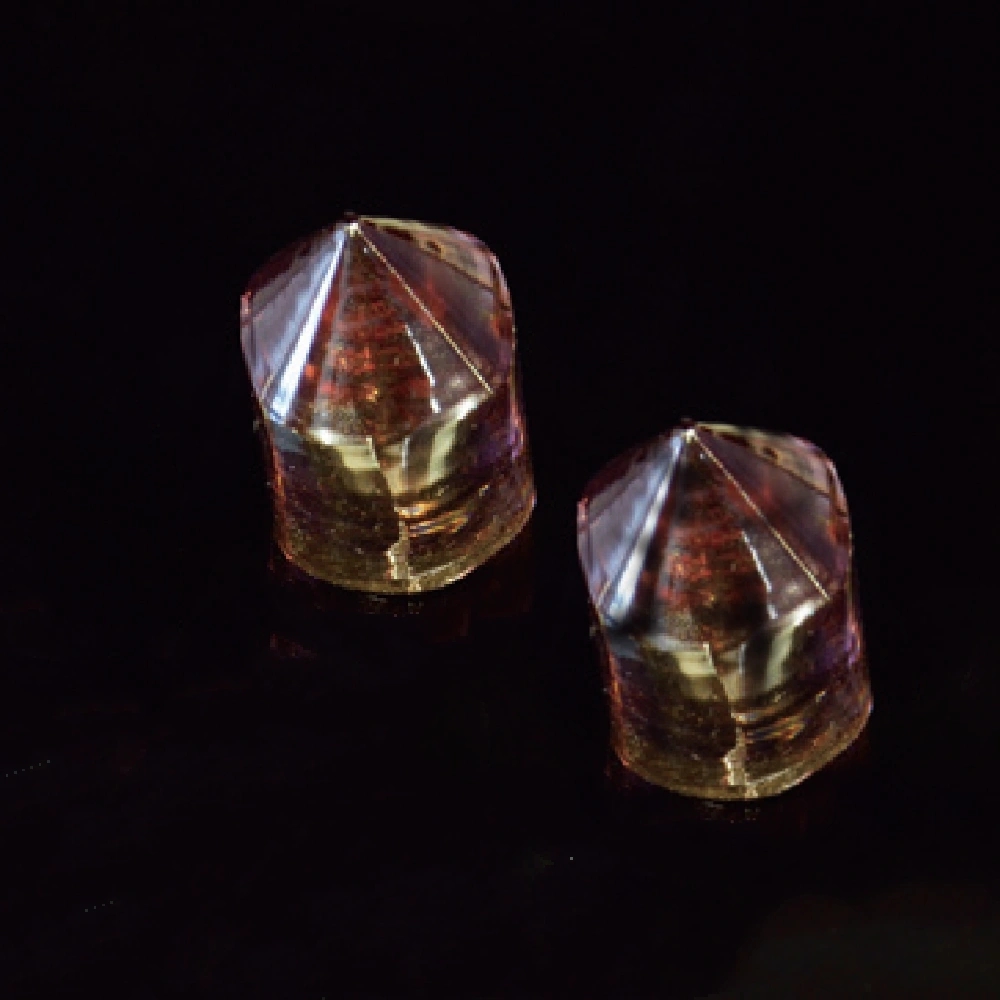

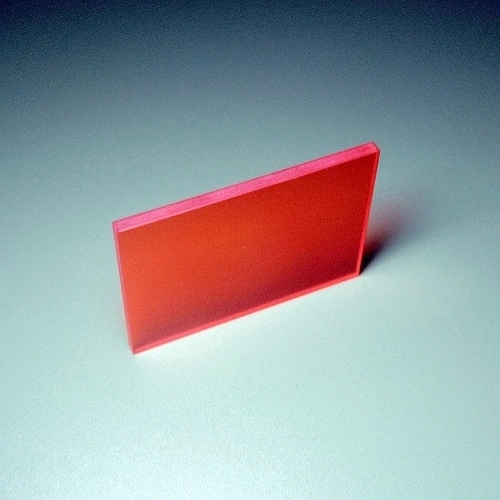

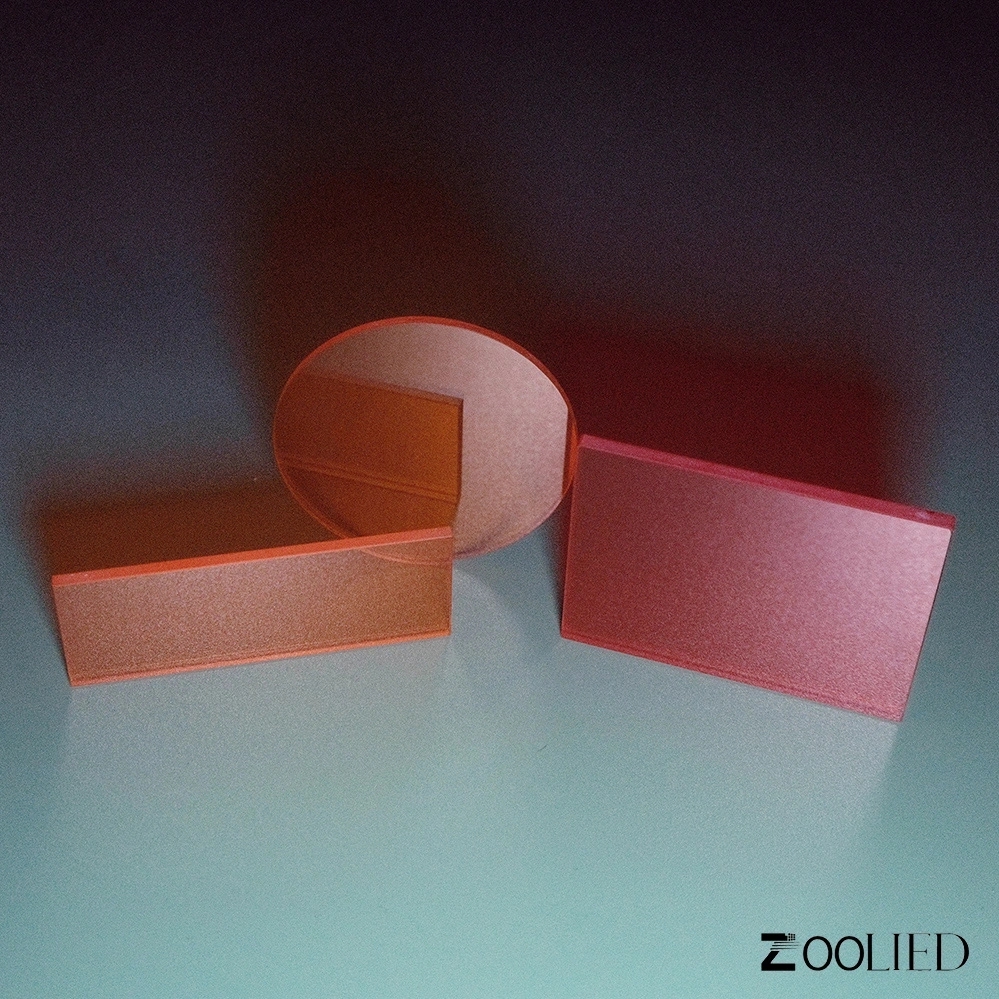

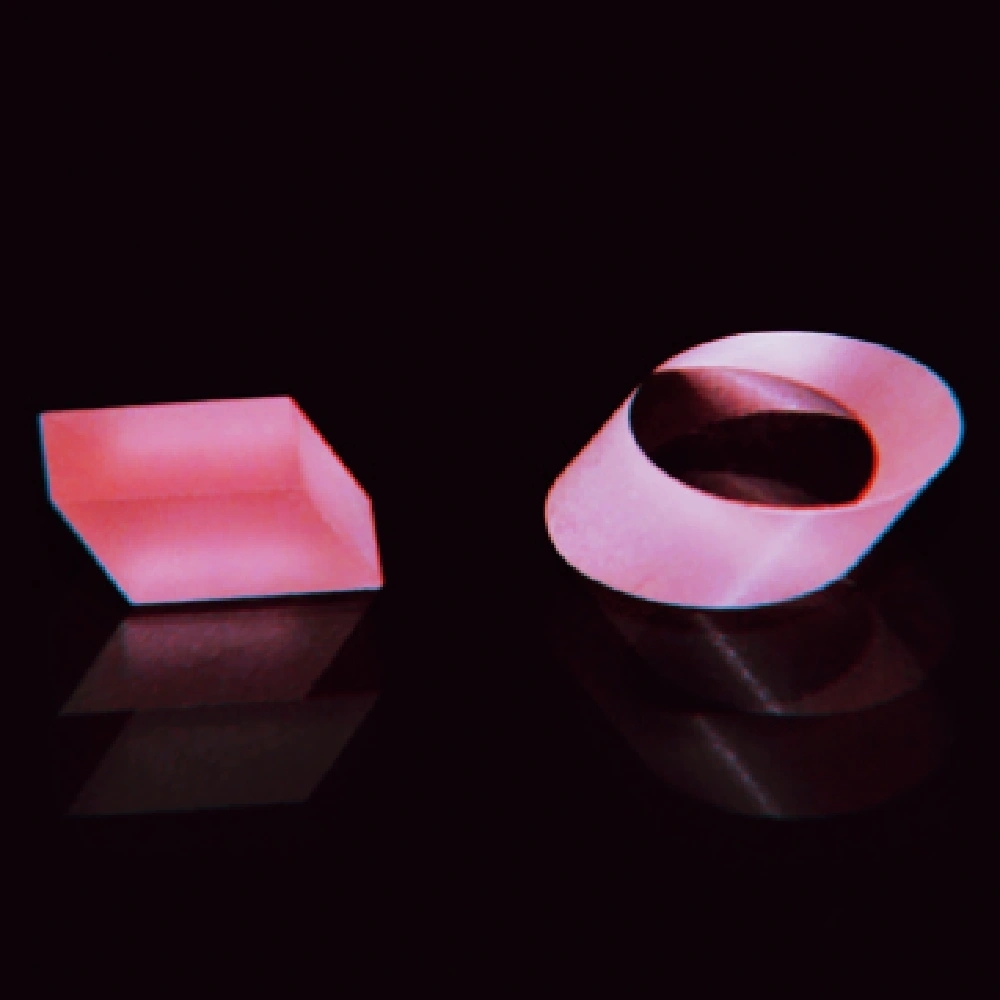

Photobank

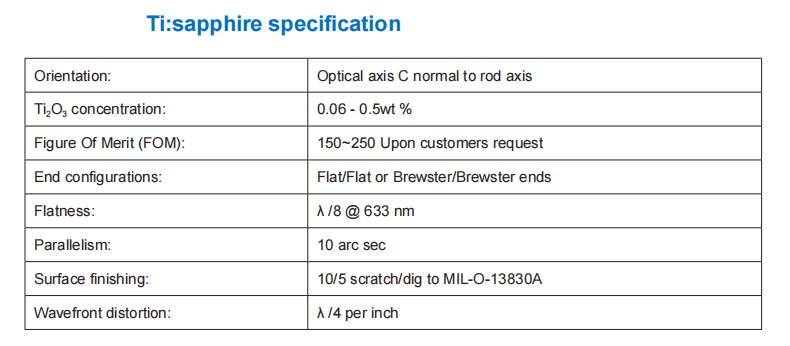

Ti Sapphire Specification

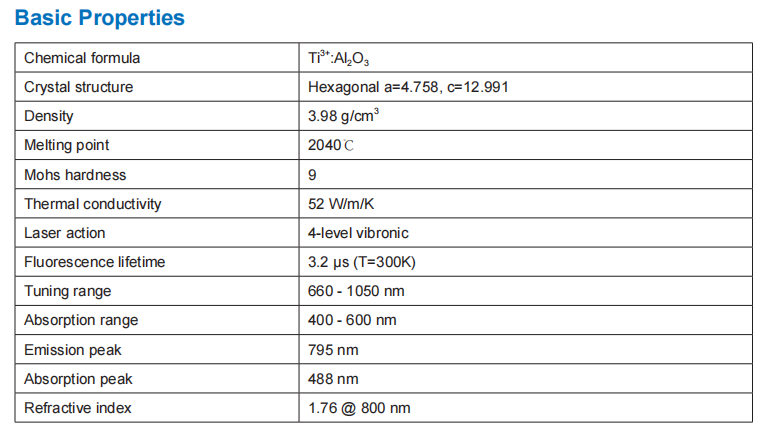

Ti Sapphire Basic Properties
