KDP & DKDP Crystal Potassium Dihydrogen Phosphate Potassium

$88 - 195 /Piece/Pieces

Color:

Plug type:

Other

option:

NLO crystals
KDP Crystal
DKDP Crystal
Laser Crystal

Contact Now

Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample

Share: Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Overview

Product Attributes

Model No.: ZLY894

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 20cm*20cm*20cm

Single gross weight:: 2kg

Package Type:: Standard Package

Picture Example:

KDP and DKDP(KD*P)are one of the most widely-used commercial NLO materials, characterized by good UV transmission, high damage threshold, and high birefringence, though their NLO coefficients are relatively low. They are usually used for doubling, tripling and

quadrupling of a Nd:YAG laser under the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro-optical modulators, such as Q-switches, Pockels Cells, etc.

Applications:

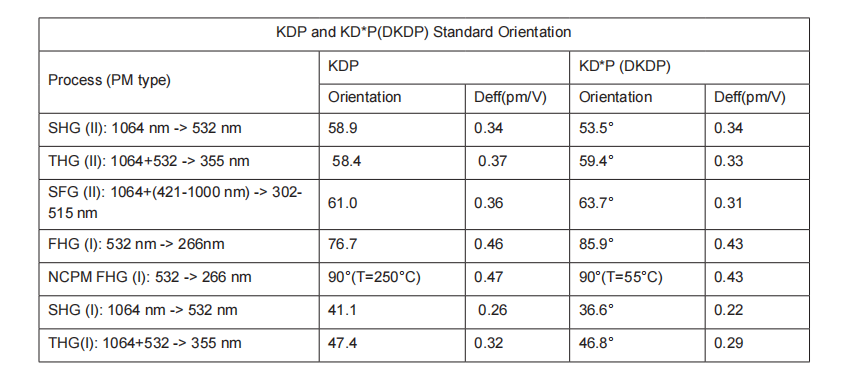

• Second, third, and fourth harmonic generation of Nd:lasers.

• Frequency doubling of dyer laser

• High power laser frequency conversion materials

• Shutter for high speed photography

• Electro-optical modulator and Q switches

As a leading Crystal Optics supplier, Zoolied is always the reliable choice for consumers. We can produce a variety of Crystal Optics such as Nd:GdVO4 Crystal Neodymium Doped Gadolinium Orthovanadate, KDP & DKDP Crystal Potassium Dihydrogen Phosphate Potassium, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products. Do you want to know more details about these products? Please feel free to contact us.
