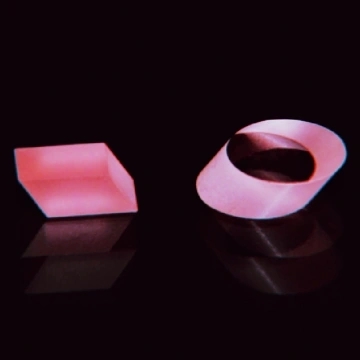

Passive Q-switch Co2+:MgAl2O4 Crystal Co:Spinel
$520 - 800 /Piece/Pieces
.jpg)
Product Description
Overview
Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Co2+:MgAl2O4 is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6 μm, in particular, for eye-safe 1.54 μm Er:glass laser, but also works at 1.44 μm and 1.34 μm wavelengths. Spinel is a hard, stable crystal that polishes well. Cobalt substitutes readily for magnesium in the Spinel host without the need for additional charge compensation ions. High absorption cross section (3.5×10-19 cm2 ) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.
Featuers:
• High optical quanlity;
• With uniform Co distribution;
• High absorption cross section;
• Negligible excited-state absorption;
Zoolied has been devoted to producing optical components for many years. It's always the reliable choice for consumers. We can offer a variety of Crystal Optics such as YVO4 Crystal Yttrium Vanadate, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals, Erbium Laser Glass and Ti:Sapphire Crystal. There are three kinds of Passive Q-switch Crystals that you can choose. They are Passive Q-switch Cr4+:yag Crystals, Passive Q-switch V:yag Crystals and Passive Q-switch Co2+:mgal2o4 Crystal Co:spinel. If you have other requirements, we also can make customized products.
|
Zoolied Crystals Lists |
|||
|
ND:YAG |
Ce:LuAG |
Yb∶KYW |
YIG |
|
Cr:YAG |
Ho:LUGG |
Iceland crystal |
DKDP |
|
YV04 |
Nd:LuAG |
Mg0∶LiNbO3 |
YAB |
|
MD:YV04 |
Tm:Ho:YLF |
Ho∶YV04 |
Mg0:LiTa03 |
|
Yb:YAG |
Nd:YAP |
Nd∶YSAG |
Tm:KYW |
|
ND∶GdV04 |
V:YAG |
Er∶YLF |
Fe:LiNb03 |
|
Nd:YLF |
SGGG |
Nd:GYSGG |
RTP |
|
Ho∶YAG |
LiL03 |
Er∶KGW |
KYW |
|
BBO |
Nd:Ce:YAG |
ND:GYSAG |
TSAG |
|
LBO |
BLO |
Quartz |
KTA |
|
KTP |
Er:Yb:YAB |
Tm∶YVO4 |
GYSGG |
|
TGG |
Er:YSGG |
GGG |
Cr:Nd:YAG |
|
LiNbO3 |
Ho:YAP |
Nd∶GSGG |
Yb:YAB |
|
CaF2 |
YSGG |
KDP |
Tb:YLF |
|
LiTa03 |
HGTR-KTP |
Ti∶sapphire |
Ho∶YLF |
|
a-BB0 |
Er:YAP |
YLF |
YSGG |
|
Co∶MgAl204 |
LiF |
Yb∶YLF |
MgF2 |
|
JGS1 |
Er:YAG |
Yb∶CaF2 |
PMN-PT |
|
GdV04 |
Cr:LiCAF |
LYSO |
Dy:YLF |
|
Tm∶YLF |
SrWO4 |
LiGa02 |
Nd:KGW |
|
Pr∶YLF |
GdSc03 |
Tm∶YAP |
BiB0 |
|
Yb∶KGW |
Cr:GSGG |
KGW |
Er:Caf2 |
|
Sapphires |
TGGG |
Cr∶Er∶YSGG |
Ce:YAG |
|
YLF |
ADP |
Cr∶LiSAF |
CBN |
|
YAG |
LiSAF |
LiCAF |
PPKTP |
