Diffusion Bonding Crystal Glass
$120 - 190 /Piece/Pieces
Color:
Plug type:
option:
Sample:Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY884

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Standard Package
Picture Example:

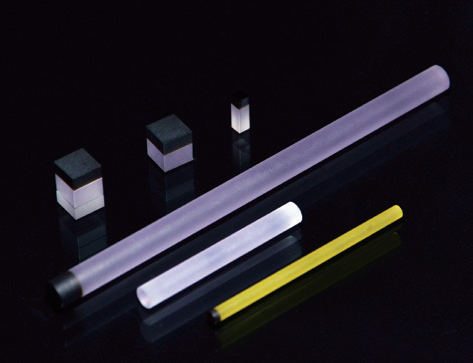

Bonding (Diffusion bonded) crystals consist of one laser crystal and one or two undoped material. They are combined by optical contact method and further bonded under high temperature. Diffusion Bonded Crystal helps to decrease thermal lens effect considerably.

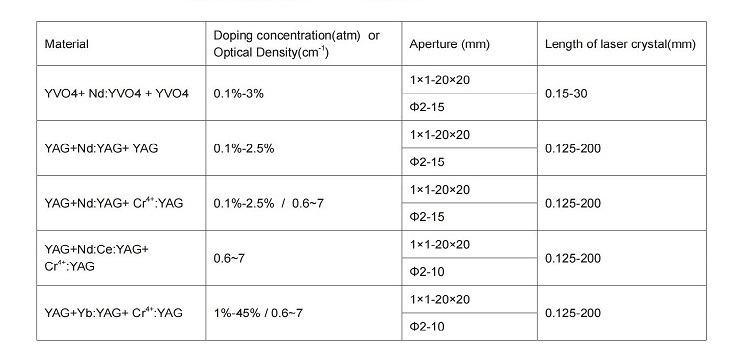

Zoolied can offer various standard assembly types of Diffusion Bonded Crystal. Besides, our company also provide other Crystal Optics for you. We produce Passive Q-switch Crystals, Nd YAG laser crystals, Erbium Laser Glass and Ti:Sapphire Crystal.

Photobank

Bonding Crystal
Bonding Crystal
