BBO Crystal Beta-Barium Borate Crystal

$162 - 235 /Piece/Pieces

Color:

Plug type:

Other

option:

NLO crystals
BBO Crystal
nonlinear optical crystals
Laser Crystal

Contact Now

Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample

Share: Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Overview

Product Attributes

Model No.: ZLY893

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 20cm*20cm*20cm

Single gross weight:: 2kg

Package Type:: Standard Package

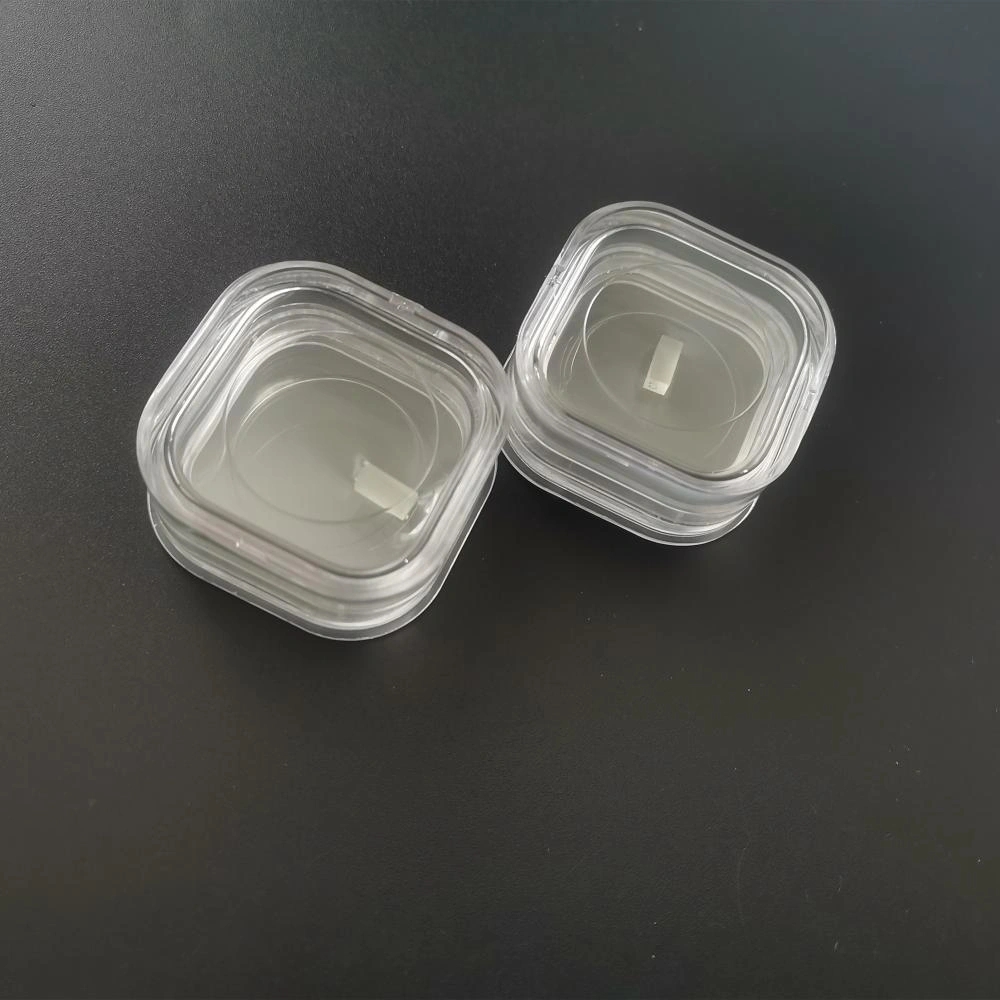

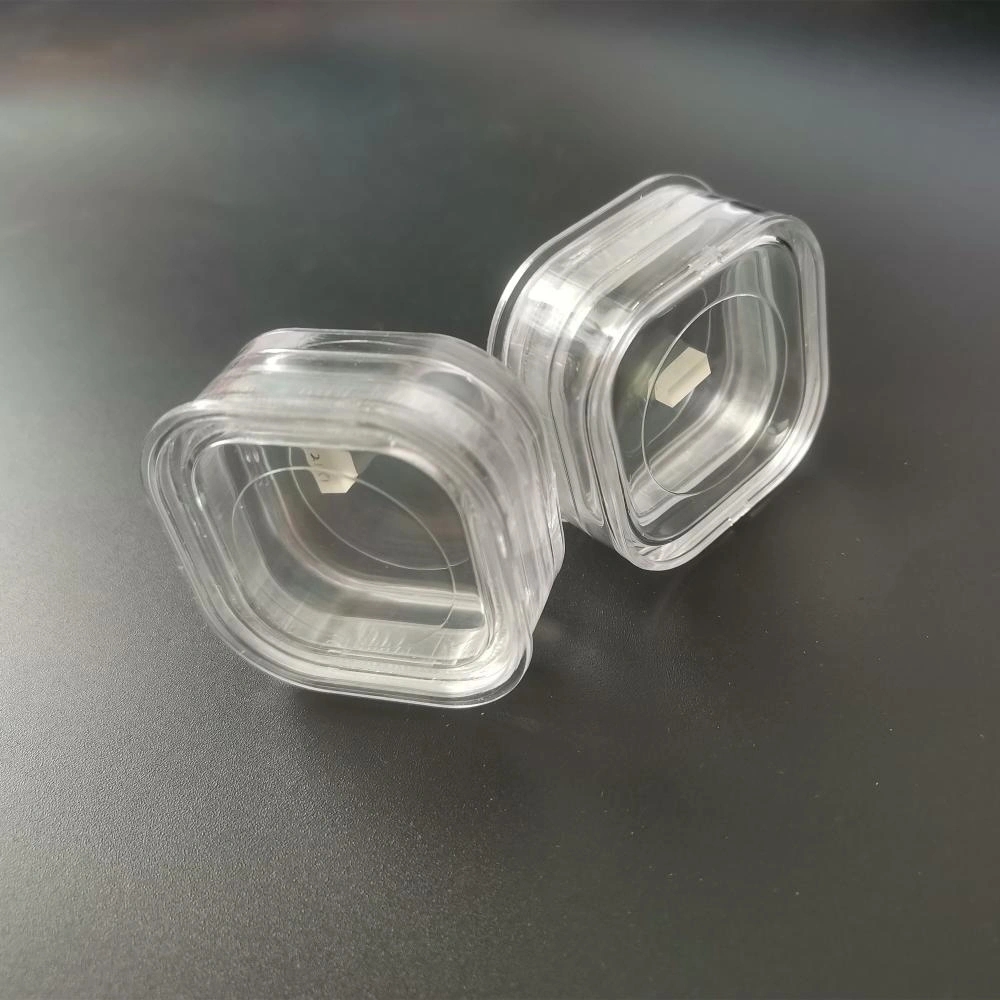

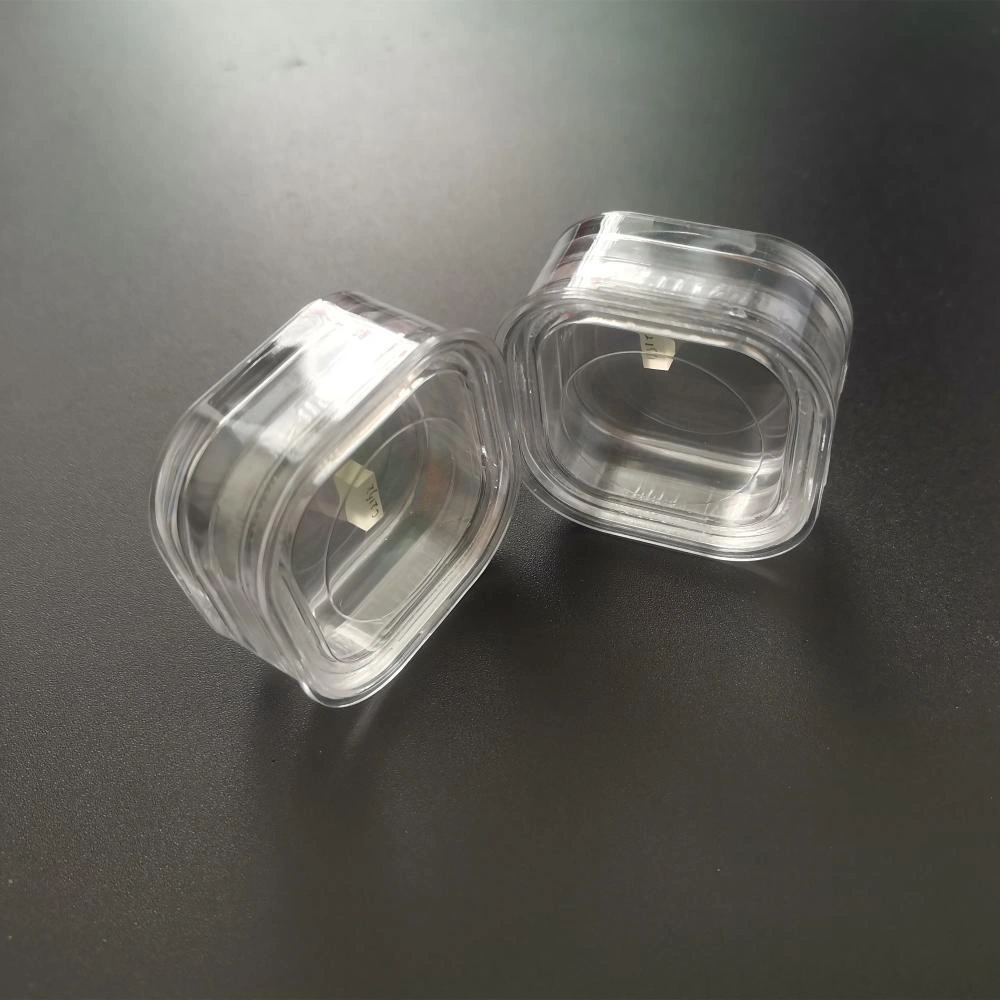

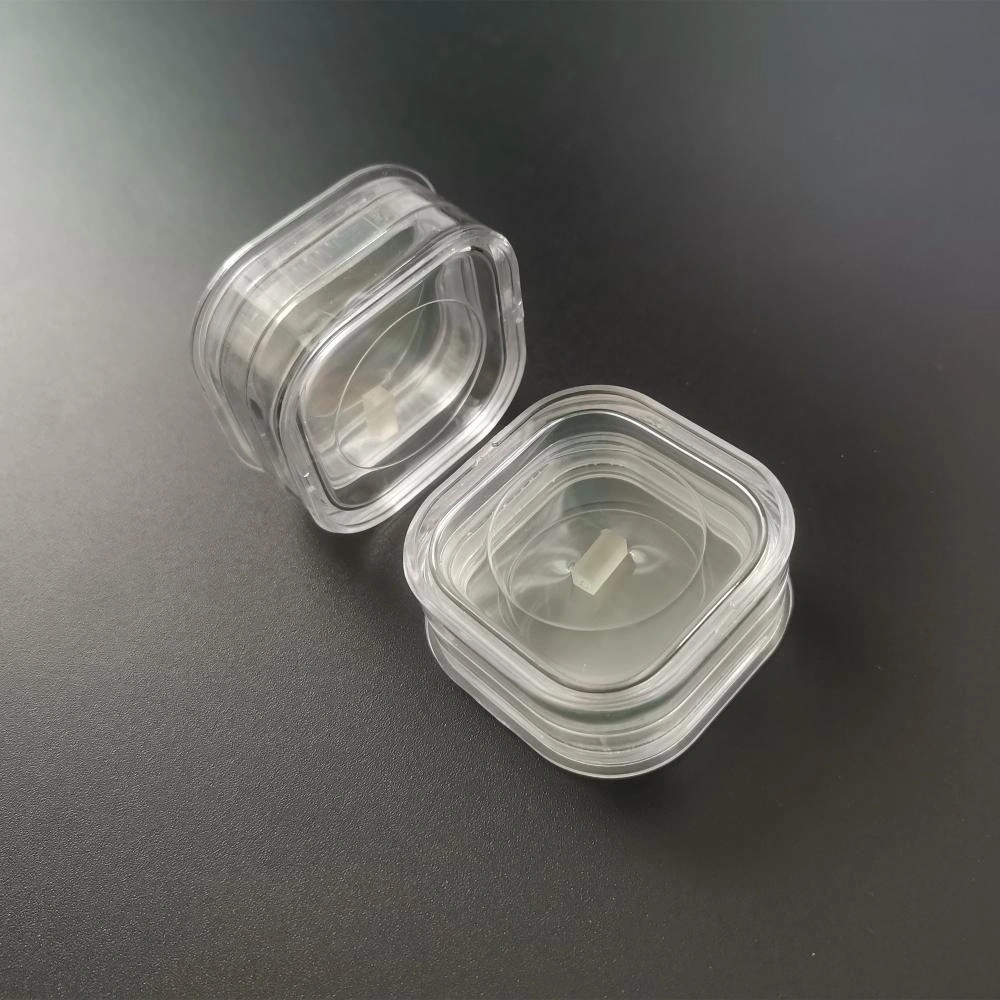

Picture Example:

BBO crystal is an important nonlinear optical crystals with combination of unique optical properties.Broad transmission and phase matching ranges, large nonlinear coefficient,high damage threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applicatios.

Advantages:

• Broad phase matching (SHG) range from 409.6nm to 3500nm

• Wide transmission region from 190nm to 3500nm

• Large effective SHG coefficient

• High damage threshold of 10 GW/cm2 for 100 ps pulse-widths at 1064nm

• High optical homogeneity with Dn 10-6/cm2

• Wide temperature bandwidth of about 55° (for type I SHG 1064nm)

• Good mechanical and physical properties

BBO’s main applications:

• SHG, THG, 4HG, 5HG of Nd lasers

• SHG, THG, 4HG of Ti:Al2O3 and Alexandrite lasers

• SHG, THG and Frequency-mixing of Dye lasers

• SHG of Argon ion, Cu-vapor and Ruby lasers

• OPA and OPO

• Pockels’ Cell

Zoolied is a leading Crystal Optics supplier. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as LBO Crystal Lithium Triborate Crystal, BBO Crystal Beta-Barium Borate Crystal, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products.
Photobank

Zoolied Crystals Lists
ND:YAG	Ce:LuAG	Yb∶KYW	YIG
Cr:YAG	Ho:LUGG	Iceland crystal	DKDP
YV04	Nd:LuAG	Mg0∶LiNbO3	YAB
MD:YV04	Tm:Ho:YLF	Ho∶YV04	Mg0:LiTa03
Yb:YAG	Nd:YAP	Nd∶YSAG	Tm:KYW
ND∶GdV04	V:YAG	Er∶YLF	Fe:LiNb03
Nd:YLF	SGGG	Nd:GYSGG	RTP
Ho∶YAG	LiL03	Er∶KGW	KYW
BBO	Nd:Ce:YAG	ND:GYSAG	TSAG
LBO	BLO	Quartz	KTA
KTP	Er:Yb:YAB	Tm∶YVO4	GYSGG
TGG	Er:YSGG	GGG	Cr:Nd:YAG
LiNbO3	Ho:YAP	Nd∶GSGG	Yb:YAB
CaF2	YSGG	KDP	Tb:YLF
LiTa03	HGTR-KTP	Ti∶sapphire	Ho∶YLF
a-BB0	Er:YAP	YLF	YSGG
Co∶MgAl204	LiF	Yb∶YLF	MgF2
JGS1	Er:YAG	Yb∶CaF2	PMN-PT
GdV04	Cr:LiCAF	LYSO	Dy:YLF
Tm∶YLF	SrWO4	LiGa02	Nd:KGW
Pr∶YLF	GdSc03	Tm∶YAP	BiB0
Yb∶KGW	Cr:GSGG	KGW	Er:Caf2
Sapphires	TGGG	Cr∶Er∶YSGG	Ce:YAG
YLF	ADP	Cr∶LiSAF	CBN
YAG	LiSAF	LiCAF	PPKTP
