LBO Crystal Lithium Triborate Crystal

$186 - 256 /Piece/Pieces

Color:

Plug type:

Other

option:

NLO crystals
LBO Crystal
nonlinear crystal
Laser Crystal

Contact Now

Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample

Share: Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Overview

Product Attributes

Model No.: ZLY892

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 20cm*20cm*20cm

Single gross weight:: 2kg

Package Type:: Standard Package

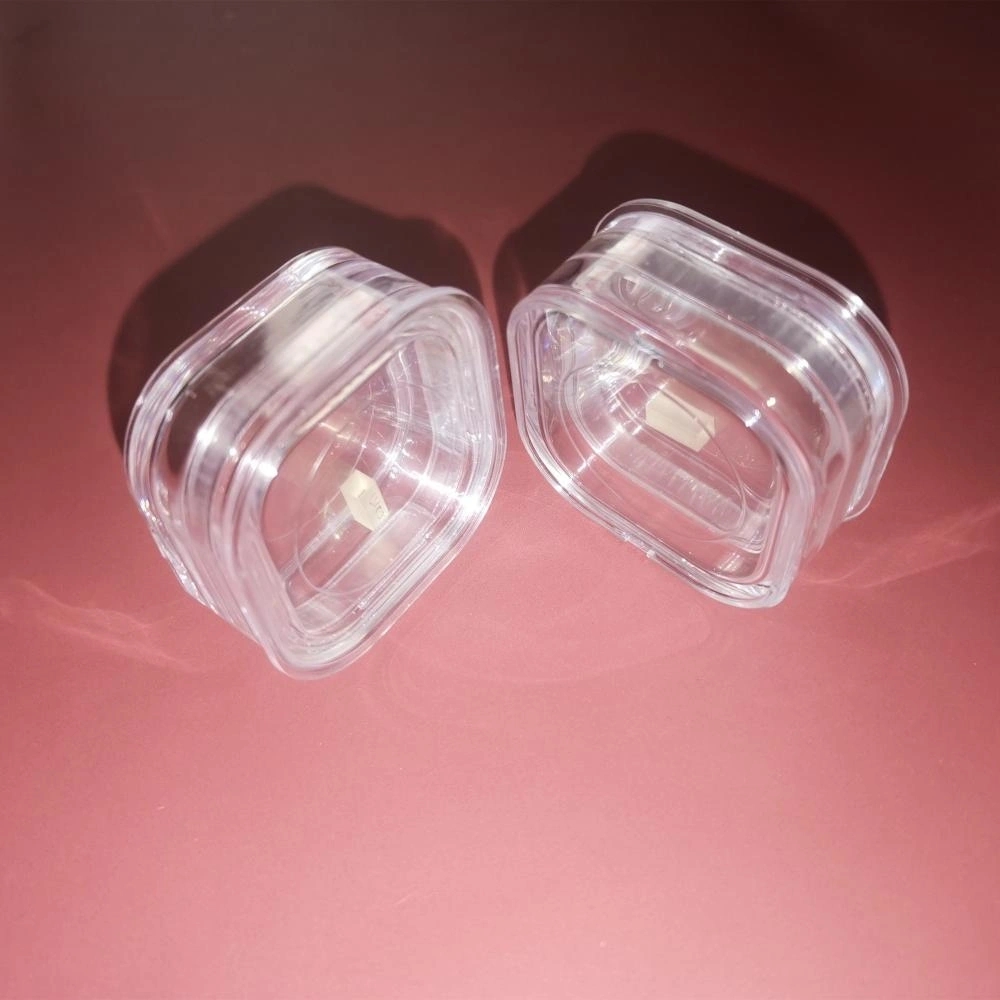

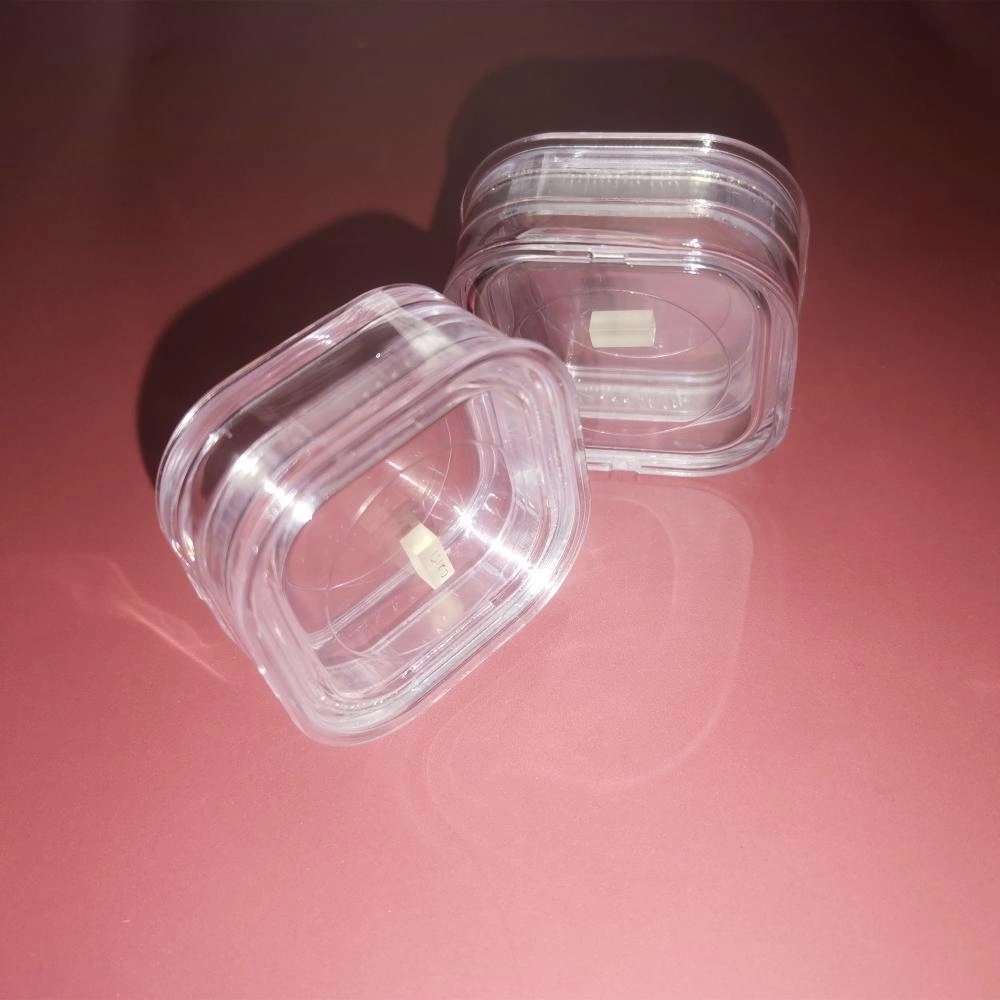

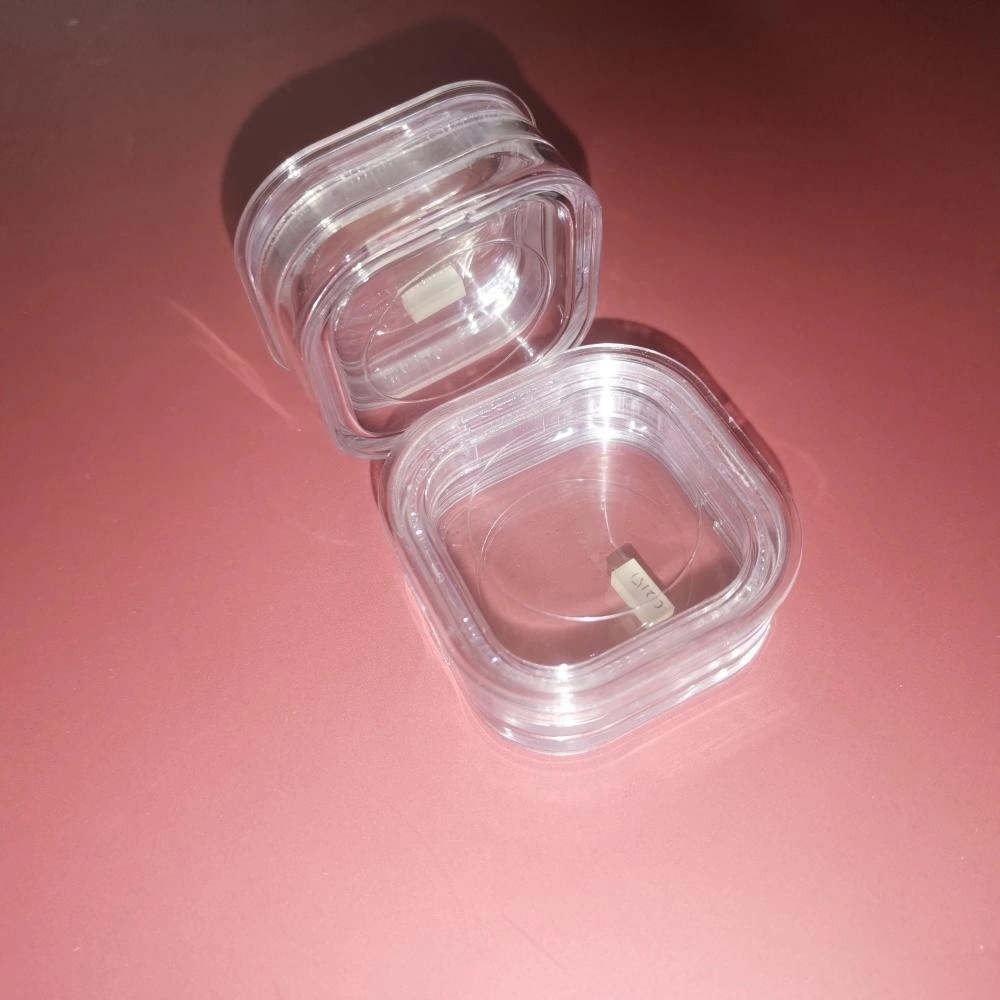

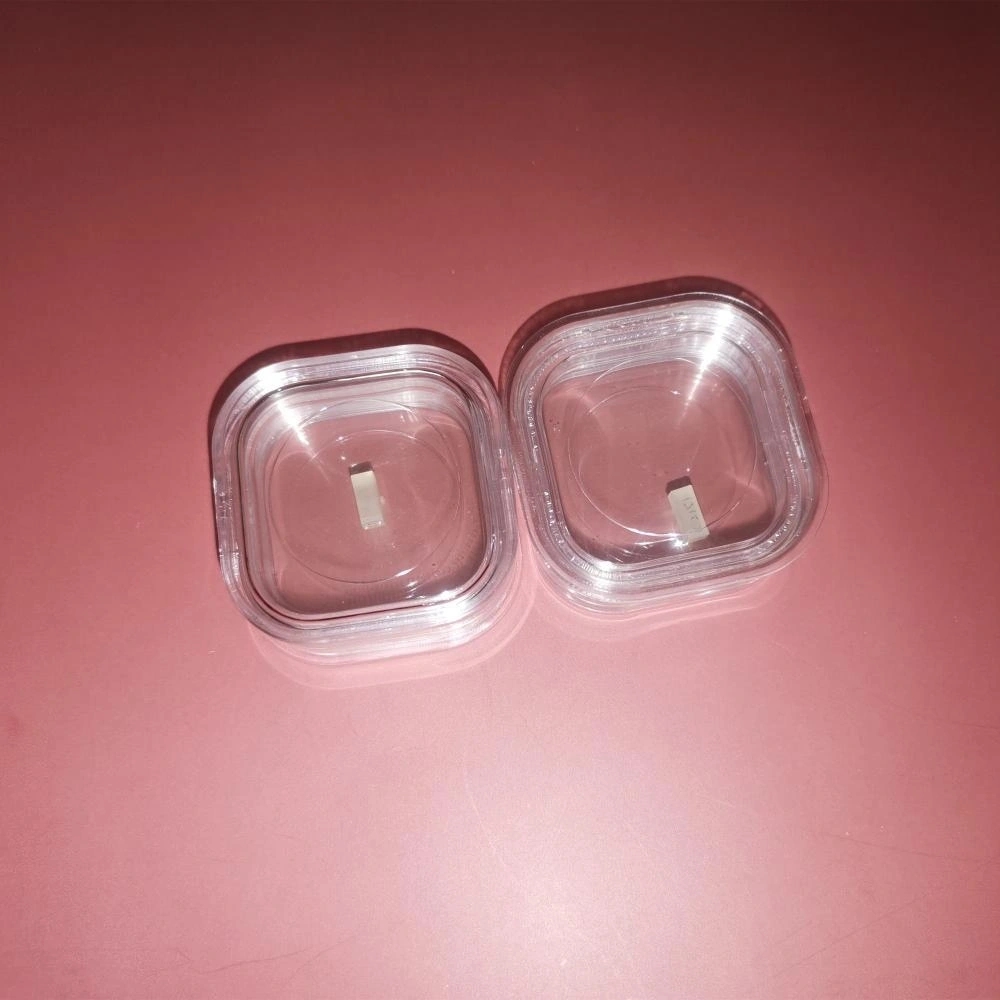

Picture Example:

LBO crystals is an excellent nonlinear crystal.For frequency doubling(SHG),tripling(THG) of Nd:YAG, Nd:YLF, Nd:YVO4 lasers, it is one of the most useful nonlinear optical materials in ultraviolet and visible laser applications.

Advantages:

•broad transparency range from 160nm to 2600nm (see Figure 1);

•high optical homogeneity (δn≈10-6/cm) and being free of inclusion;

•relatively large effective SHG coefficient (about three times that of KDP);

•wide acceptance angle and small walk-off;

•type I and type II non-critical phase matching (NCPM) in a wide wavelength range;

•spectral NCPM near 1300nm.

•high damage threshold(18.9 GW/cm 2 for a 1.3ns laser at 1053nm);

LBO’s main applications:

• SHG, THG of Nd lasers

• SHG of Ti:Sapphire, Cr:LiSAF and Alexandrite lasers

• OPA and OPO

Zoolied is a leading Crystal Optics supplier. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as LBO Crystal Lithium Triborate Crystal, BBO Crystal Beta-Barium Borate Crystal, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products.

Photobank

Zoolied Crystals Lists
ND:YAG	Ce:LuAG	Yb∶KYW	YIG
Cr:YAG	Ho:LUGG	Iceland crystal	DKDP
YV04	Nd:LuAG	Mg0∶LiNbO3	YAB
MD:YV04	Tm:Ho:YLF	Ho∶YV04	Mg0:LiTa03
Yb:YAG	Nd:YAP	Nd∶YSAG	Tm:KYW
ND∶GdV04	V:YAG	Er∶YLF	Fe:LiNb03
Nd:YLF	SGGG	Nd:GYSGG	RTP
Ho∶YAG	LiL03	Er∶KGW	KYW
BBO	Nd:Ce:YAG	ND:GYSAG	TSAG
LBO	BLO	Quartz	KTA
KTP	Er:Yb:YAB	Tm∶YVO4	GYSGG
TGG	Er:YSGG	GGG	Cr:Nd:YAG
LiNbO3	Ho:YAP	Nd∶GSGG	Yb:YAB
CaF2	YSGG	KDP	Tb:YLF
LiTa03	HGTR-KTP	Ti∶sapphire	Ho∶YLF
a-BB0	Er:YAP	YLF	YSGG
Co∶MgAl204	LiF	Yb∶YLF	MgF2
JGS1	Er:YAG	Yb∶CaF2	PMN-PT
GdV04	Cr:LiCAF	LYSO	Dy:YLF
Tm∶YLF	SrWO4	LiGa02	Nd:KGW
Pr∶YLF	GdSc03	Tm∶YAP	BiB0
Yb∶KGW	Cr:GSGG	KGW	Er:Caf2
Sapphires	TGGG	Cr∶Er∶YSGG	Ce:YAG
YLF	ADP	Cr∶LiSAF	CBN
YAG	LiSAF	LiCAF	PPKTP
