Fast Scintillator Ce:YAG Laser crystals

$68 - 253 /Piece/Pieces

Color:

Plug type:

Other

option:

Ce:YAG Crystal
fast scintillator
YAG Crystal
Laser Crystal

Contact Now

Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample

Share: Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Overview

Product Attributes

Model No.: ZLY889

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 20cm*20cm*20cm

Single gross weight:: 2kg

Package Type:: Standard Package

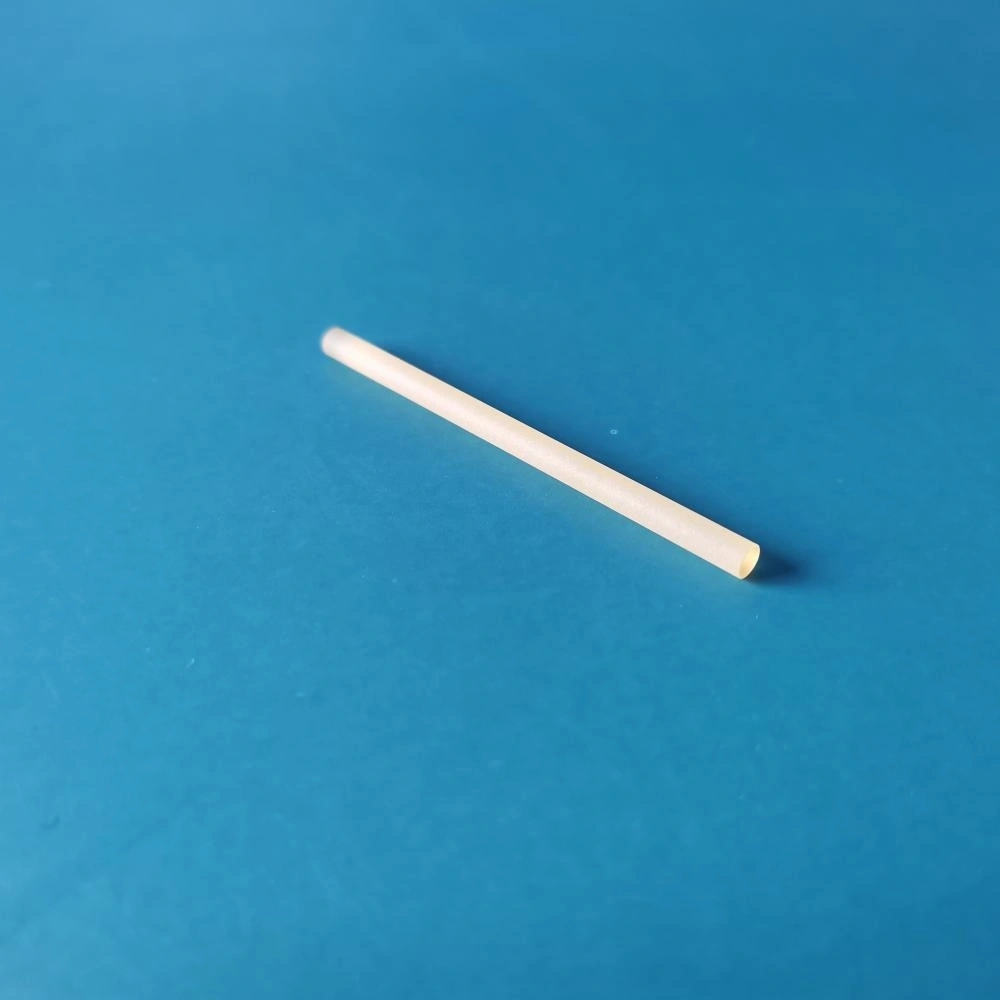

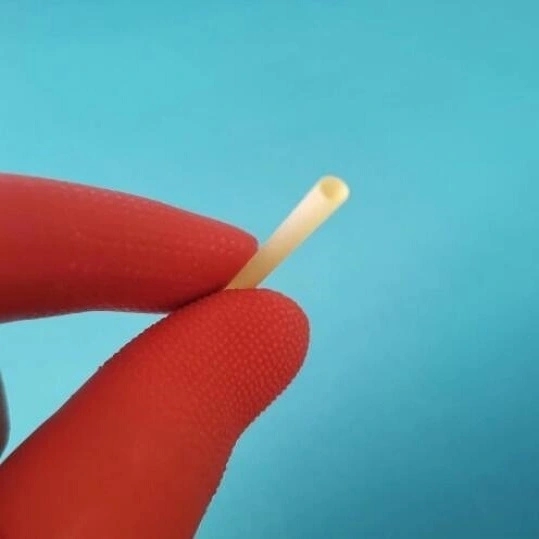

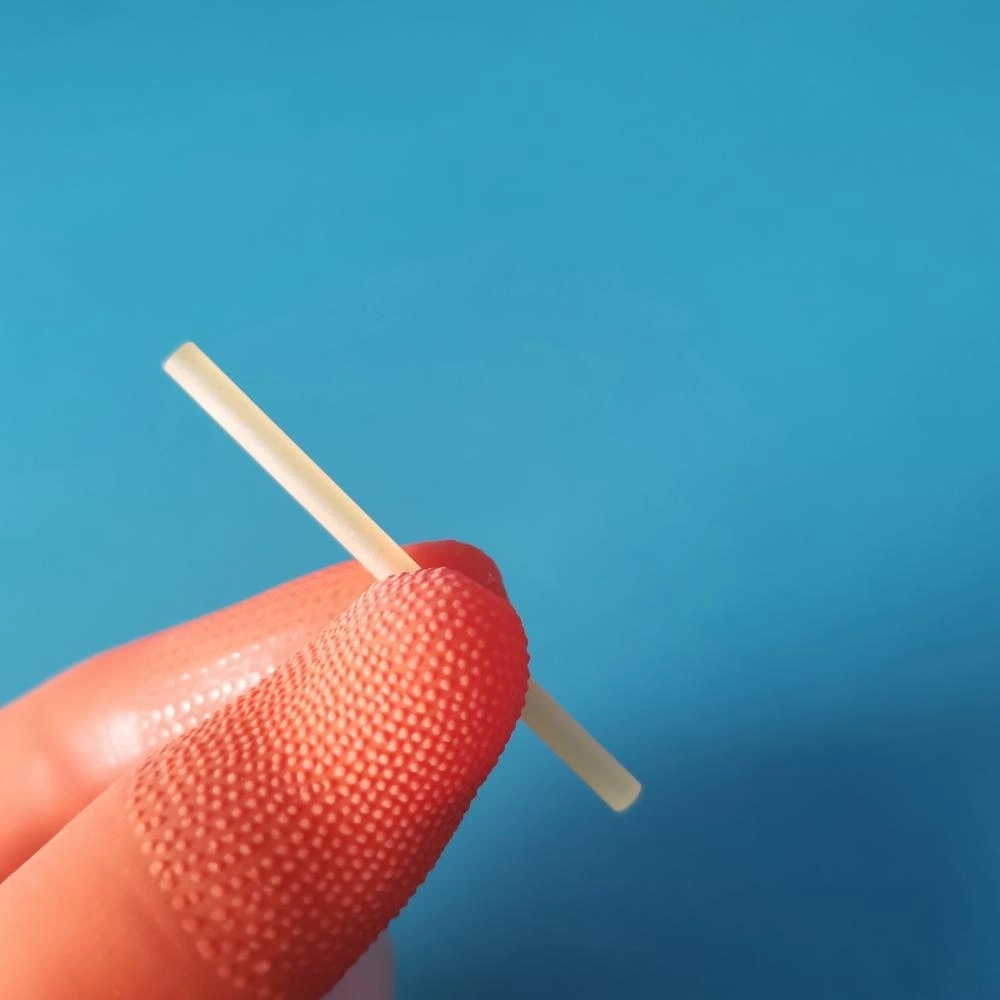

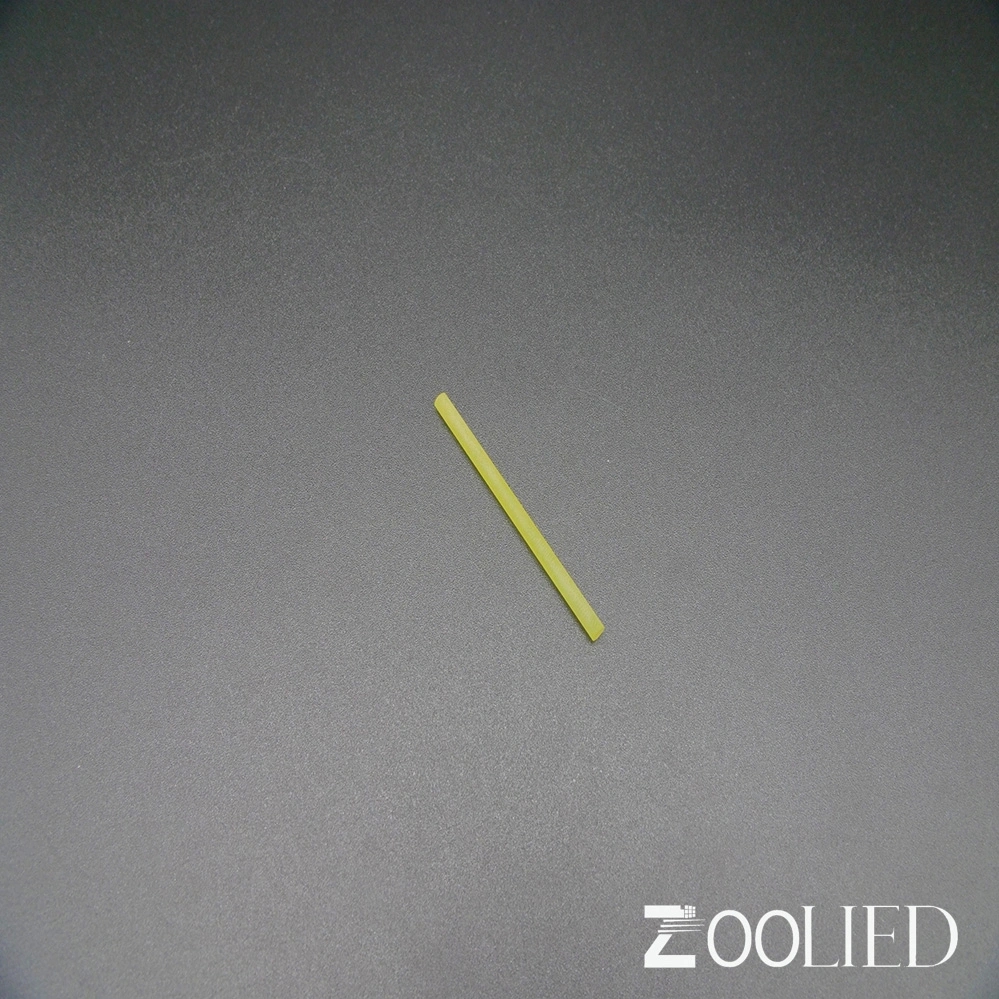

Picture Example:

Ce:YAG is a fast scintillator with excellent mechanical and chemical resistance. Ce:YAG scintillation detectors are preferred for electron microscopy, beta and X-ray counting, as well as for electron and X-ray imaging screens. The material’s mechanical properties enable production of thin screens down to 0.005 mm thick. Does not degrade when bombarded by electrons or ions, thus making Ce:YAG suitable for high current operations. Light emission peaks at about 560nm (yellow) which means that an S20 photomultiplier is most suitable for detecting the emission. Response is better for Ce:YAG than for Planotec P47 discs below 5kV and again at higher accelerating voltages over 100kV, where the performance of powder scintillators falls off while Ce:YAG response increases linearly. Although the signal from Ce:YAG and Ce:YAP is less than the P47, the S/N ratio is better and therefore the final signal is better. Decay time approx. 60 nanoseconds. The side towards the light guide is micro-textured to increase light emission. Can be cleaned (polished) and recoated. Best to coat with 50nm Al to avoid light sensitivity.

Zoolied is a leading Crystal Optics supplier. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as Fast Scintillator Ce:YAG Laser crystals, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals, Erbium Laser Glass and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products.

Photobank

Zoolied Crystals Lists
ND:YAG	Ce:LuAG	Yb∶KYW	YIG
Cr:YAG	Ho:LUGG	Iceland crystal	DKDP
YV04	Nd:LuAG	Mg0∶LiNbO3	YAB
MD:YV04	Tm:Ho:YLF	Ho∶YV04	Mg0:LiTa03
Yb:YAG	Nd:YAP	Nd∶YSAG	Tm:KYW
ND∶GdV04	V:YAG	Er∶YLF	Fe:LiNb03
Nd:YLF	SGGG	Nd:GYSGG	RTP
Ho∶YAG	LiL03	Er∶KGW	KYW
BBO	Nd:Ce:YAG	ND:GYSAG	TSAG
LBO	BLO	Quartz	KTA
KTP	Er:Yb:YAB	Tm∶YVO4	GYSGG
TGG	Er:YSGG	GGG	Cr:Nd:YAG
LiNbO3	Ho:YAP	Nd∶GSGG	Yb:YAB
CaF2	YSGG	KDP	Tb:YLF
LiTa03	HGTR-KTP	Ti∶sapphire	Ho∶YLF
a-BB0	Er:YAP	YLF	YSGG
Co∶MgAl204	LiF	Yb∶YLF	MgF2
JGS1	Er:YAG	Yb∶CaF2	PMN-PT
GdV04	Cr:LiCAF	LYSO	Dy:YLF
Tm∶YLF	SrWO4	LiGa02	Nd:KGW
Pr∶YLF	GdSc03	Tm∶YAP	BiB0
Yb∶KGW	Cr:GSGG	KGW	Er:Caf2
Sapphires	TGGG	Cr∶Er∶YSGG	Ce:YAG
YLF	ADP	Cr∶LiSAF	CBN
YAG	LiSAF	LiCAF	PPKTP
