High quality Erbium Laser Glass
$174 - 264 /Piece/Pieces
Color:
Plug type:
option:
Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY891

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000pcs/Year

Transportation: Express,Air,Ocean,Land

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
2kg
Package Type:
Standard Package
Picture Example:

Er:glass can stimulate 1540nm wavelength laser rangefinder wide range of applications such as medical and laser devices. Erbium glass laser works at an infrared wavelength that is strongly absorbed by the water in body tissue.It is highly integrated and can stably work at all temperatures, its two most noticeable features are the relative eye-safety and high peak power up to 1535±5nm.

Zoolied can offer all kinds of Crystal Optics such as Passive Q-switch Crystals, Nd YAG laser crystals, Diffusion bouding crystals,Erbium Laser Glass and Ti:Sapphire Crystal. There are plenty of choices, and we also can make customized products.


Photobank

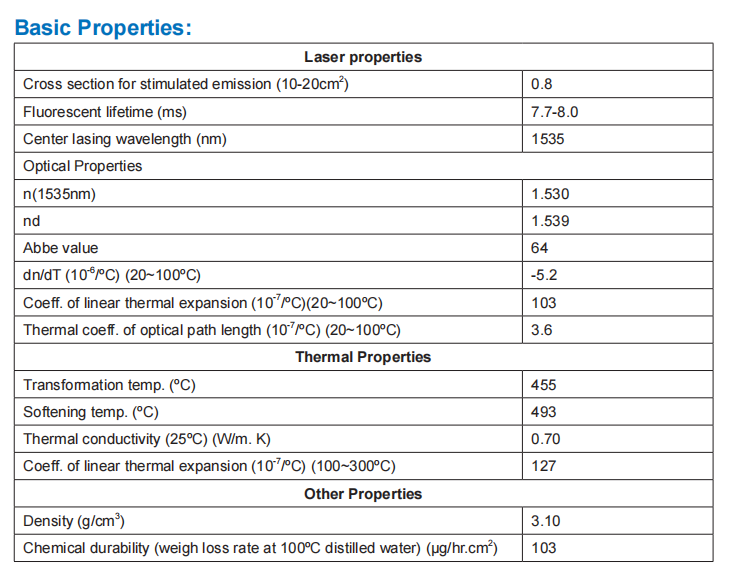

Erbium Basic Properties

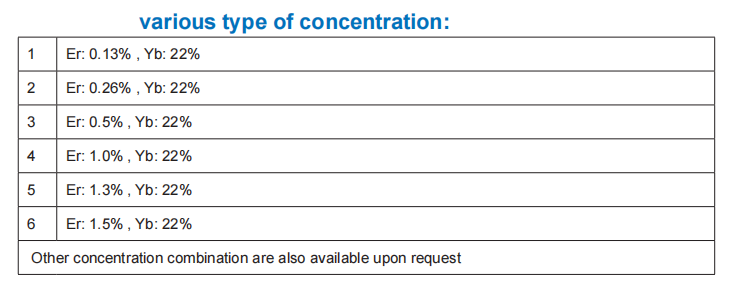

Erbium various type of concentration
Zoolied Crystals Lists

ND:YAG

Ce:LuAG
 Yb∶KYW YIG
Cr:YAG
 Ho:LUGG
 Iceland crystal
 DKDP
YV04
 Nd:LuAG
 Mg0∶LiNbO3
 YAB
MD:YV04
 Tm:Ho:YLF
 Ho∶YV04
 Mg0:LiTa03
Yb:YAG
 Nd:YAP
 Nd∶YSAG
 Tm:KYW
ND∶GdV04
 V:YAG
 Er∶YLF
 Fe:LiNb03
Nd:YLF
 SGGG
 Nd:GYSGG
 RTP
Ho∶YAG
 LiL03
 Er∶KGW
 KYW
BBO
 Nd:Ce:YAG
 ND:GYSAG
 TSAG
LBO
 BLO
 Quartz
 KTA
KTP
 Er:Yb:YAB
 Tm∶YVO4
 GYSGG
TGG
 Er:YSGG
 GGG
 Cr:Nd:YAG
LiNbO3
 Ho:YAP
 Nd∶GSGG
 Yb:YAB
CaF2
 YSGG
 KDP
 Tb:YLF
LiTa03
 HGTR-KTP
 Ti∶sapphire
 Ho∶YLF
a-BB0
 Er:YAP
 YLF
 YSGG
Co∶MgAl204
 LiF
 Yb∶YLF
 MgF2
JGS1
 Er:YAG
 Yb∶CaF2
 PMN-PT
GdV04
 Cr:LiCAF
 LYSO
 Dy:YLF
Tm∶YLF
 SrWO4
 LiGa02
 Nd:KGW
Pr∶YLF
 GdSc03
 Tm∶YAP
 BiB0
Yb∶KGW
 Cr:GSGG
 KGW
 Er:Caf2
Sapphires
 TGGG
 Cr∶Er∶YSGG
 Ce:YAG
YLF
 ADP
 Cr∶LiSAF
 CBN
YAG
 LiSAF
 LiCAF
 PPKTP
