KTA Crystal Potassium Titanyle Arsenate

$170 - 256 /Piece/Pieces

Color:

Plug type:

Other

option:

NLO crystals
KTA Crystal
nonlinear optical crystals
Potassium Titanyle Arsenate

Contact Now

Sample: $1000.00 /Piece/Pieces, 1 Piece/Piece...Buy Sample

Share: Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

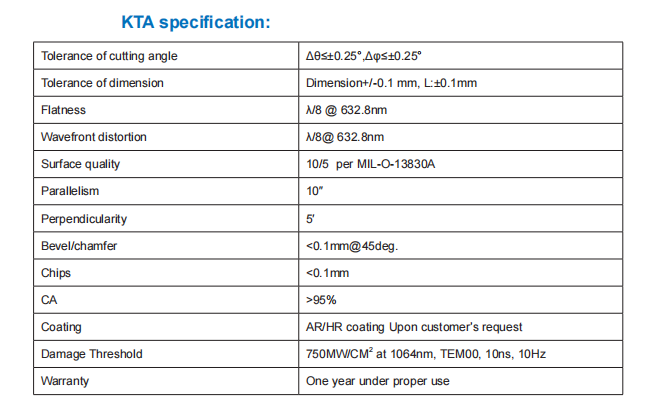

Overview

Product Attributes

Model No.: ZLY896

Brand: Zoolied

Material: Crystal

Shape: Cuboid/Rod/Cube

Dimension: 2-20mm

Length: 10-200mm

Flatness: λ/8 -λ/10

Parellelism: 10"-20"

S/D: 20/10 - 40/20

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: AR

Supply Ability & Additional Information

Packaging: Standard Package

Productivity: 8000000

Transportation: Ocean,Land,Air,Express

Place of Origin: Changchun

Supply Ability: 8000000

Certificate: ISO9001

HS Code: 90019090

Payment Type: T/T,L/C,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:: Piece/Pieces

Single package size:: 20cm*20cm*20cm

Single gross weight:: 1kg

Package Type:: Standard Package

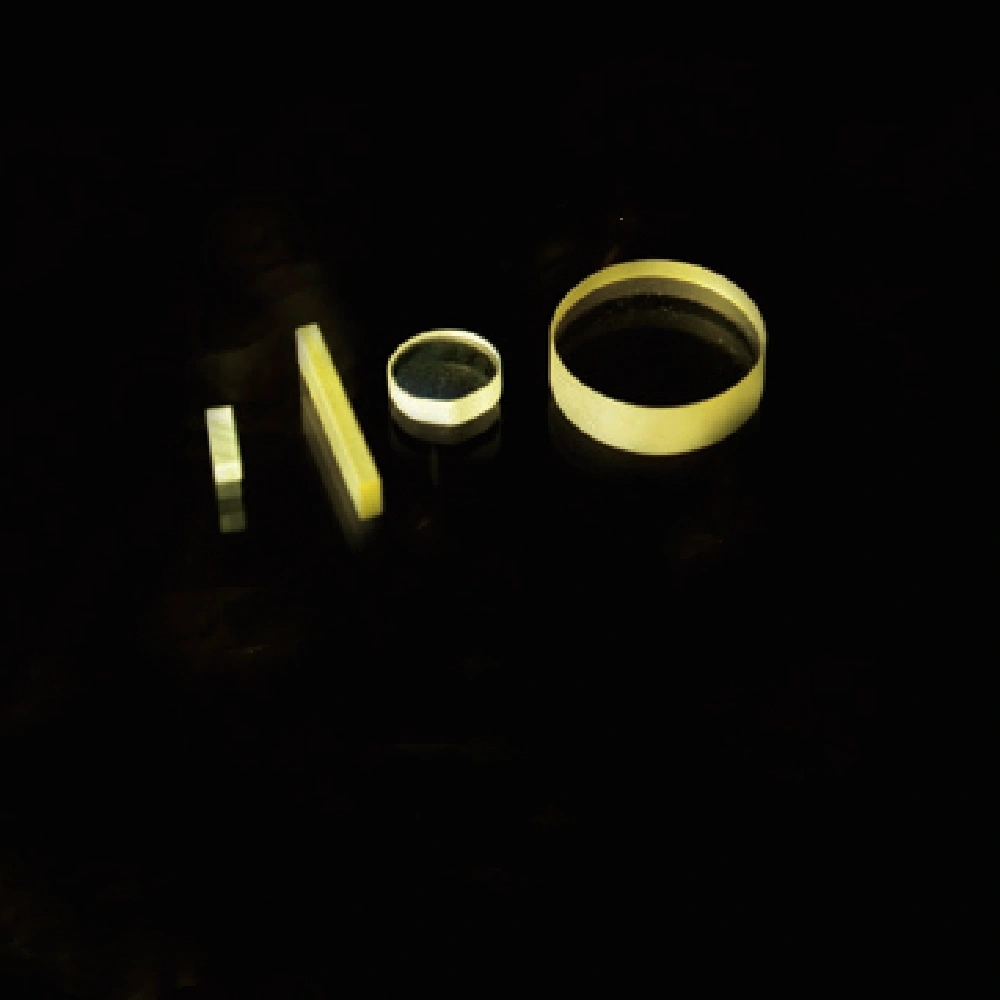

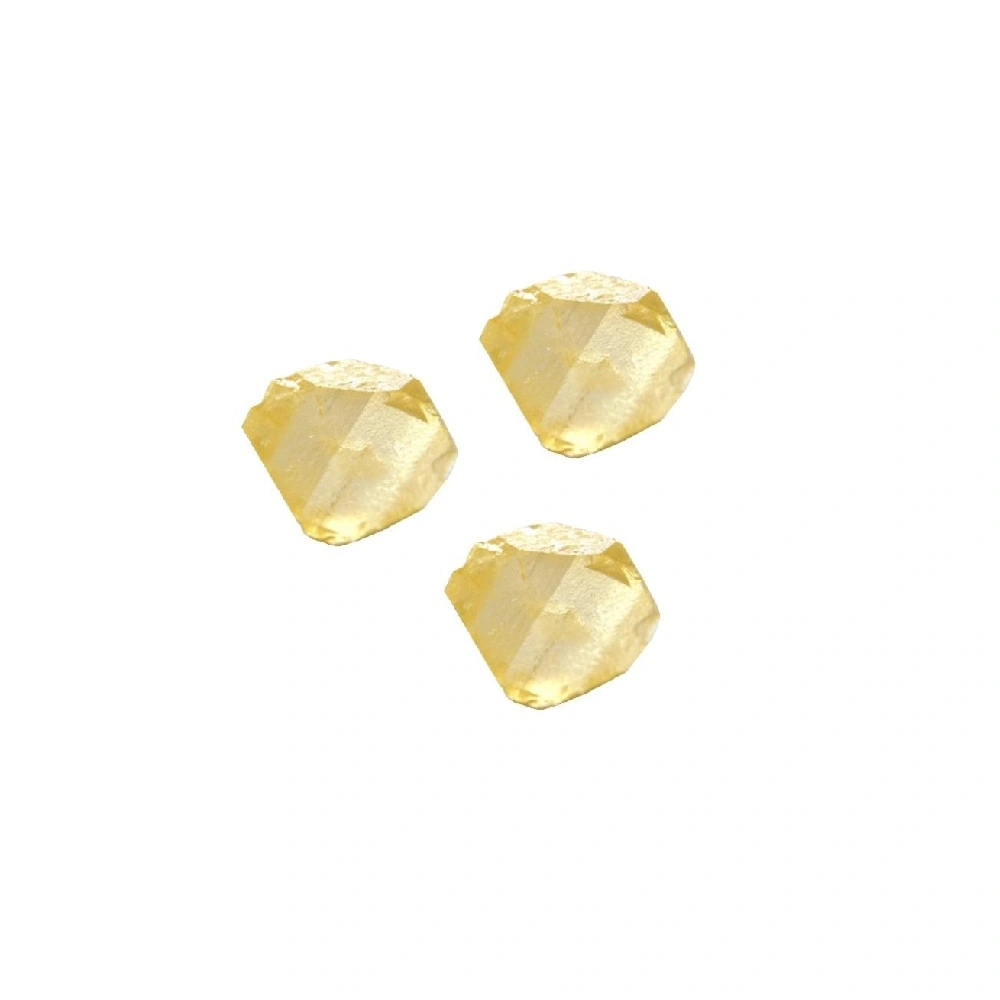

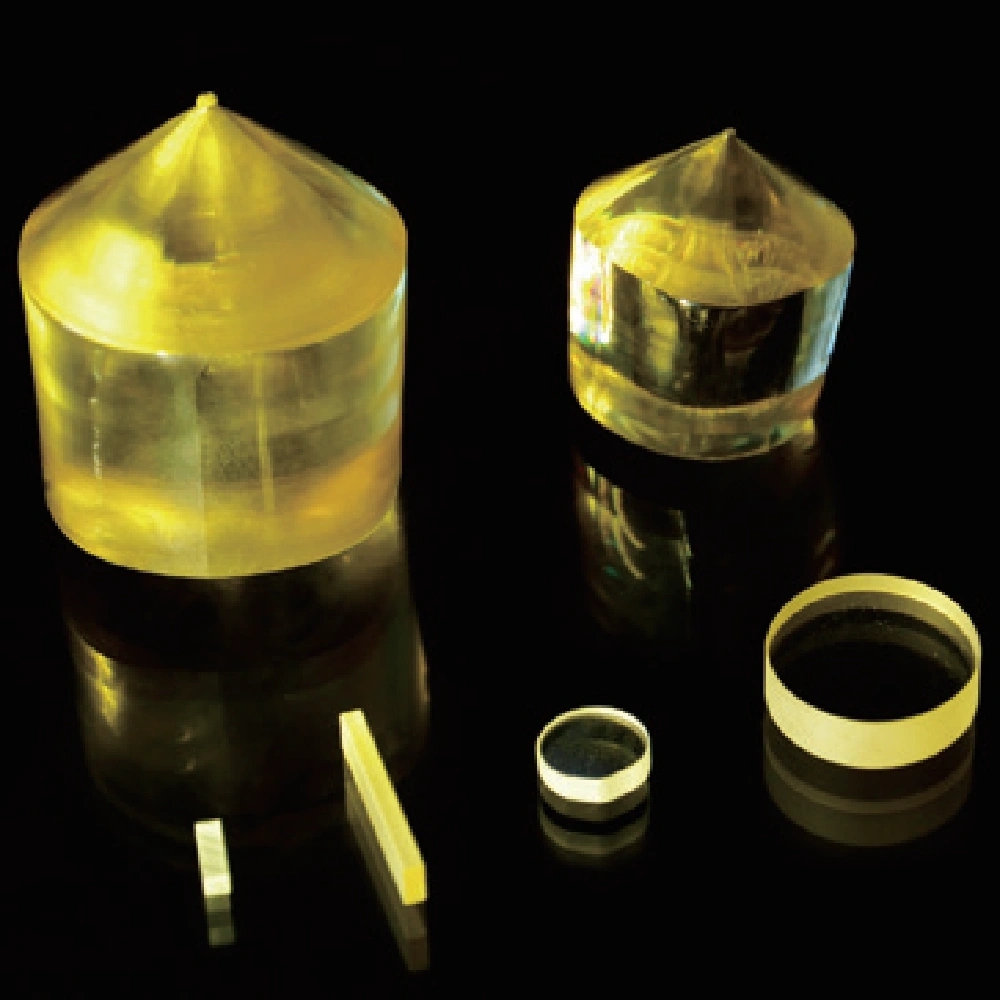

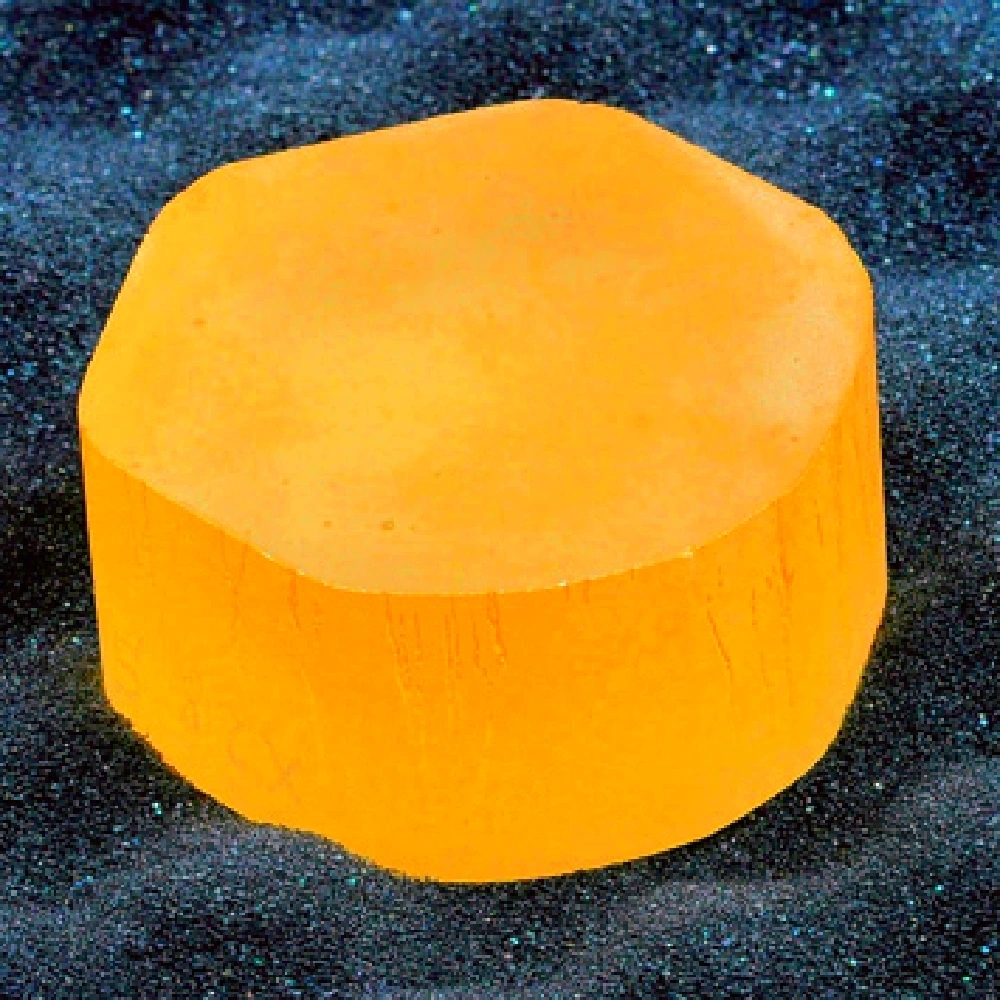

Picture Example:

Potassium Titanyle Arsenate(KTiOAsO4), or KTA crystal, is an excellent nonlinear optical crystal for Optical Parametric Oscillation (OPO) application. It has better non-linear optical and electro-optical coefficients, significantly reduced absorption in the 2.0-5.0 µm region,

broad angular and temperature bandwidth, low dielectric constants. And its low ionic conductivities result in higher damage threshold compared with KTP

Advantages:

• Large nonlinear optical and electro-optical coefficients

• Wide angular bandwidth and small walk-off angle

• Broad temperature and spectral bandwidth

• Low dielectric constants, loss tangent and ionic conductivities (much less than that of KTP)

• High damage threshold

• Lower absorption and high transmission in the 3-4 µm spectrum range than KTP.

• Highly resistant to high intensity laser radiation

KTA’s Applications

• An excellent NLO crystal developed mainly for Optical Parametric Oscillation (OPO)

• Frequency Doubling (SHG @1083nm-3789nm)

• Sum and Difference Frequency Generation (SFG)/(DFG)

• NCPM cut 1064--->1533+3475 (type I Theta=90deg., phi=0deg.)

Zoolied is a leading Crystal Optics supplier. We are responsible for all of consumers. We can offer a variety of Crystal Optics such as KTA Crystal Potassium Titanyle Arsenate, KTP Crystal Potassium Titanyl Phosphate, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals, Erbium Laser Glass and Ti:Sapphire Crystal. If you have any other new requirements, we also can make customized products. Please feel free to contact us.

Zoolied Crystals Lists
ND:YAG	Ce:LuAG	Yb∶KYW	YIG
Cr:YAG	Ho:LUGG	Iceland crystal	DKDP
YV04	Nd:LuAG	Mg0∶LiNbO3	YAB
MD:YV04	Tm:Ho:YLF	Ho∶YV04	Mg0:LiTa03
Yb:YAG	Nd:YAP	Nd∶YSAG	Tm:KYW
ND∶GdV04	V:YAG	Er∶YLF	Fe:LiNb03
Nd:YLF	SGGG	Nd:GYSGG	RTP
Ho∶YAG	LiL03	Er∶KGW	KYW
BBO	Nd:Ce:YAG	ND:GYSAG	TSAG
LBO	BLO	Quartz	KTA
KTP	Er:Yb:YAB	Tm∶YVO4	GYSGG
TGG	Er:YSGG	GGG	Cr:Nd:YAG
LiNbO3	Ho:YAP	Nd∶GSGG	Yb:YAB
CaF2	YSGG	KDP	Tb:YLF
LiTa03	HGTR-KTP	Ti∶sapphire	Ho∶YLF
a-BB0	Er:YAP	YLF	YSGG
Co∶MgAl204	LiF	Yb∶YLF	MgF2
JGS1	Er:YAG	Yb∶CaF2	PMN-PT
GdV04	Cr:LiCAF	LYSO	Dy:YLF
Tm∶YLF	SrWO4	LiGa02	Nd:KGW
Pr∶YLF	GdSc03	Tm∶YAP	BiB0
Yb∶KGW	Cr:GSGG	KGW	Er:Caf2
Sapphires	TGGG	Cr∶Er∶YSGG	Ce:YAG
YLF	ADP	Cr∶LiSAF	CBN
YAG	LiSAF	LiCAF	PPKTP
