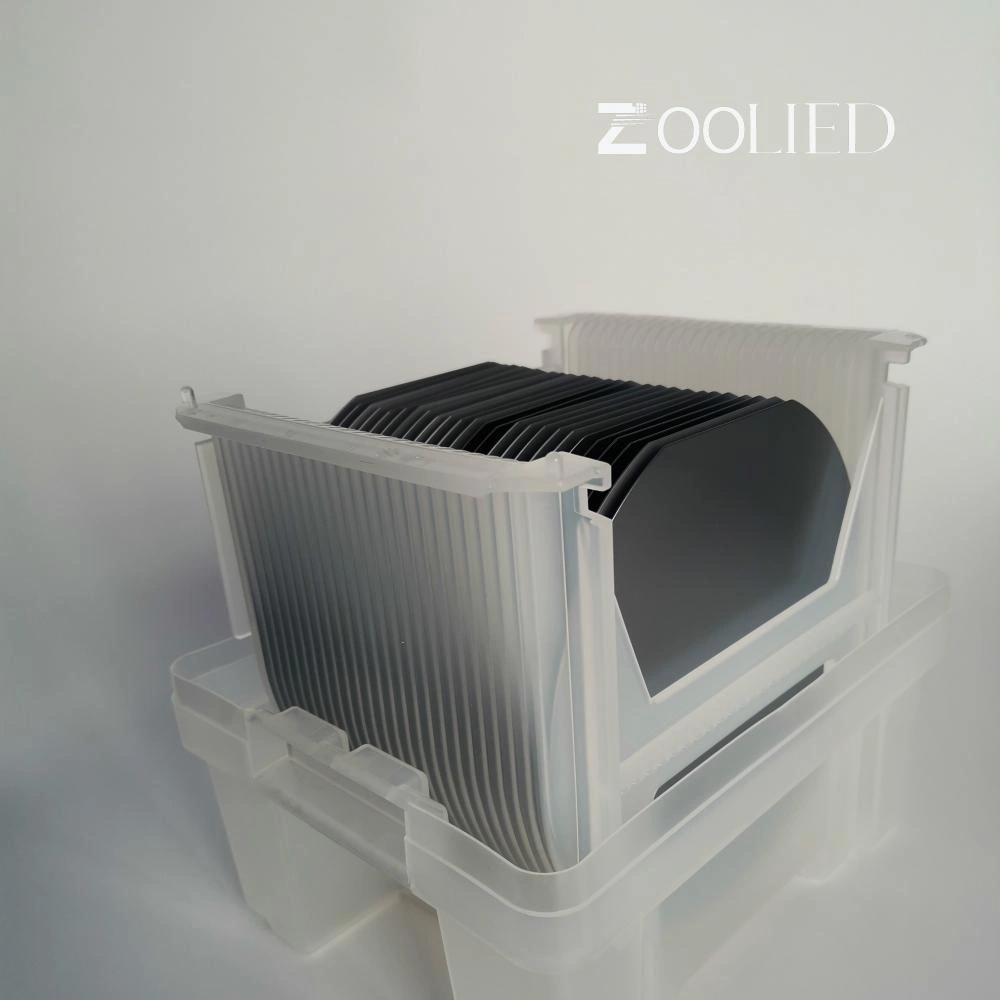

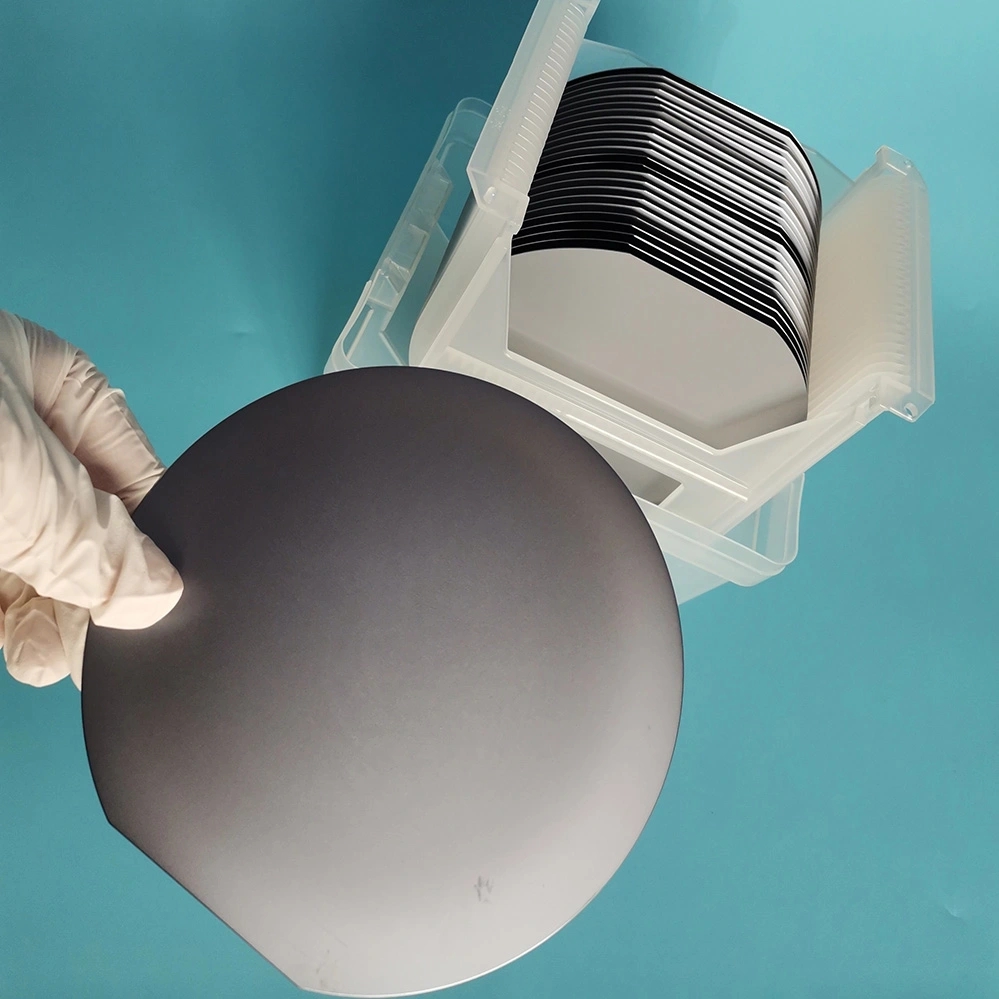

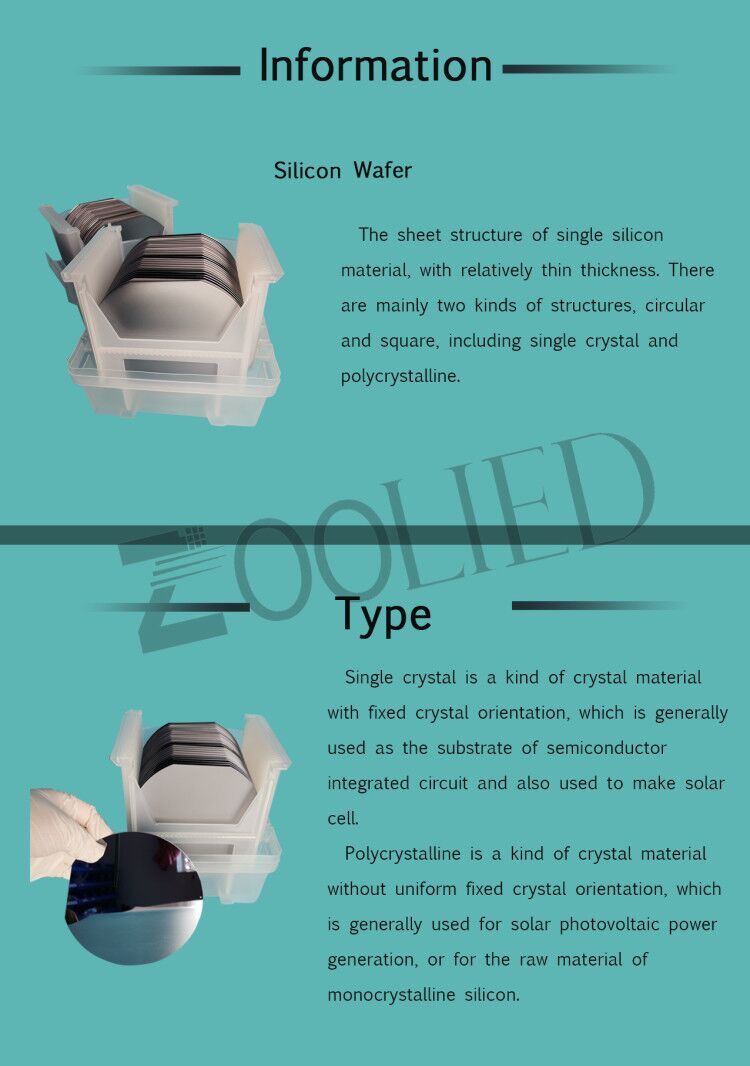

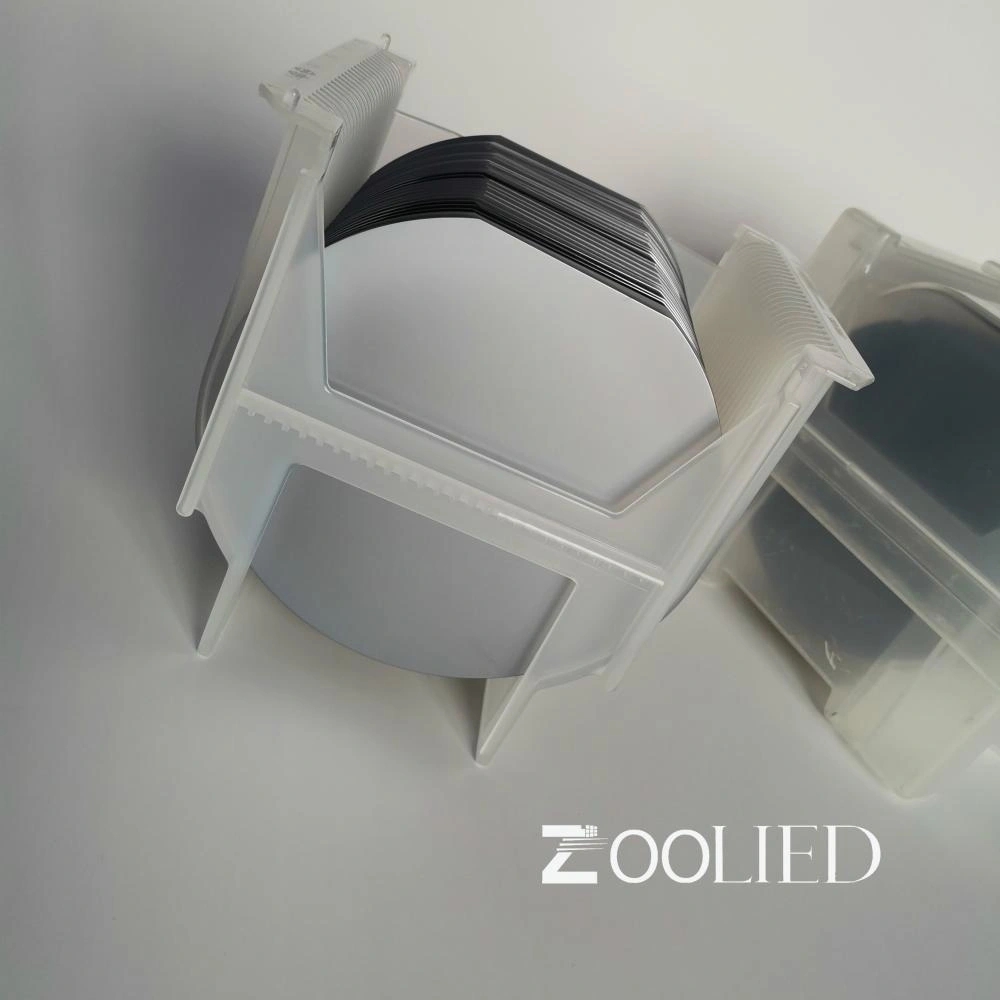

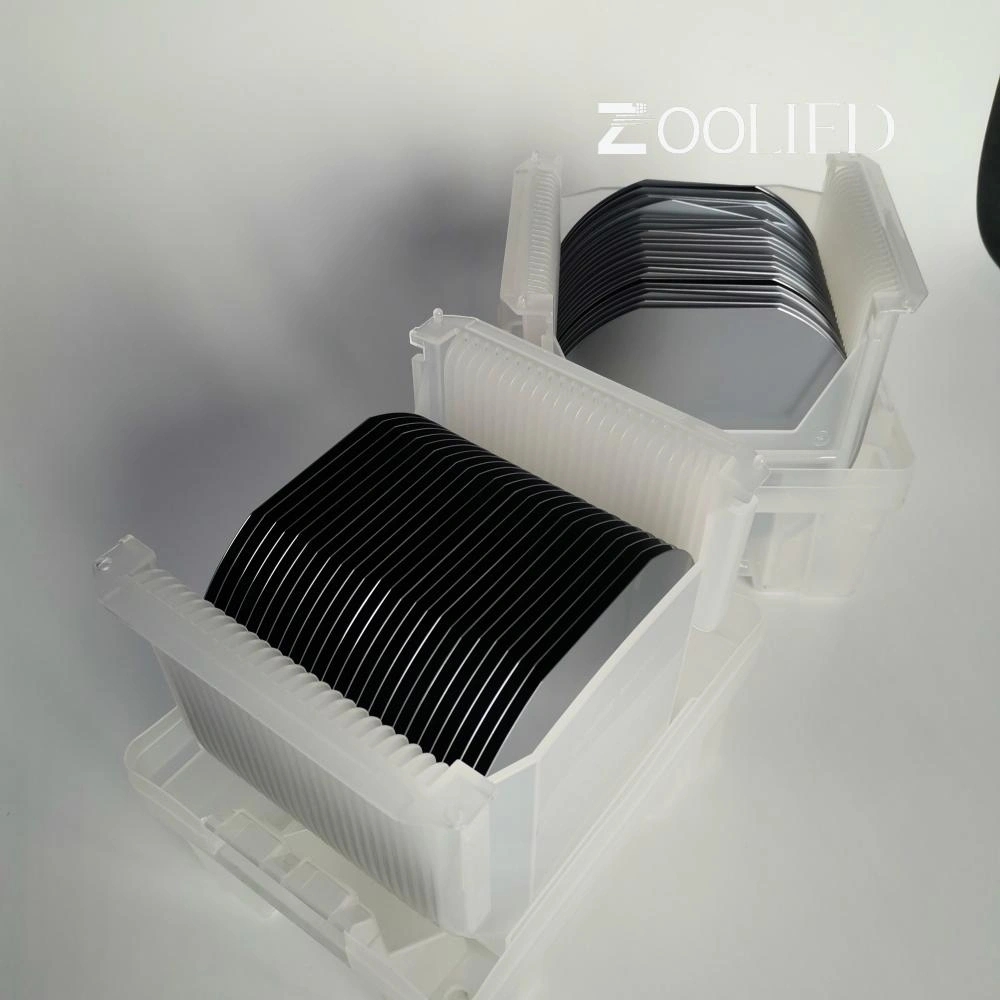

Silicon Wafers are made of single crystals of high-purity silicon, and the content of contaminants is usually less than one part per billion. Silicon wafers are crystalline silicon wafers commonly used in the electronics industry. Silicon is used for this purpose because it is a semiconductor, which means that it is neither a strong conductor nor a strong insulator. Its natural abundance and other properties generally make silicon more suitable for wafer fabrication than other semiconductors such as germanium. Silicon wafers are most commonly used as substrates for integrated circuits (ICs). Although they are also the main components of photovoltaics or solar cells, and the quality requirements of wafers used in ICs are much higher, the basic process for manufacturing these wafers is very important for these two components. The applications are the same.
Zoolied offers a variety of optical Glass Wafers, such as Dummy Silicon Wafers, Jgs1 Wafers, and K9 Wafers, and Bk7 Wafers. Zoolied provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

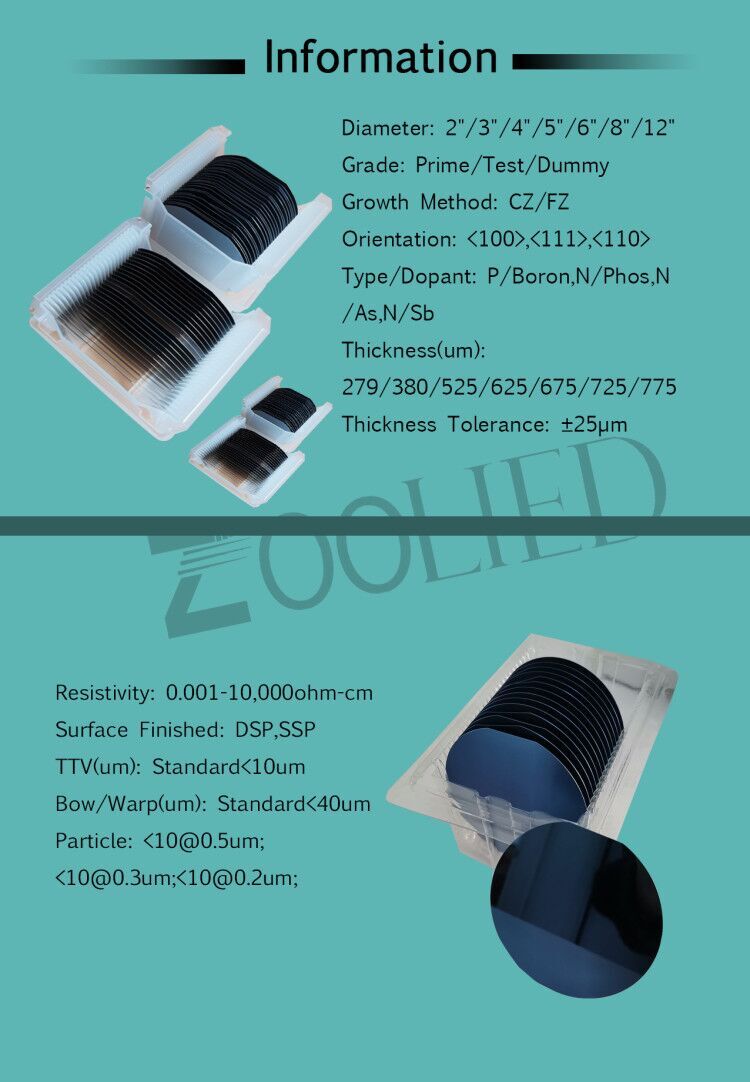

Zoolied Standard Silicon Wafer | |||||||
Diameter | 2" | 3" | 4" | 5" | 6" | 8" | 12" |
Grade | Prime/ Test/ Dummy | ||||||
Growth Method | CZ/FZ | ||||||
Orientation | < 100 > , < 111 > , < 110 > | ||||||
Type/Dopant | P/Boron , N /Phos, N /As, N /Sb | ||||||
Thickness (um) | 279 | 380 | 525 | 625 | 675 | 725 | 775 |
Thickness Tolerance | Standard ± 25μm | ||||||
Resistivity | 0.001 - 10,000ohm-cm | ||||||
Surface Finished | DSP,SSP | ||||||
TTV (um) | Standard < 10 um | ||||||
Bow/Warp (um) | Standard <40 um | ||||||
Particle | Specified by customer |
