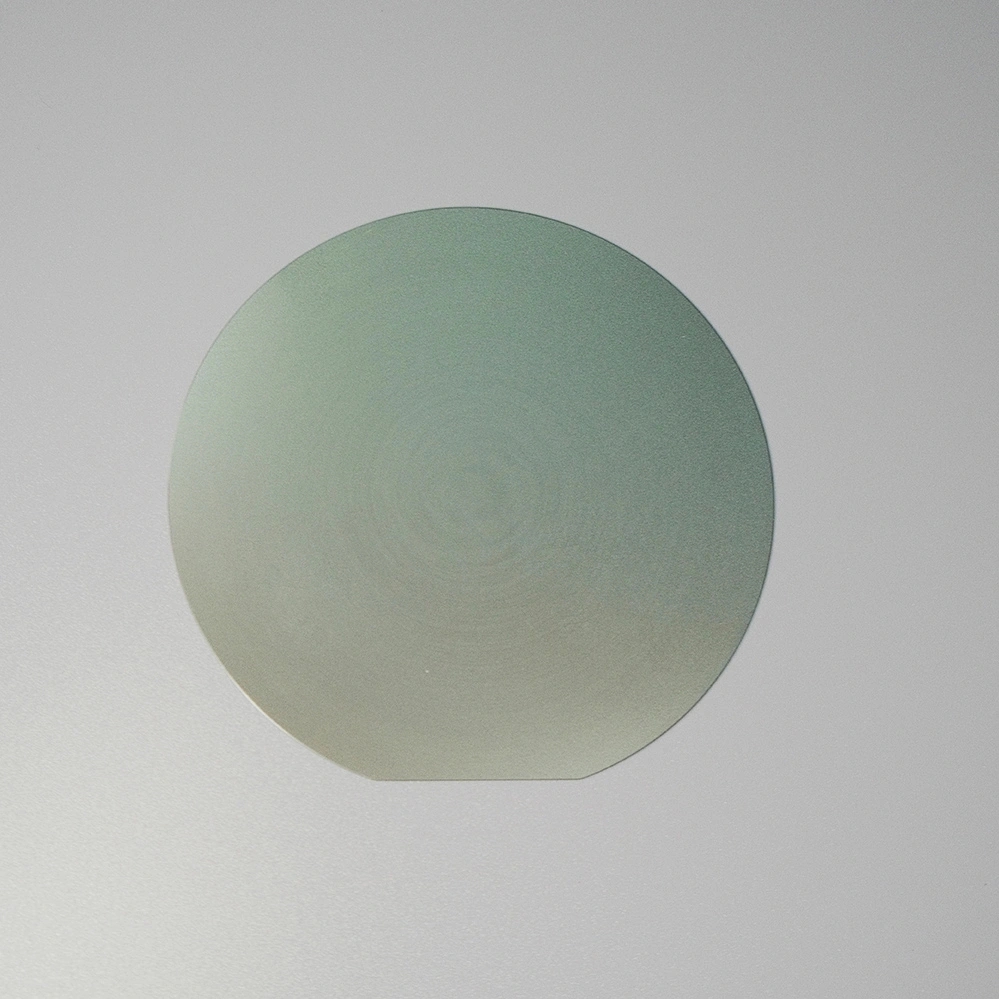

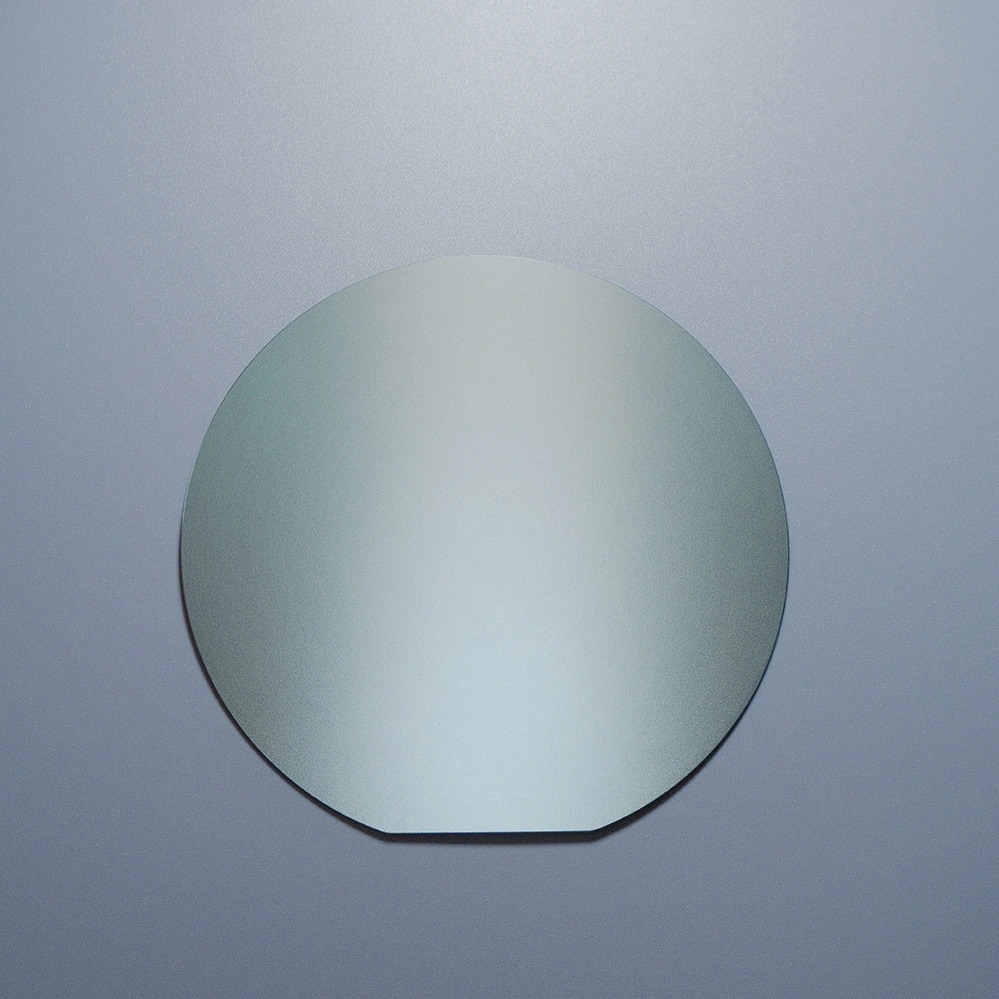

Zoolied produces high-quality raw Silicon Wafers with diameters ranging from 24.5-100 mm (1- 4 Inch Si Wafers), with various resistivities, directions, and thicknesses. ZOOLIED high-quality silicon wafers have the following main features
P, N type Si wafer
Single-sided (SSP) or double-sided polishing (DSP)
Wet and dry oxides, nitrides and other coatings and processing
Small batch to large batch supply
These wafers are ideal substrates for research applications of precision equipment (such as steppers and other manufacturing processes) and semiconductor production requirements. Silicon is very flat, hard, and has very tight thickness, TTV, and other dimensional tolerances, as well as biocompatibility and radiation resistance.
Zoolied offers a variety of optical Glass Wafers, such as Dummy Silicon Wafers, Jgs1 Wafers, and K9 Wafers, and Bk7 Wafers. ZOOLIED provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

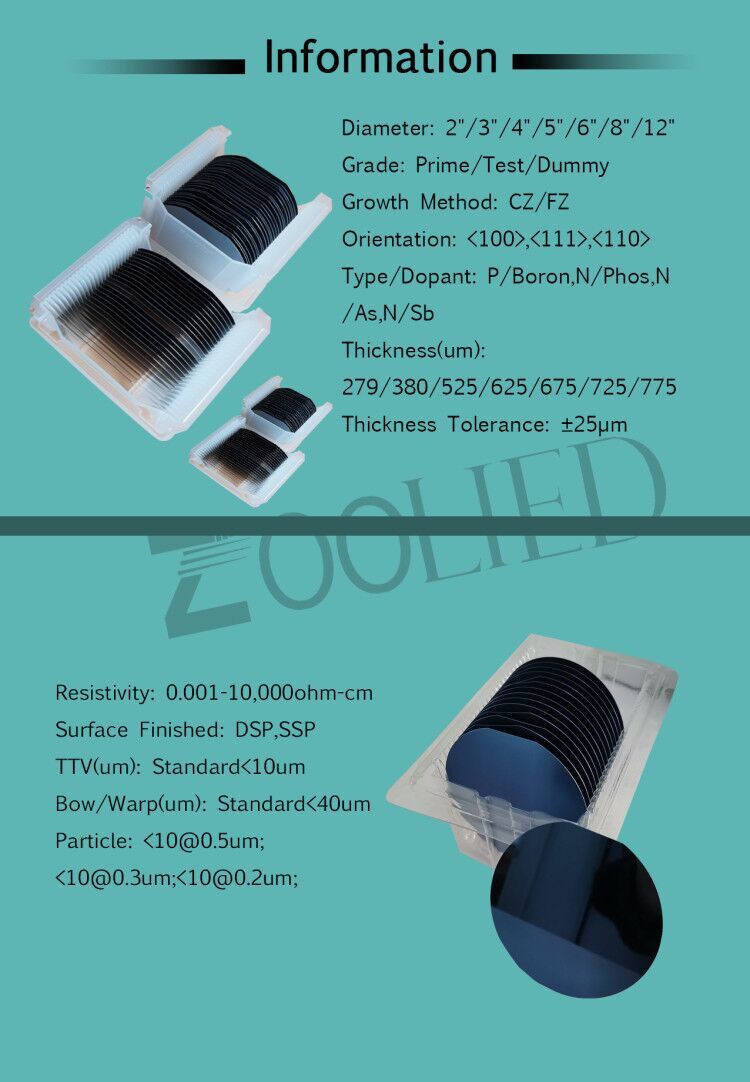

Zoolied Standard Silicon Wafer | |||||||
Diameter | 2" | 3" | 4" | 5" | 6" | 8" | 12" |
Grade | Prime/ Test/ Dummy | ||||||
Growth Method | CZ/FZ | ||||||
Orientation | < 100 > , < 111 > , < 110 > | ||||||
Type/Dopant | P/Boron , N /Phos, N /As, N /Sb | ||||||
Thickness (um) | 279 | 380 | 525 | 625 | 675 | 725 | 775 |
Thickness Tolerance | Standard ± 25μm | ||||||
Resistivity | 0.001 - 10,000ohm-cm | ||||||
Surface Finished | DSP,SSP | ||||||
TTV (um) | Standard < 10 um | ||||||
Bow/Warp (um) | Standard <40 um | ||||||
Particle | Specified by customer |
