DSP 100mm/500um <0.009Ω.cm Silicon wafer
$25≥50 Piece/Pieces
Payment Type:
Min. Order:
50 Piece/Pieces
Sample: $50.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Product Attributes

Model No.: ZLY259

Brand: Zoolied

place of origin: China

Type/Dopant: P/B Or N/Ph Or Intrinsic

TTV&Bow: Spesified By Customer

Diameter: 1" 2" 3" 4" 6" 8" 12"

Thickness: 0.1-2.0mm

Growth: Fz/Cz

orientation: <100><110><111>

Resistivity: 0.01~10,000 Ohm-Cm

Surface Finish: Ssp Or Dsp

Warp: Spesified By Customer

particles: Spesified By Customer

Supply Ability & Additional Information

Packaging: Standard

Productivity: 9999999999

Transportation: Air

Place of Origin: Changchun

Supply Ability: 9999999999pcs/year

Certificate: ISO

HS Code: 3801010

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,EXW

Packaging & Delivery
Selling Units:
Single package size:
Single gross weight:
Package Type:
Picture Example:

Silicon Wafers are indispensable material for the manufacture of semiconductors, which are found in various electronic devices in our lives. The silicon wafer needs to be polished into a mirror-like super flat disk, and any tiny irregularities on the surface of the silicon wafers should be removed as much as possible to make it the flattest object in the world. The Thin Si Wafers is clean, almost free of particles and other impurities. It is precisely because of these necessary qualities that Zoolied chooses silicon wafers as the best substrate material for the production of semiconductors.

The production of silicon wafers usually has the following steps:
1) long crystal, which can be divided into CZ and FZ, because the fused polycrystalline material will directly contact with the quartz crucible, so the impurities in the quartz crucible will contaminate the fused polycrystalline. The CZ method is suitable for drawing large-diameter (300 mm) silicon wafers, which is the main Semiconductor Silicon Wafer material at present. As the polycrystalline raw materials are not in contact with the quartz crucible, there are few internal defects and low carbon and oxygen content, but the price is expensive and the cost is high. It is suitable for high-power devices and some high-end products.

2) slicing and drawing of the single crystal silicon rod need to cut off the head and tail material, then roll and grind it to the required diameter, cut the flat edge or V groove, and then cut into thin silicon wafer. At present, diamond wire cutting technology is usually used, with high efficiency and good warpage and curvature of silicon wafer. A small number of special shaped pieces can be cut with an inner circle.

3) grinding: after slicing, the damaged layer on the cutting surface needs to be removed by grinding to ensure the quality of the silicon wafer surface, about 50um.

4) corrosion: corrosion is to further remove the damaged layer caused by cutting and grinding, so as to prepare for the following polishing process. Corrosion usually includes alkali corrosion and acid corrosion. At present, due to environmental factors, most of them adopt alkali corrosion. The removal amount of corrosion can reach 30-40um, and the surface roughness can also reach micron level.

5) polishing: polishing is an important process for silicon wafer production. Polishing is to further improve the surface quality of silicon wafer through CMP (chemical mechanical polished) technology, so that it can meet the requirements of chip production. After polishing, the surface roughness is usually RA < 5A.

6) cleaning and packaging: as the linewidth of the integrated circuit is getting smaller and smaller, the requirements for improving the particle size index are getting higher and higher. Cleaning and packaging is also an important process for silicon wafer production. Most particles attached to the surface of silicon wafer > 0.3um can be cleaned by megasonic cleaning, and then the silicon wafer surface can be made by vacuum sealing packaging or inert gas packaging with a plug box free of cleaning The surface cleanliness meets the requirements of IC.

Zoolied offers a variety of optical Glass Wafers, such as Dummy Silicon WafersJgs1 Wafers, and K9 Wafers, and Bk7 Wafers. ZOOLIED provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied Inc. is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

Zoolied Standard Silicon Wafer
Diameter 2" 3" 4" 5" 6" 8" 12"
Grade Prime/ Test/ Dummy
Growth Method CZ/FZ
Orientation < 100 > , < 111 > , < 110 >
Type/Dopant P/Boron , N /Phos, N /As, N /Sb
Thickness (um) 279 380 525 625 675 725 775
Thickness Tolerance Standard ± 25μm
Resistivity 0.001 - 10,000ohm-cm
Surface Finished DSP,SSP
TTV (um) Standard < 10 um
Bow/Warp (um) Standard <40 um
Particle Specified by customer

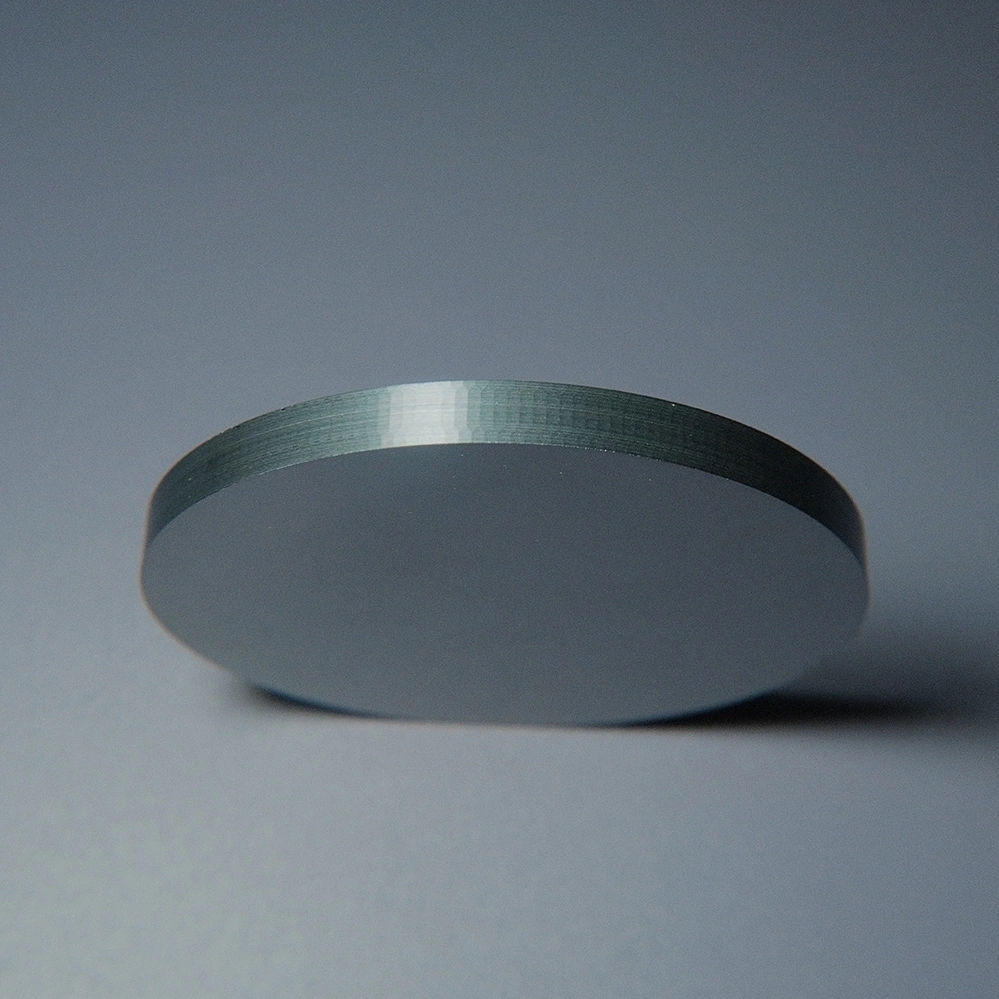

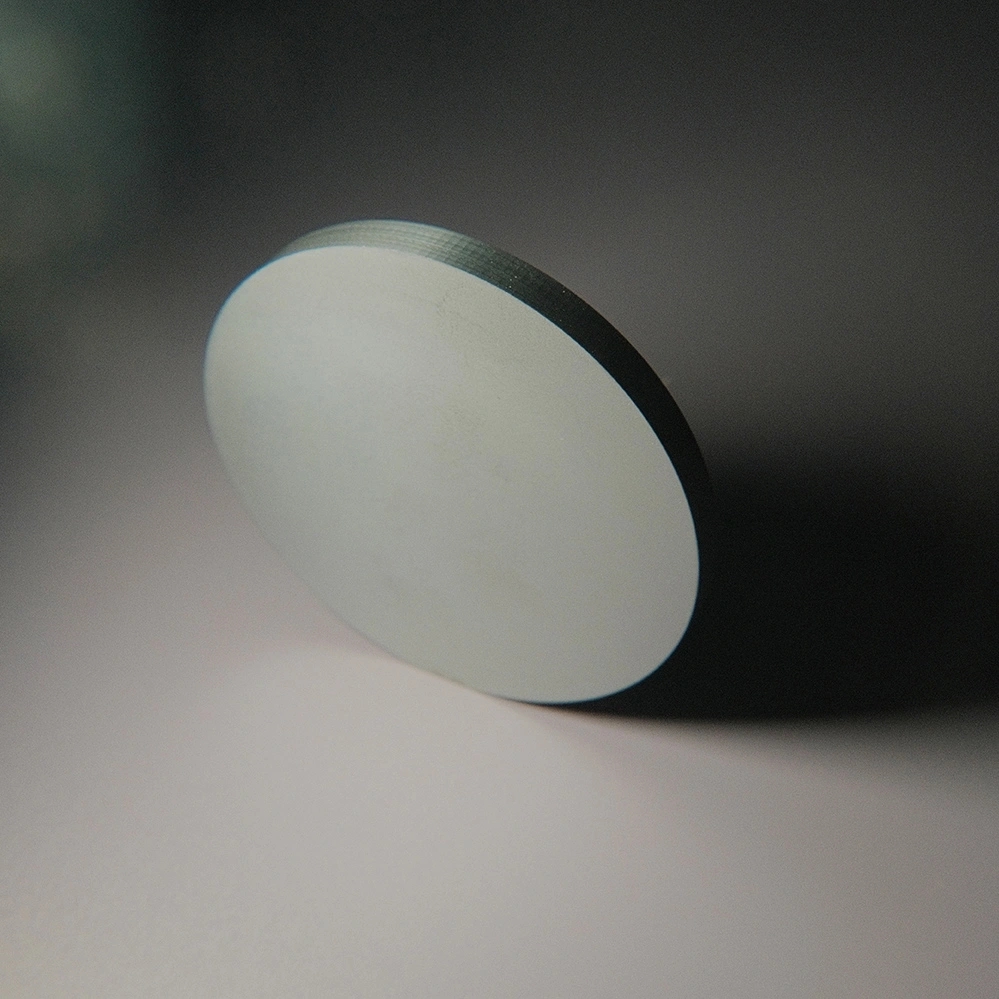

Silicon wafers 1

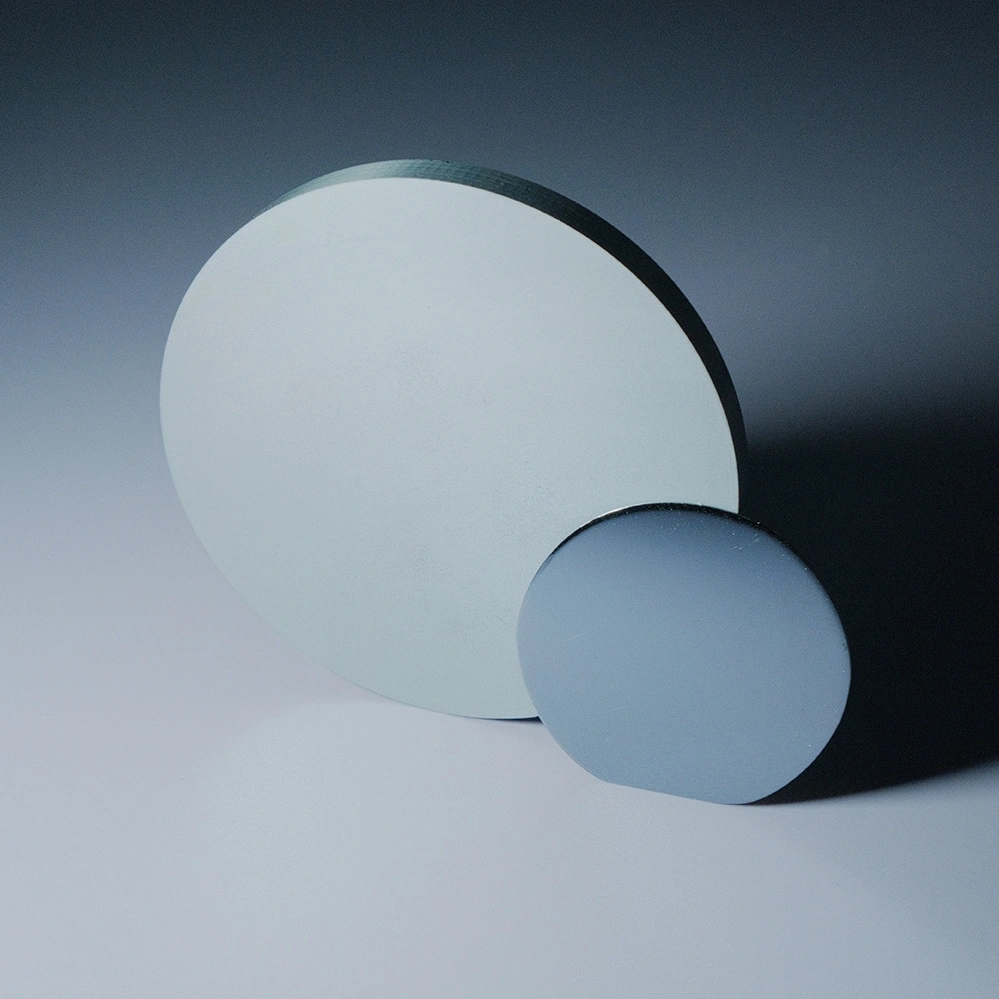

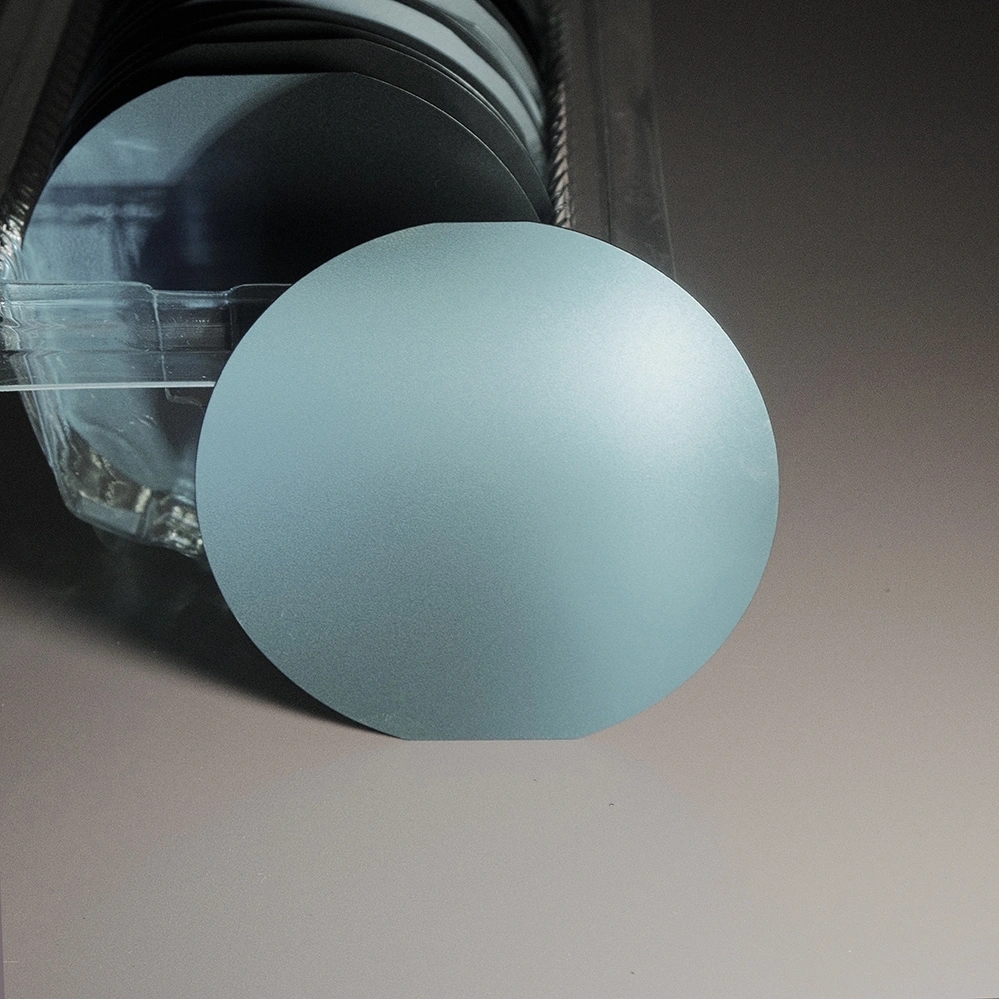

silicon wafers2
