Zoolied is a professional silicon wafer manufacturer. We can provide the most suitable Silicon Wafers according to customer requirements, and manufacture products according to individual specifications (size, trimming, precise resistivity...). The DSP 100mm silicon wafers crystal produced by Zoolied has good conductivity and is widely used in the production of semiconductors and integrated circuits.
Zoolied offers a variety of optical Glass Wafers, such as Dummy Silicon Wafers, Jgs1 Wafers, and K9 Wafers, and Bk7 Wafers. ZOOLIED provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

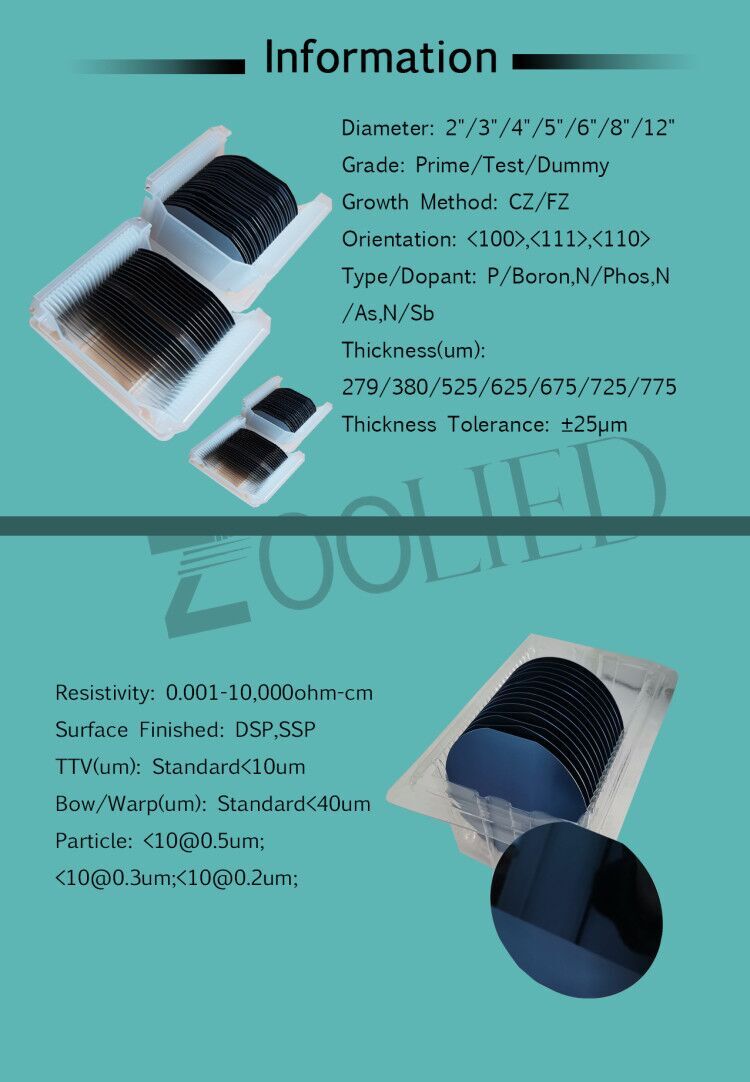

| Zoolied Standard Silicon Wafer | |||||||
| Diameter | 2" | 3" | 4" | 5" | 6" | 8" | 12" |
| Grade | Prime/ Test/ Dummy | ||||||
| Growth Method | CZ/FZ | ||||||
| Orientation | < 100 > , < 111 > , < 110 > | ||||||
| Type/Dopant | P/Boron , N /Phos, N /As, N /Sb | ||||||
| Thickness (um) | 279 | 380 | 525 | 625 | 675 | 725 | 775 |
| Thickness Tolerance | Standard ± 25μm | ||||||
| Resistivity | 0.001 - 10,000ohm-cm | ||||||
| Surface Finished | DSP,SSP | ||||||
| TTV (um) | Standard < 10 um | ||||||
| Bow/Warp (um) | Standard <40 um | ||||||
| Particle | Specified by customer | ||||||
-
DSP 100mm 300um >10000Ω.cm N Silicon wafer
-
100mm 525um 1-10Ω.cm P Orientation Silicon wafer
-
100mm 475-575um 3-15Ω.cm P Silicon wafer
-
DSP 100mm 1000um >10000Ω.cm N Silicon wafer
-
DSP 50.8mm 400um 3000-5000ohm.cm N Silicon Wafer
-
DSP 100mm/500um <0.009Ω.cm Silicon wafer
-
SSP 100mm 500um 1-5Ω.cm N Silicon wafer
-
100mm 500um 1-5Ω.cm P Silicon wafer
