Dia.9mm H 8mm Glass Optical Powell Lens
$38 - 62 /Piece/Pieces
Payment Type:
L/C,T/T,Paypal
Incoterm:
FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Min. Order:
500 Piece/Pieces
Transportation:
Ocean,Land,Air,Express
Sample: $50.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY478

Brand: Zoolied

Certification: Csa, Pcoc, Reach, Iecee, Scoc, Ul, Epa, Gs

Support customization: Oem, Odm, Obm

place of origin: China

Surface Quality: 60/40

Height: 8mm

Diameter: 9mm

Name: Powell Prism (Lens)

Material: H-K9l

Incident Beam: 1-5mm

Fan Angle: 5-110°

Supply Ability & Additional Information

Packaging: standard packing

Productivity: 8000000/year

Transportation: Ocean,Land,Air,Express

Place of Origin: Changchun

Supply Ability: 80000000

Certificate: ISO9001

HS Code: 9001901901

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
standard packing
Picture Example:

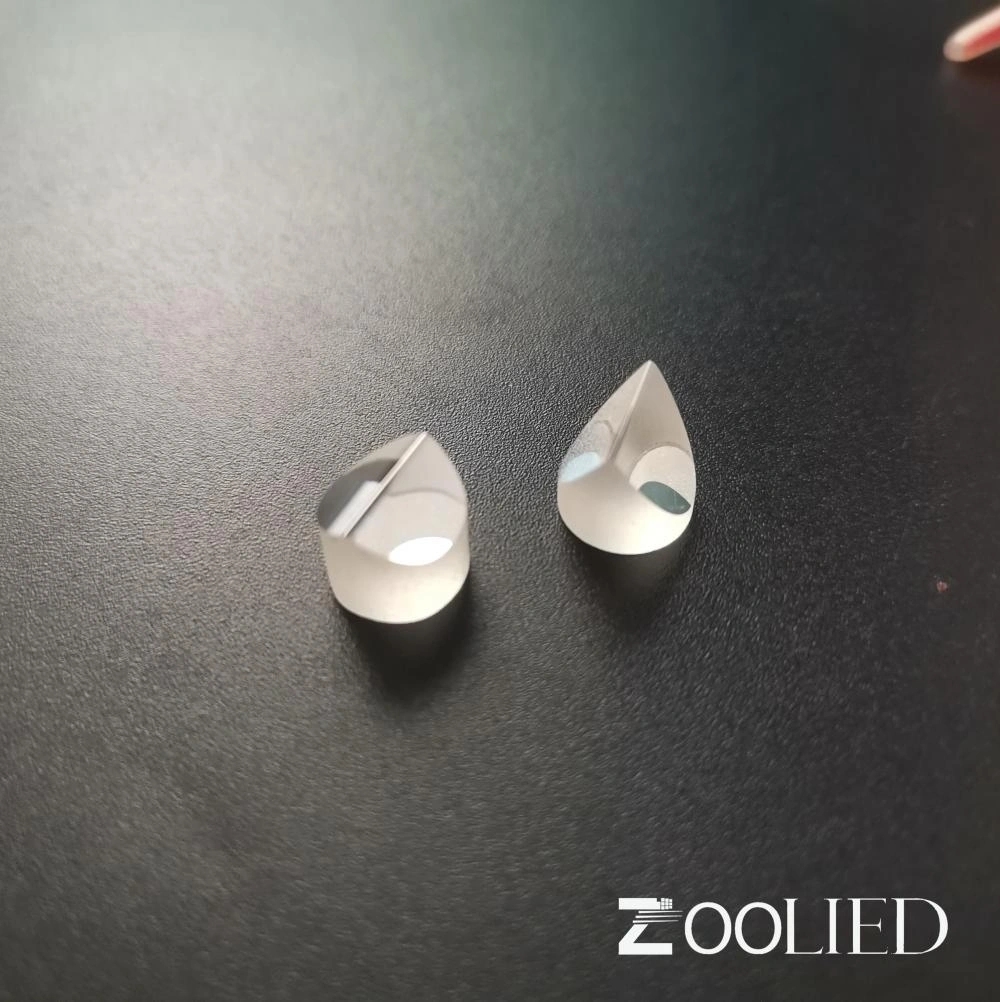

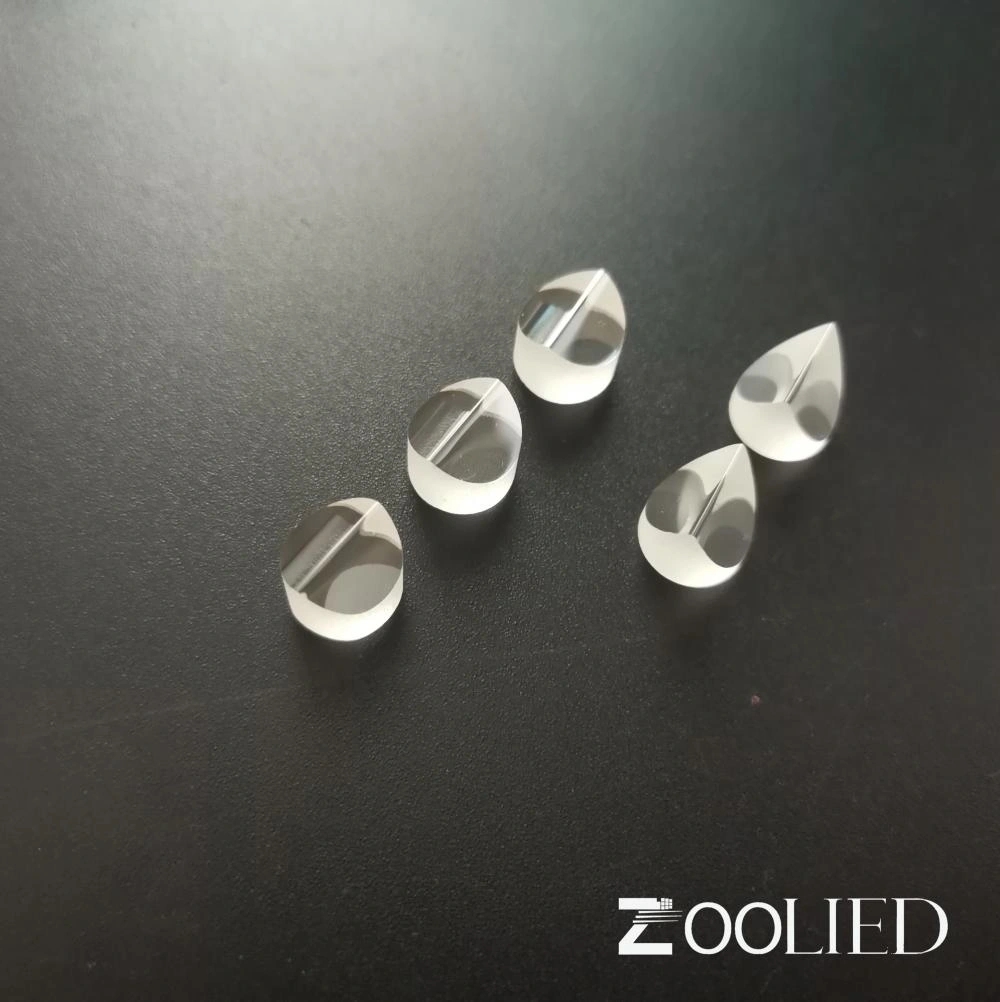

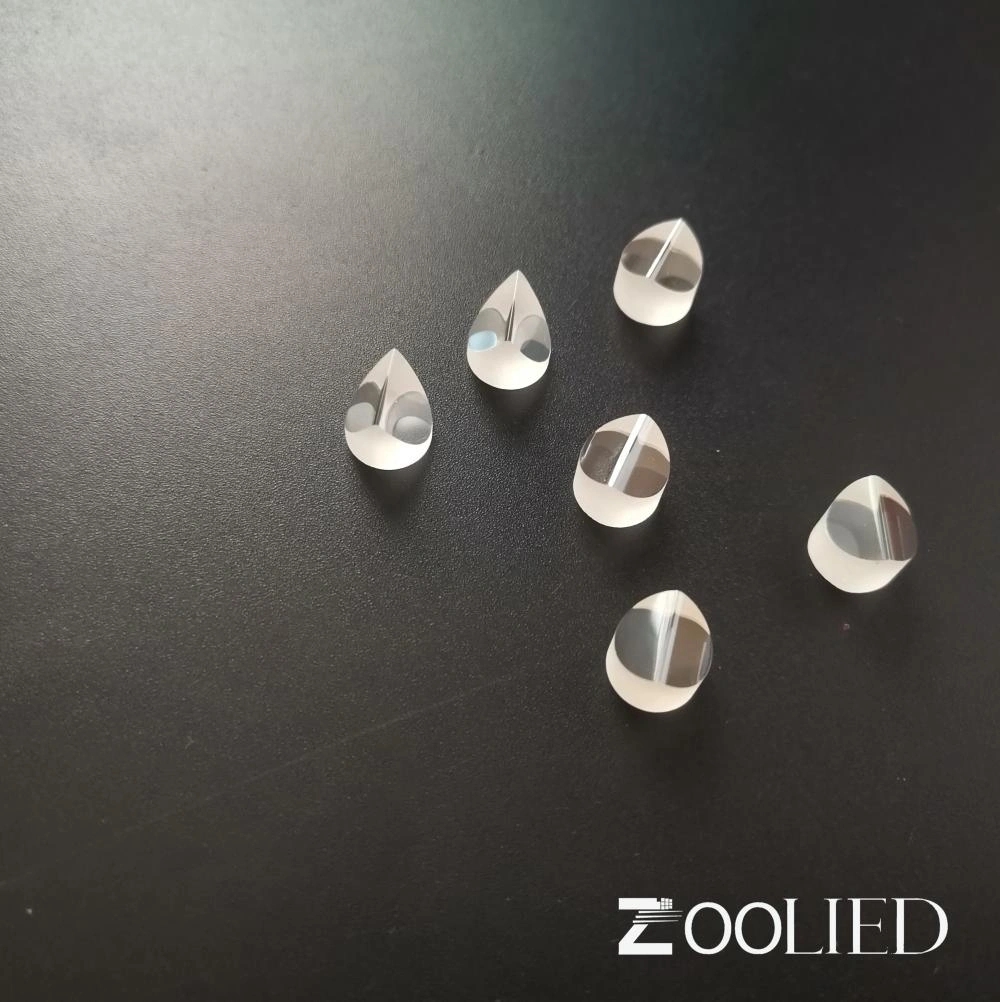

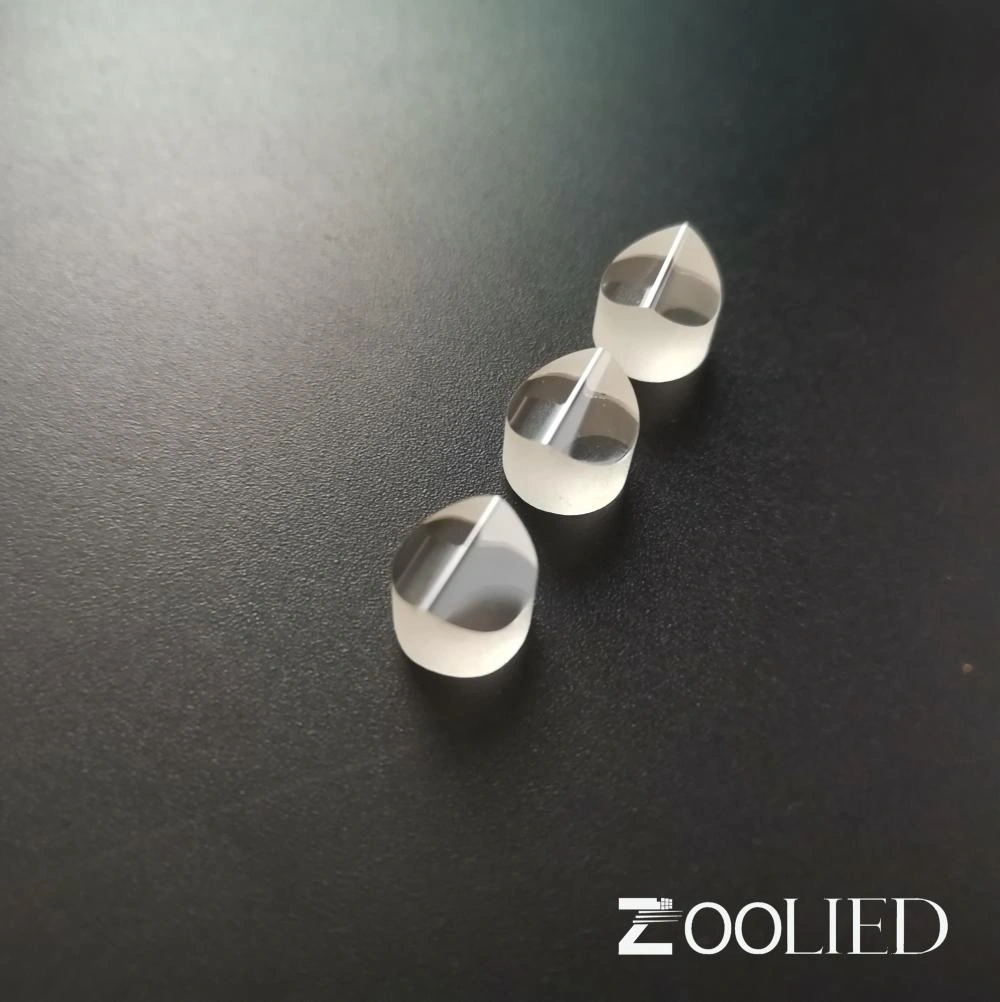

Powell Optical Glass Prism is also known as laser line generator lens. Its shape is usually a circular prism with a curved top. When a narrow laser beam passes through a Powell Prism, it can optimally stretch the laser beam into a straight line with uniform optical density, good stability and good linearity. Very suitable for calibration and machine vision, so Powell prisms are widely used in biomedical, automotive assembly, 3D scanning and other machines.

What is the function of Powell lens?
Powell Optical Glass Beamsplitter are currently widely used in industrial and research applications, where uniform intensity distribution is essential, because lasers are used as illumination sources, or, for example, in material processing, when the entire area irradiated by the laser must be processed to be uniform and equal The way. Powell lenses will produce a very uniform line of illumination for a variety of machine vision applications; from biomedical and automotive assembly to chocolate chip cookie production.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

Zoolied Standrad Powell Lens
Product Model Incident Beam(mm) Fan Angle(°) Diameter(mm) Height(mm) Material Coating(nm)
PW1GB-05 1 5 9 8 K9 no coating
PW1GB-10 1 10 9 8 K9 no coating
PW1GB-15 1 15 9 8 K9 no coating
PW1GB-20 1 20 9 8 K9 no coating
PW1GB-30 1 30 9 8 K9 no coating
PW1GB-40 1 40 9 8 K9 no coating
PW1GB-45 1 45 9 8 K9 no coating
PW1GB-60 1 60 9 8 K9 no coating
PW1GB-75 1 75 9 8 K9 no coating
PW1GB-90 1 90 9 8 K9 no coating
PW1GB-110 1 110 9 8 K9 no coating
PW2GB-4 2 4 9 8 K9 no coating
PW2GB-30 2 30 9 8 K9 no coating
PW2GB-60 2 60 9 8 K9 no coating
PW2GB-70 2 70 9 8 K9 no coating
PW2.5GB-30 2.5 30 9 8 K9 no coating
PW3GB-10 3 10 9 8 K9 no coating
PW3GB-15 3 15 9 8 K9 no coating
PW3GB-20 3 20 9 8 K9 no coating
PW3GB-30 3 30 9 8 K9 no coating
PW3GB-35 3 35 9 8 K9 no coating
PW3GB-40 3 40 9 8 K9 no coating
PW3GB-45 3 45 9 8 K9 no coating
PW3GB-60 3 60 9 8 K9 no coating
PW3GB-70 3 70 9 8 K9 no coating
PW3GB-75 3 75 9 8 K9 no coating
PW3GB-90 3 90 9 8 K9 no coating
PW3GB-110 3 110 9 8 K9 no coating
PW4GB-22 4 22 9 8 K9 no coating
PW4GB-30 4 30 9 8 K9 no coating
PW4GB-90 4 90 9 8 K9 no coating
PW5GB-10 5 10 9 8 K9 no coating
PW5GB-30 5 30 9 8 K9 no coating
PW5GB-35 5 35 9 8 K9 no coating
PW5GB-40 5 40 9 8 K9 no coating
PW5GB-45 5 45 9 8 K9 no coating
PW5GB-55 5 55 9 8 K9 no coating
PW5GB-60 5 60 9 8 K9 no coating
PW5GB-70 5 70 9 8 K9 no coating
PW5GB-75 5 75 9 8 K9 no coating
PW5GB-90 5 90 9 8 K9 no coating
