Angle-Induced Wavelength Shift and Compensation of Multi-Cavity Narrowband Filters (0–30°)
2026-8-11

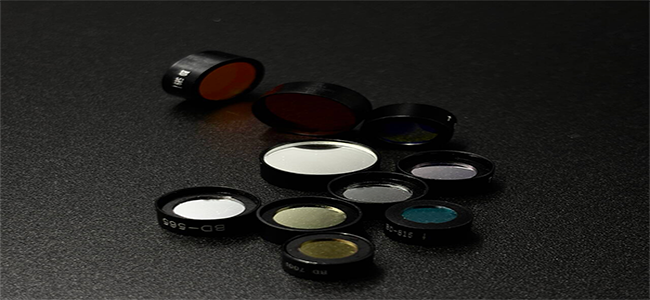

In cutting-edge fields like DWDM optical communications, laser spectroscopy, and hyperspectral remote sensing, multi-cavity narrowband thin-film filters are go-to components for spectral splitting—thanks to their ultra-narrow passbands, low loss, and excellent stability. A clever engineering trick: tilting the filter shifts the center wavelength toward the blue (shorter wavelengths), enabling on-the-fly tuning over 25 nm without changing hardware.
But this handy angle-tuning approach comes with trade-offs. As the angle increases from 0° to 30°, the filter doesn't just drift in wavelength—it also suffers from polarization splitting, passband distortion, and reduced transmission. These effects are intertwined, turning the simple "angle equals wavelength" relationship into a much more complex problem.
1. Wavelength Shift Characteristics in the 0–30° Incidence Angle Range
1.1 Nonlinear Increase of Shift with Angle
For a typical communication-band multi-cavity filter (normal-incidence center wavelength 1550 nm), as the incidence angle increases from 0° to 30°, the center wavelength follows a downward-curving, accelerating drift curve. Specific data points are as follows:
0–10° range – "Gentle drift zone": Each 1° tilt shifts the wavelength approximately 0.7 nm toward shorter wavelengths. In this range, the filter behaves moderately, and polarization splitting is not yet pronounced.
10–20° range – "Moderate drift zone": The slope increases to approximately 2.1 nm per degree. At this stage, a 10° tilt already causes about 9 channels of shift in a 100 GHz channel-spacing (0.8 nm) system, mandating pre-compensation in system design.
20–30° range – "Accelerated drift zone": The slope jumps to approximately 3.2 nm per degree. At 30°, the center wavelength has shifted from 1550 nm to approximately 1489 nm, with a cumulative drift exceeding 60 nm, or nearly 4% relative change.
This trend indicates that while larger tilt angles offer wider tuning ranges, the wavelength-angle linearity deteriorates significantly, potentially leading to substantial wavelength positioning errors in open-loop angle-control systems.
1.2 Drift Sensitivity Variations Across Different Cavity Counts
Multi-cavity filters (e.g., 3-cavity, 4-cavity, 5-cavity) differ not only in bandwidth at normal incidence but also in drift rate under oblique incidence. In general, the more cavities and the narrower the passband, the more sensitive the filter is to angle changes. This is because multi-cavity structures involve higher interference orders, amplifying the effect of optical path changes. For applications requiring tuning over a 30° range while maintaining stable passband shape, 3-cavity or 4-cavity designs are recommended over pursuing ultra-narrow 5-cavity or higher configurations.
2. Three Secondary Effects Hidden Behind the "Drift Curve"
In engineering practice, simply compensating for center wavelength drift is far from sufficient. The following three effects are the true "invisible killers" of system performance.
2.1 Polarization Splitting – S and P Polarizations "Part Ways"
When light strikes the filter at an oblique angle, the effective refractive indices for S-polarization (perpendicular to the incidence plane) and P-polarization (parallel to the incidence plane) diverge, causing their center wavelengths to no longer coincide. Measurements show that at 20° incidence, the P-polarization passband broadens noticeably, while the S-polarization passband slightly narrows. This polarization-dependent loss (PDL) is tolerable up to 20°, but as the angle approaches 30°, PDL deteriorates sharply, potentially exceeding the tolerance threshold of optical communication systems.
In simpler terms: a single beam passing through the filter produces one peak at normal incidence, but under oblique incidence, it splits into "two closely spaced peaks"—one for S and one for P. If the system does not control polarization state, the received signal will be distorted.
2.2 Wedge Effect – Additional Broadening from Substrate Imperfections
This is the most easily overlooked issue in the fabrication process. Even a slight parallelism deviation (wedge angle) between the two end faces of the glass substrate—as small as 0.5°—can cause noticeable beam expansion and distortion at 15° oblique incidence, with a significant drop in peak intensity. More subtly, if the wedge direction opposes the incidence direction, it can partially "pull back" the beam profile; if aligned with it, the broadening worsens.
This imposes a hard requirement for engineering selection: for filters intended to operate above 15°, the substrate wedge angle should be strictly controlled within ±0.08°, and the wedge direction should be marked during incoming inspection to enable optimal mounting orientation during system assembly.
2.3 Passband Rectangularity Degradation
As the angle increases, the passband no longer maintains the "square" rectangular shape seen at normal incidence. The S-polarization passband compresses, the P-polarization passband broadens, and the average passband lies between the two but with rounded edges. This leads to two consequences: first, reduced adjacent-channel isolation and increased crosstalk; second, a "sag" at the passband top, causing non-uniform insertion loss. Beyond 25°, this distortion is often irreversible, making this angle a practical upper limit for most applications.
3. Engineering Compensation Strategies – Collaborative Approaches Across Three Dimensions
Given the compounded effects described above, a single compensation method is rarely sufficient. A three-pronged approach is recommended, addressing coating design, optical system architecture, and fabrication process.
3.1 Coating Design Level – Suppressing Polarization at the Source
(1) Spacer Layer Material Mixing
Conventional spacer layers use a single material, resulting in severe polarization splitting. By mixing high- and low-index materials in specific ratios within the spacer layer, the center wavelengths for S and P polarizations can be made to substantially coincide over the 0–20° range, keeping PDL at low levels.
(2) Genetic Algorithm Global Optimization
Conventional coating designs tend to get trapped in local optima under oblique incidence. Genetic algorithms, starting from dozens of initial structures simultaneously, can search for compromise solutions that balance both normal- and oblique-incidence performance across the complex design space. A 5-cavity filter designed with this approach maintains 0.8 nm channel spacing at 18° oblique incidence, with PDL nearly twice as good as that of conventional designs.
(3) Novel Material Dispersion Compensation
Recent studies show that introducing highly dispersive materials (e.g., specially doped germanium layers) into the Fabry–Pérot cavity can leverage the material's intrinsic dispersion to offset phase shifts caused by oblique incidence. This approach suppresses resonance drift by nearly half at 40° incidence, without requiring complex nanostructuring, and holds good promise for mass production.
3.2 System Optical Architecture Level – Active Polarization Management
Option 1: Pre-Polarization Splitter
A birefringent crystal polarization beam splitter is placed in front of the filter, separating the incident light into either pure S- or pure P-polarization before feeding it into the angle-tuned filter. Engineering practice has proven that using only S-polarization effectively avoids the P-polarization passband broadening issue at large angles. This solution has been successfully deployed in C-band full-band tuning systems, covering approximately 48 channels at 100 GHz spacing.
Option 2: Dynamic Polarization Control
For systems where polarization separation is not feasible, polarization controllers and analyzers can be added before and after the filter. By monitoring output PDL in real time and dynamically adjusting the input polarization state, the system can be maintained at the PDL minimum point.
3.3 Fabrication Process Level – Strict Substrate Parallelism Control
Precision Processing Standard: Substrate end-face parallelism should be held within 5 arcminutes (0.08°)—this is the hard threshold for ensuring large-angle performance.
100% Inspection and Sorting: For 30° applications, each filter's wedge angle should be individually measured and sorted into positive-wedge, negative-wedge, and near-zero-wedge categories, with wedge direction and magnitude clearly marked on the product specification sheet.
Assembly Guidance: Alignment marks should be added to the filter mount to ensure that the wedge direction opposes the optical path tilt direction during assembly, using the negative wedge effect to partially offset beam broadening.
Conclusion
The center wavelength shift of multi-cavity narrowband filters under 0–30° incidence is not a simple linear blue-shift, but a three-stage "gentle-moderate-rapid" accelerating curve. More importantly, wavelength drift is merely the surface manifestation—polarization splitting, wedge-induced broadening, and passband distortion are the true core bottlenecks limiting stable system operation at large angles.
Effective compensation should not rely solely on a "wavelength-vs-angle" lookup table, but rather be approached as a systematic engineering effort: optimizing the coating design phase with materials and algorithms to suppress polarization, managing polarization at the system architecture level to select the optimal operating state, and controlling substrate wedge angle during fabrication to ensure beam quality. Only through this three-pronged strategy can the angle-tuning range of multi-cavity narrowband filters be elevated from "usable" to "highly reliable," meeting the demanding requirements of next-generation optical communications and wide-angle detection applications.
