Beamsplitter 50*50*50mm 1: 1 splitting prism
$48.6 - 68.8 /Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CIF,CPT,CIP
Min. Order:
2 Piece/Pieces
Transportation:
Air,Express
Sample: $20.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY165

Brand: Zoolied

Support customization: Oem

place of origin: China

Surface Quality: 60/40, 40/20

AOI (°):: 45

Surface Flatnese: λ/4

Coating :: Beamsplitter & Ar Coating

Stantard Size: 5/10/15/20/25/30/50mm

Color: Transparent

Substrate: Bk7(K9) Or Uv Fused Silica

Type: Prism Cube

Wavelength: 400-700nm

Supply Ability & Additional Information

Packaging: Standard and protective packing

Productivity: 8000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,CPT,CIP

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
10kg
Package Type:
Standard and protective packing
Picture Example:

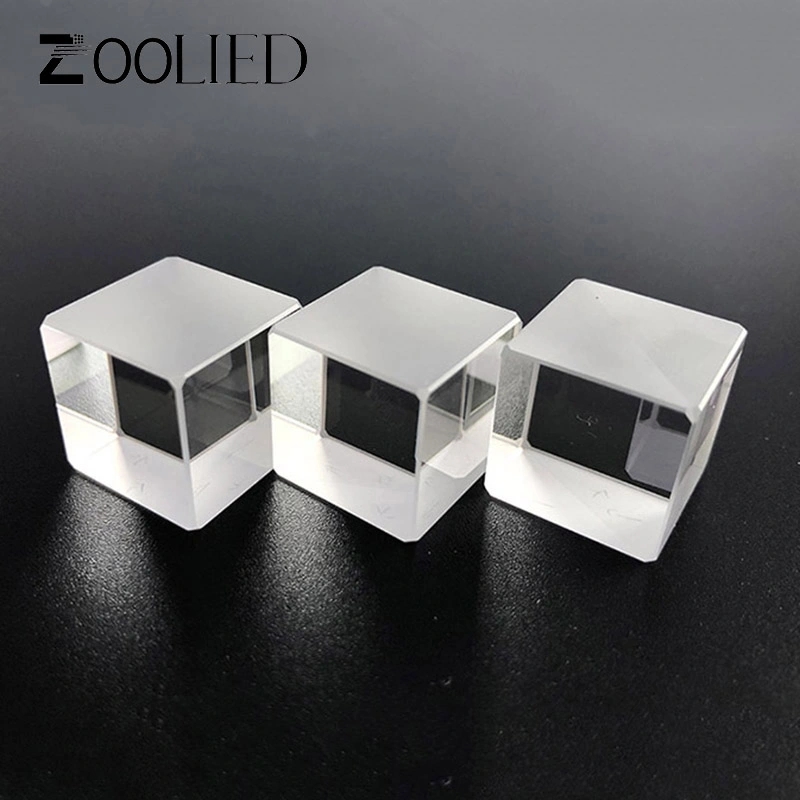

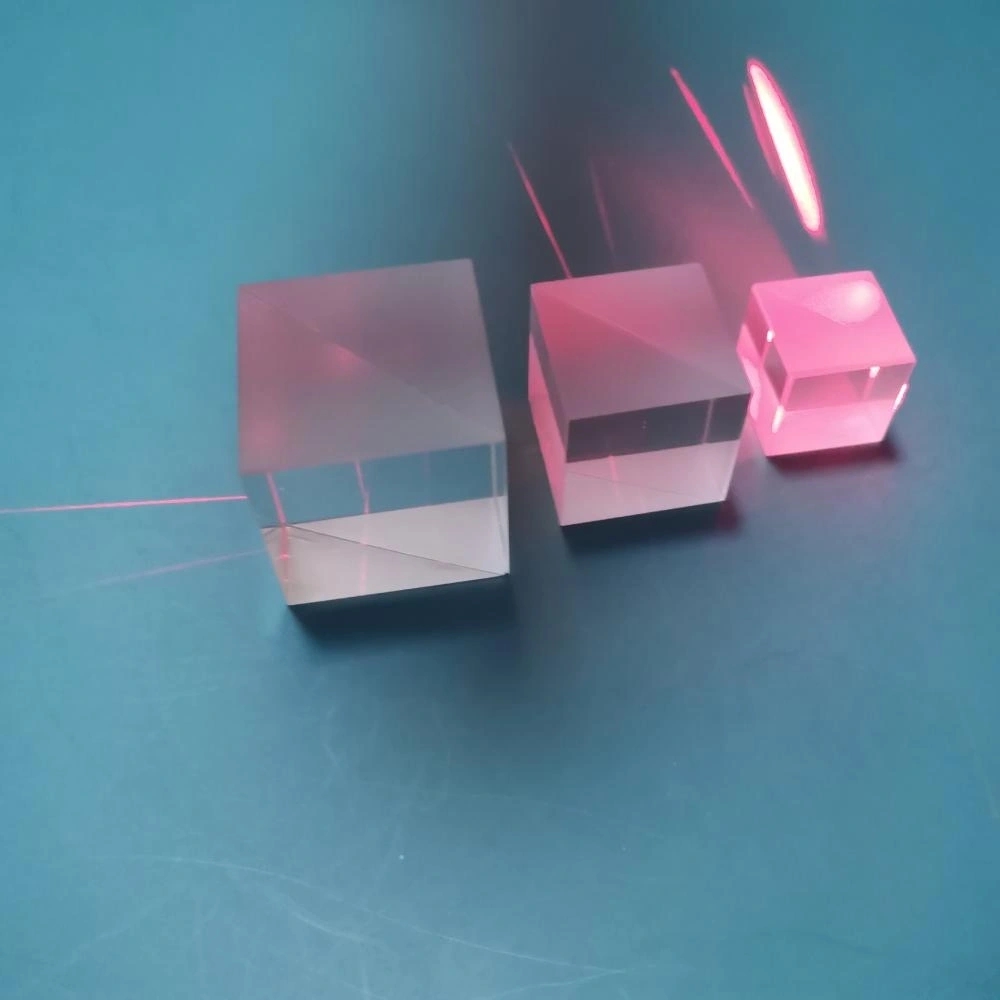

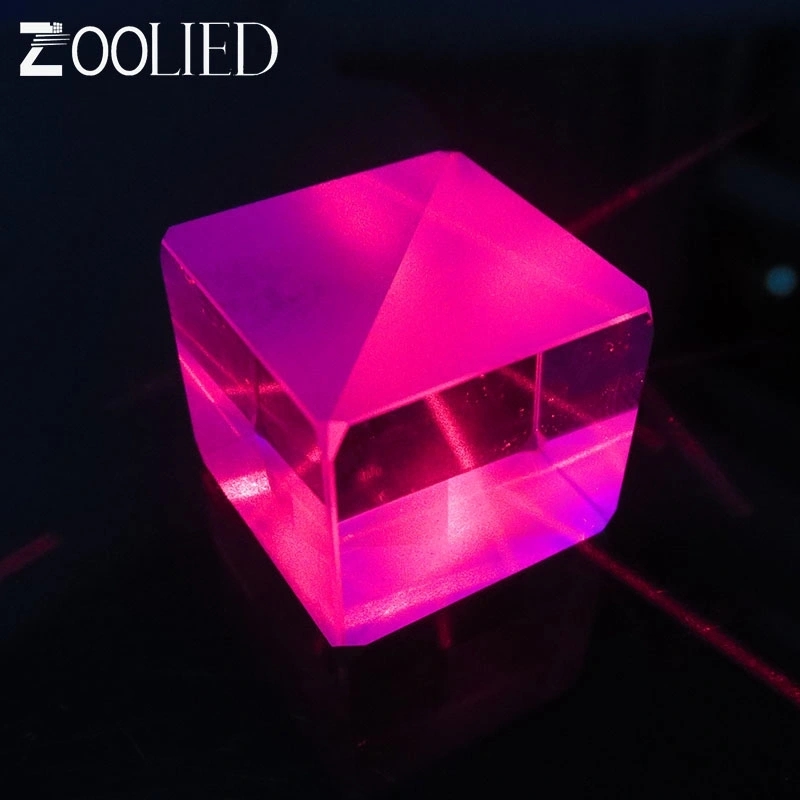

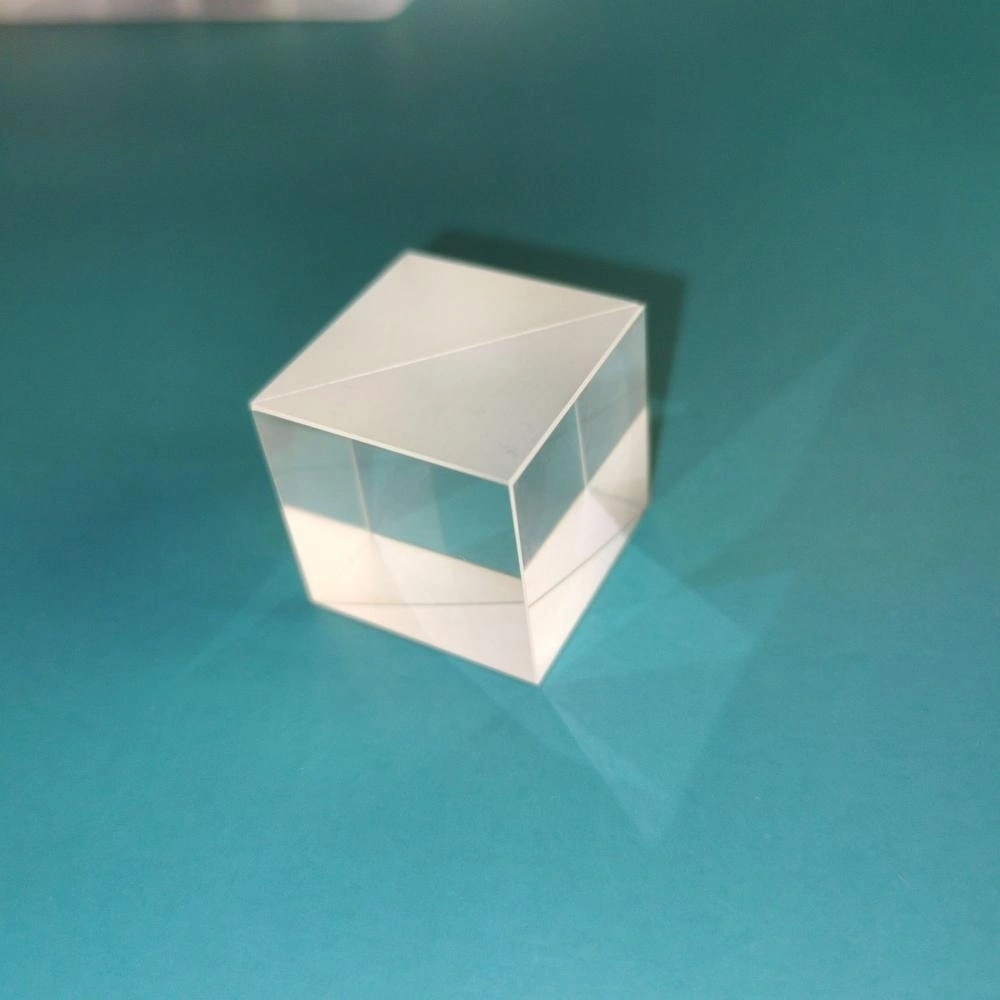

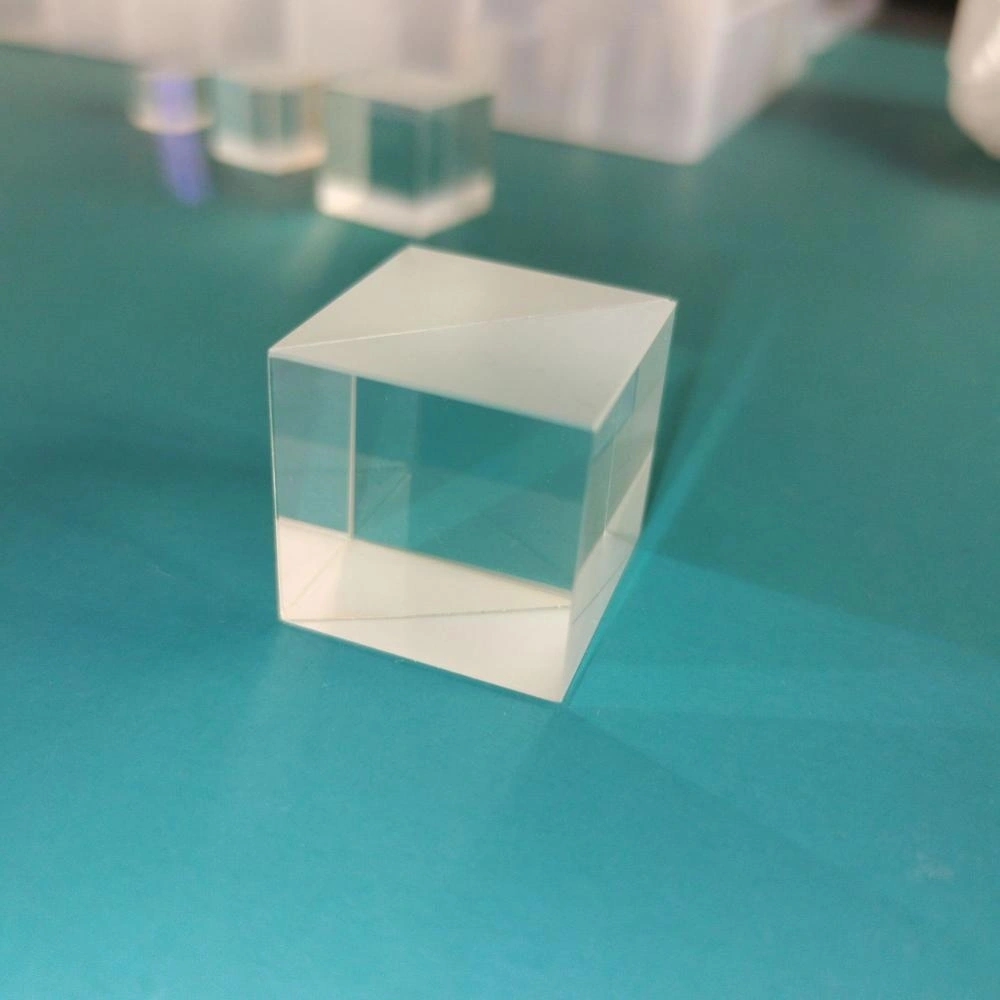

Zoolied offers 50*50*50mm 1: 1 Optical Glass Beamsplitter.


Optical Glass Prisms are solid glass optics that are ground and polished into geometrical and optically significant shapes. The angle, position, and number of surfaces help define the type and function. One of the most recognizable uses of prisms, as demonstrated by Sir Isaac Newton, consists of dispersing a beam of white light into its component colors . This application is utilized by refractometer and spectrographic components. Since this initial discovery, Optical Glass Prism has been used in "bending" light within a system, "folding" the system into a smaller space, changing the orientation (also known as handedness or parity) of an image, as well as combining or splitting optical beams with partial reflecting surfaces. These uses are common in applications with telescopes, binoculars, surveying equipment, and a host of others.


A notable characteristic of High Precision Prisms is their ability to be modeled as a system of plane mirrors in order to simulate the reflection of light within the prism medium. Replacing mirror assemblies is perhaps the most useful application of Optical Serveying Prism, since they both bend or fold light and change image parity. Often, multiple mirrors are needed to achieve results similar to a single prism. Therefore, the substitution of one Optical glass beamsplitter in lieu of several mirrors reduces potential alignment errors, increasing accuracy and minimizing the size and complexity of a system.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

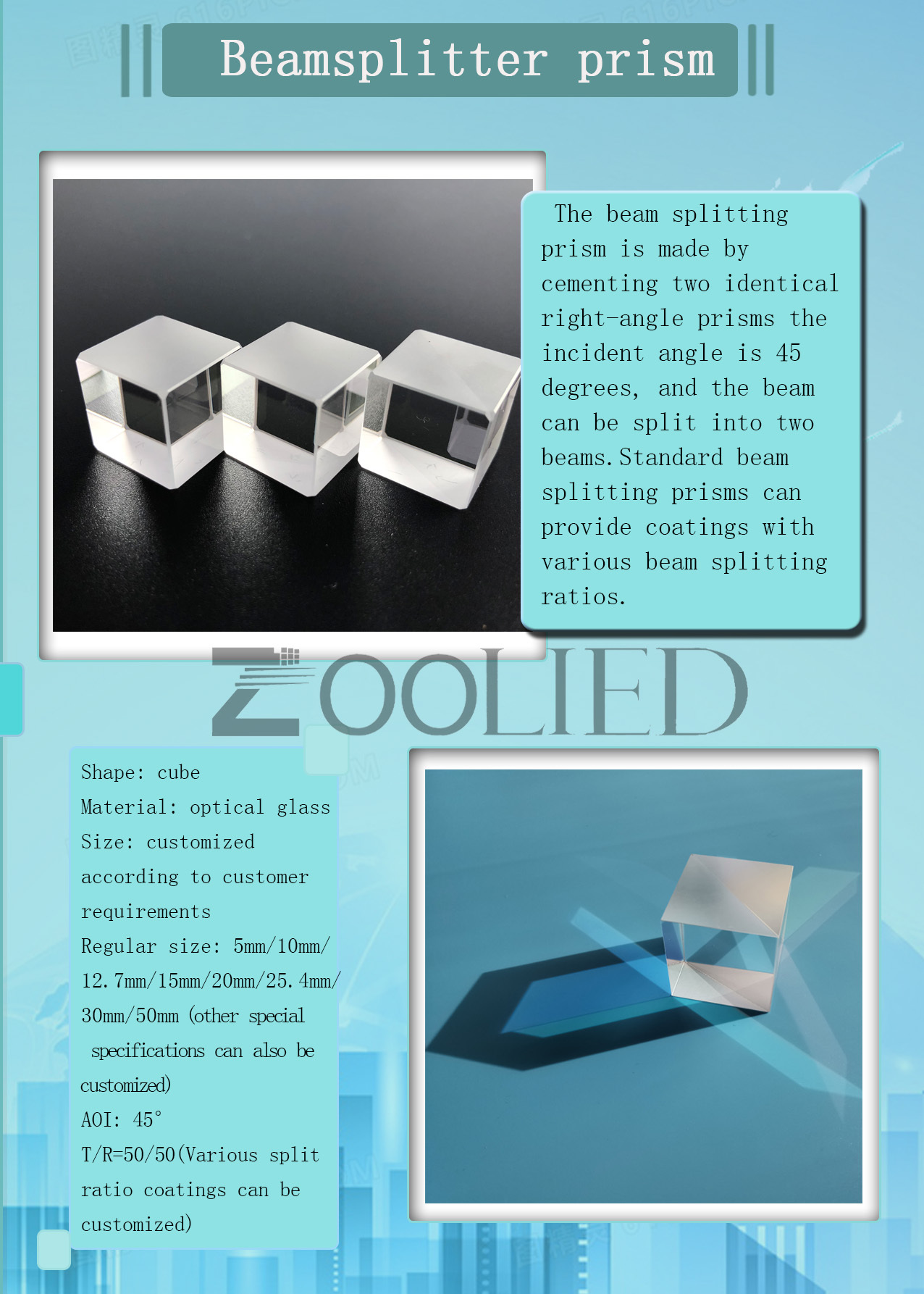

Beamsplitter prism
