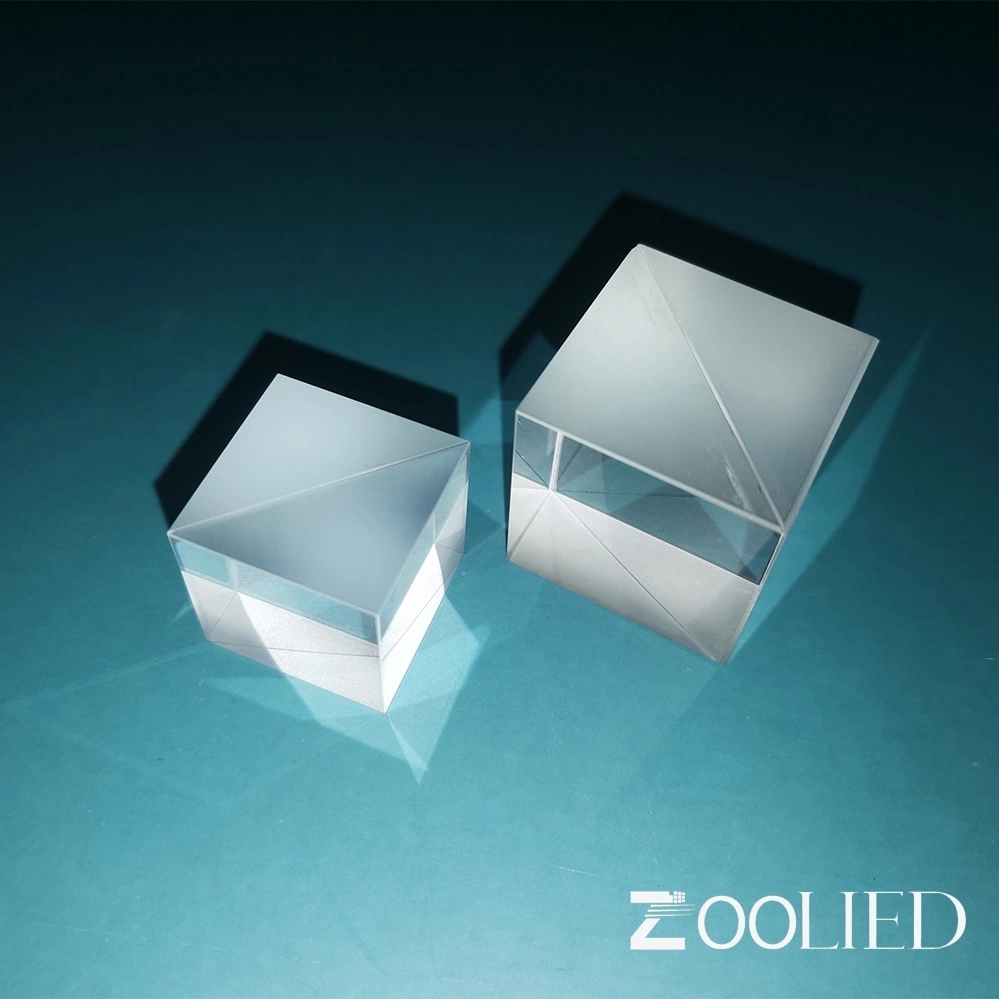

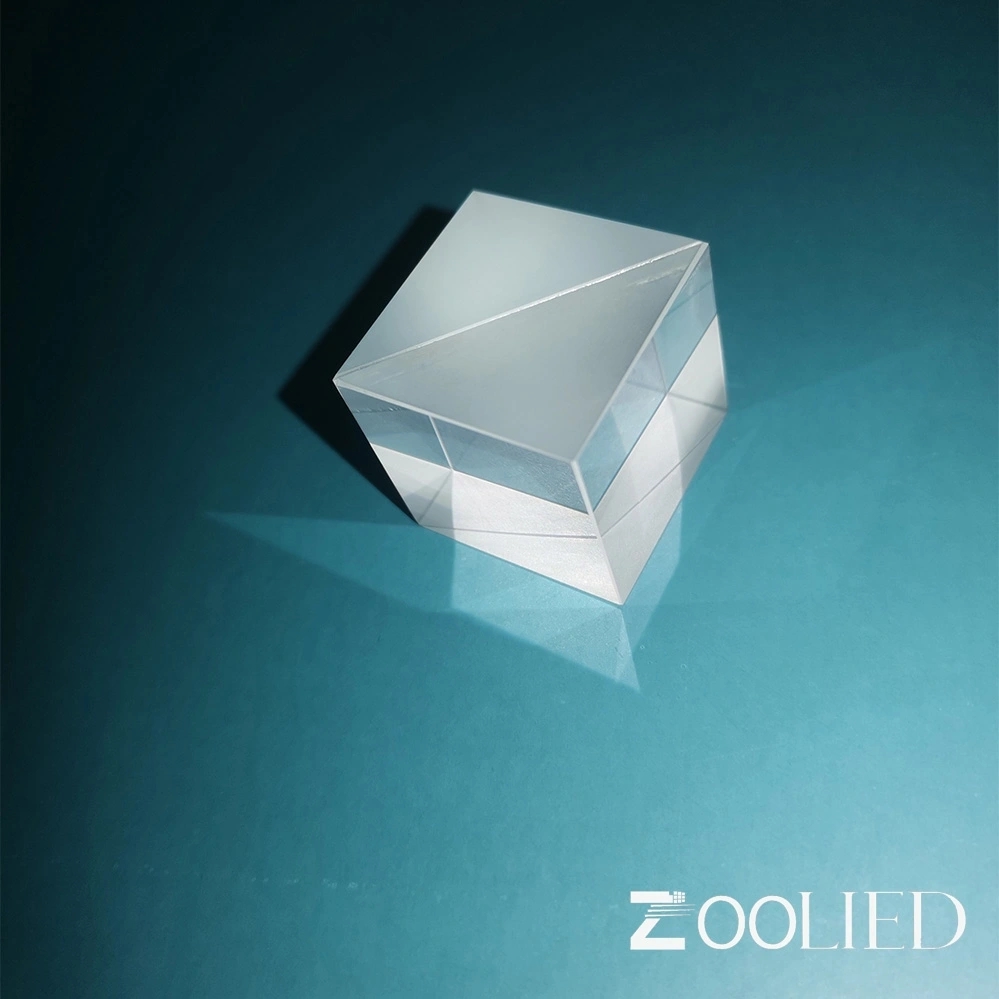

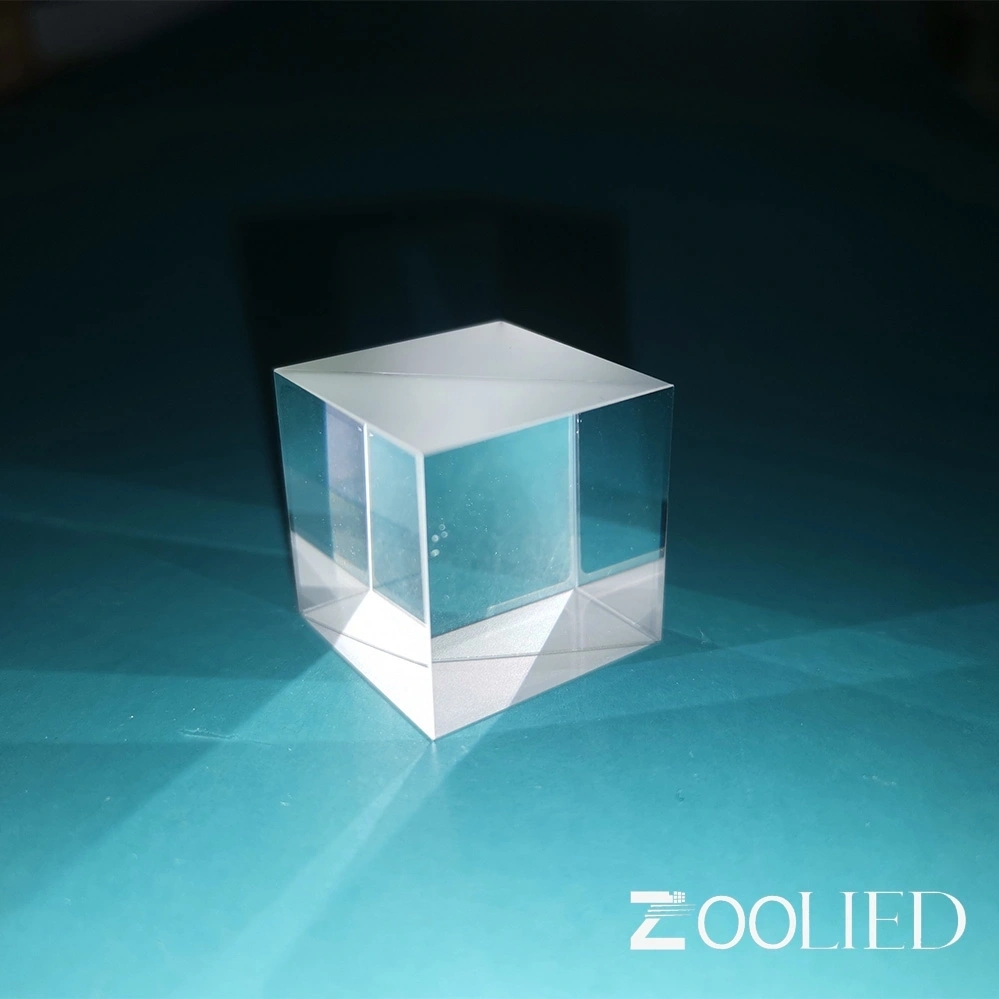

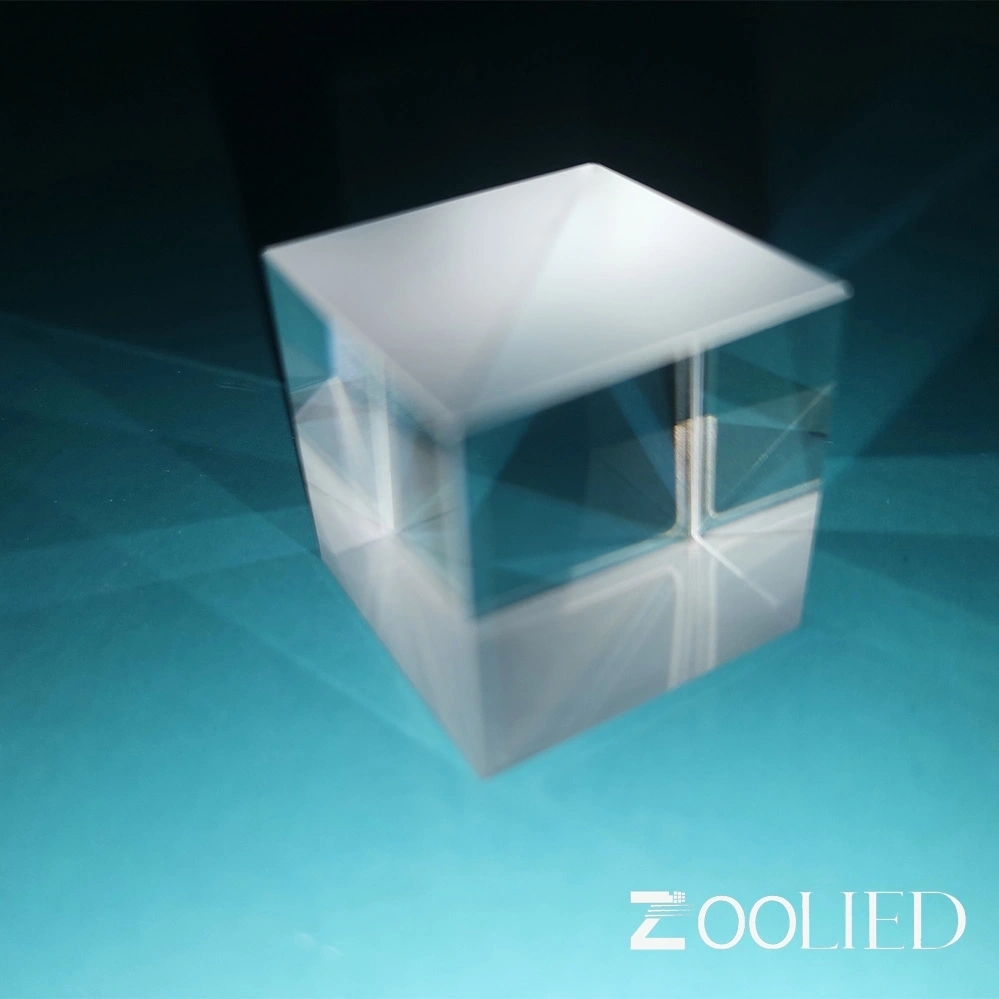

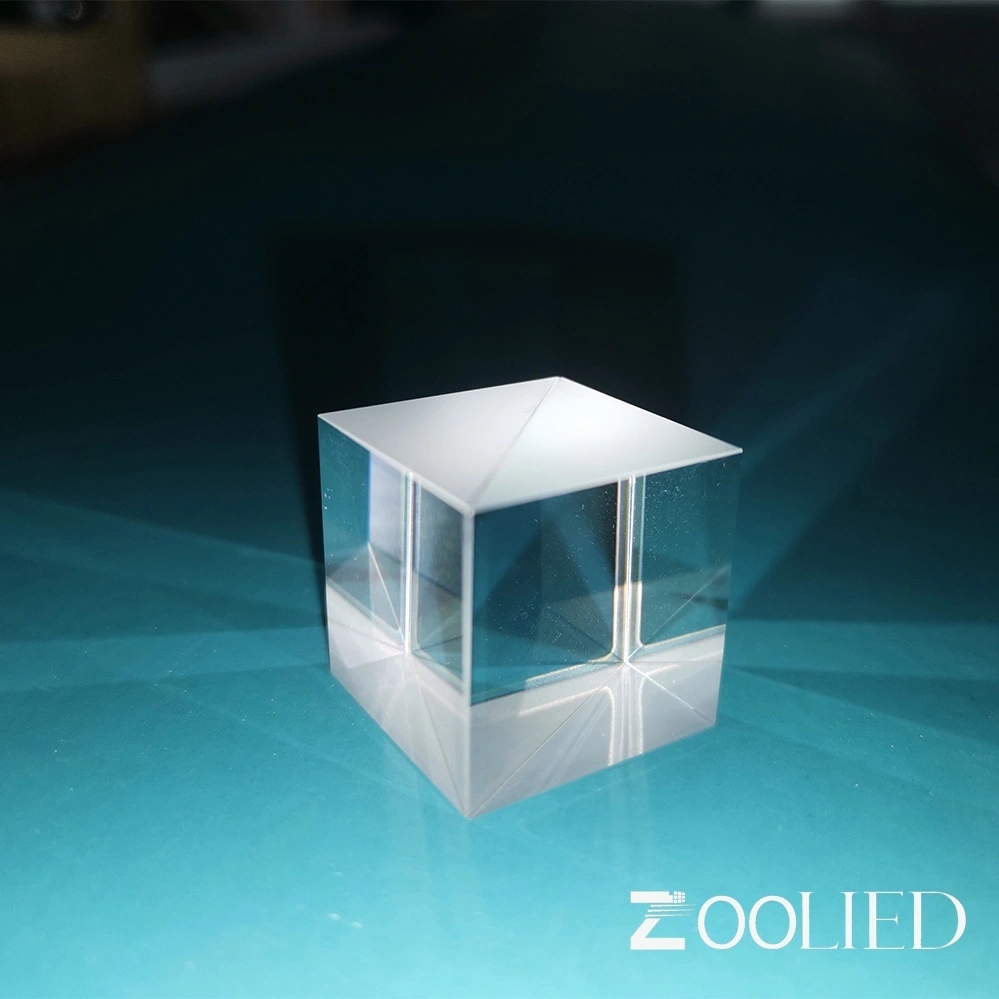

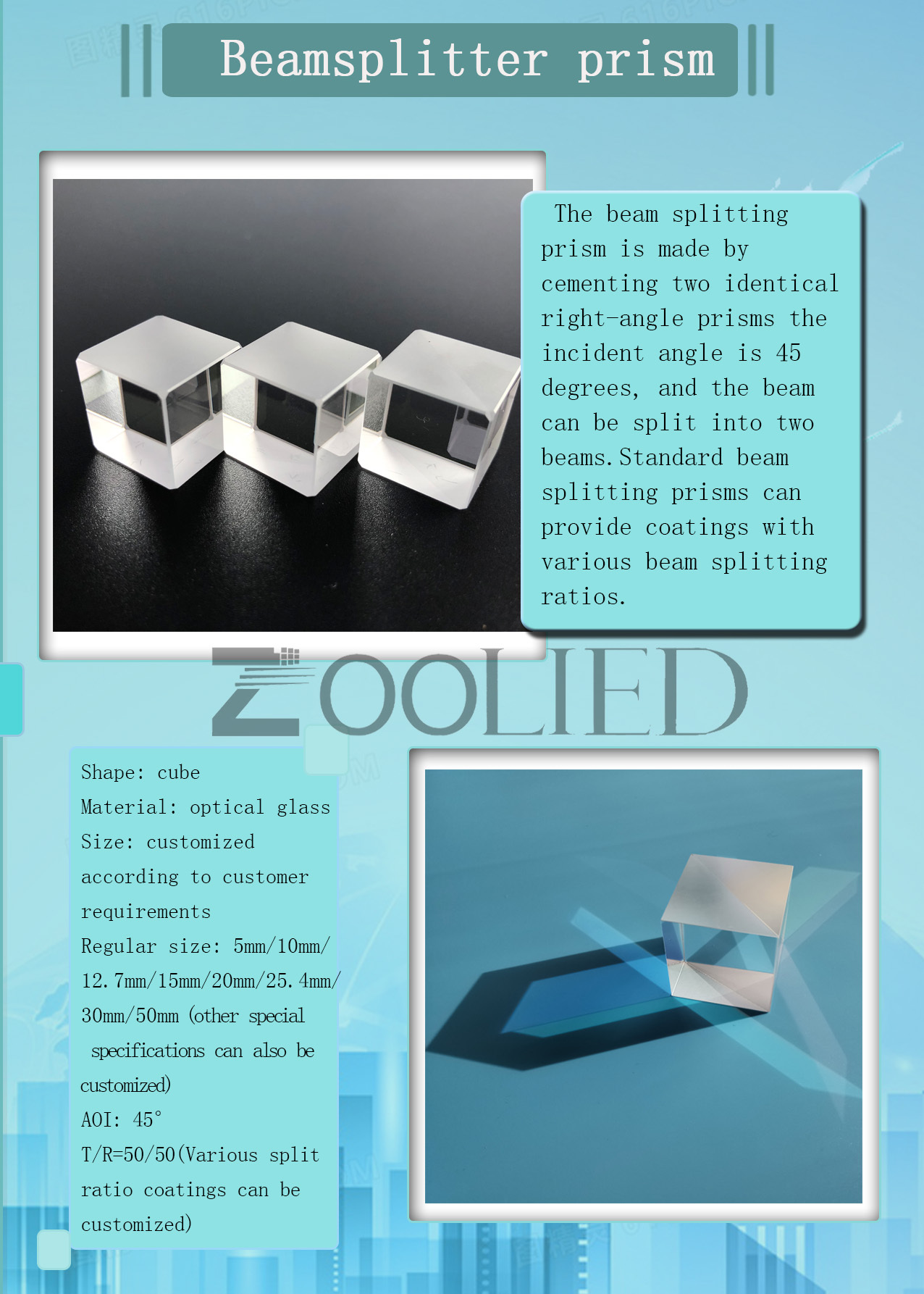

Zoolied offers customized K9 material 25*25*25mm Optical Glass Beamsplitter.
K9 is a RoHS-compliant borosilicate crown glass. It has excellent transmission in the visible and near IR portions of the spectrum (350 nm - 2.0 µm). K9 is probably the most common optical glass used in high-quality optical components. K9 is a hard glass that can withstand a variety of physical and chemical stressors. It is relatively scratch and chemical resistant. It also has a low bubble and inclusion content, making it a useful glass for High Precision Prisms.
Optical Prisms are used to redirect light at a designated angle. Optical Glass Prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism’s design determines how light interacts with it. When light enters an Optical Glass Prism it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate. For example, when light enters Optical glass prism, it reflects off a single surface, causing the light to redirect at 90°. When light enters a wedge prism, though, a change in substrate thickness causes the light to deviate through refraction.
Zoolied offers a wide range of high precision prisms in a variety of designs, substrates, or coating options. Designs include Right Angle, Amici, Penta, Schmidt, Wedge, Anamorphic, Equilateral, Dove, or Rhomboid prisms, in addition to Corner Cube Retroreflectors or Light Pipe Homogenizing Rods. Anti-reflection coatings include MgF2, UV-VIS, UV-AR, VIS 0°, VIS-NIR, or multiple laser line options.
