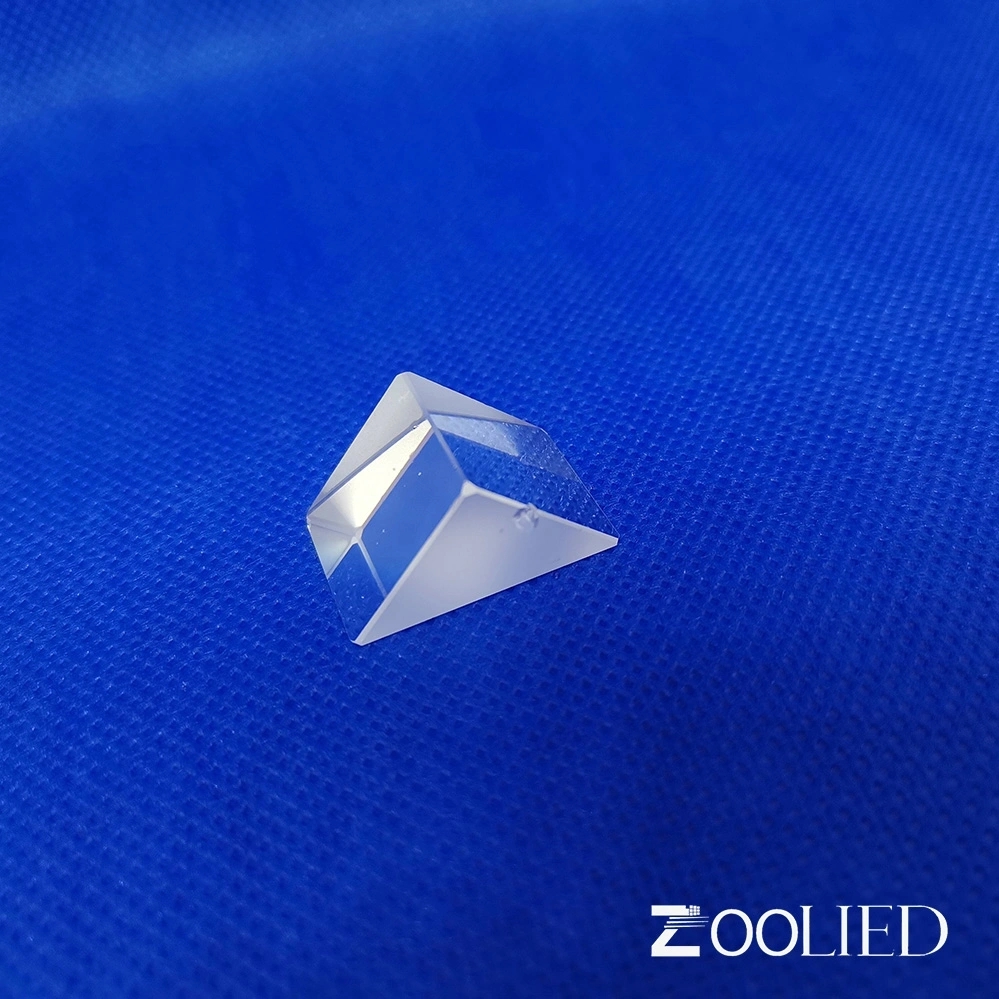

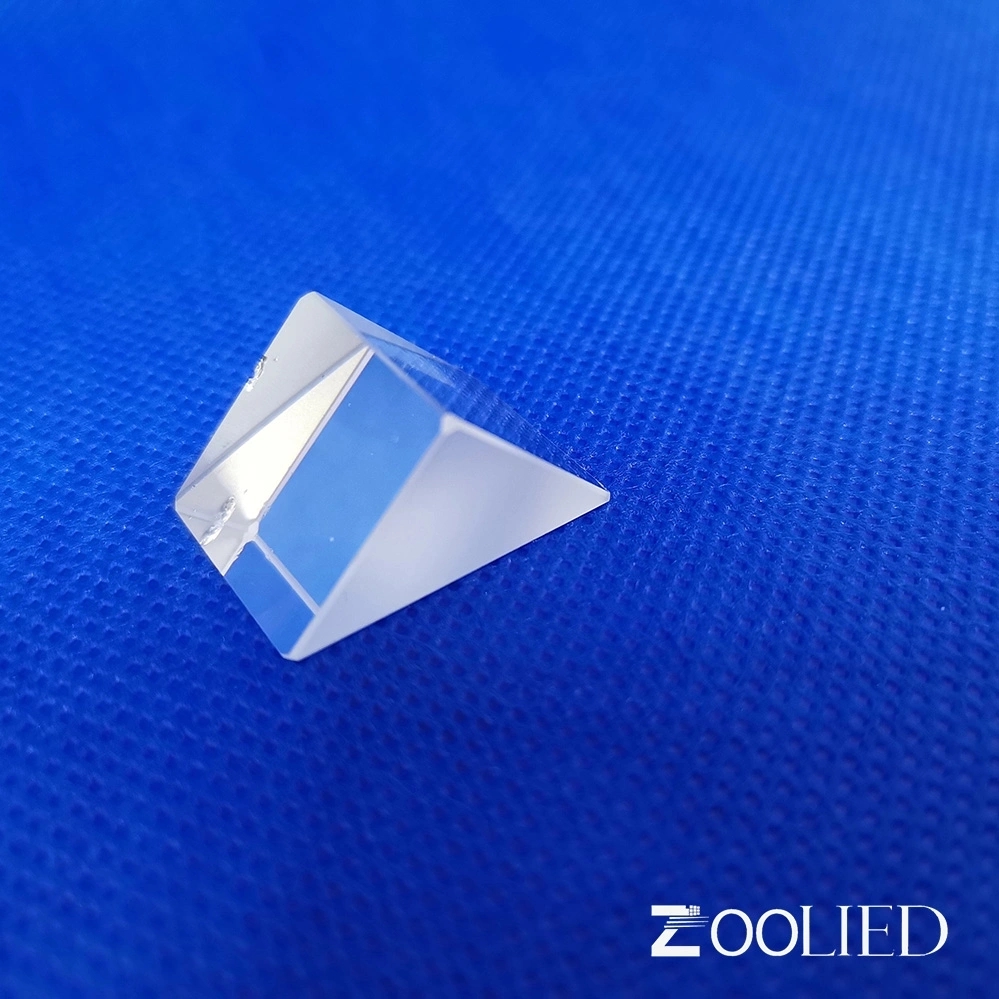

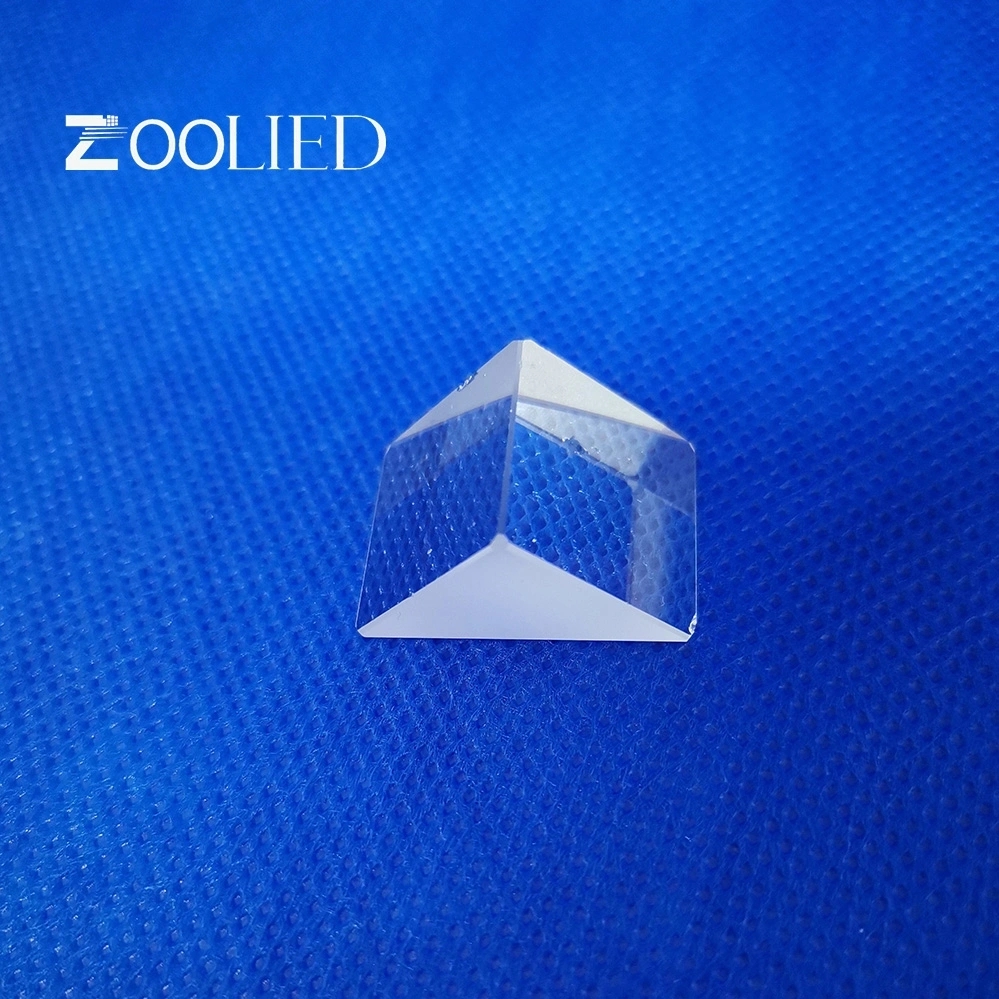

Fused Silica 5secs Right Angle Prism
$10 - 456 /Piece/Pieces
Payment Type:
L/C,T/T,Paypal,D/P
Incoterm:
FOB,CFR,CIF,EXW,FAS,FCA
Min. Order:
10 Piece/Pieces
Transportation:
Ocean,Land,Air,Express,Others
Sample: $50.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY491

Brand: Zoolied

warranty period: 3 Years

Certification: Csa, Pcoc, Reach, Iecee, Scoc, Ul, Epa, Gs

Support customization: Oem, Odm, Obm

place of origin: China

Surface Quality: 60/40, 40/20, 20/10

Dimension: 0.3-200mm

Flatness: 2l~ L/10

Angle Tolerance: 10 Acrmin ~ 3 Arcsec

Chamfer: 0.1-0.3 * 45 Degree

Coating: Ar/ Bbar/ Metallic/ Hr

Supply Ability & Additional Information

Packaging: Standard pacling

Productivity: 9000000pcs/year

Transportation: Ocean,Land,Air,Express,Others

Place of Origin: China

Supply Ability: 99000pcs/month

Certificate: ISO9001

HS Code: 9001909090

Payment Type: L/C,T/T,Paypal,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
Standard pacling

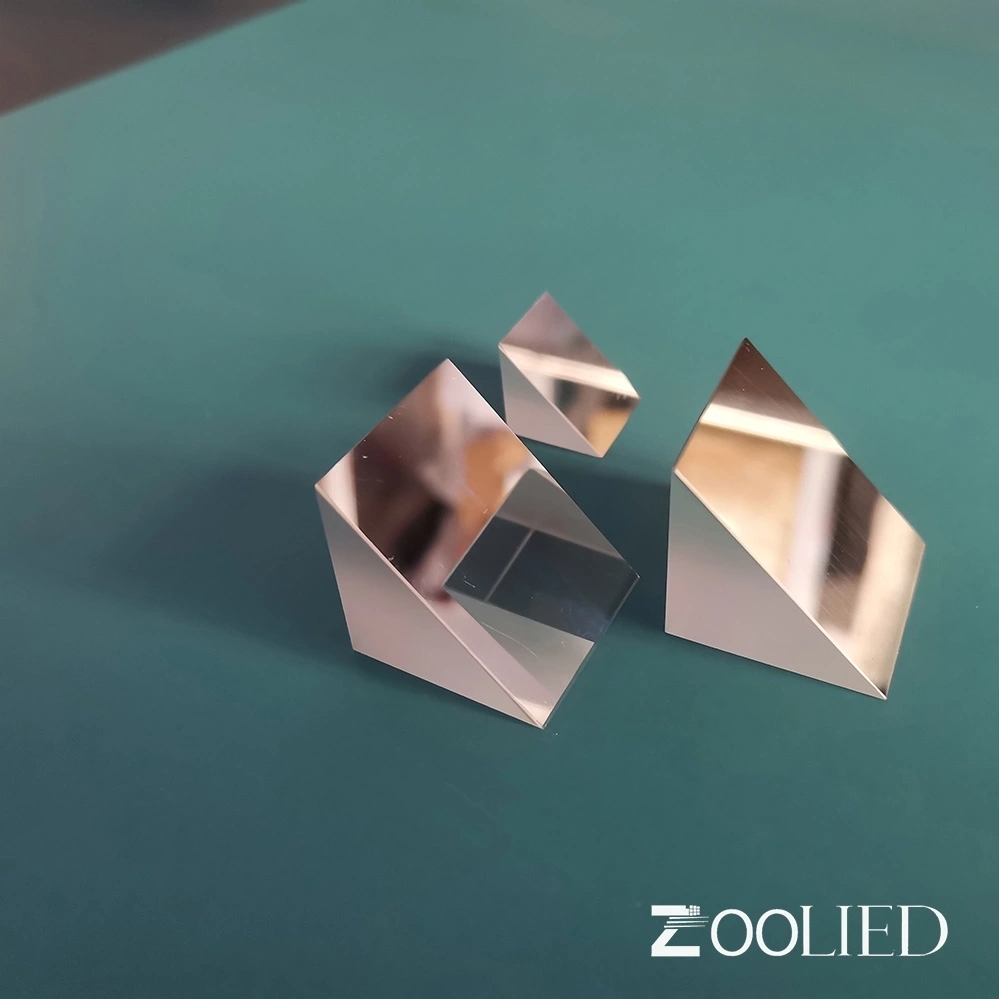

Picture Example:

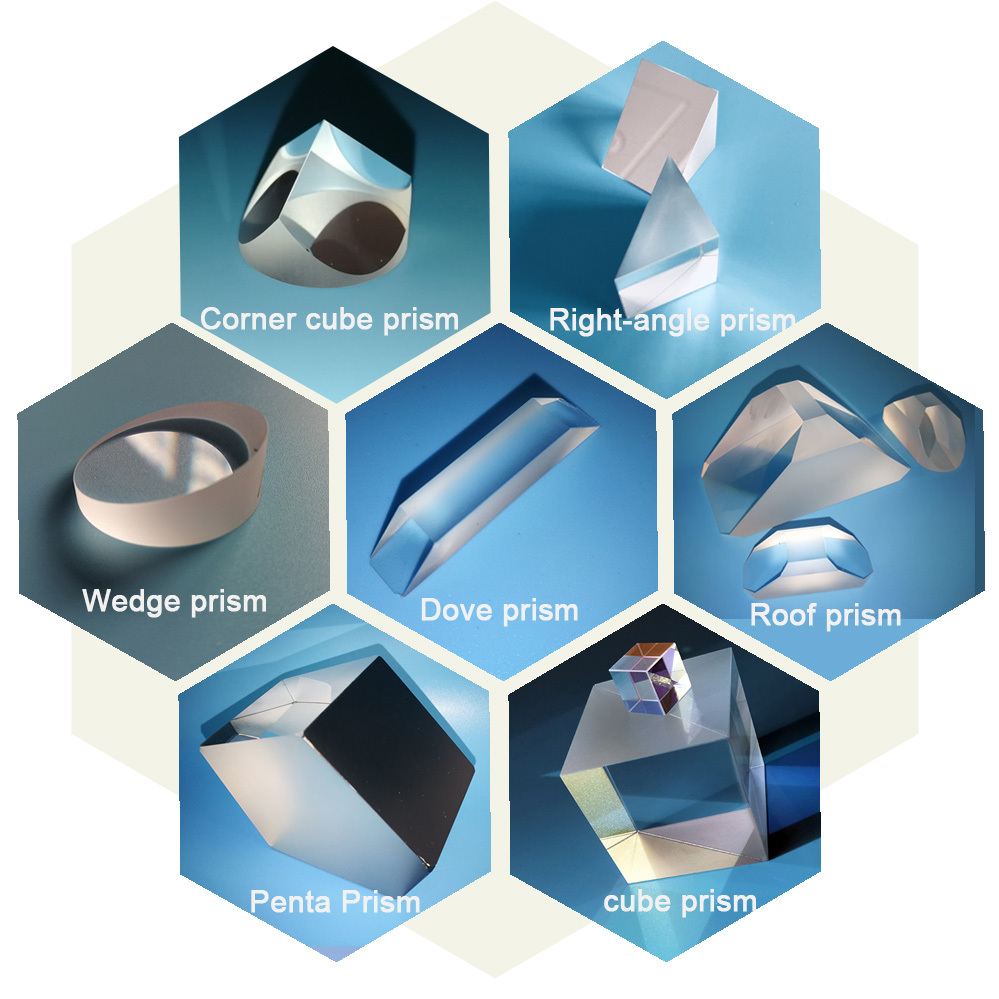

Optical Prisms is a transparent geometrical optical object with at least two polished planes inclined to each other. Light enters from one side of the plane and reflects or refracts when passing through the interior.

Dove prisms are Right Angle Prisms with the top removed. They can be used to reverse the image. It can be coated on the side where the light is reflected for optical sensing applications.

Right-angle roof Optical Glass Prisms are usually used for binoculars or when a right-angle deflection of the image is required. The image is deflected from left to right instead of top to bottom.

The pentagonal roof prism deflects the beam by 90 degrees without deflecting it from left to right or top to bottom.
The output beam generated by the rhombus prism is displaced from the input beam, but it does not change the direction of the beam, nor does it reverse the image.

Porro prisms (independent or higher configuration) are usually used to change the direction of the image. They are commonly used as erectors in space-constrained optical instruments such as binoculars, telescopes, and microscopes. The extent of the porro system will depend on how many axes the image needs to be changed

An interesting application of Anamorphic prism is to change the size of the incident beam. This is entirely caused by the geometry of the prism (for example, the angle between the incident surface and the refractive surface), rather than the focusing element or collimation effect in the lens. Anamorphic Optical Glass Beamsplitter are usually arranged in pairs to keep the light beam propagating along the optical axis.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

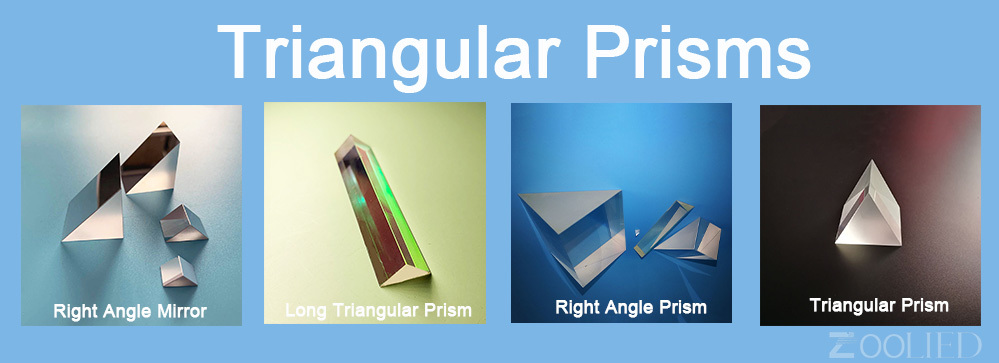

Triangular Prisms

Material BK7, fused silica,other optical glass and IR material
Dimension tolerance +/-0.1 to +/-0.02mm
Angle tolerance 3 arcsec to 3 arcmin
Flatness: L/2 - L/10
Coating: AR, BBAR, Metallic, HR
Compared with typical mirrors, triangular High Precision Prisms have significant advantages because they have greater resistance to mechanical loads and external stress. This makes them more suitable for applications that operate under harsh conditions, such as vibration or rapid motion. Triangular prisms also provide huge improvements in ease of installation and alignment, thereby reducing application complexity, cost and time to market.

Prism


Zoolied offers a variety of Optical glass beamsplitter, such as N-BK7 Beamsplitter Prisms, K9 Right Angle Prisms, fused silica Corner Cube Retroreflectors. ZOOLIED provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Infrared (IR) and also provides uncoated Optical Glass Prism based on K9 optical glass and UV fused silica. Looking for ideal Triangular Optical glass prism Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Triangular Optical glass prisms are quality guaranteed. Zoolied is China Origin Factory of Optical glass beamsplitter. If you have any question, please feel free to contact us.
