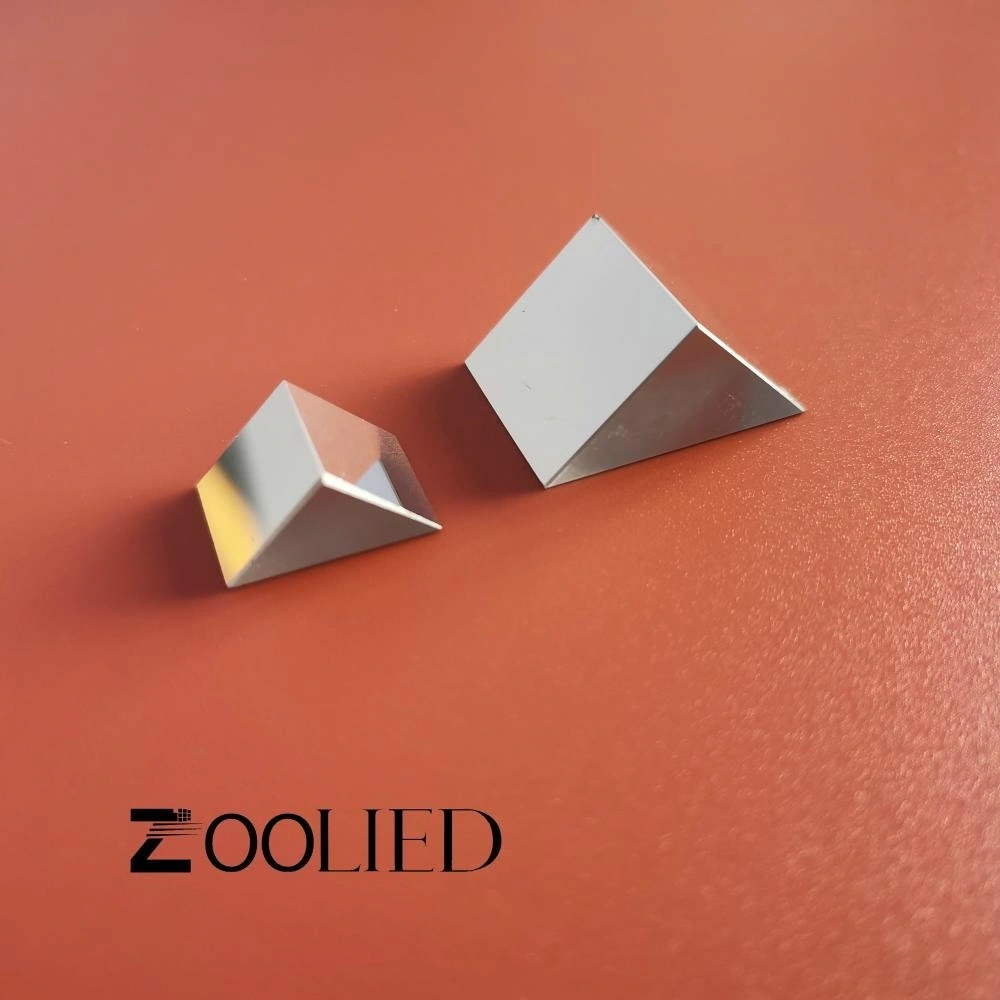

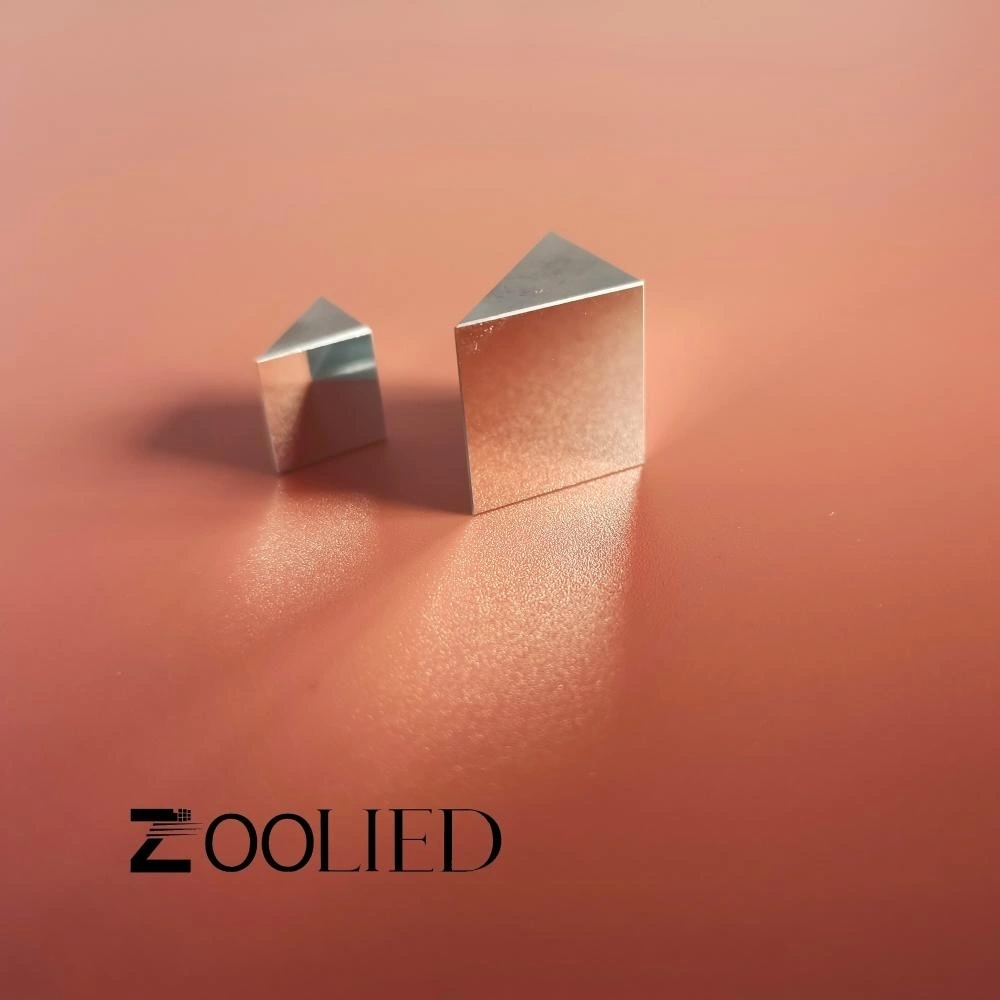

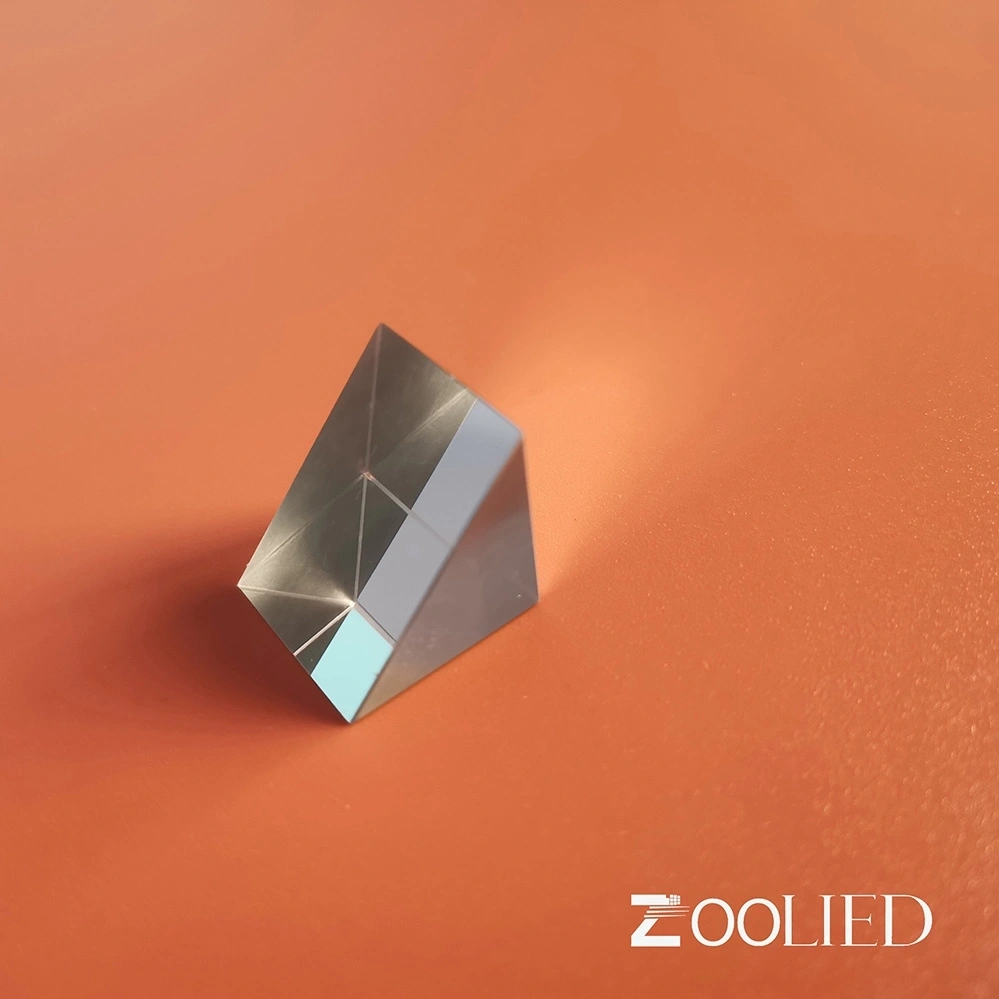

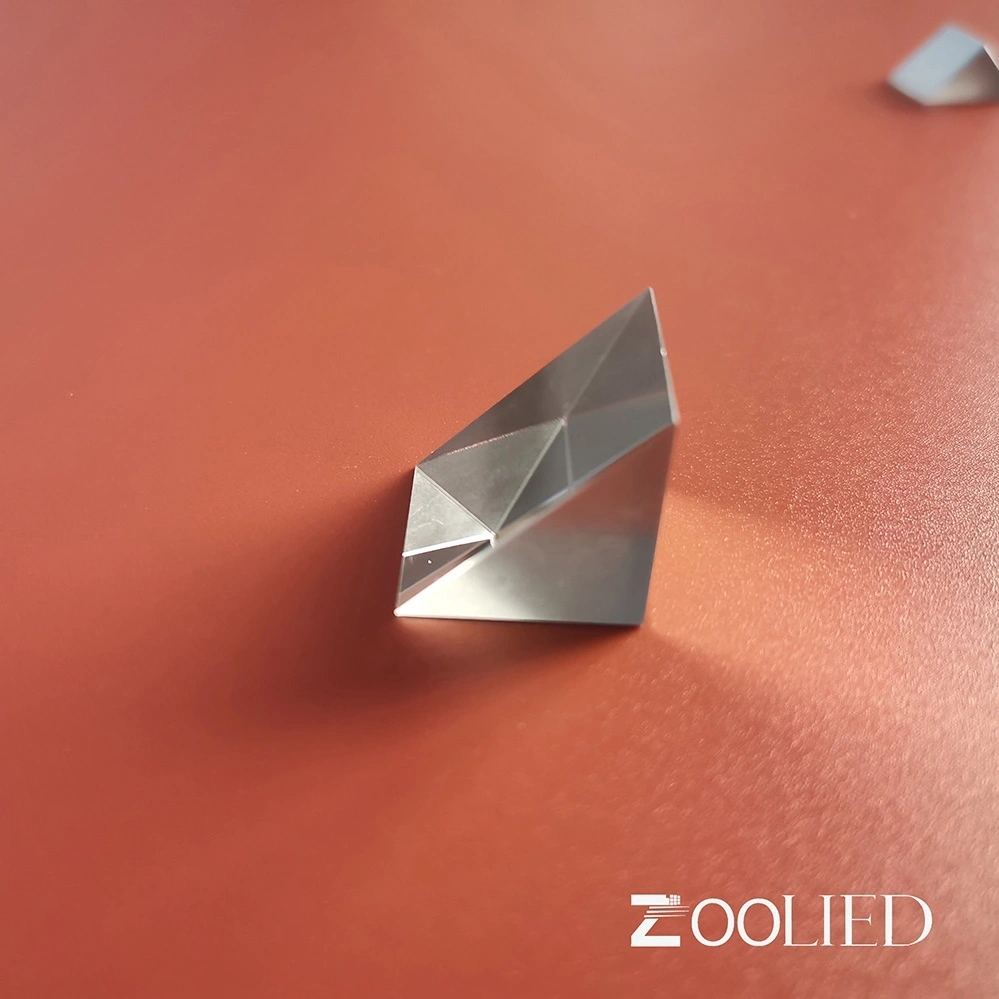

The dispersive Optical Prisms is usually in the shape of a triangular prism. The light enters from one side of the prism and is deflected in the prism to separate the light beam into different optical paths according to the different wavelengths. Thereby changing the refractive index of each wavelength, the polychromatic light can be dispersed when passing through the prism. Zoolied provides BK7 Fused Silica Corning 7980 Right Angle Prisms that are usually used to deviate the direction of light by 90 degrees. When light is incident through the hypotenuse of the prism, a Right Angle Mirrors prism can be used in the Porro configuration. The light will be deflected 180 degrees and flipped.

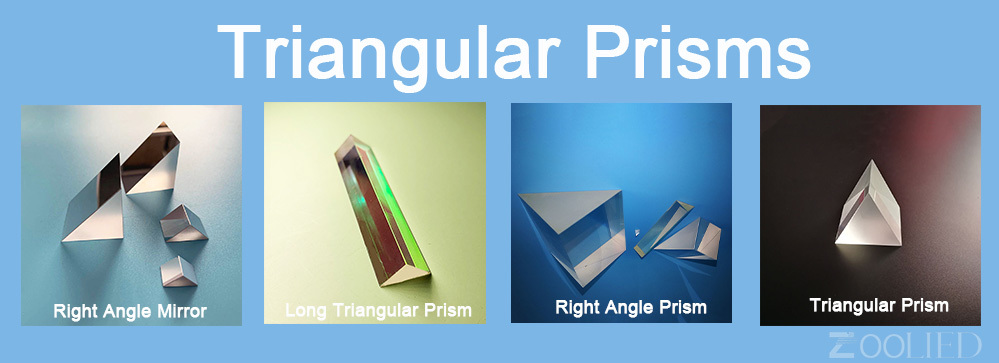

Compared with typical mirrors, triangular Optical Prisms have significant advantages because they have greater resistance to mechanical loads and external stress. This makes them more suitable for applications that operate under harsh conditions, such as vibration or rapid motion. Triangular Optical Glass Prisms also provide huge improvements in ease of installation and alignment, thereby reducing application complexity, cost and time to market.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.
Material | BK7, fused silica,other optical glass and IR material |
Dimension tolerance | +/-0.1 to +/-0.02mm |
Angle tolerance | 3 arcsec to 3 arcmin |
Flatness: | L/2 - L/10 |
Coating: |
AR, BBAR, Metallic, HR |
Zoolied offers a variety of Optical Glass Beamsplitter, such as N-BK7 Beamsplitter Prisms, K9 Right Angle Prisms, fused silica Prisms. ZOOLIED provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Infrared (IR) and also provides uncoated Optical Glass Prism based on K8 optical glass and UV fused silica. Looking for ideal Triangular Optical glass prism Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Triangular Optical glass prisms are quality guaranteed. Zoolied is China Origin Factory of Optical glass beamsplitter. If you have any question, please feel free to contact us.
