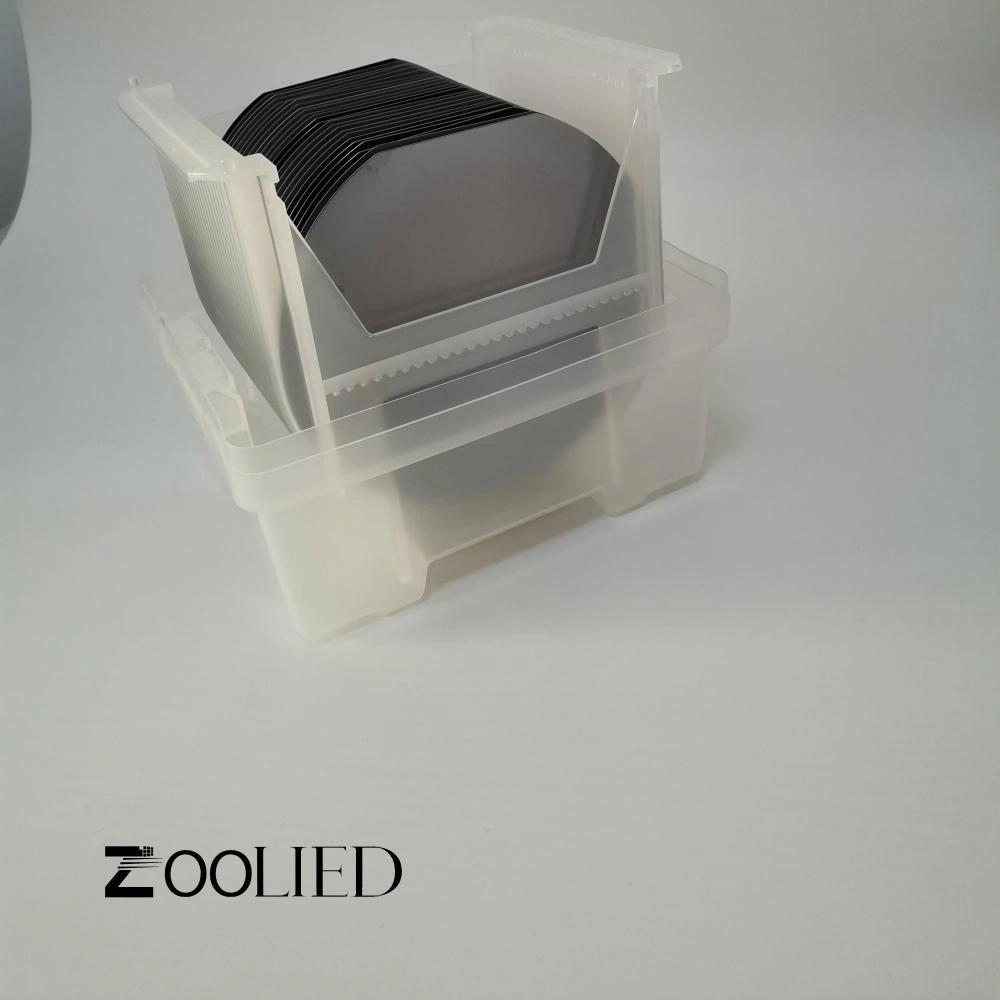

Zoolied offers Silicon Wafers specifications: size: 4 Inch Si Wafers (100 mm), <100> direction, thickness: 1000μm. There are many applications for high-quality silicon substrates for nano-applications, including SEM, AFM and other scanning probe microscopes, cell culture, protein DNA microarrays, and reflectometers. Zoolied offers gold-plated silicon wafers. How high can the substrate temperature be without peeling off the gold coating? This temperature is generally considered to be about 150°C and remains stable up to 250°C and above. If the temperature used is too high, the gold may start to delaminate from the surface.
Zoolied offers a variety of optical Glass Wafers, such as Dummy Silicon Wafers, Jgs1 Wafers, and K9 Wafers, and Bk7 Wafers. ZOOLIED provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.

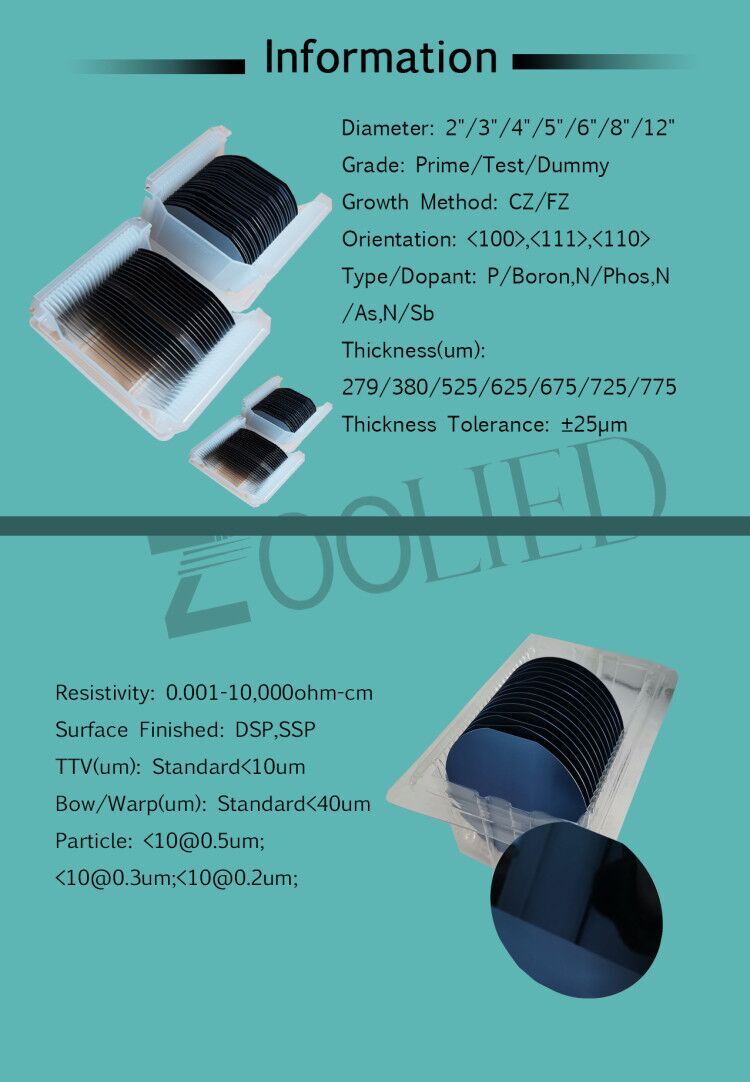

Zoolied Standard Silicon Wafer | |||||||
Diameter | 2" | 3" | 4" | 5" | 6" | 8" | 12" |
Grade | Prime/ Test/ Dummy | ||||||
Growth Method | CZ/FZ | ||||||
Orientation | < 100 > , < 111 > , < 110 > | ||||||
Type/Dopant | P/Boron , N /Phos, N /As, N /Sb | ||||||
Thickness (um) | 279 | 380 | 525 | 625 | 675 | 725 | 775 |
Thickness Tolerance | Standard ± 25μm | ||||||
Resistivity | 0.001 - 10,000ohm-cm | ||||||
Surface Finished | DSP,SSP | ||||||
TTV (um) | Standard < 10 um | ||||||
Bow/Warp (um) | Standard <40 um | ||||||
Particle | Specified by customer |
