D10mm T1mm - 2mm Silicon (Si) Windows
$9.8 - 19.8 /Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CIF,CPT,CIP
Min. Order:
50 Piece/Pieces
Transportation:
Air,Express
Sample: $50.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY196

Brand: Zoolied

place of origin: China

use: Optical, Infrared

Structure: Plano-Convex, Double Convex

shape: Spherical, Plano, Ball, Aspheric, Meniscus

Material: Ge/Si

Wavelength: Ir

Dimension: 5 Mm - 300 Mm

Thickness: 0.5 Mm - 10 Mm

S/D: 80/50 - 60/40

Fringes: 5(3) To 3(1)

Parellelism: 3 Arcmin

Supply Ability & Additional Information

Packaging: Standard and protective packing

Productivity: 8000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 80000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,CPT,CIP

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
Standard and protective packing

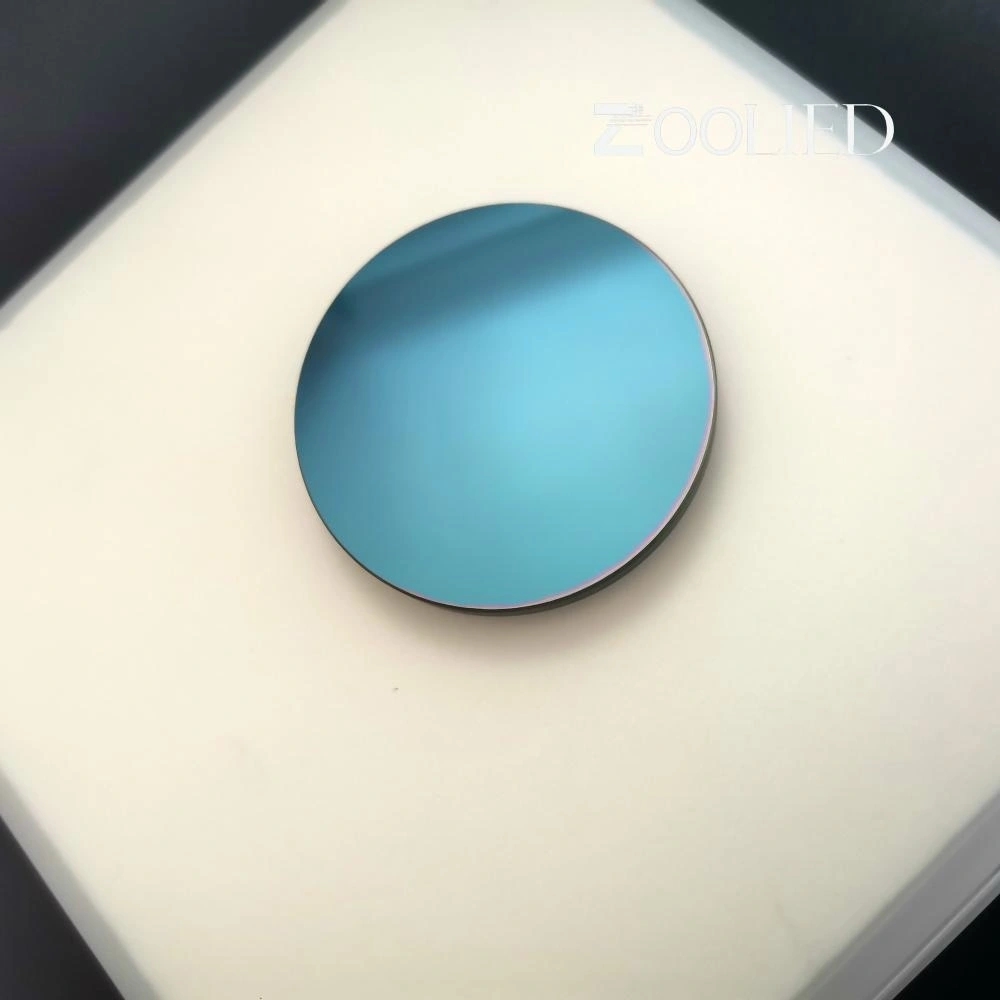

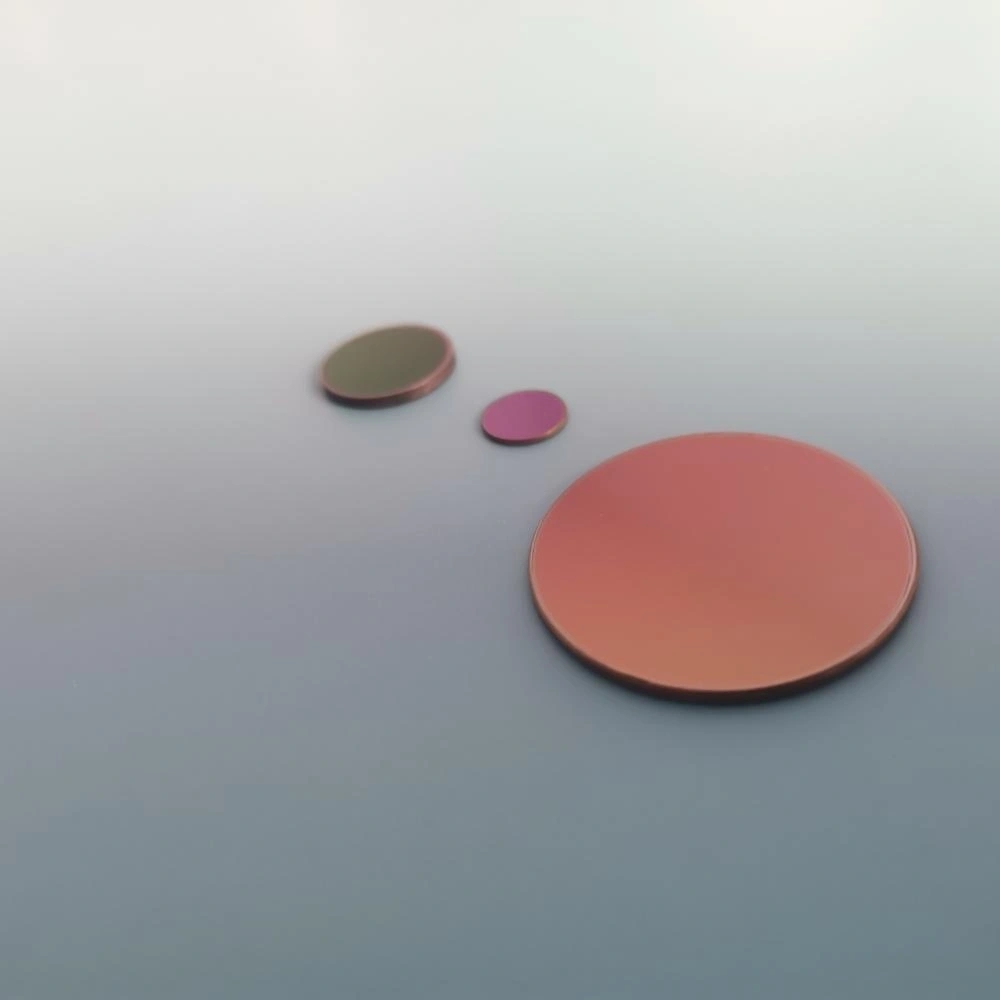

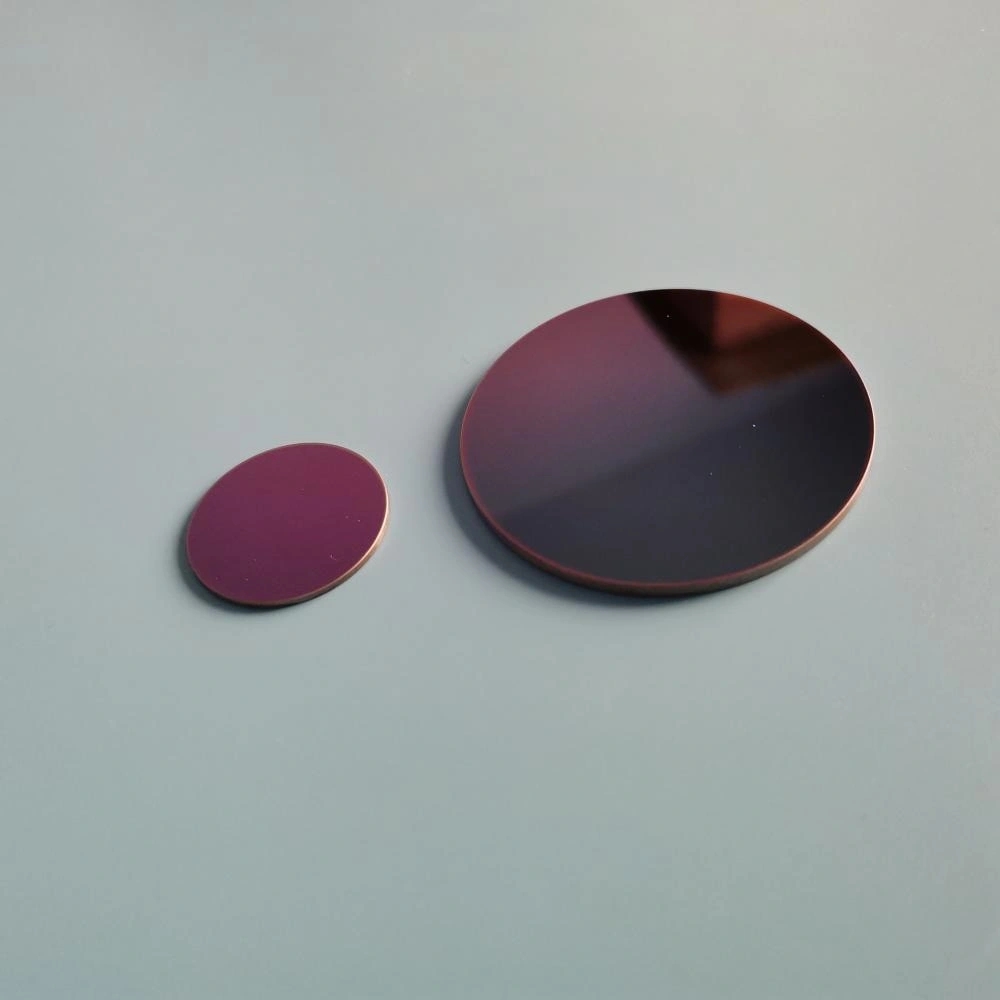

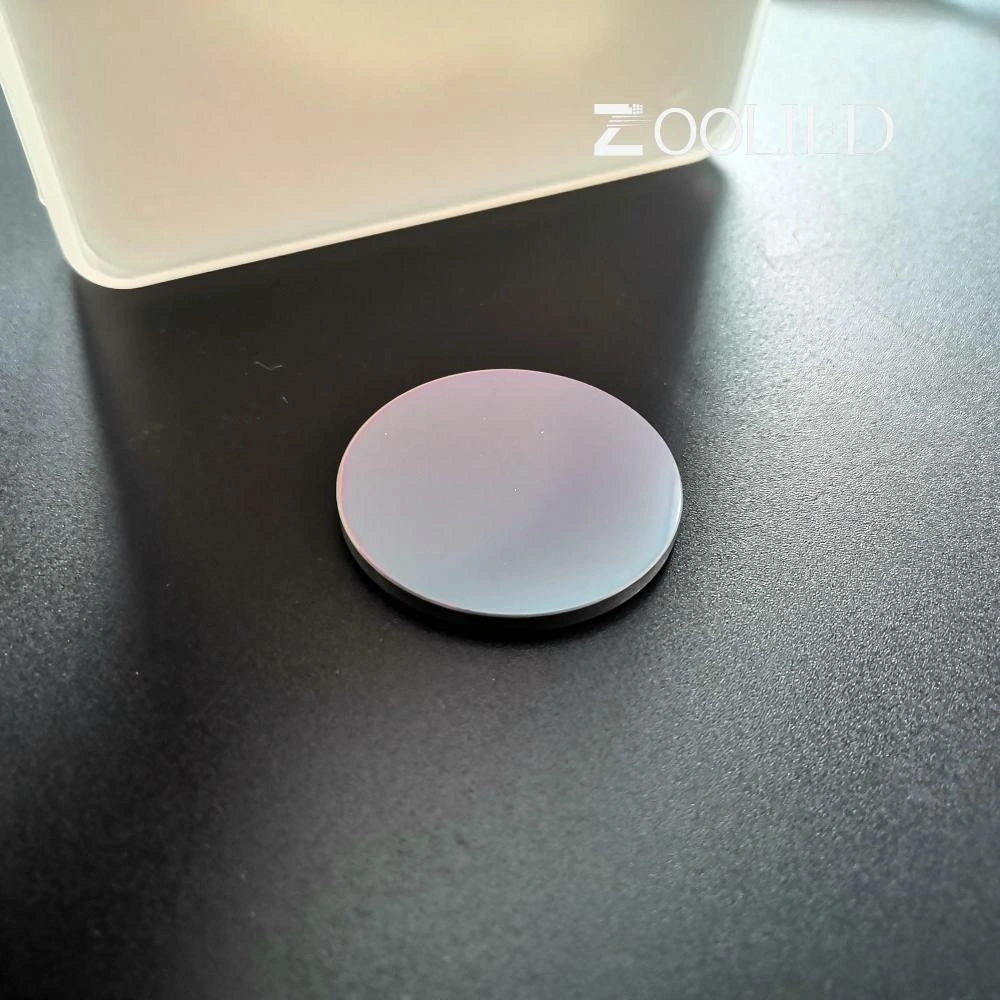

Picture Example:

Typical Applications
Thermal imaging
Si Crytal Lens and windows are often used for NIR and MWIR thermal imaging applications. Though the image quality may not be as superior as germanium and zinc selenide, silicon does provide a more lightweight and cost effective solution.
Laser Mirrors
Due to silicon’s high thermal capacity it is an ideal substrate for reflectors used in applications such as CO2 laser cutters.
FTIR Spectroscopy
Zoolied's big Silicon Windows are often used as the substrate for infrared Optical Filters that are incorporated into FTIR spectrometers.
IR Detectors
Silicon optics are often used in NIR and MWIR detectors due to its transmission from 1 to 6µm. Silicon based detectors are used in applications such as LiDAR and muzzle flash detection.

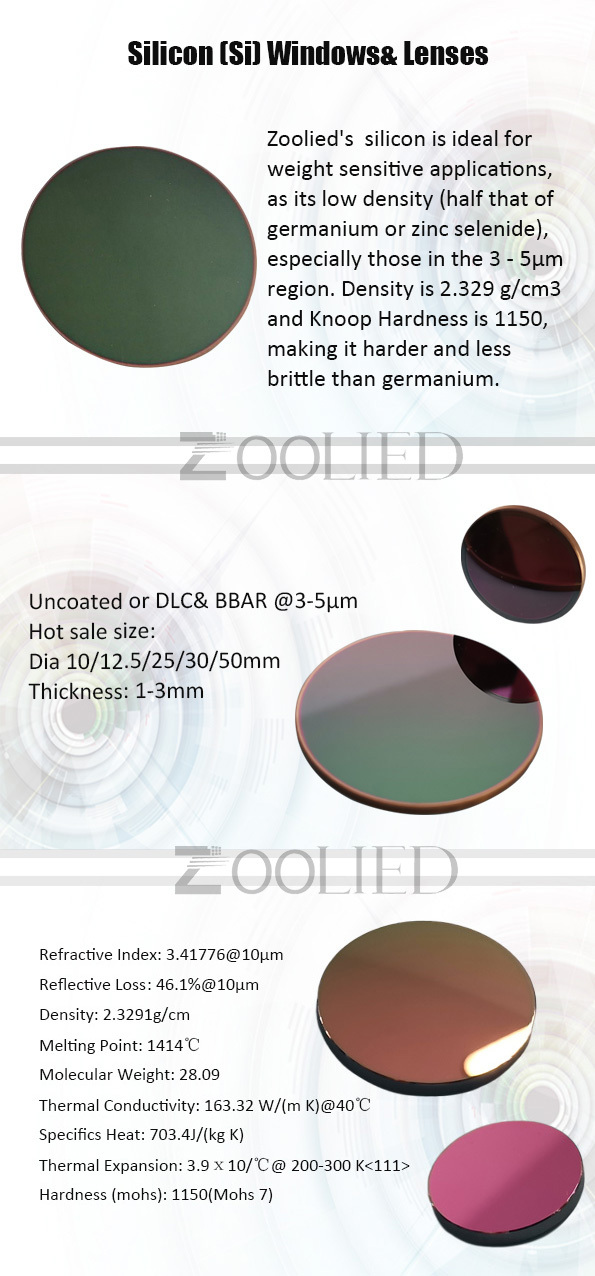

Zoolied Silicon (Si) Windows manufactured from optical grade silicon are popular for the 1.2 - 7μm spectral region due to their low cost and low density. Due to its low density (half that of germanium or zinc selenide), silicon is ideal for weight sensitive applications, especially those in the 3 - 5μm region. Density is 2.329 g/cm3 and Knoop Hardness is 1150, making it harder and less brittle than germanium.

Si crytal lens and windows manufactured from optical grade silicon are popular for the 1.2 - 7μm spectral region due to their low cost and low density(half that of germanium or zinc selenide),big Silicon windows are ideal for weight sensitive applications, especially those in the 3 - 5μm region. Density is 2.329 g/cm3 and Knoop Hardness is 1150, making it harder and less brittle than germanium
At the same time, we provide Silicon windows with diffrerent coatings, such as Dlc Coating Silicon Windows, BBAR coating Silicon Windows, and AR coating Silicon Windows.
Zoolied’s Optical Windows are offered in a variety of substrates, such as N-BK7(H-K9L), Cvd Znse LensIr Znse Windows, and single Crystal Caf2 Windows. Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

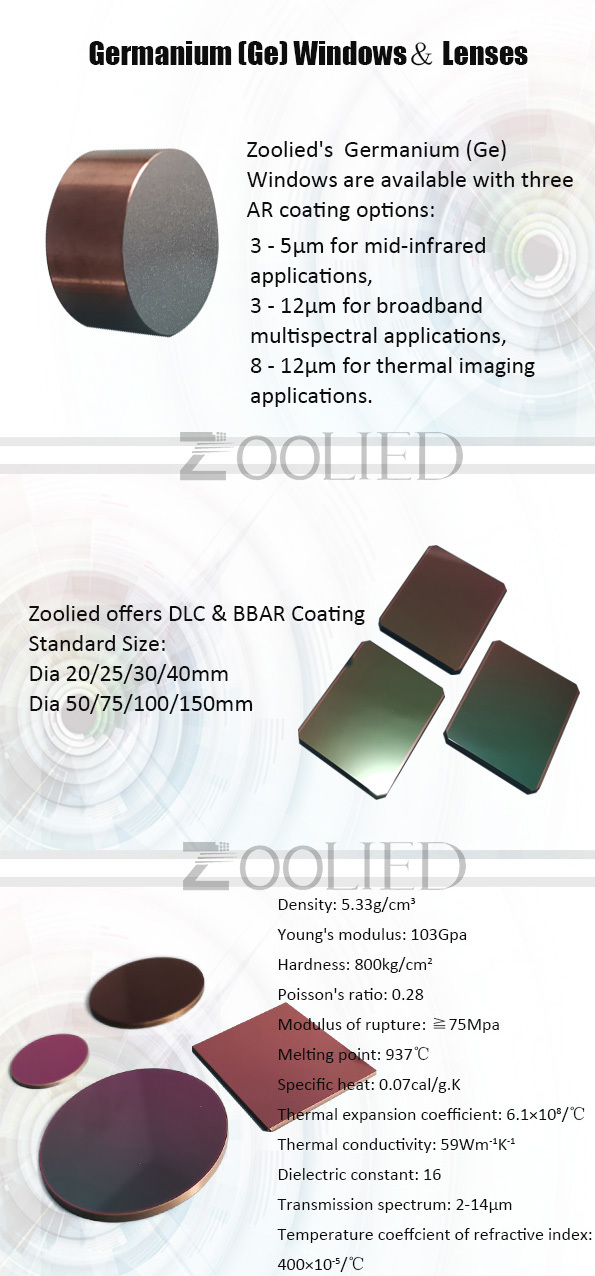

Ge
