Zoolied Inc.一AL Coating Mirrors
2025-7-11

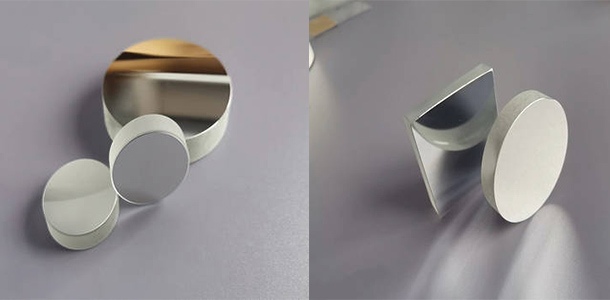

In modern optical systems, AL Coating Mirrors are among the most widely used optical components due to their excellent reflectivity and cost-effectiveness. This article explores the technical characteristics, manufacturing processes, and advantages of aluminum-coated mirrors across different spectral regions.
Fundamental Properties of Aluminum Coatings
Aluminum (Al) is an outstanding reflective coating material, offering superior performance across ultraviolet (200-400 nm), visible (400-700 nm), and near-infrared (700-2000 nm) spectral ranges. Pure aluminum coatings typically achieve 88-92% reflectivity in the visible spectrum and maintain over 85% reflectivity in the UV range (above 200 nm), making them ideal for broadband applications.
Compared to other noble metal coatings , aluminum films demonstrate better environmental stability. A naturally forming aluminum oxide (Al₂O₃) layer protects the surface from further oxidation, whereas silver coatings tend to tarnish due to sulfurization, and gold coatings perform poorly in the UV range.
Key Coating Technologies
High-quality aluminum-coated mirrors rely on precise vacuum deposition techniques. Electron beam evaporation is the most common method, with critical parameters including:
Vacuum Control: Chamber pressure must be maintained between 10⁻⁵ and 10⁻⁶ Torr to minimize impurities in the deposited film.
Deposition Rate Optimization: A rate of 1-3 nm/s is ideal; excessively fast deposition leads to porous coatings, reducing reflectivity and durability.
Substrate Temperature Management: Moderate heating (100-150°C) improves crystalline structure, but excessive heat increases surface roughness.
To enhance durability and reflectivity, a protective dielectric layer—such as silicon dioxide (SiO₂) or magnesium fluoride (MgF₂)—is often applied. This layer also improves reflectivity at specific wavelengths through interference effects.
Specialized Coating Variants
Enhanced Aluminum Coatings: Optimized dielectric layers can boost reflectivity beyond 95% in targeted bands.
UV-Specific Aluminum Coatings: Special processes minimize oxide layer thickness to maximize UV reflectivity (200-400 nm).
Protected Aluminum Coatings: Thicker protective layers improve scratch resistance and environmental stability for harsh conditions.
Applications
Aluminum-coated mirrors are widely used in:
Laser optical systems
Spectroscopic instruments
Astronomical observation equipment
Projection and display systems
Optical metrology devices
Advances in vacuum deposition technology continue to improve the performance and reliability of aluminum-coated mirrors. By precisely controlling deposition parameters and optimizing protective layers, these mirrors remain indispensable in optical systems. Future developments, such as nanostructured aluminum coatings and hybrid multilayer designs, promise to further expand their applications.
