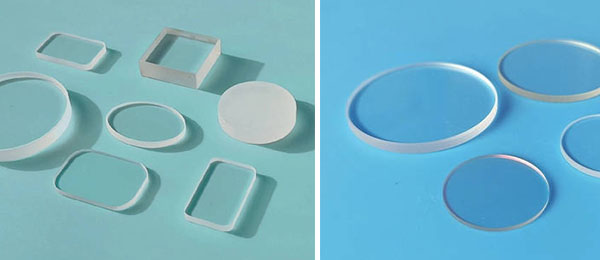

Why are the Fused Silica windows so popular?
2026-2-28
In today's era of rapid optical technology advancement, Fused Silica windows are ubiquitous in nearly all precision optical systems—from deep ultraviolet lithography machines to high-power laser cutting equipment, and from aerospace remote sensing systems to biomedical detection instruments. This seemingly ordinary transparent material has become an indispensable fundamental component in modern optical engineering, owing to its unique technical advantages.
I. Unparalleled Spectral Transmittance
The most remarkable characteristic of Fused Silica is its broad spectral transmittance range. Compared to ordinary optical glass, high-quality Fused Silica maintains exceptionally high transmittance from the deep ultraviolet band (below 185 nm) to the near-infrared band (above 2500 nm). Particularly in deep ultraviolet lithography applications such as 193nm ArF excimer lasers and 248nm KrF lasers, Fused Silica is one of the few materials capable of effectively transmitting such high-energy, short-wavelength light without rapid degradation. This exceptional optical performance stems from Fused Silica's unique amorphous structure and extremely high chemical purity, which minimizes the presence of impurity ions and microscopic defects that absorb light energy.
II. Extremely Low Thermal Expansion Coefficient
In optical design, temperature stability is often a critical factor determining system performance. fused silica exhibits a thermal expansion coefficient of approximately 5.5×10⁻⁷/℃—only about one-tenth that of ordinary glass. This means that during significant environmental temperature fluctuations, the curvature radius and thickness of Fused Silica windows remain virtually unchanged. Consequently, thermal expansion and contraction do not cause optical path shifts or focal point drift. This characteristic makes fused silica windows the material of choice for aerospace remote sensing, astronomical observation, and applications involving extreme temperature cycling environments.
III. Exceptional Laser Damage Threshold
With the rapid advancement of high-power laser technology, the laser damage threshold of optical windows has become a bottleneck limiting system power enhancement. Fused silica windows demonstrates outstanding resistance to laser damage due to its extremely high material purity and minimal impurity absorption. Under high-energy-density pulsed laser irradiation, fused silica windows effectively avoids localized overheating and thermal stress fractures caused by impurity absorption. This characteristic enables its widespread application in high-power laser cutting, laser fusion research, and military directed-energy laser systems.
IV. Outstanding Physical and Chemical Stability
In practical applications, optical windows frequently encounter harsh environmental conditions. Fused silica windows exhibits exceptional chemical stability, remaining virtually inert to acids, alkalis, and salts except for hydrofluoric acid. Its high surface hardness and excellent wear resistance withstand frequent cleaning and maintenance. Additionally, fused silica exhibits a softening temperature of 1730°C and can withstand long-term use at 1200°C without deformation or crystallization. These properties make it an ideal choice for high-temperature reaction observation windows, semiconductor diffusion furnaces, and plasma etching equipment.
The most remarkable characteristic of Fused Silica is its broad spectral transmittance range. Compared to ordinary optical glass, high-quality Fused Silica maintains exceptionally high transmittance from the deep ultraviolet band (below 185 nm) to the near-infrared band (above 2500 nm). Particularly in deep ultraviolet lithography applications such as 193nm ArF excimer lasers and 248nm KrF lasers, Fused Silica is one of the few materials capable of effectively transmitting such high-energy, short-wavelength light without rapid degradation. This exceptional optical performance stems from Fused Silica's unique amorphous structure and extremely high chemical purity, which minimizes the presence of impurity ions and microscopic defects that absorb light energy.
II. Extremely Low Thermal Expansion Coefficient
In optical design, temperature stability is often a critical factor determining system performance. fused silica exhibits a thermal expansion coefficient of approximately 5.5×10⁻⁷/℃—only about one-tenth that of ordinary glass. This means that during significant environmental temperature fluctuations, the curvature radius and thickness of Fused Silica windows remain virtually unchanged. Consequently, thermal expansion and contraction do not cause optical path shifts or focal point drift. This characteristic makes fused silica windows the material of choice for aerospace remote sensing, astronomical observation, and applications involving extreme temperature cycling environments.
III. Exceptional Laser Damage Threshold
With the rapid advancement of high-power laser technology, the laser damage threshold of optical windows has become a bottleneck limiting system power enhancement. Fused silica windows demonstrates outstanding resistance to laser damage due to its extremely high material purity and minimal impurity absorption. Under high-energy-density pulsed laser irradiation, fused silica windows effectively avoids localized overheating and thermal stress fractures caused by impurity absorption. This characteristic enables its widespread application in high-power laser cutting, laser fusion research, and military directed-energy laser systems.
IV. Outstanding Physical and Chemical Stability
In practical applications, optical windows frequently encounter harsh environmental conditions. Fused silica windows exhibits exceptional chemical stability, remaining virtually inert to acids, alkalis, and salts except for hydrofluoric acid. Its high surface hardness and excellent wear resistance withstand frequent cleaning and maintenance. Additionally, fused silica exhibits a softening temperature of 1730°C and can withstand long-term use at 1200°C without deformation or crystallization. These properties make it an ideal choice for high-temperature reaction observation windows, semiconductor diffusion furnaces, and plasma etching equipment.
V. High Surface Quality Achieved Through Precision Processing
Modern optical systems demand increasingly stringent surface quality specifications for windows. After undergoing advanced polishing processes, fused silica achieves surface roughness at the angstrom level (less than 1 nm), with minimal surface defects and negligible light scattering losses. This ultra-smooth surface not only ensures the imaging quality of optical systems but also significantly enhances the window's resistance to contamination and facilitates easier cleaning.
In summary, fused silica windows are widely favored due to their outstanding performance across multiple critical technical metrics: spectral transmittance, thermal stability, laser damage threshold, chemical stability, and surface machining precision. It is precisely these unique, comprehensive properties that enable fused silica windows to play an irreplaceable role in numerous cutting-edge fields—from semiconductor manufacturing to deep space exploration, and from medical diagnostics to defense technology.
