Laser Grade Zinc Selenide Glass ZnSe Windows
$16.9 - 26.8 /Piece/Pieces
Payment Type:
L/C,T/T,D/P,D/A,Paypal
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
10 Piece/Pieces
Transportation:
Ocean,Land,Air,Express
Sample: $50.00 /Piece/Pieces, 10 Piece/Pieces...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY599

Brand: Zoolied

warranty period: 3 Years

Certification: Csa

Support customization: Oem, Odm

place of origin: China

use: Optical, Infrared, Achromatic

Structure: Plano-Convex, Double Convex, Double Concave, Plano-Concave

shape: Spherical, Plano, Ball, Cylindrical, Aspheric, Meniscus

Substrate: Cvd Znse

Type: Plano Windows

Parallelism: < 3 Minutes

Coating: Ar Coating@10.6um

Shape: Round Or Other Customized Shape

Bevel: Protective Bevel

Supply Ability & Additional Information

Packaging: package

Productivity: 99999/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 99999/month

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
10kg
Package Type:
package
Picture Example:

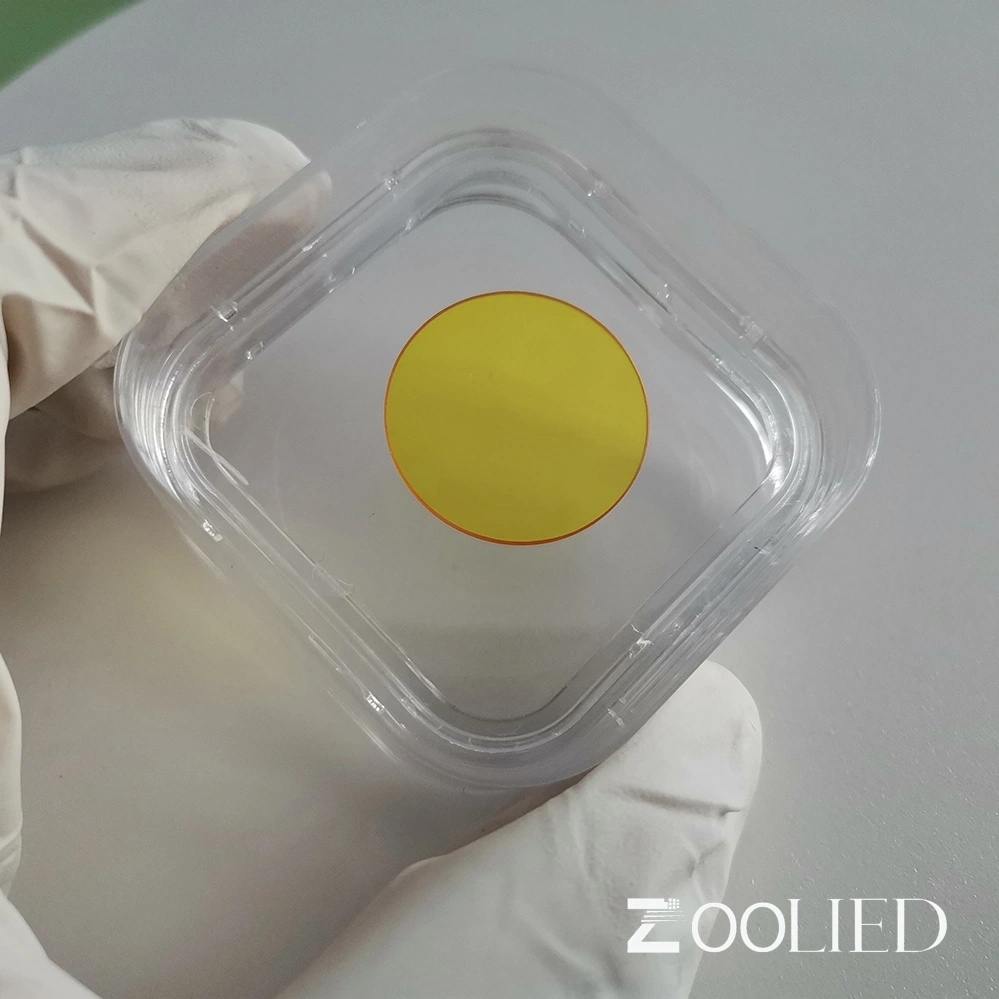

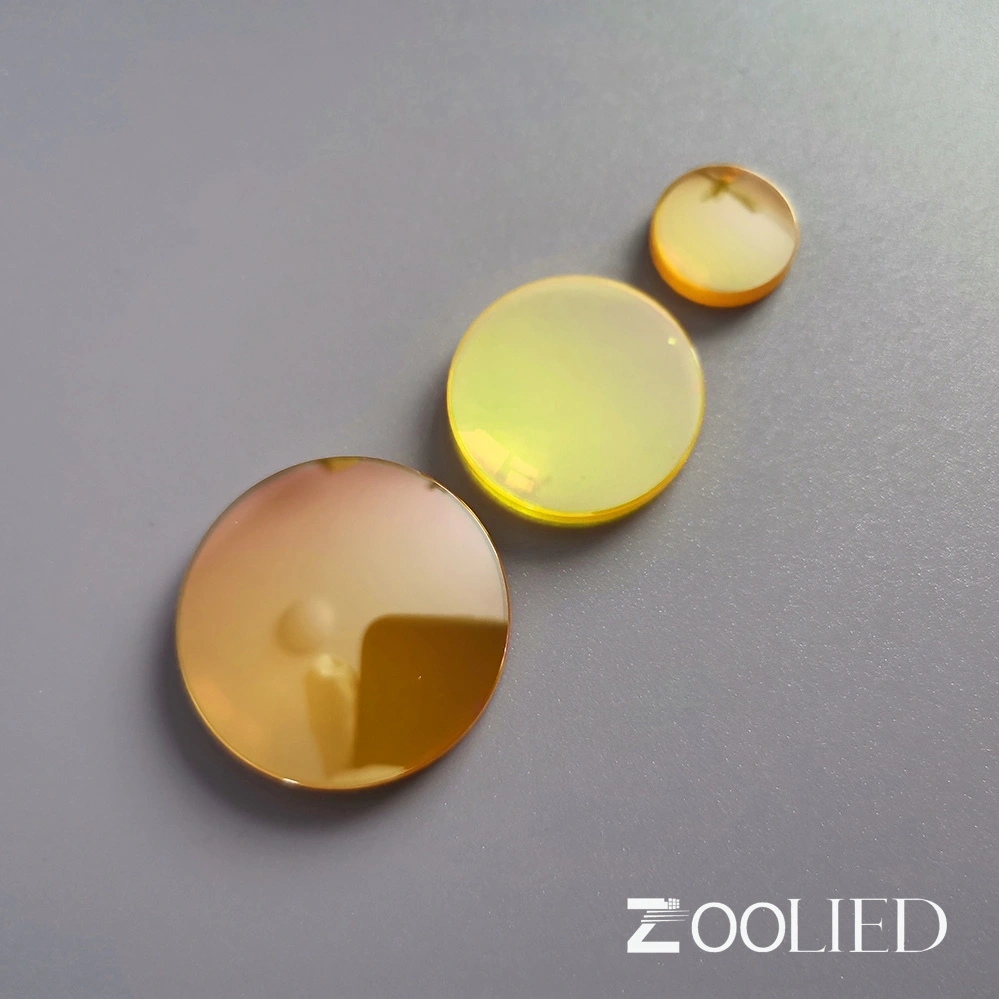

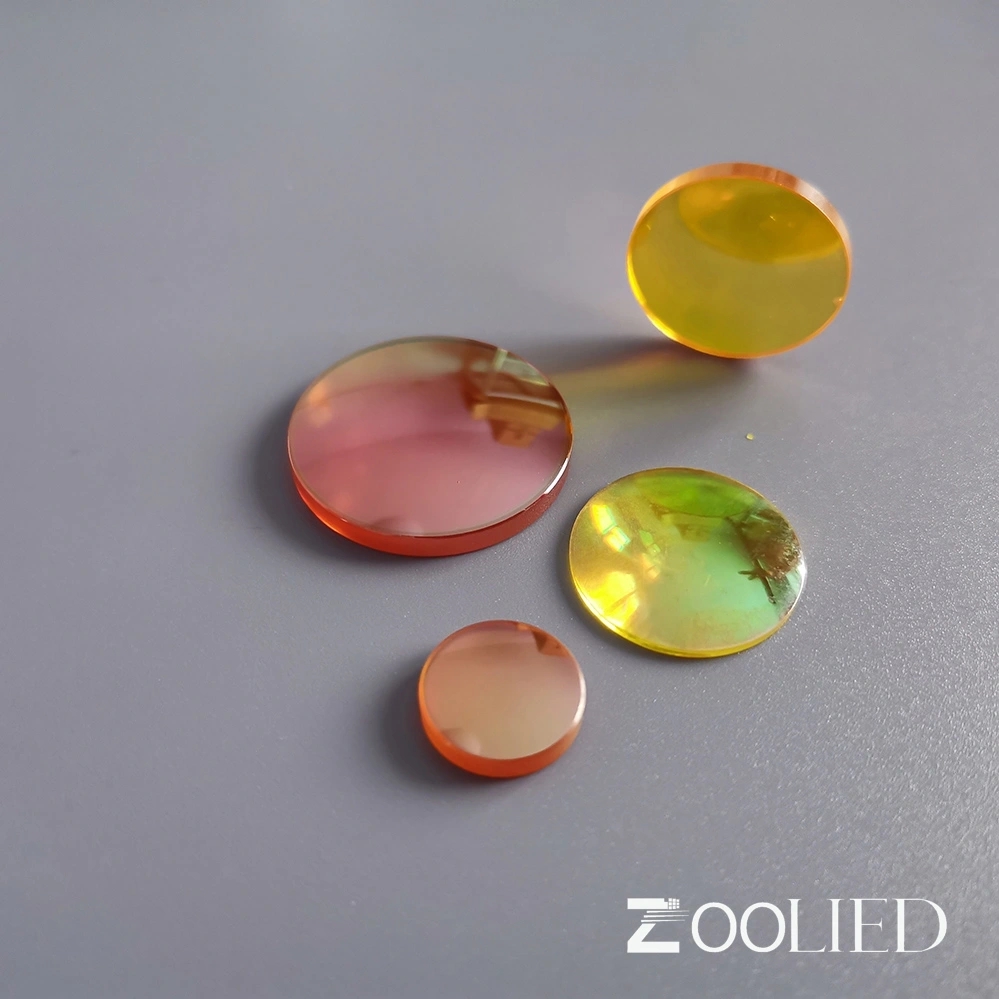

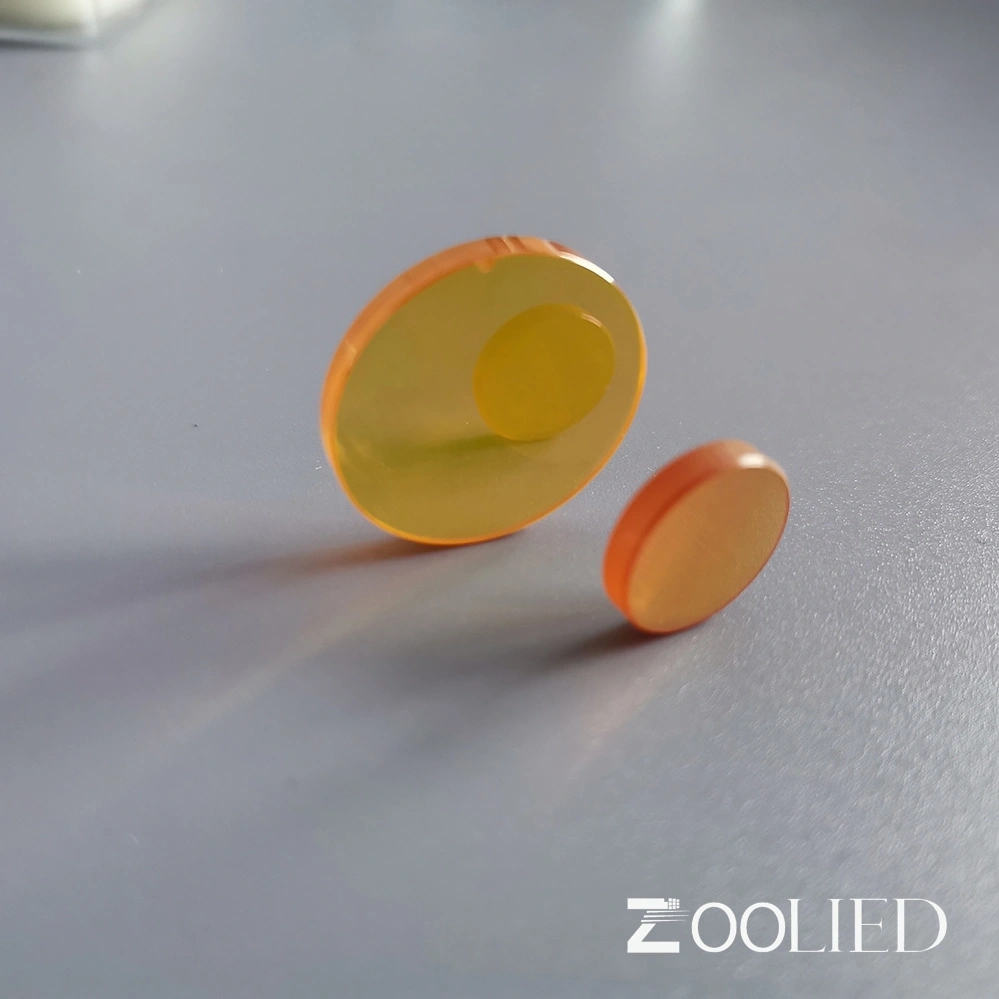

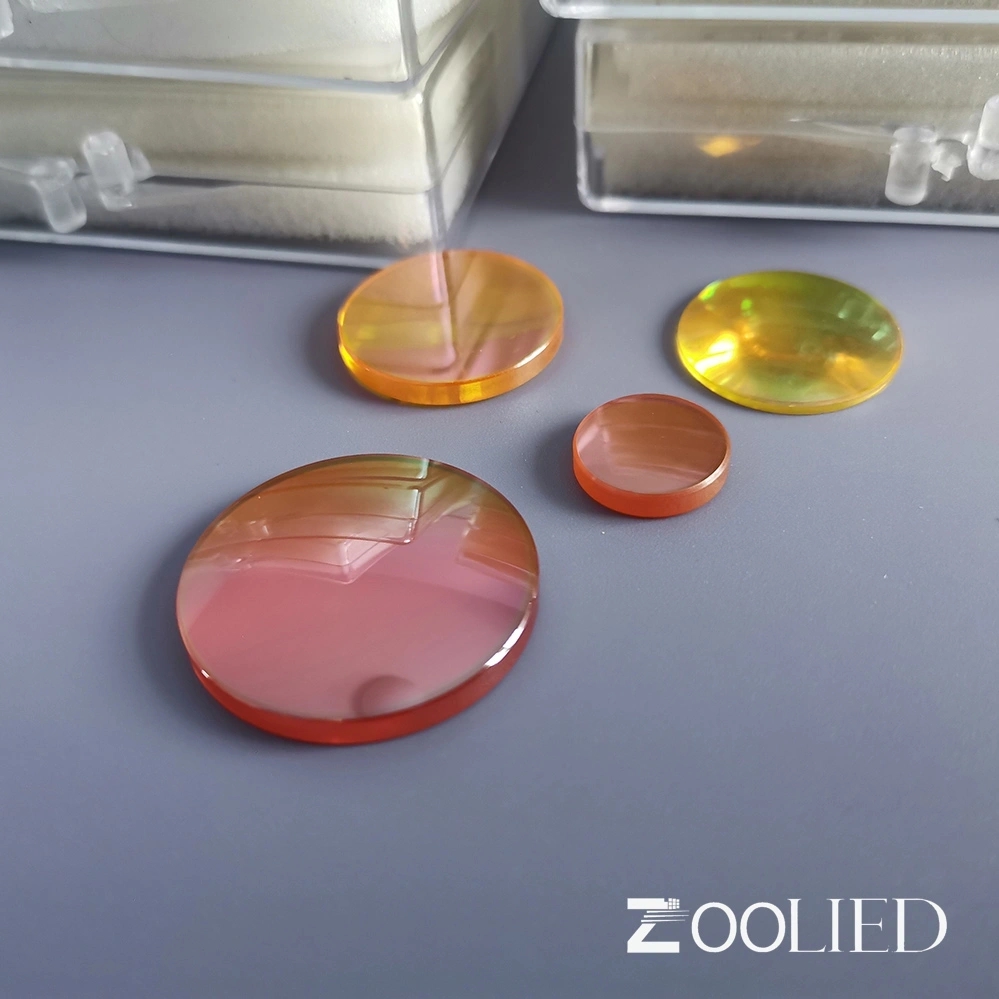

ZnSe is a transparent light yellow polycrystalline substance with a transmission range of 0.5-21μm. ZnSe windows and lenses are precision optical components commonly used in thermal imaging, high-power CO2 laser systems, and life sciences. The melting point of zinc selenide is 1525°C, and the thermal conductivity at 298K is 18 W m-1 K-1. The coefficient of thermal expansion at 273K is 7.1 x 10-6 /°C. Therefore, the Cvd Znse Lens has high thermal shock resistance. The zinc selenide Laser Focus Lens is an excellent material choice for infrared lenses and is suitable for applications with wavelengths between 600 nm and 16 μm. ZnSe Windows and Lens low absorption coefficient makes it very suitable for applications/instruments involving CO2 lasers. In the mid-infrared region, its group velocity dispersion (GVD) is very low, so it is very suitable for applications using femtosecond infrared pulses.

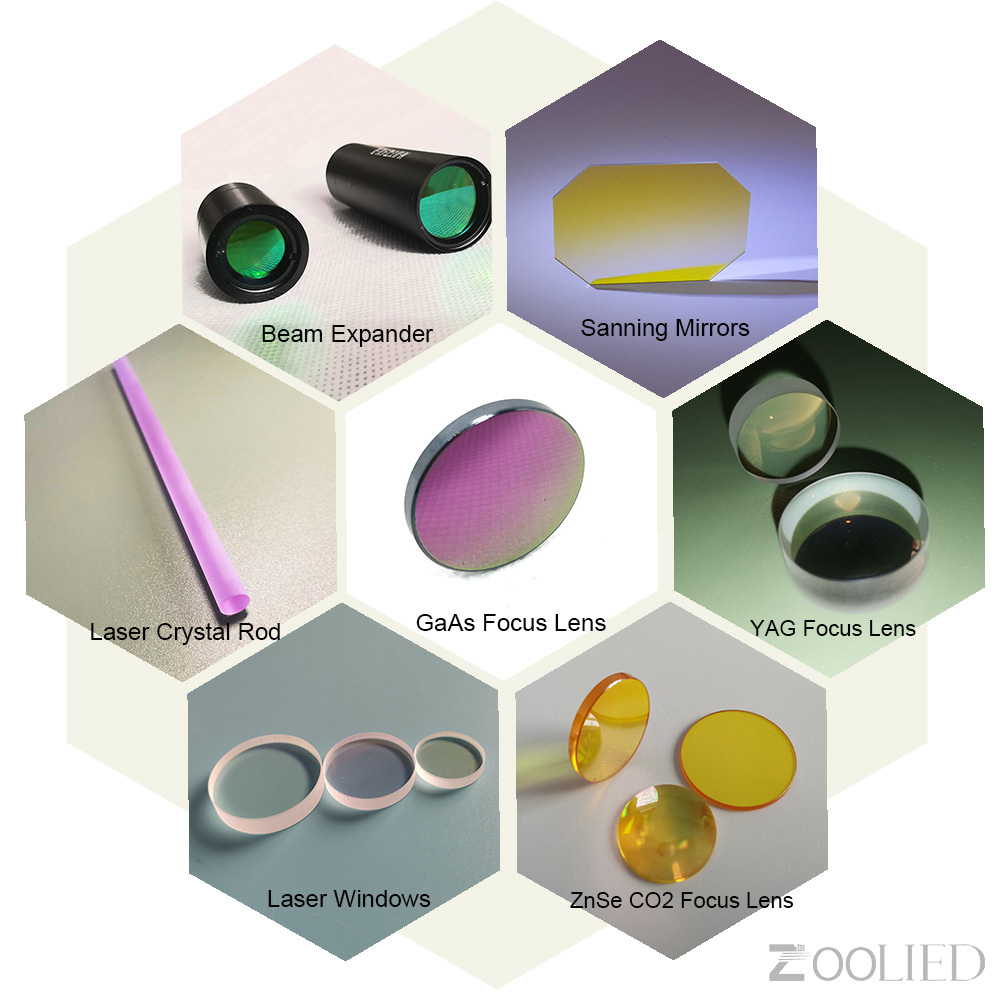

Zoolied offers a variety of laser Optical Lens and windows, such as laser Optical Aspherical Lens, Laser Welding Laser Crystal Rod, and Ir Znse Windows. In order to meet the diverse needs of customers, Zoolied provides a variety of laser materials such as zinc selenide (ZnSe) windows, germanium (Ge) windows, silicon (Si) windows, ( BaF2) windows, calcium fluoride (CaF2) windows; Fused Silica windows used in the ultraviolet (UV) spectral band; K9 windows used in the visible light (VIS) spectral band, etc. Looking for ideal laser focus lens and window Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the laser mirrors, Lens and optical laser crystal rod with coating and uncoatind are quality guaranteed. Zoolied is China Origin Factory of optical components. If you have any question, please feel free to contact us.

Zoolied Focus Lens Diameter(mm) Focal Length(mm)
F25.4/38.1/50.8/ 63.5/ 76.2/ 101.6/127
Material:CVD ZnSe D12
F38.1/50.8/ 63.5/ 76.2/ 101.6/127
Shape:Concave-convex lens D18/19/20
S/D:40/20 D25 F38.1/50.8/ 63.5/ 76.2/ 101.6/127
Coating: AR Coating T≥99.5%,10.6um D38.1 F127/190.5
Laser Windows 1
