Spherical Lens

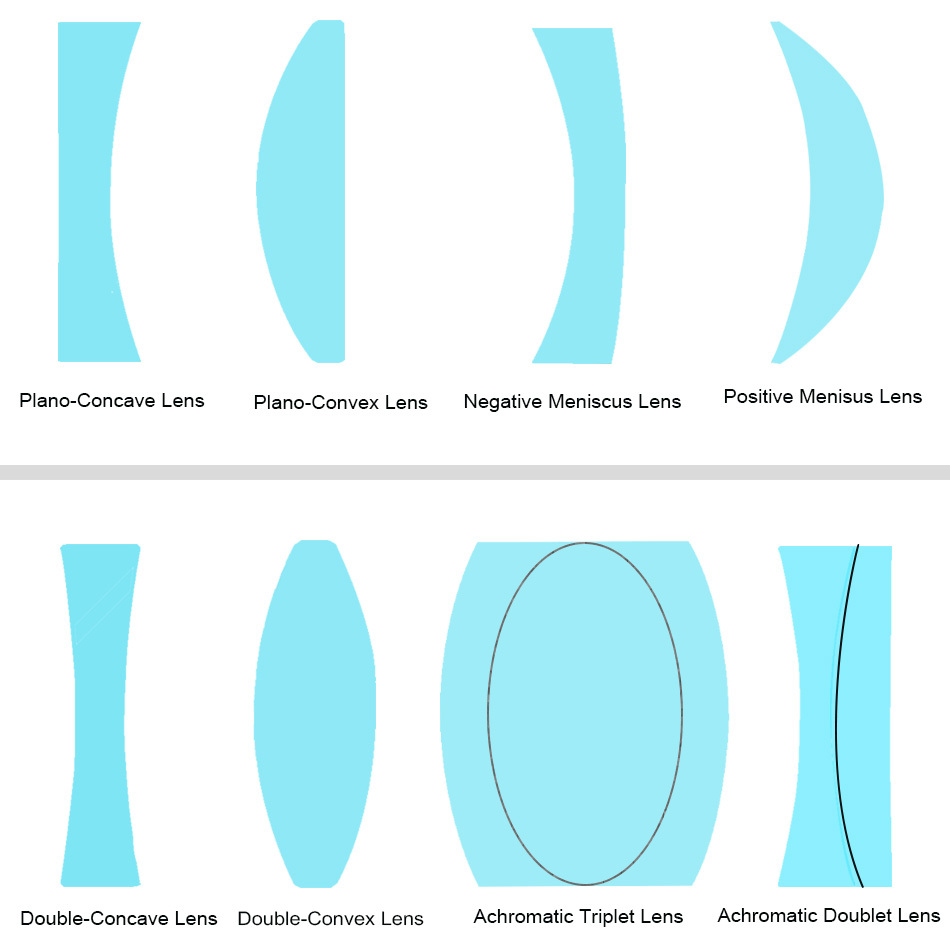

Plano Convex Lens is a kind of positive lens in the optical system, mainly for beam expansion, imaging, beam collimation, focus collimation, beam collimation, point light source, etc. Features of plano-convex lens: Plano-convex Spherical Lenses has a convex surface and a flat surface, with a positive focal length, It is usually used for related applications such as reducing the beam, reducing the focal length, or enlarging the image. In order to reduce spherical aberration, when the plano-convex lens is used to collimate the beam, the beam should be incident on the curved surface of the lens; when used for the collimation of the point light source, the beam should be incident on the plane. Plano-convex lenses have a positive focal length and are often used in applications such as imaging or beam collimation. Coated lenses are also widely used in visible light and near-infrared applications. The conventional lens sizes are: Φ12.7mm, Φ25.4mm, Φ50.8mm.

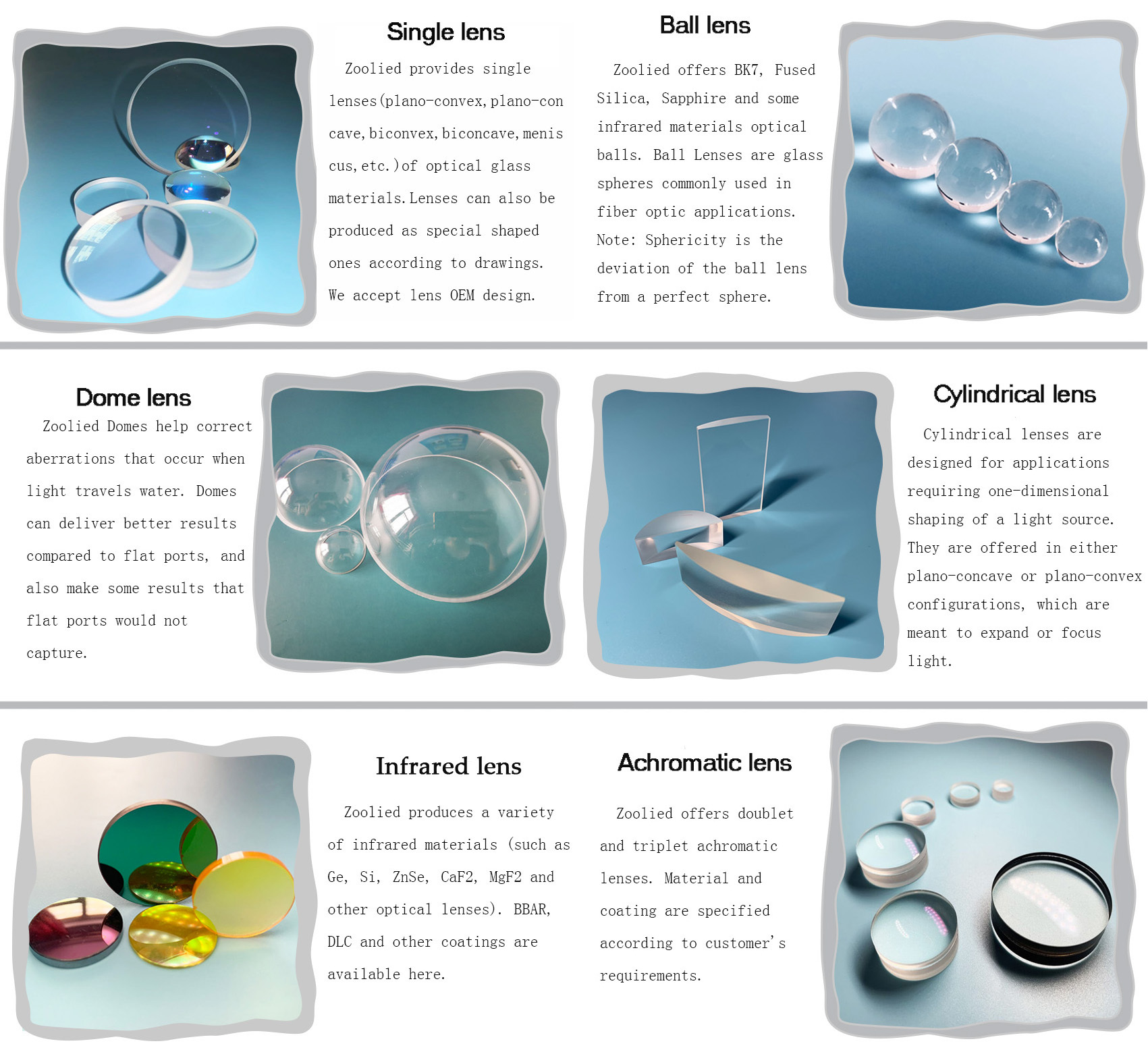

Zoolied Inc. offers a variety of Optical Glass Lenses and windows, such as Cylindrical Lens, Optical Aspherical Lens, and Cvd Znse Lens. ZOOLIED provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or IR Optical Lens and also provides uncoated optical Lens based on K9 optical glass, K7 and UV fused silica. Looking for ideal Spherical lenses Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the uncoated and Coated Optical Lens is quality guaranteed. Zoolied is China Origin Factory of optical components. If you have any question, please feel free to contact us.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

Zoolied also supply a custom range of general purpose grade which utilise ophthalmic lens blanks offering low cost solutions. The custom range has a wide selection of powers and is available in positive and negative options. Zoolied also supply a range of custom meniscus lens set for convenience of experimental and design work.
