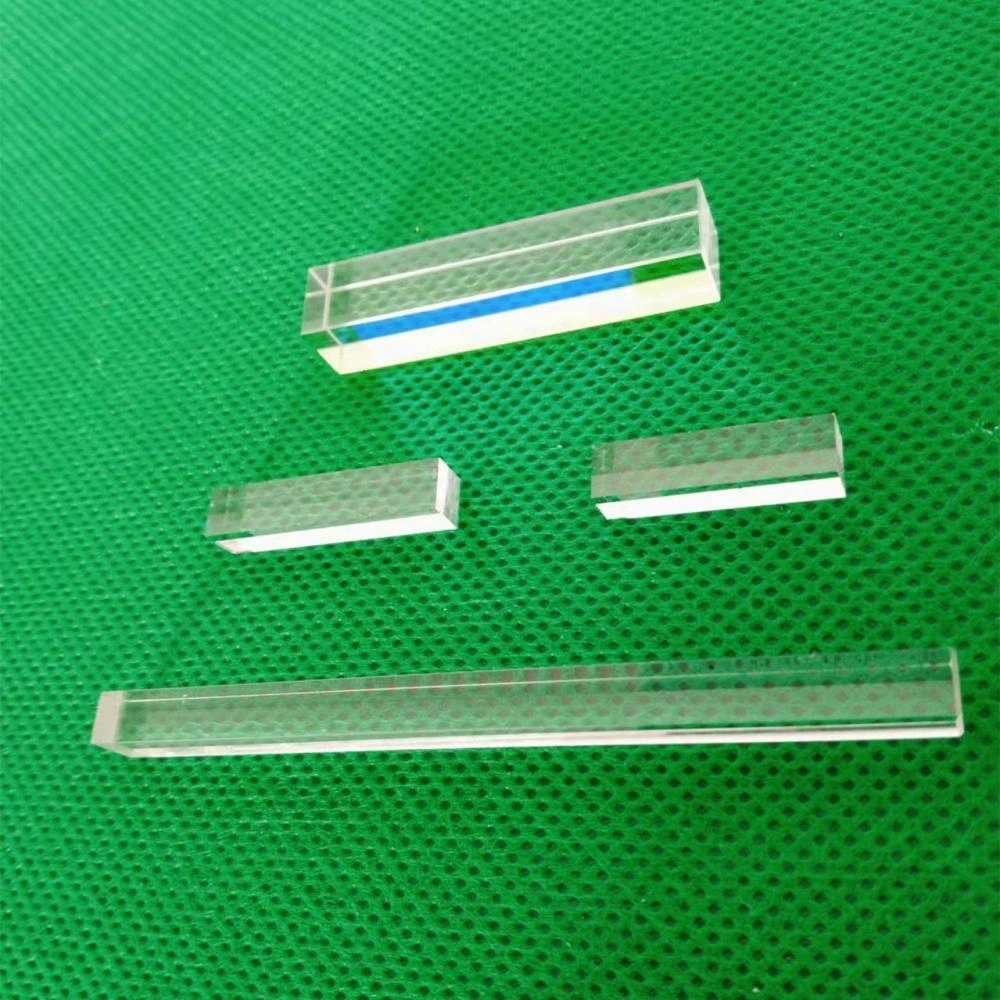

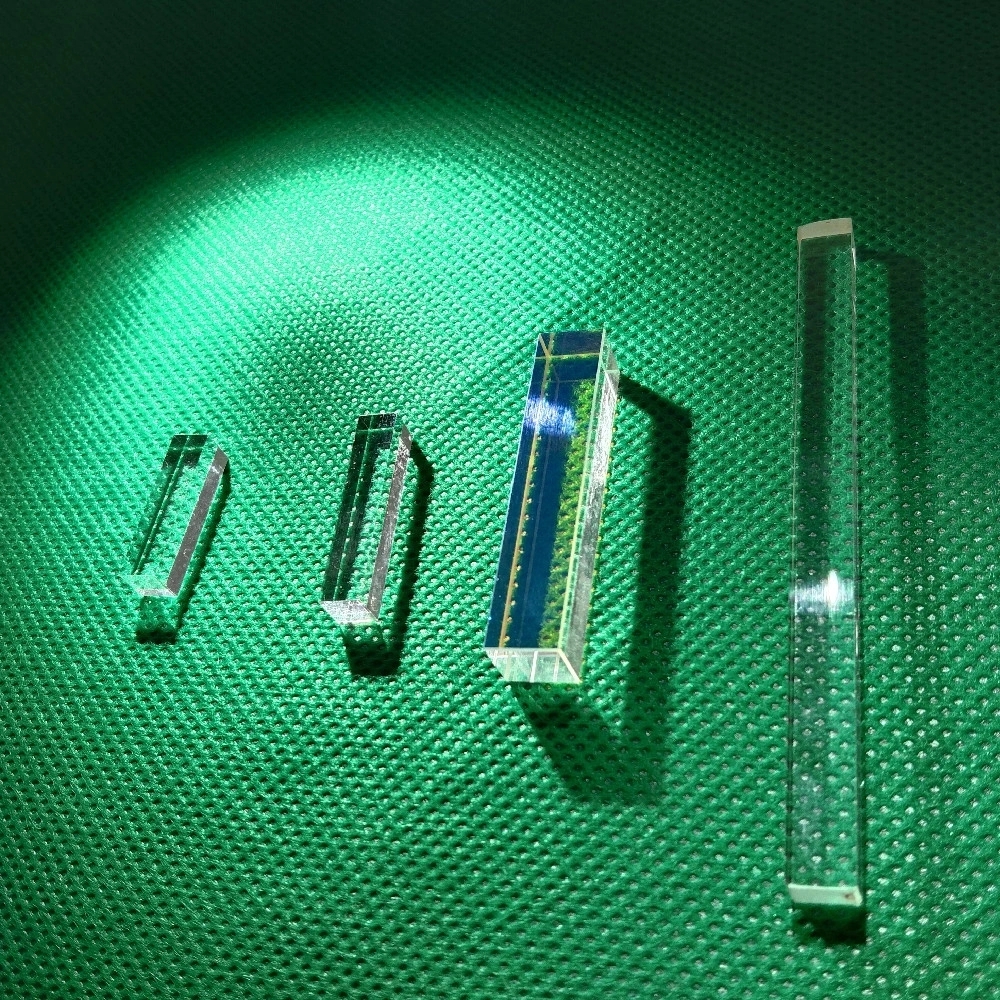

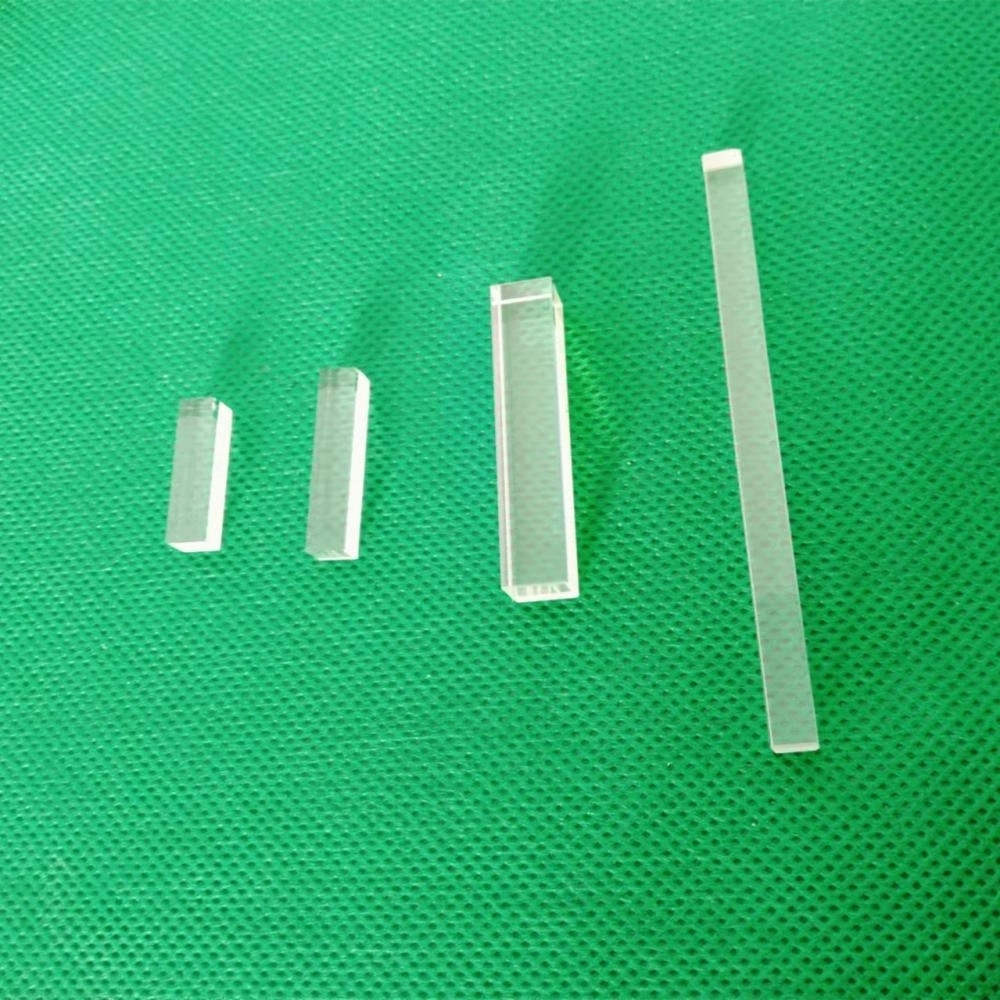

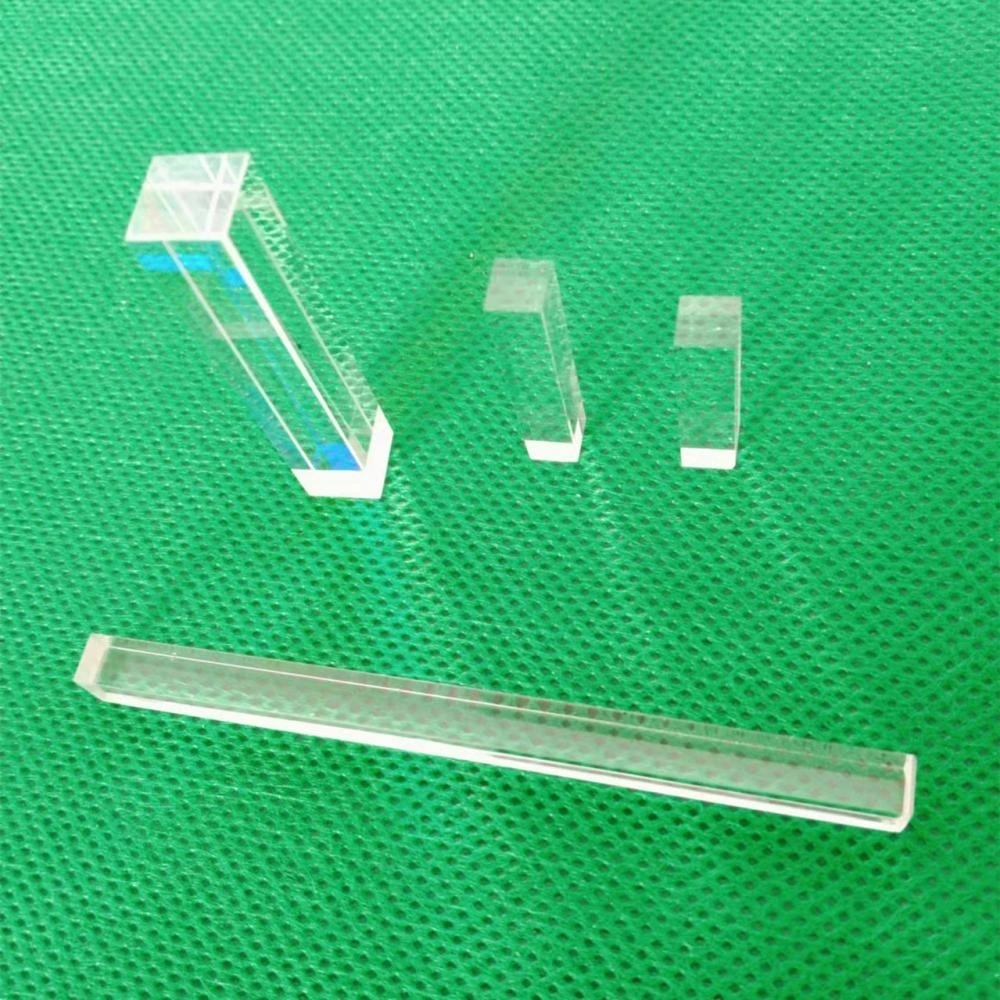

Optical Round or Rectangular long light prism bar
$6.78 - 25.87 /Piece/Pieces
Sample: $100.00 /Piece/Pieces, 10 Piece/Piece...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY876

Brand: ZOOLIED

Certification: Csa, Pcoc, Reach, Iecee, Scoc, Ul, Epa, Gs

Support customization: Oem, Odm, Obm

place of origin: China

Surface Quality: 60/40

Material: BK7, Fused Silica,Sapphire

Shape: Cuboid/Hexagon/Rod/Cube

Dimension: 1-300mm

Dimensional tol: ±0.1mm

Angle tol: less than 3 min

Flatness: No request

Chamfer: Protective Chamfer

Bevel: Protective bevel as needed

Coating type: Uncoated

Supply Ability & Additional Information

Packaging: standard packing

Productivity: 8000000/year

Transportation: Ocean,Land,Air,Express

Place of Origin: Changchun

Supply Ability: 80000000

Certificate: ISO9001

HS Code: 9001901901

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
standard packing

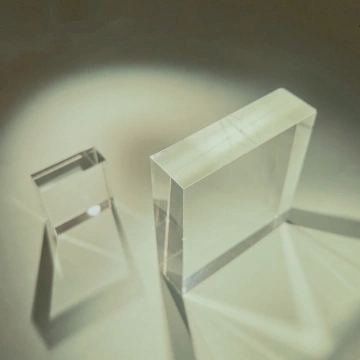

Picture Example:

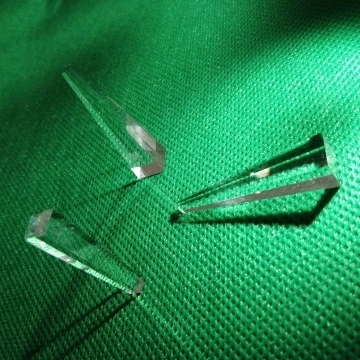

Solar Power Prisms is used to collect the sunlight, for solar condenser, solar energy concentrating photovoltaic (CPV) system, solar power generation, etc., which is the main optical component when solar power transform to electric energy. Incident Light is Reflected Back to the Source. Excellent Transmission in UV Useful for Alignment.

Zoolieds' Prisms can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source. These prisms are fabricated from BK7, fused silica, ZF13, or ZnSe, and they are offered in sizes ranging from 0.45 mm to 300 mm.

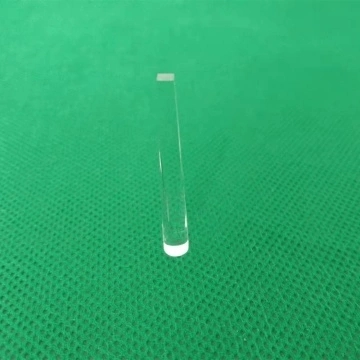

Light Guide Prism could utilize total internal reflection to homogenize non-uniform light sources regardless of their spectral characteristics. General material is Fused Silica and BK7, we also could custom material and size according to your request.

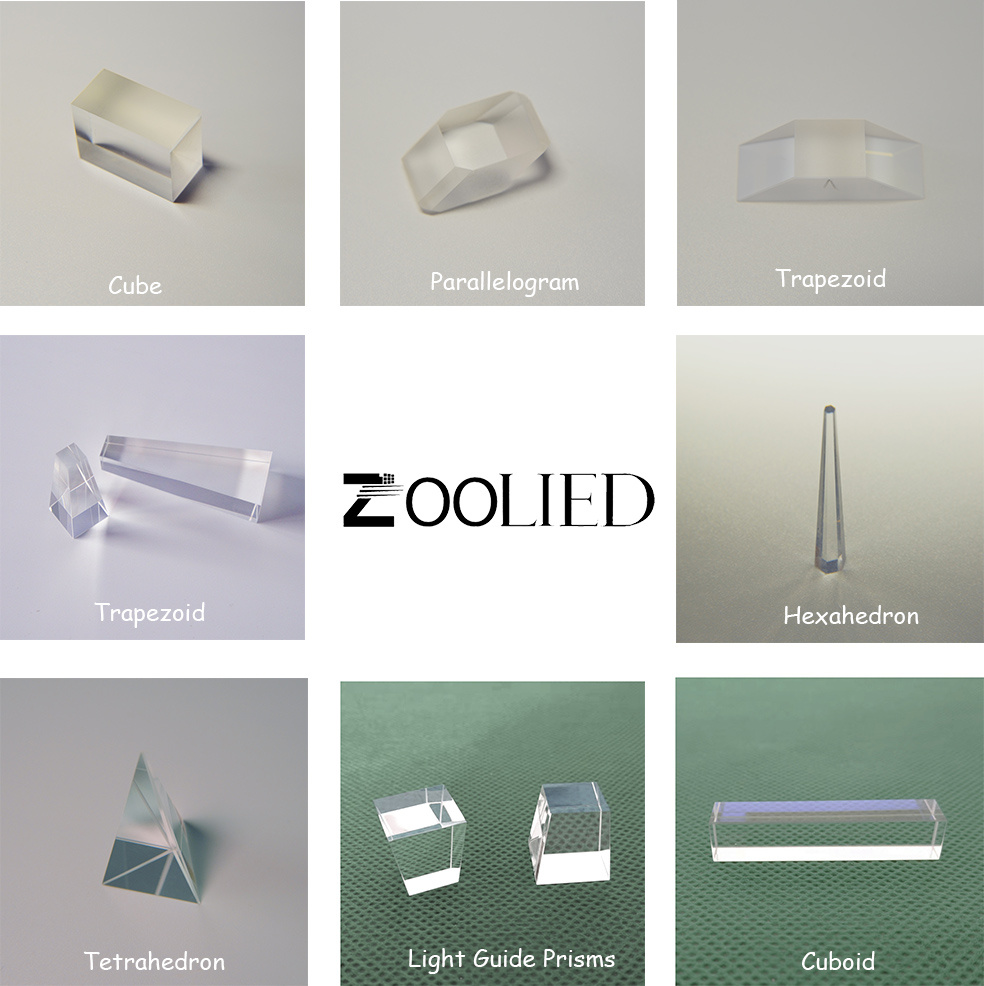

ZOOLIED can manufacture all kind of optical prism. Such as Right Angle PrismsCorner Cube Prisms and Beamsplitter PrismsThe main application fields of prism: Commonly used digital equipment: cameras, closed-circuit television, projector, digital camera, digital camera, CCD camera and various kinds of optical equipment. Science and technology: telescope, microscope, leveling instrument, fingerprint, rifle scopes, solar energy converters and all kinds of measuring instruments. Medical equipment: cystoscopy, endoscopy equipment and various types of laser treatment.


Light Guide Prism
