Customized Optical Single Crystal Sapphire Lens
$30≥10 Others
Payment Type:
L/C,T/T,D/P,D/A,Paypal
Incoterm:
FOB
Min. Order:
10 Others
Transportation:
Air,Express
Sample: $50.00 /Others, 10 Others (Max. Order...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY395

Brand: Zoolied

Stantard Size: 5/10/15/20/25/30/50mm

Surface Flatnese: λ

Substrate: Sapphire (Al2o3)

Coating :: No Coating

Coating 1: Mgf2 Ar Coating@400-700nm

Coating 2: Nir Coating @600-1050nm

Coating 3: Nir Coating@750-1550nm

Coating 4: Vis-Nir Coating@400-1000nm

Coating 5: Bbar Coating@1650-3000nm

Coating 6: Bbar Coating@2-5μm

Supply Ability & Additional Information

Packaging: Standard and protective packing

Productivity: 80000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB

Packaging & Delivery
Selling Units:
Others
Single package size:
20cm*20cm*20cm
Single gross weight:
10kg
Package Type:
Standard and protective packing

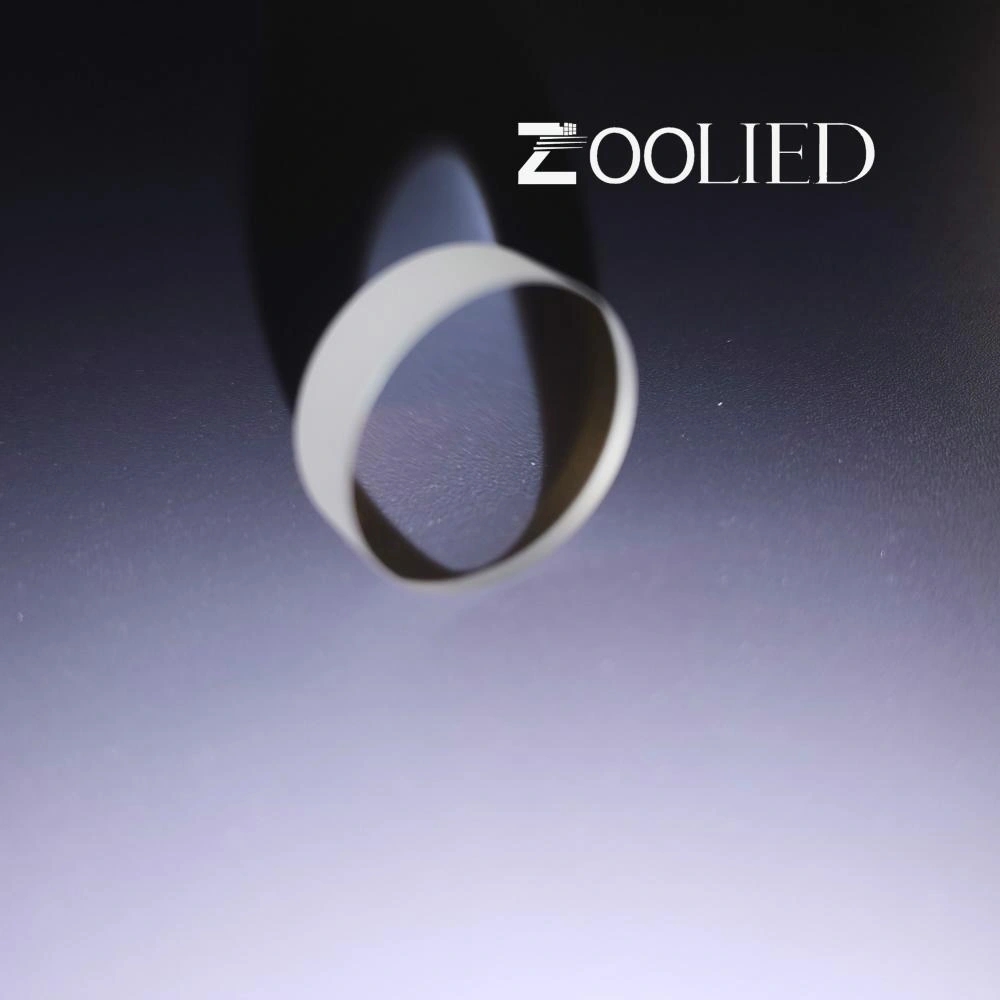

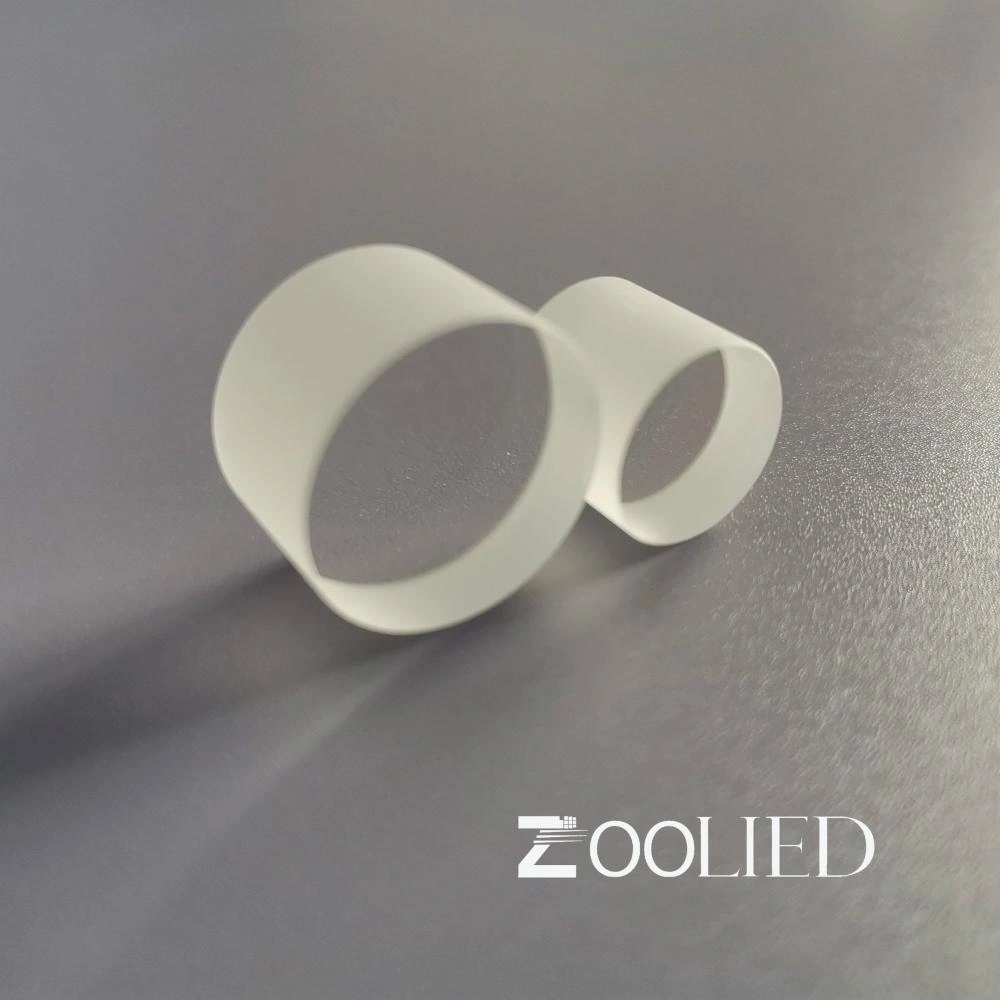

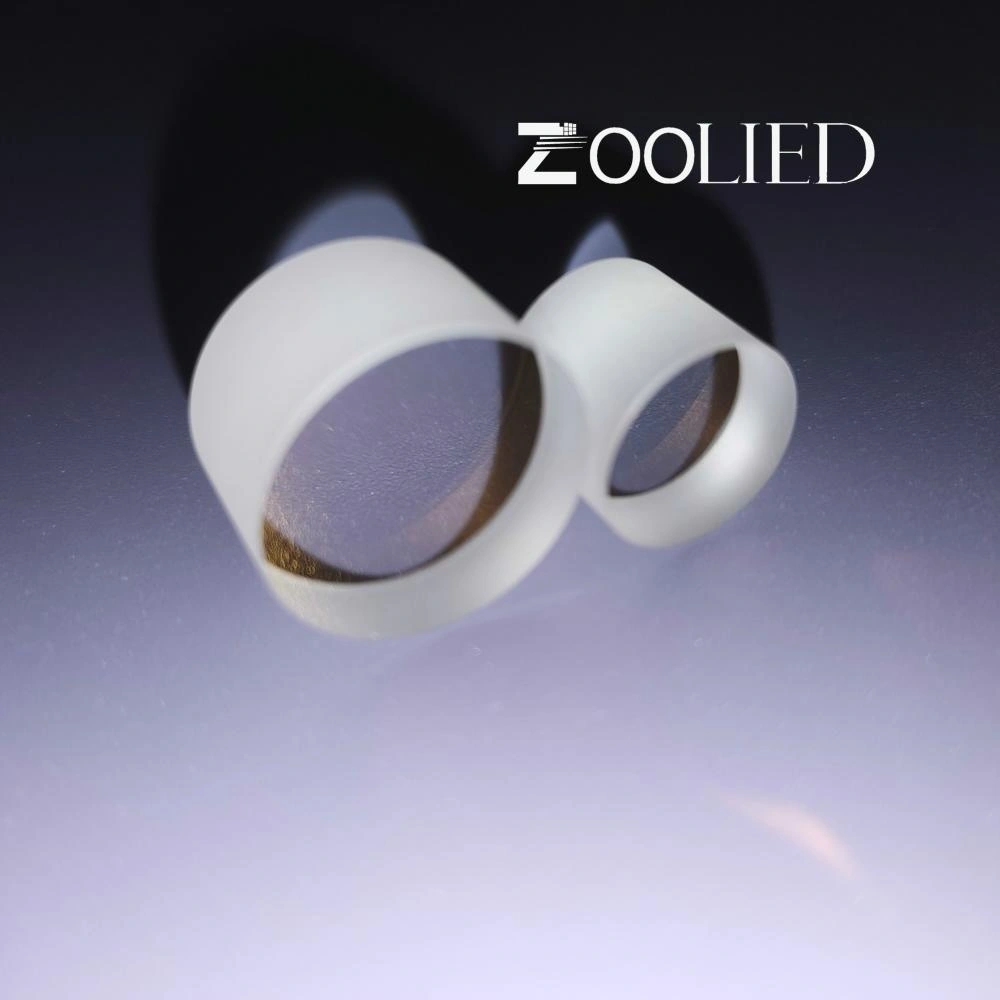

Picture Example:

Zoolied Inc. offers Customized Optical Sapphire Rod lenses. Sapphire Crystal composition and general properties Sapphire crystal is the most basic single crystal form of pure alumina. The chemical composition is aluminum oxide (A12O3), the crystal form is α-A12O3, the molecular weight is 101.9612, and the density at 20°C is 3.98 g/ml. The chemical properties of sapphire are very stable, generally insoluble in water and corroded by acids and alkalis. Only at high temperatures (above 300℃) can it be corroded by hydrofluoric acid (HF), phosphoric acid (H3PO4) and molten potassium hydroxide (KOH) .

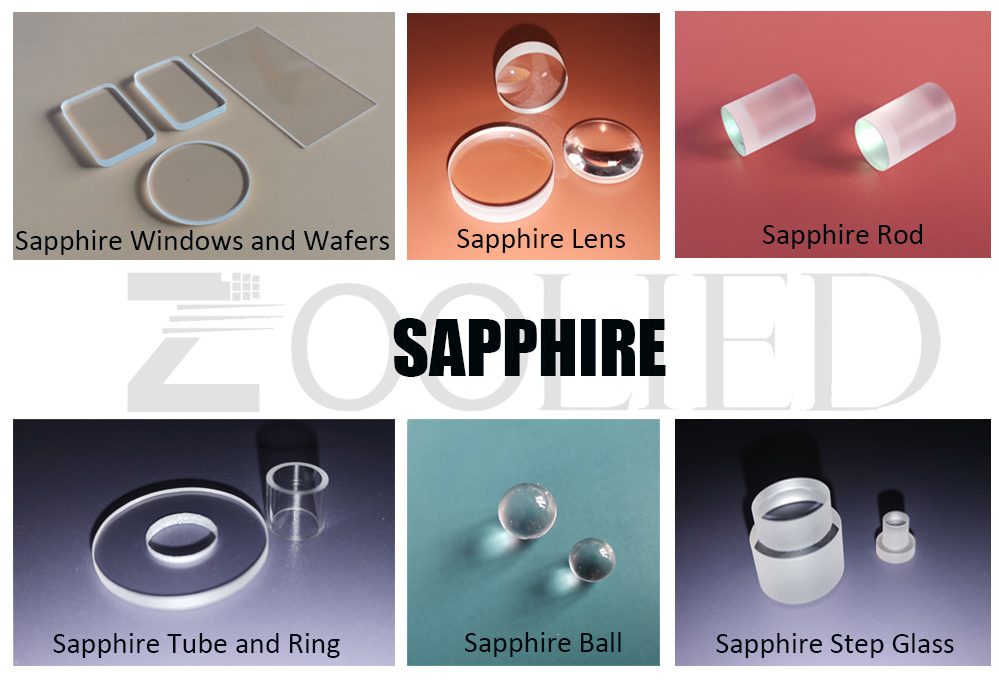

Zoolied offers in a variety of Sapphire Optics , such as Optical Sapphire rings, Step Glass, Sapphire Rod Lens and sapphire tubes. Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).
Looking for ideal optical sapphire Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Sapphire Glass are quality guaranteed. Zoolied China Origin Factory of sapphire. If you have any question, please feel free to contact us.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

Lens

Sapphire (Al2O3)
Abbe Number (vd): 72.24
Axis Orientation: Random
Birefringence (no-ne):

0.008 for Visible Light Orthogonal

to Optical Axis

Clear Aperture : ≥90%
Coating: Uncoated or spesified by customers
Coefficient of Thermal Expansion CTE : 8.8(10-6/°C)
Density : 3.97g/cm3
Index of Refraction nd: 1.77
Parallelism : ≤5min
Poisson's Ratio: 0.271
Surface Flatness: 2λ (typical)
Surface Quality: 80-50
Wavelength Range : 0.2 - 5.5μm
Wavelength Range: 330 - 5500nm
Young's Modulus : 435GPa
Knoop Hardness : 1900GPa

Features Extreme Surface Hardness Chemical Resistance
Transmits Wavelengths Ranging From UV to Mid-Infrared
Thinner and Stronger than Standard Glass Windows
Improved Transmission Values in the Visible and Near Infrared Spectra
Besides uncoated Sapphire Windows. Zoolied offers coating options for 400 - 5000nm according different applications:


Zoolied Standard Optical Uncoated and Coated Sapphire Windows And Wafers
D2.5*0.5 Uncoated Sapphire Wafers D35*1mm Uncoated Sapphire Windows
D5*1mm Uncoated Sapphire Windows D38.1*1mm Uncoated Sapphire Windows
D6.35*0.5mm Uncoated Sapphire Windows D40*2mm Uncoated Sapphire Windows
D7.5*0.4mm Uncoated Sapphire Wafers D63.5*2mm Uncoated Sapphire Windows
D9.5*0.5mm Uncoated Sapphire Wafers D50.8*3.18mm Uncoated Sapphire Windows
D10*1mm Uncoated Sapphire Windows D75*2mm Uncoated Sapphire Windows
D12.5*1mm Uncoated Sapphire Windows D10*1mm NIR Coating@750-1550nm Sapphire Windows
12.5*12.5*1mm Uncoated Sapphire Windows D12.5*1mm VIS-NIR Coating@400-1000nm Sapphire Windows
D13*0.5mm Uncoated Sapphire Windows D12.7*1mm BBAR Coating@1650-3000nm Sapphire Windows
D15*2mm Uncoated Sapphire Windows D15*2mm BBAR Coating@2-5μm Sapphire Windows
D20*2mm Uncoated Sapphire Windows D38.1*1mm BBAR Coating@2-5μm Sapphire Windows
D22*2mm Uncoated Sapphire Windows 12.5*12.5*1mm Uncoated Sapphire Windows
D23.75*1mm Uncoated Sapphire Windows D6.35*0.5mm NIR Coating@600-1050nm Sapphire Windows
25.4*25.4*1 Uncoated Sapphire Windows 25.4*25.4*1mm MgF2 AR Coating@400-700nm Sapphire Windows
D25*2.3mm Uncoated Sapphire Windows D25*2.3mm BBAR Coating@2-5μm Sapphire Windows
D30*1mm Uncoated Sapphire Windows D12.7*1mm BBAR Coating@2-5μm Sapphire Windows

Sapphire
