In the realm of optical components, material selection is paramount to performance and reliability. Among advanced materials, synthetic sapphire (single-crystal α-Al₂O₃) stands out as a premier choice for optical windows, particularly in applications where extreme conditions are the norm. Its unique combination of outstanding physical durability and excellent optical properties makes it unparalleled for challenging environments.

Unmatched Physical Durability
Sapphire is one of the hardest known materials, second only to diamond, with a Mohs hardness of 9. This gives sapphire windows exceptional resistance to abrasion, scratching, and wear, ensuring long-term surface integrity even in sandy, dusty, or high-contact environments. Furthermore, its high mechanical strength provides superior resistance to impact and high pressure.

Sapphire also exhibits remarkable thermal capabilities. With a melting point of 2050°C and a very low coefficient of thermal expansion, it can withstand severe thermal shock and extreme temperatures without fracturing or degrading. Its innate chemical inertness makes it highly resistant to attack from strong acids and alkalis, ensuring stability in corrosive atmospheres.

Superior Optical Performance
Beyond its toughness, sapphire is an exceptional optical material. It features a broad transmission range from the deep ultraviolet (~0.15 µm) to the mid-infrared (~5.5 µm) spectrum. This wide bandpass makes it invaluable for systems operating across UV, visible, and IR wavelengths, such as multi-spectral imaging or laser applications.
When oriented correctly (cut along the C-axis), optical-grade sapphire offers high optical homogeneity and very low birefringence. This is critical for high-precision optical systems, as it minimizes wavefront distortion and preserves image quality and measurement accuracy.

Diverse Application Spectrum
The synergy of these properties makes sapphire windows the standard for numerous high-end applications:
Aerospace & Defense: Used in missile domes, EO/IR sensor windows, and FLIR systems, capable of surviving high-velocity impact and extreme thermal gradients.
Semiconductor Processing: Serves as viewports in etch, deposition, and lithography equipment, where it resists plasma erosion and corrosive gases.
Scientific Research: Ideal for high-power laser cavities, vacuum chambers, and spectroscopic viewports in experimental setups.
Industrial & Commercial: Used in high-pressure sensors, premium watch crystals, and smartphone camera lenses for enhanced durability.


Sapphire windows represent the perfect fusion of material science and optical engineering. They are the definitive solution for applications where failure is not an option. When your optical viewport must operate under intense pressure, temperature, abrasion, or corrosive conditions, sapphire provides the ultimate reliability and performance to ensure system success.

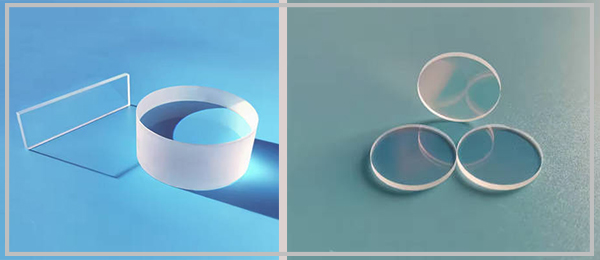

Zoolied offers in a variety of Sapphire Optics , such as Optical sapphire rings, Step Glass, Sapphire Rod lens and sapphire tubes. Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).All the Sapphire Glass are quality guaranteed.  If you have any question, please feel free to contact us.
