Home Products Optical Filters Microplate Reader Filters
540nm Microplate Reader Narrow bandpass optical Filters
$30≥10 Others
Payment Type:
L/C,T/T,Paypal
Incoterm:
FOB
Min. Order:
10 Others
Transportation:
Air,Express
Sample: $50.00 /Others, 10 Others (Max. Order...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY231

Brand: Zoolied

S/D: 80/50

Certification: Reach

Support customization: Oem

place of origin: China

Stantard Size: 5/10/15/20/25/30/50mm

Substrate: Fused Silica And Optical Glass

AOI (°):: 0 Or 45

Surface Flatnese: λ

Type: Cemented

Coating :: Hard Coating

Wavelength: Designed By Customer

Supply Ability & Additional Information

Packaging: Standard and protective packing

Productivity: 8000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: L/C,T/T,Paypal

Incoterm: FOB

Packaging & Delivery
Selling Units:
Others
Single package size:
20cm*20cm*20cm
Single gross weight:
10kg
Package Type:
Standard and protective packing
Picture Example:

The Narrow Bandpass Filters is an optical device used to select the required radiation band. It is an optical component that can not only attenuate the light intensity, but also change the spectral composition or limit the vibration surface. One of the common characteristics of Optical Filters is that there is no filter to make the image of the target brighter, because all filters absorb certain wavelengths, which makes the object darker. The application of the filter in the microplate reader: When using the microplate reader, the light wave emitted by the light source lamp becomes a monochromatic light after passing through the Microplate Reader Filters and enters the specimen to be tested in the plastic microporous pole.
Zoolied
 offers a variety of optical filters, such as PCR Fluorescence Analyzer Filters ,Longpass FiltersDichroic Filter, and Biochemical Analyzer Filters. ZOOLIED provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Ir Filters and also provides uncoated Optical Glass Filters based on K9 optical glass and UV fused silica.


Looking for ideal optical filters Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical optical filters are quality guaranteed. Zoolied is China Origin Factory ofoptical filters. If you have any question, please feel free to contact us.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

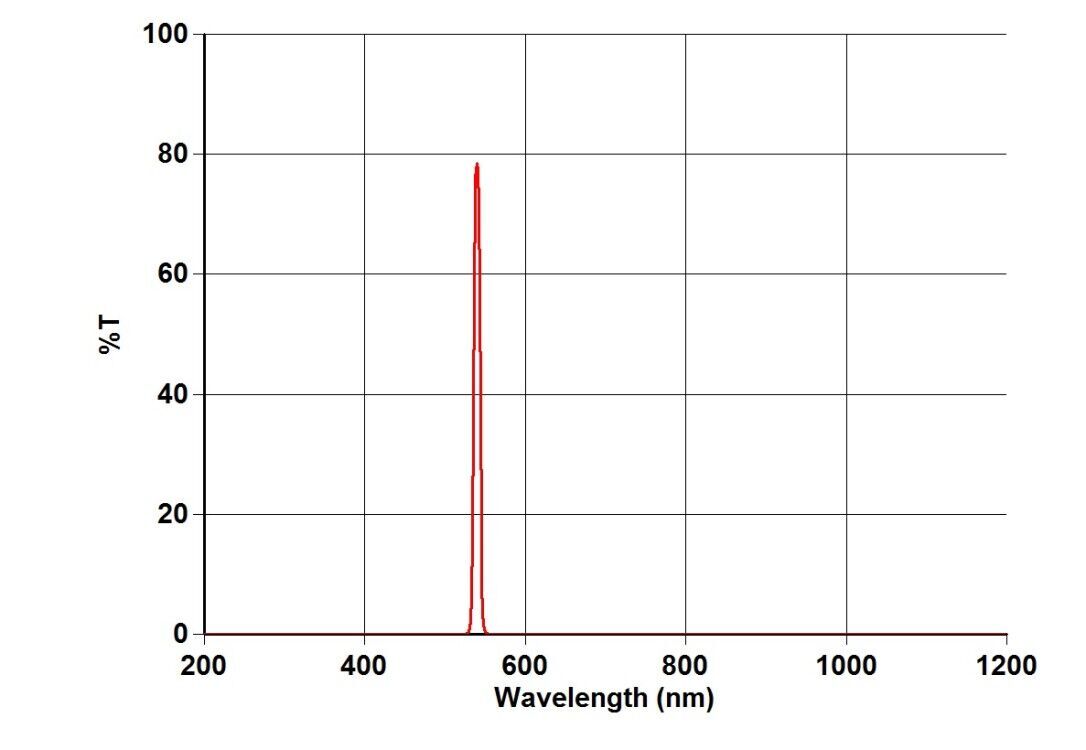

540-10


Zoolied Standard Optical Filter
340nm Biochemical Analyzer Filter 380nm OD4 Filter 410nm Optical Filter
505nm Biochemical Analyzer Filter 510nm Bandpass Filter 510nm Biochemical Analyzer Filter
546nm Optical Filter 405nm Optical Bandpass Filter 405nm Optical 700nm Filter
546nm Narrow Bandpass Filter 410nm Bandpass Filter 620nm Biochemical Analyzer Filter
578nm Bandpass Filter 505nm Narrow Bandpass Filter 505nm Narrow Bandpass Filter
630nm Bandpass Filter 636nm Interference Filter 510nm Narrow Bandpass Filter
546nm Biochemical Analyzer Filter 670nm Biochemical Analyzer Filter 700nm Optical Filter
578nm Biochemical Analyzer Filter 650nm IR cut Filter 578nm OD4 Narrow Bandpass Filter
450nm Interference Filter 620nm Bandpass 700nm Filter 540nm Interference Filter
492nm Narrow Bandpass Filter 630nm Optical Interference Filter 570nm Microplate Reader Filter
595nm Microplate Reader Filter 600nm Narrow Bandpass Filter 890nm Bandpass Filter
microplate reader filters

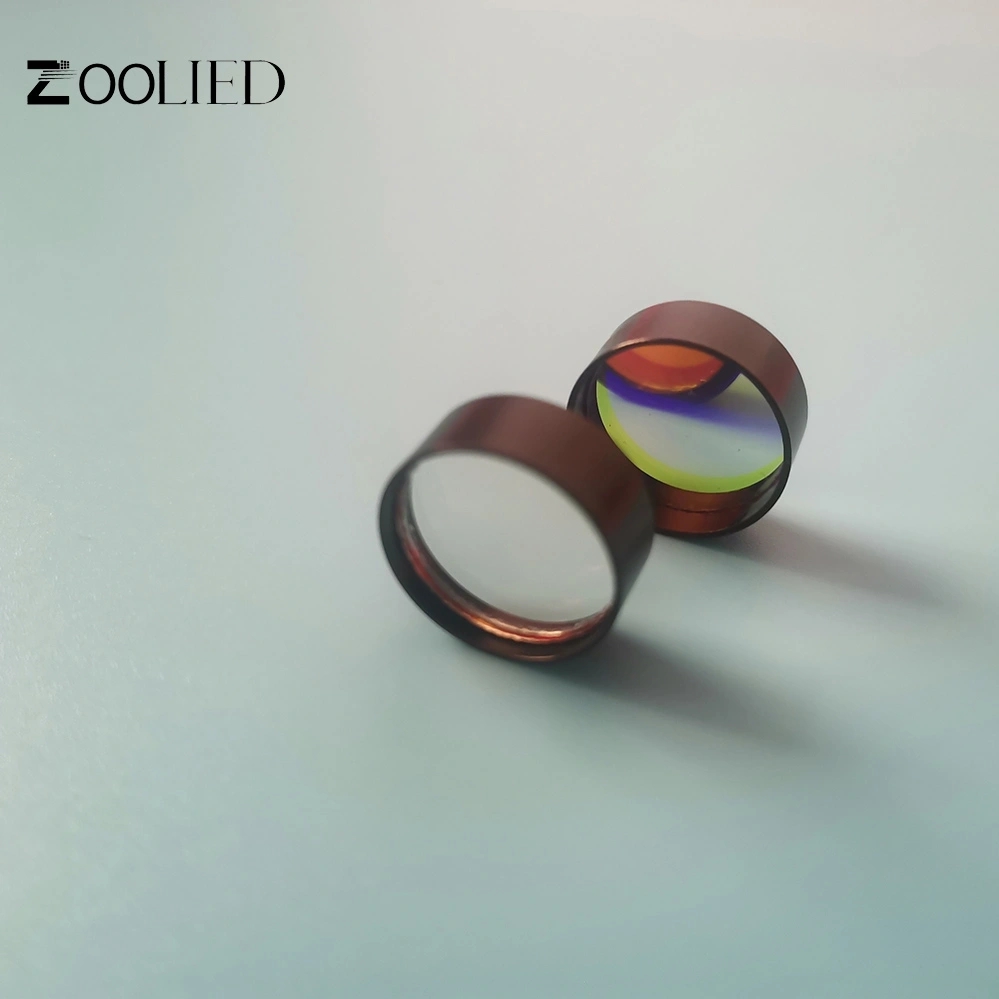

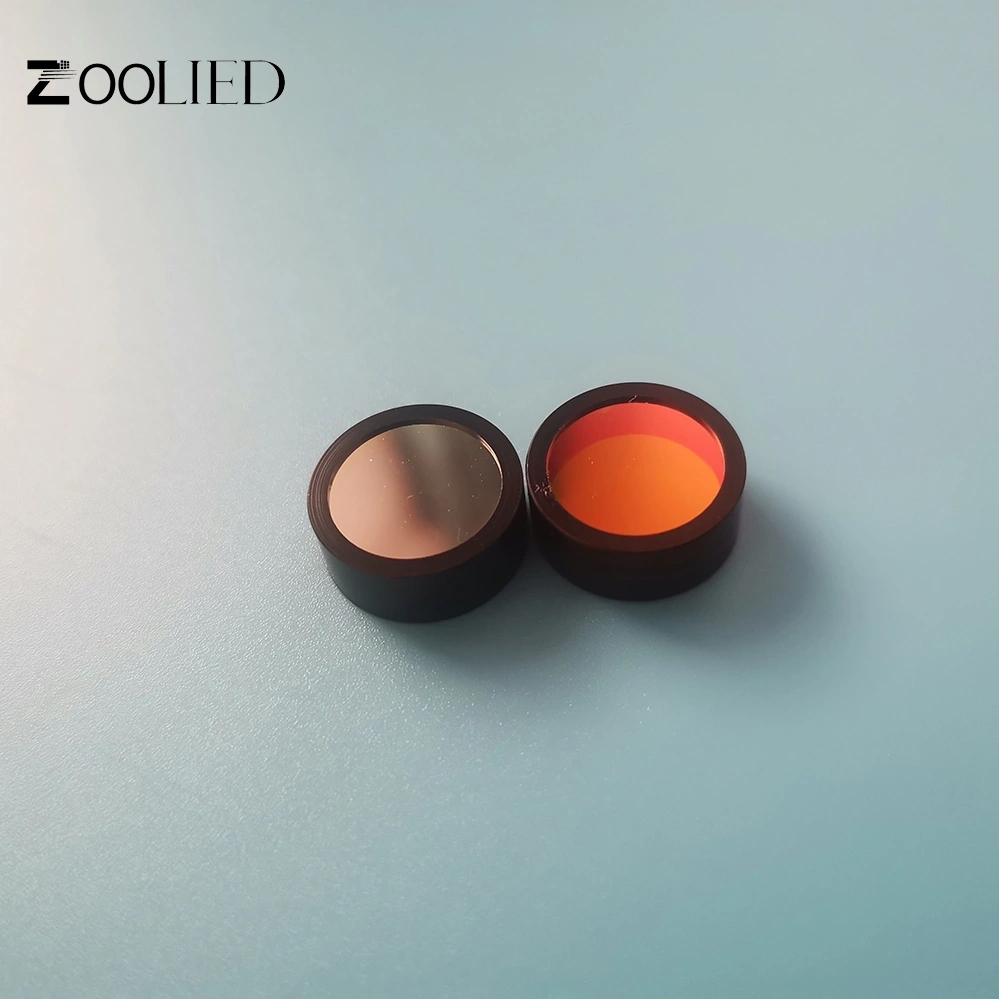

pair of filters

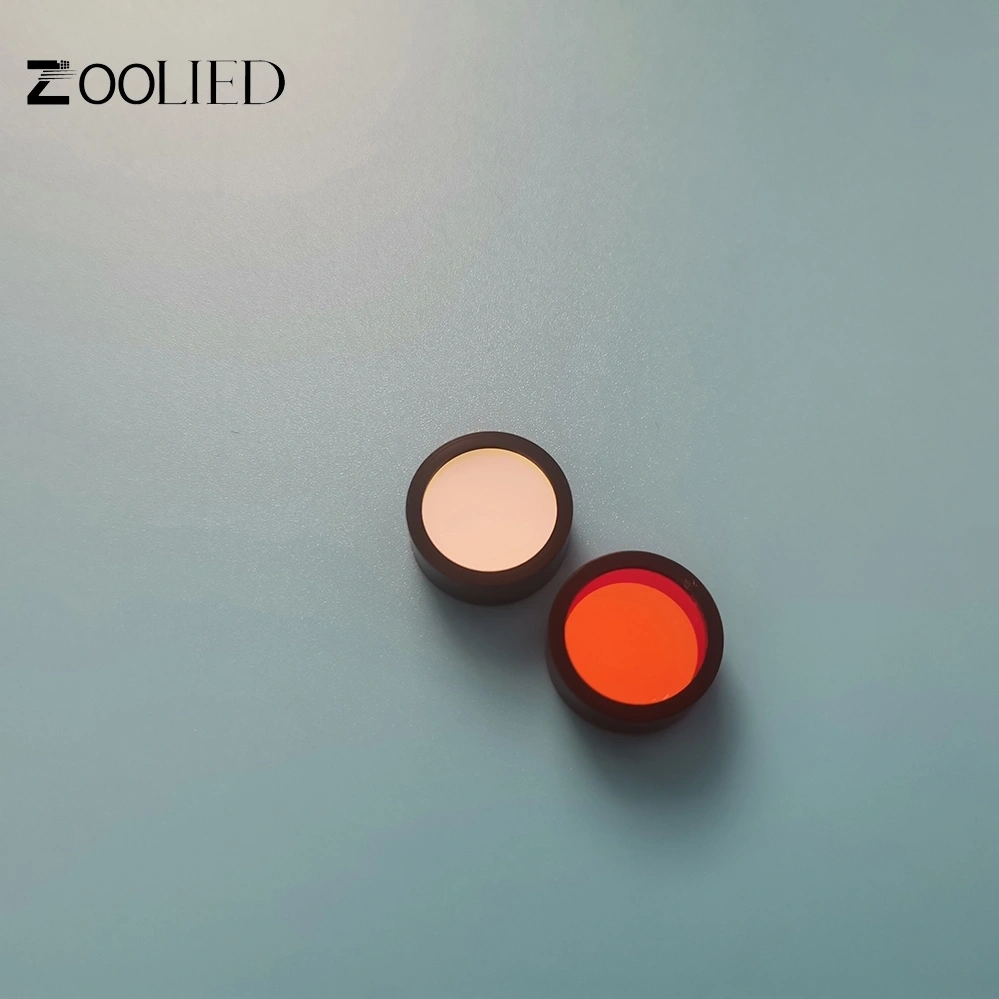

filter 1
