Zoolied optical components provide professional laser glass professional services. The products use Corning Optical JGS1/JGS2, BK7, K9 and other materials imported from the United States as the substrate, and special optical processing forms the laser special protective glass. Laser Windows and Nd Yag Laser Crystal are mainly used in laser welding machines, laser cutting machines, fiber laser cutting machines, laser marking machines, etc. The main function is to prevent debris from splashing and protect the lens.

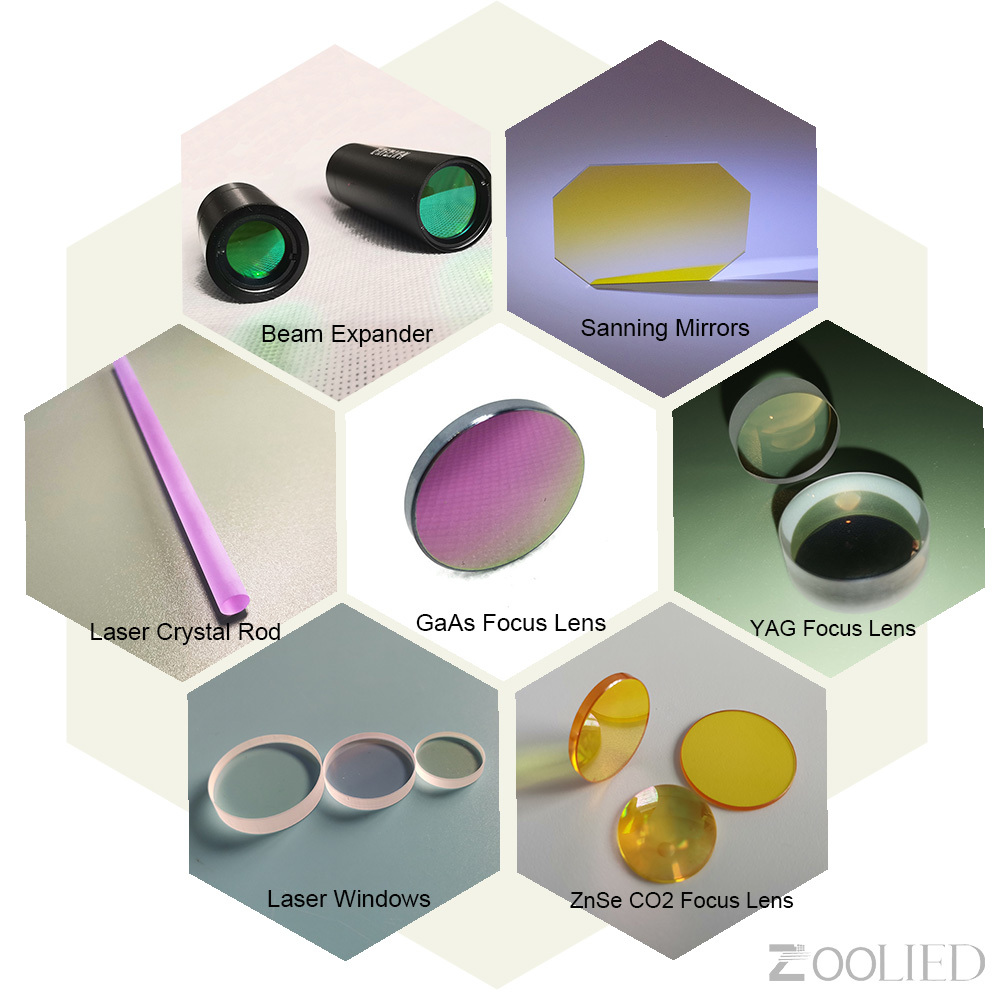

Zoolied offers a variety of laser Optical Lens and windows, such as laser Optical Aspherical Lens, Laser Welding Laser Crystal Rod, and Ir Znse Windows. In order to meet the diverse needs of customers, Zoolied provides a variety of laser materials such as zinc selenide (ZnSe) windows, germanium (Ge) windows, silicon (Si) windows, ( BaF2) windows, calcium fluoride (CaF2) windows; Fused Silica windows used in the ultraviolet (UV) spectral band; K11 windows used in the visible light (VIS) spectral band, etc.
Looking for ideal Laser Focus Lens and window Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the laser mirrors, Lens and optical laser crystal rod with coating and uncoatind are quality guaranteed. Zoolied is China Origin Factory of optical components. If you have any question, please feel free to contact us.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.

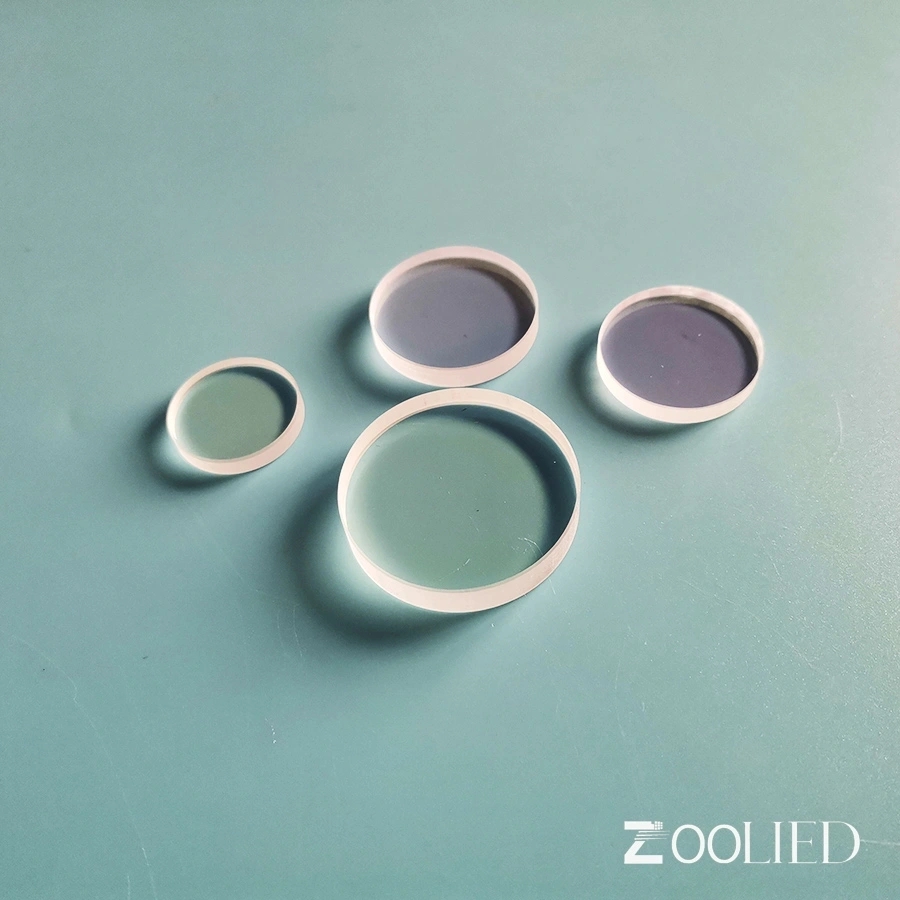

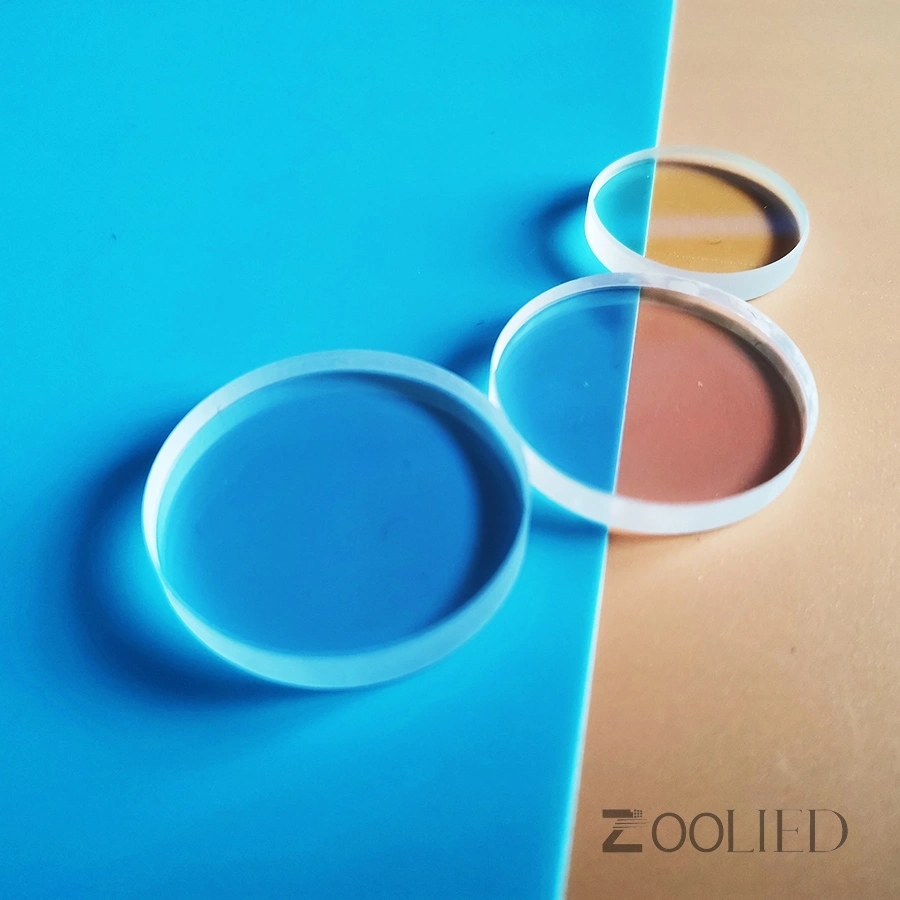

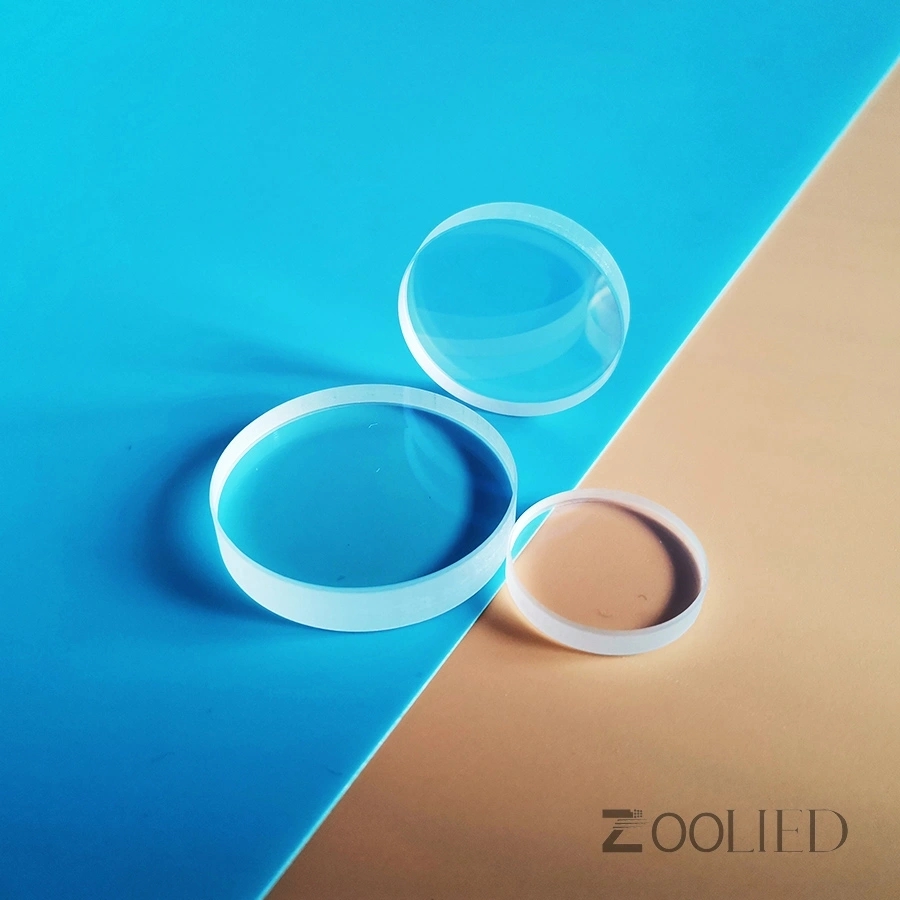

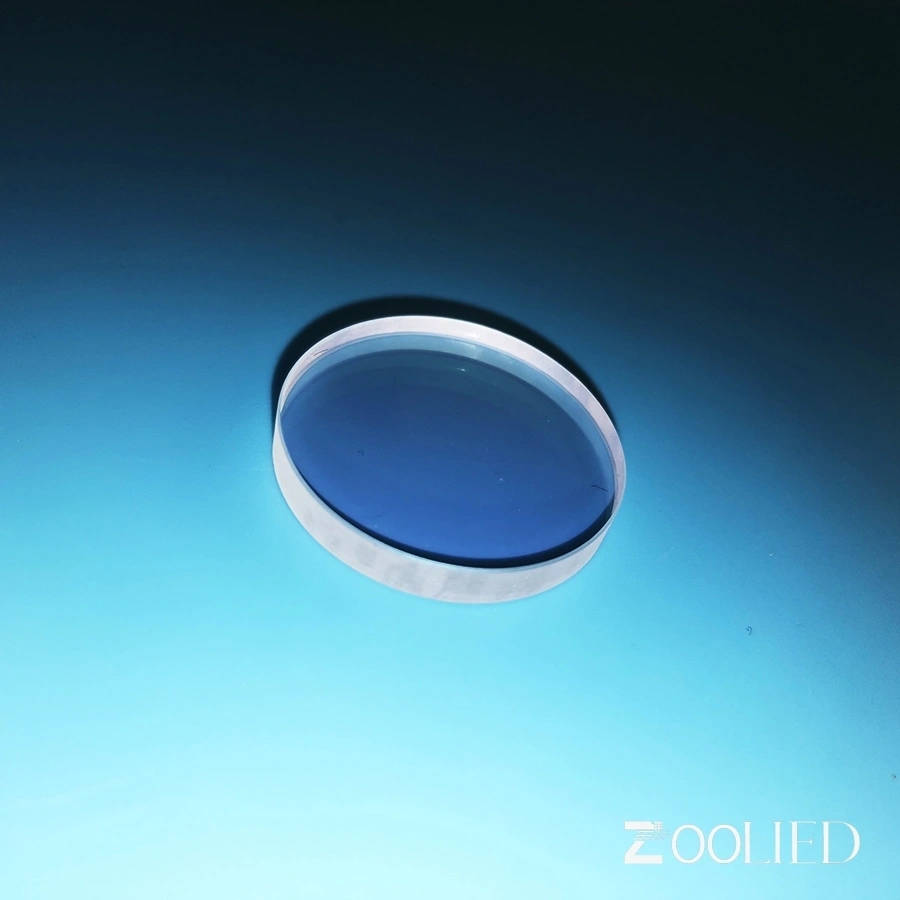

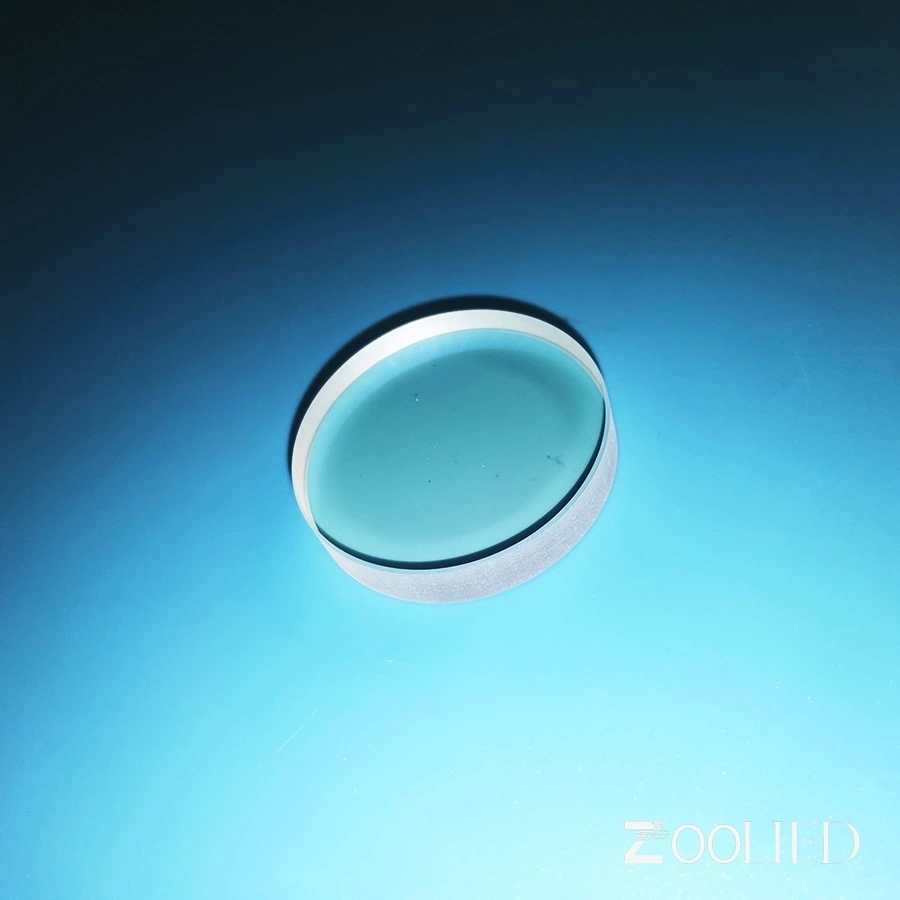

Laser Protective Windows
Note:OEM service for laser protective windows is available from Zoolied.
|
|||
Dia(mm) | Thick(mm) | Material(mm) | wavelength(nm) |
20 | 2/3 | Fused Silica | 1064 |
21.5 | 2 | Fused Silica | 1064 |
22.35 | 4 | Fused Silica | 1064 |
24.9 | 1.5 | Fused Silica | 1064 |
25 | 1/2/3 | Fused Silica | 1064 |
25.4 | 4 | Fused Silica | 1064 |
27.9 | 4.1 | Fused Silica | 1064 |
28 | 4 | Fused Silica | 1064 |
29.7 | 4.7 | Fused Silica | 1064 |
30 | 1/1.5/2/3/5 | Fused Silica | 1064 |
34 | 5 | Fused Silica | 1064 |
36 | 5 | Fused Silica | 1064 |
37 | 7 | Fused Silica | 1064 |
38 | 1.5/2/3 | Fused Silica | 1064 |
40 | 1.5/2/3 | Fused Silica | 1064 |
50 | 1/2/3/5 | Fused Silica | 1064 |
55 | 1.5 | Fused Silica | 1064 |
80 | 3 | Fused Silica | 1064 |
96 | 3 | Fused Silica | 1064 |
134 | 3 | Fused Silica | 1064 |
25 | 3 | ZnSe | 10600 |
80 | 3 | ZnSe | 10600 |
