Ge Windows and Lens

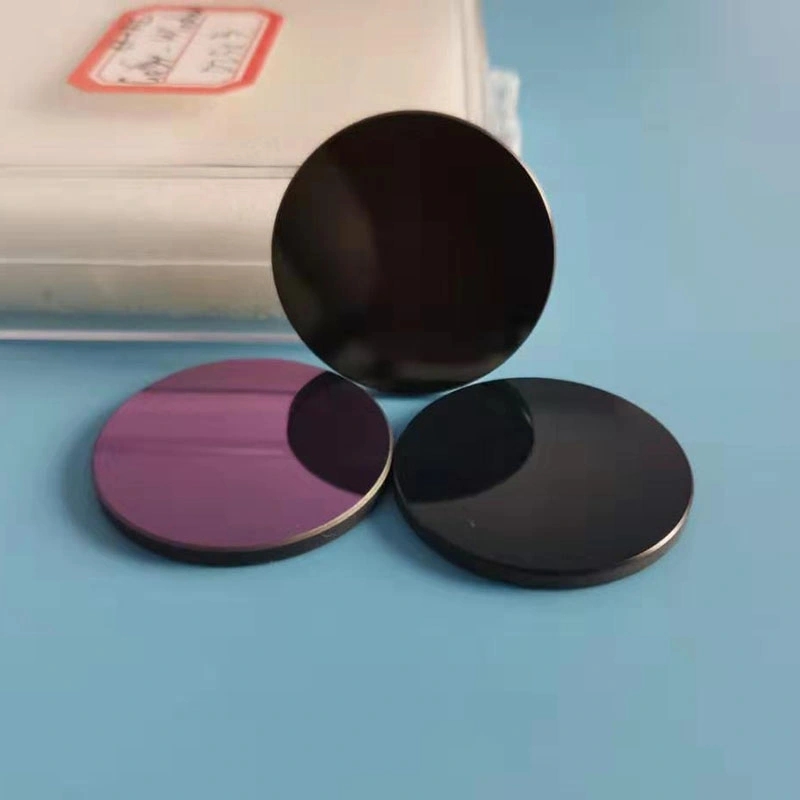

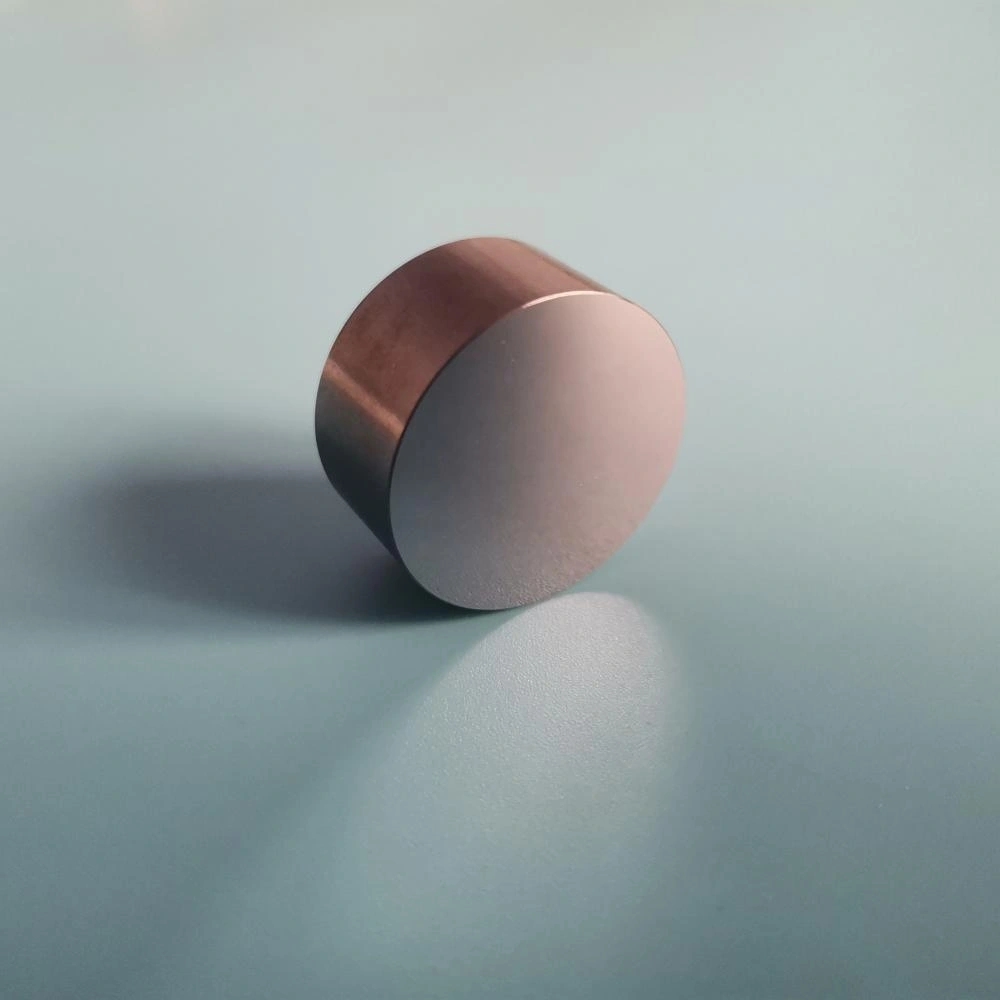

Zoolied offers Infrared Germanium (Ge) Windows. Every Single Crystal Ir Germanium Window's density 5.33 g/cm3, and the standard size of dia 20/25/30/40mm, the thick is 1-12mm, and AR@ 8-12μm. Besides we also offers Germanium With Dlc Coating, and single IR Optical Germanium windows. Zoolied'S IR Ge windows, including Lwir Ge Windows, which are widely used for thermal imaging.

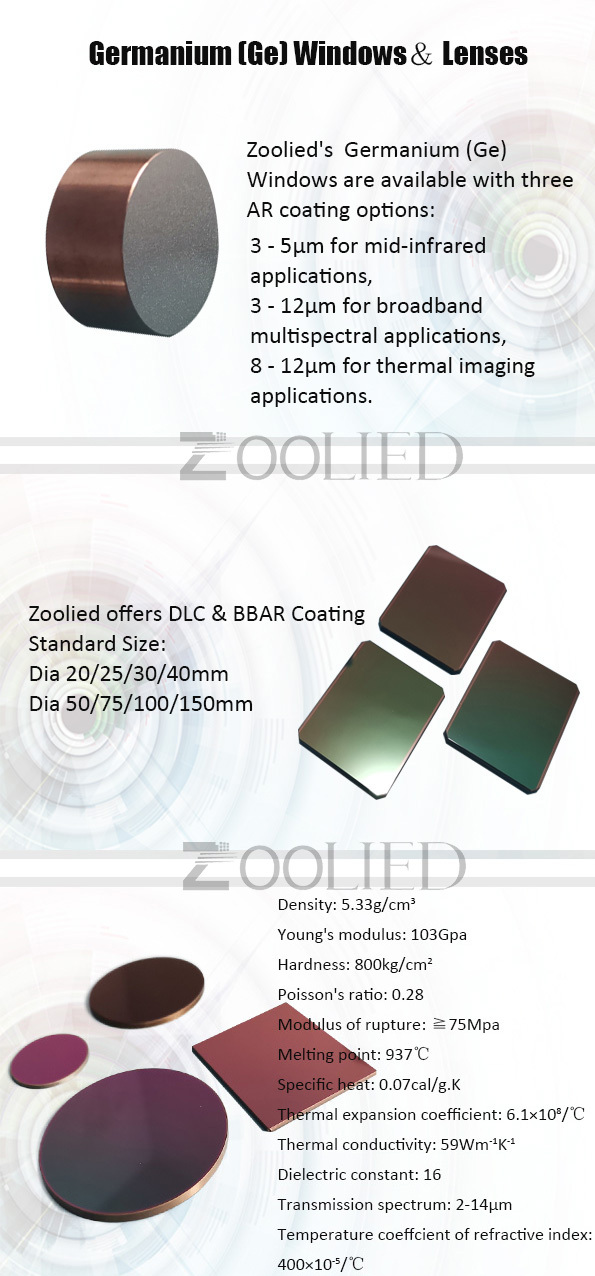

Germanium (Ge) Windows are available off-the-shelf with three anti-reflection coating options: 3 - 5μm for mid-infrared applications, 3 - 12μm for broadband multispectral applications, or 8 - 12μm for thermal imaging applications. Due to its high index of refraction (around 4.0 from 2 - 14μm), an anti-reflection coating is recommended on these Germanium windows for sufficient transmission in the region of interest. Germanium is subject to thermal runaway, meaning that the transmission decreases as temperature increases. As such, these Germanium windows should be used at temperatures below 100°C. Germanium’s high density (5.33 g/cm3) should be considered when designing for weight-sensitive systems. The Knoop Hardness of Germanium (780) is approximately twice that of magnesiμm fluoride, making it ideal for infrared applications requiring rugged optics.

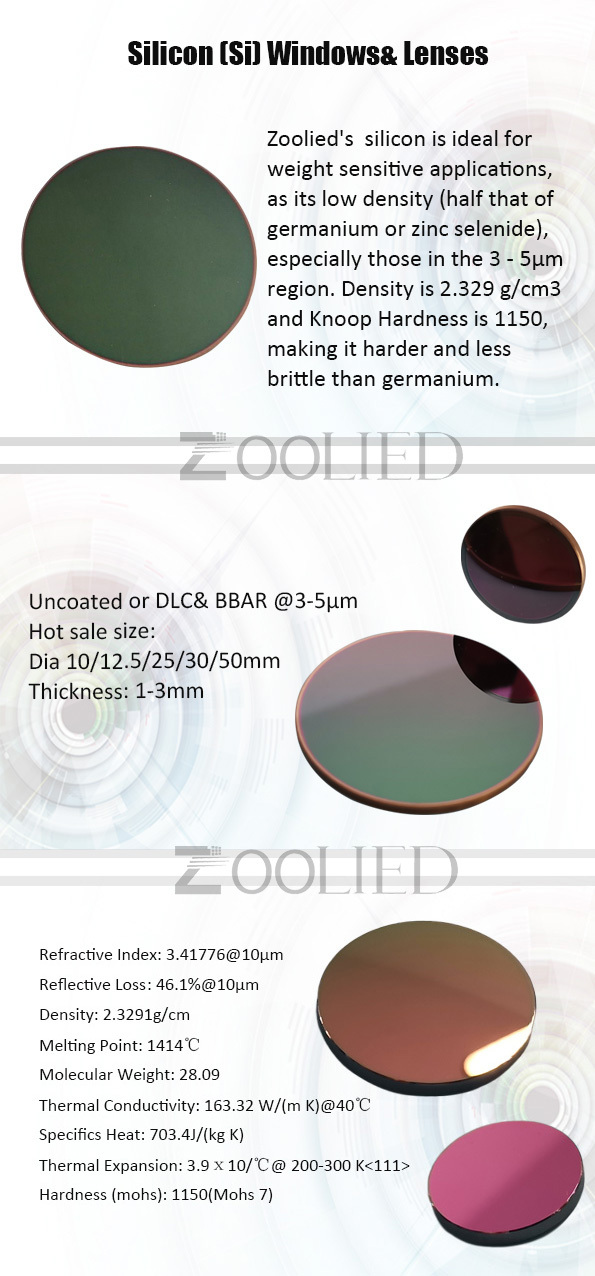

Zoolied offers a variety of optical lenses and windows, such as LWIR Ge windows, big Silicon Windows, and K9 and BK7 lenses. Zoolied provides various anti-reflection coating options and also provides uncoated Ir Sensor Lens and windows. Looking for ideal optical si and Ge windows Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Thermal Imaging Lens and windows are quality guaranteed. Zoolied is China Origin Factory of optical optics. If you have any question, please feel free to contact us.

Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.
