D5mm*80*85*90/100/120mm Nd:ce:yag laser rod
$120 - 680 /Piece/Pieces
Payment Type:
Min. Order:
10 Piece/Pieces
Sample:$50.00 /Piece/Pieces, 10 Piece/Pieces ...Buy Sample
Share: Chat Now
Product Description
Product Attributes

Model No.: ZLY064

Brand: Zoolied

Nd Doping Concentration: 0.6%-1.3%

Advantage 1: Good Mechanical And Thermal Properties

Advantage 2: High Gain, High Efficiency

Advantages 3: Suitable For Multiple Working Modes

Diameter: 1 Mm -12 Mm

Length: 10 Mm -200 Mm

S/D: 20/10

Parallelism: 30"

Wavelength: Good Mechanical And Thermal Properties

Coating: Ar/Pr/Hr/Ht

Supply Ability & Additional Information

Packaging: standard and protective packing

Productivity: 8000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: T/T,Paypal

Incoterm: FOB,CIF,CIP

Packaging & Delivery
Selling Units:
Single package size:
Single gross weight:
Package Type:
standard and protective packing
Picture Example:

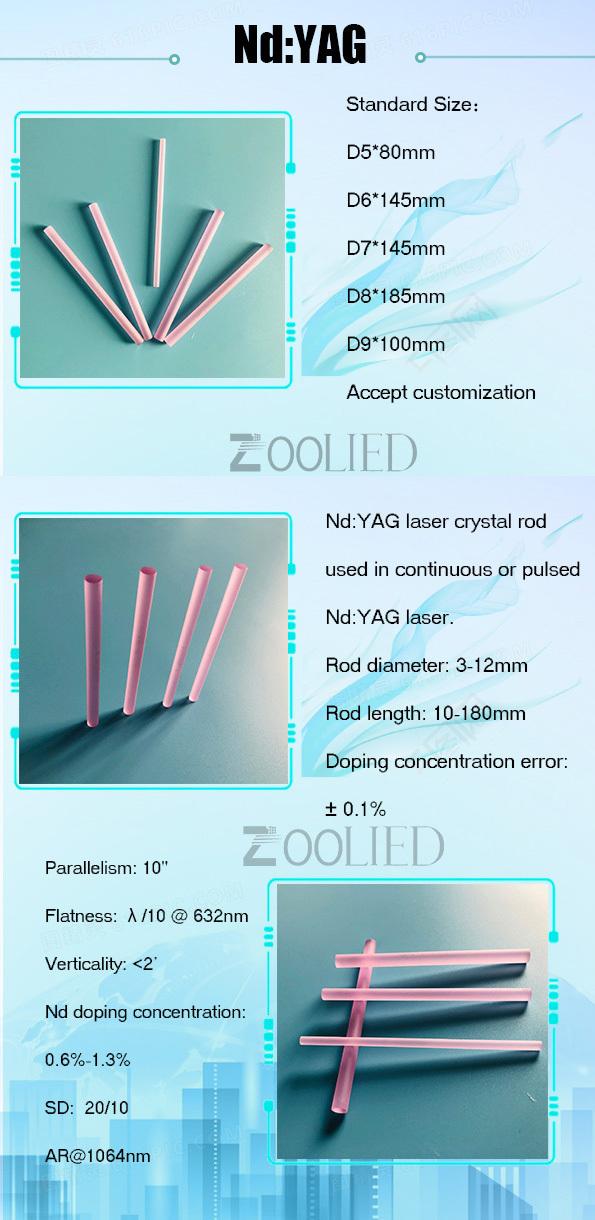

Zoolied offers D5mm*80*85*90/100/120mm Yellow Crystal Rod and purple crystal rod. YAG laser is a solid-state laser based on yttrium aluminum garnet crystal. The chemical formula of yttrium aluminum garnet is Y3 AI5 015, abbreviated as YAG. Nd3+ (about 1%) is incorporated into the YAG matrix to become Nd:YAG laser crystal . The actual preparation is made by melting and crystallization of a certain proportion of Al203, Y203 and Nd03 in a single crystal furnace. Nd:YAG belongs to the cubic crystal system and is an isotropic crystal. Nd:YAG laser crystal has high gain and very low losses at 1064 nm. Optimised thermal conductivity and thermal shock characteristics make it suitable to produce stable and high characteristics reachable lasers.

Since Nd:YAG is a four-level system with high quantum efficiency and large stimulated radiation area, its threshold is much lower than that of ruby and neodymium glass. And because Nd:YAG crystal has excellent thermal properties, it is very suitable for making continuous and repetitive frequency devices. It is currently the only solid working substance that can work continuously at room temperature. In small and medium power pulse devices, the amount of Nd:YAG currently used far exceeds other working substances.

Zoolied Inc. offers in a variety of laser crytal rod, such as Sapphire CrystalNd Yag Crystal Rod, Sapphire Rod and Nd Ce Yag Rod For Medical. Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR). Looking for ideal crystal rod Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Laser welding Laser Crystal Rod are quality guaranteed. Zoolied China Origin Factory of Crystal Optics. If you have any question, please feel free to contact us.

ndyag rod
