Home Products Optical Prisms Corner Cube Prisms
12.7mm N-BK7 Copper-coated 5
$35.99 - 89.77 /Piece/Pieces
Payment Type:
T/T,Paypal
Incoterm:
FOB,CPT,CIP,DDP,CIF,DES
Min. Order:
50 Piece/Pieces
Transportation:
Air,Express
Sample:$50.00 /Piece/Pieces, 10 Piece/Pieces ...Buy Sample
Share: Chat Now
Product Description
Overview
Product Attributes

Model No.: ZLY092

Brand: Zoolied

Support customization: Oem

place of origin: China

Surface Quality: 40/20, 60/40

Substrate: Bk7(K9) Or Uv Fused Silica

Ray Deviation (°):: 180

Surface Flatnese: λ/8

Type: Retroreflector

Shape: Corner Cube

S/D: 60/40

Angle Accuracy: 2" 3" 5" 8"

Supply Ability & Additional Information

Packaging: Standard and protective packing

Productivity: 8000000pcs/year

Transportation: Air,Express

Place of Origin: Changchun

Supply Ability: 8000000pcs/year

Certificate: ISO9001

HS Code: 90019090

Payment Type: T/T,Paypal

Incoterm: FOB,CPT,CIP,DDP,CIF,DES

Packaging & Delivery
Selling Units:
Piece/Pieces
Single package size:
20cm*20cm*20cm
Single gross weight:
1kg
Package Type:
Standard and protective packing
Picture Example:

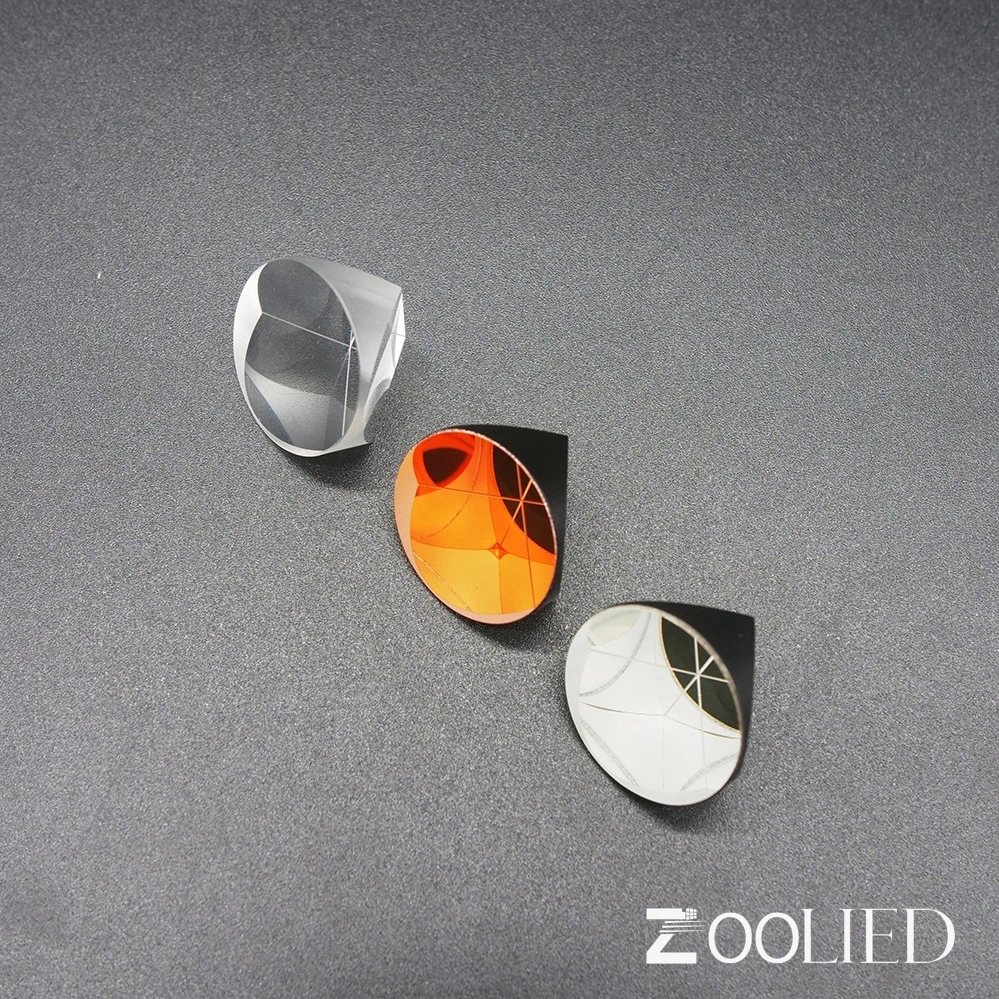

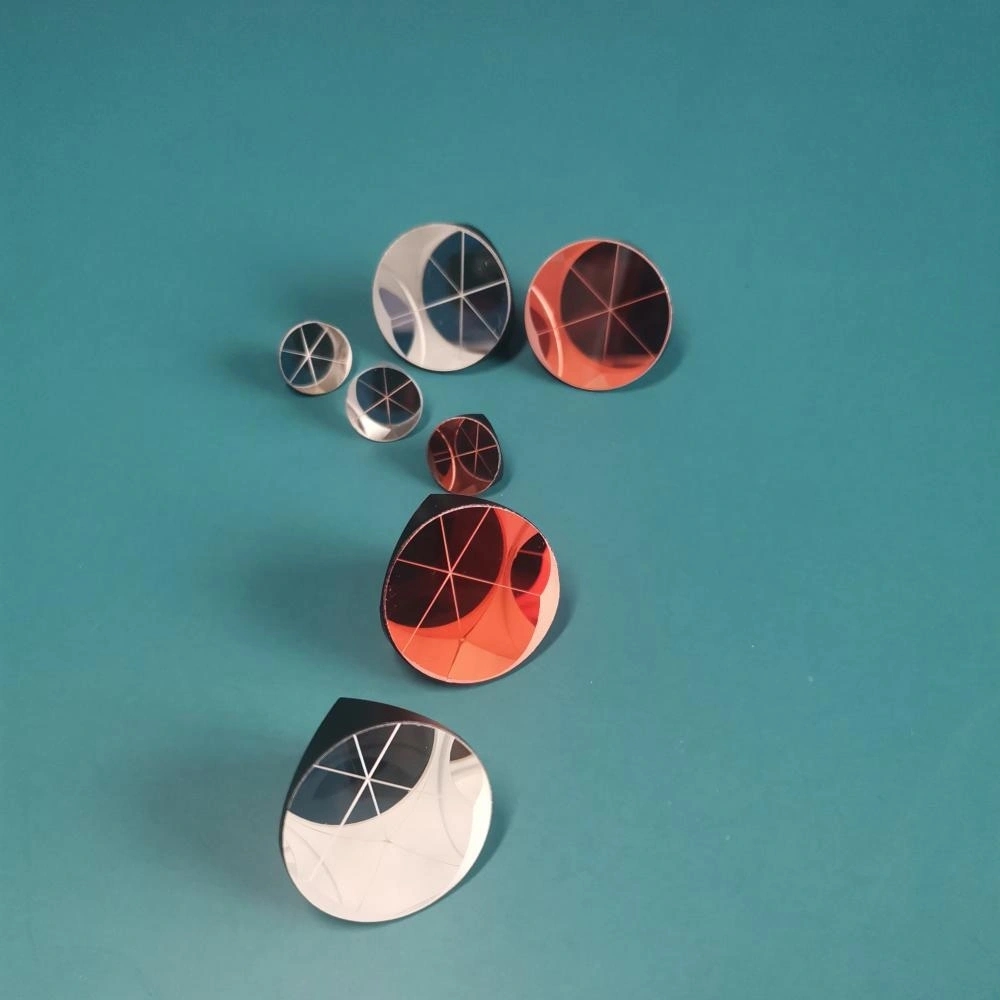

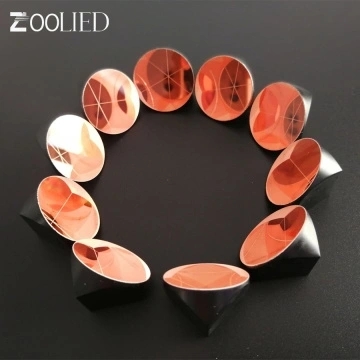

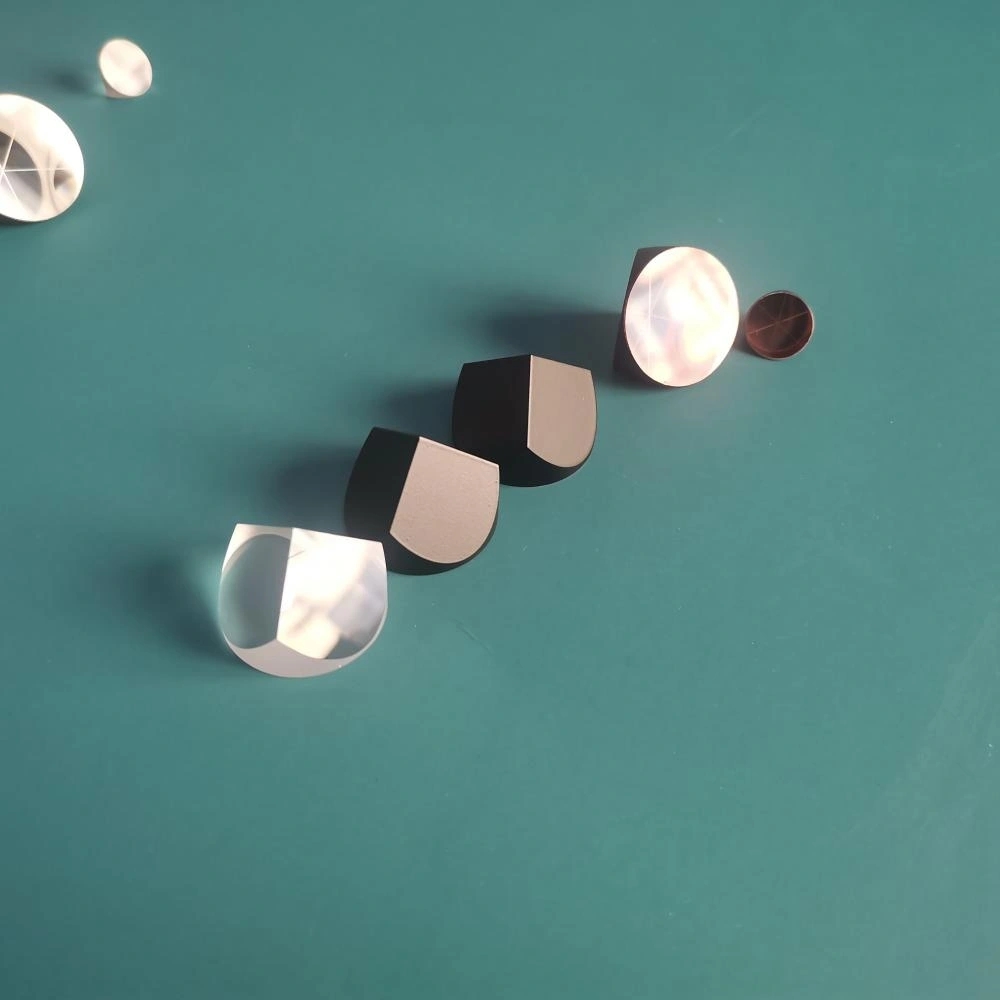

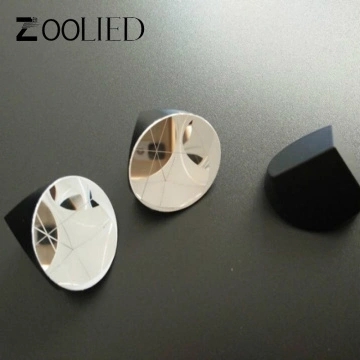

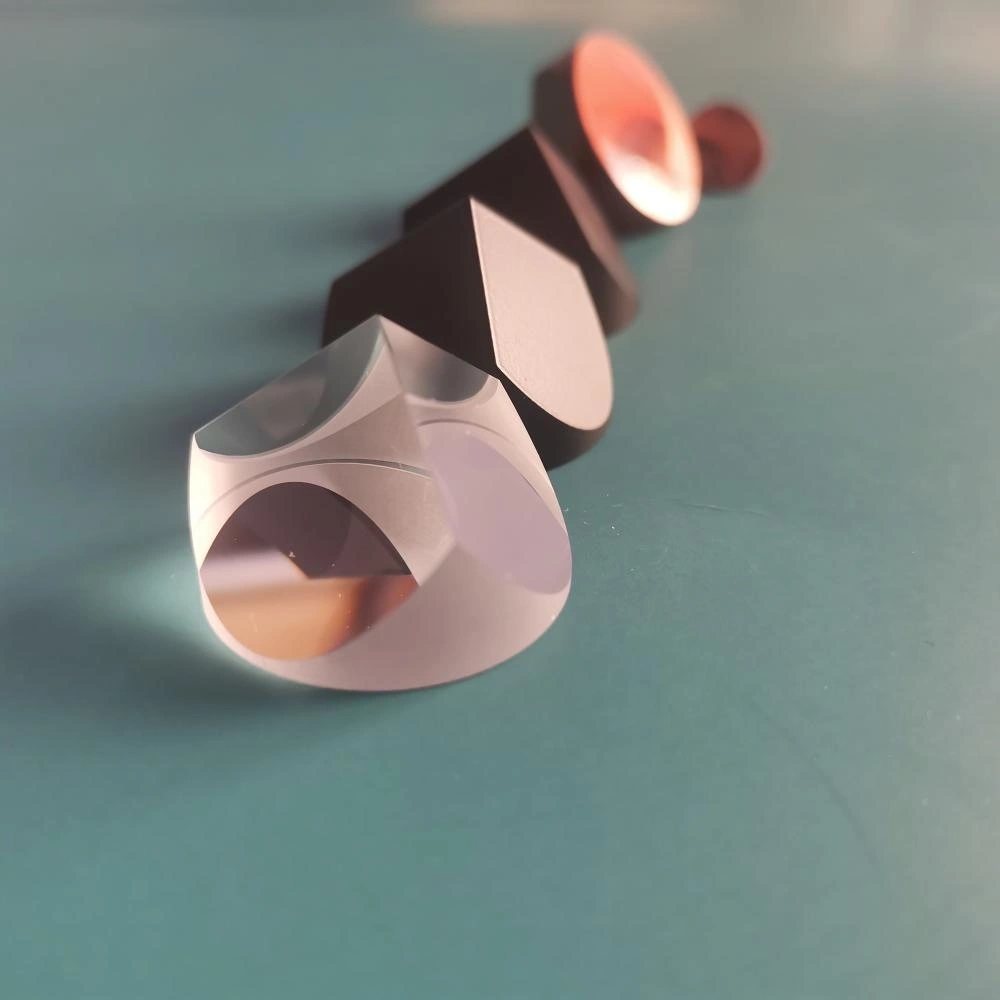

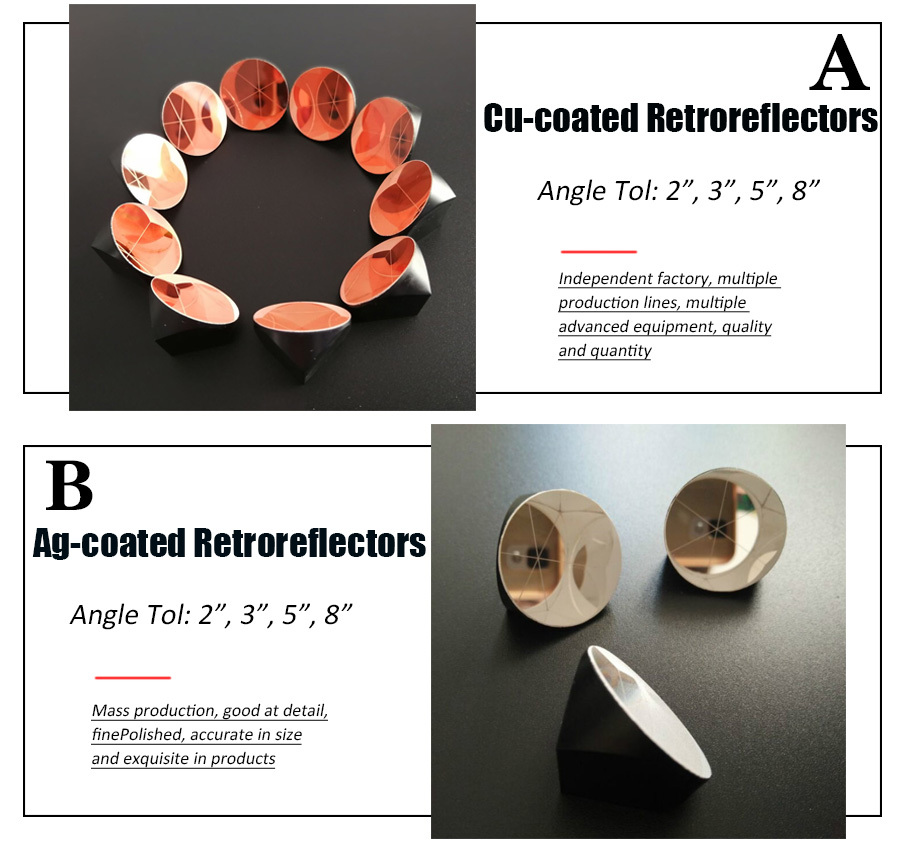

Zoolied N-BK7 Corner Cube Retroreflectors are designed to reflect any ray or beam entering the prism face, regardless of the orientation of the prism, back onto itself. A mirror will do that only at the normal incidence. As a result, Corner Cube Prisms are useful where precision alignment is impossible or time-consuming. Zoolied N-BK7 Optical Serveying Prism are available with the dihedral surfaces either uncoated or coated with silver. The silver coating provides a larger acceptance angle while the uncoated option, which relies on total internal reflection, provides optimum reflectivity. The input face is available uncoated or coated with an antireflection coating optimized for either visible wavelengths or near infrared wavelengths, including 1064nm and 1550nm.


Zoolied offers in a variety of Optical Glass Beamsplitter, such as Corner Cube Retroreflectors,the precision prismst,Right Angle Mirrors and Nd:YAG crystal.Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).
Looking for ideal Corner Cube Prisms Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Optical Serveying Prism are quality guaranteed. Zoolied China Origin Factory of Optical Glass Prisms. If you have any question, please feel free to contact us.


Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.


corner cube 1 (1)

corner cube 1 (2)
