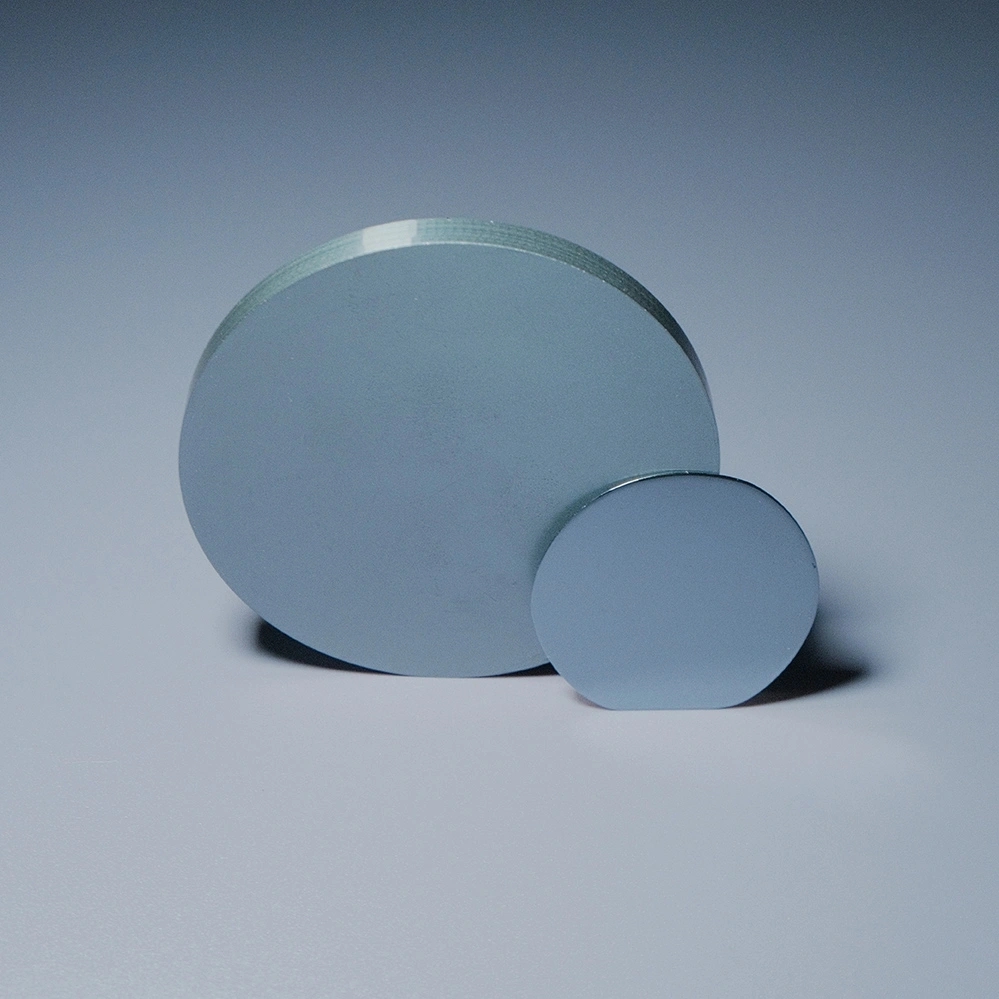

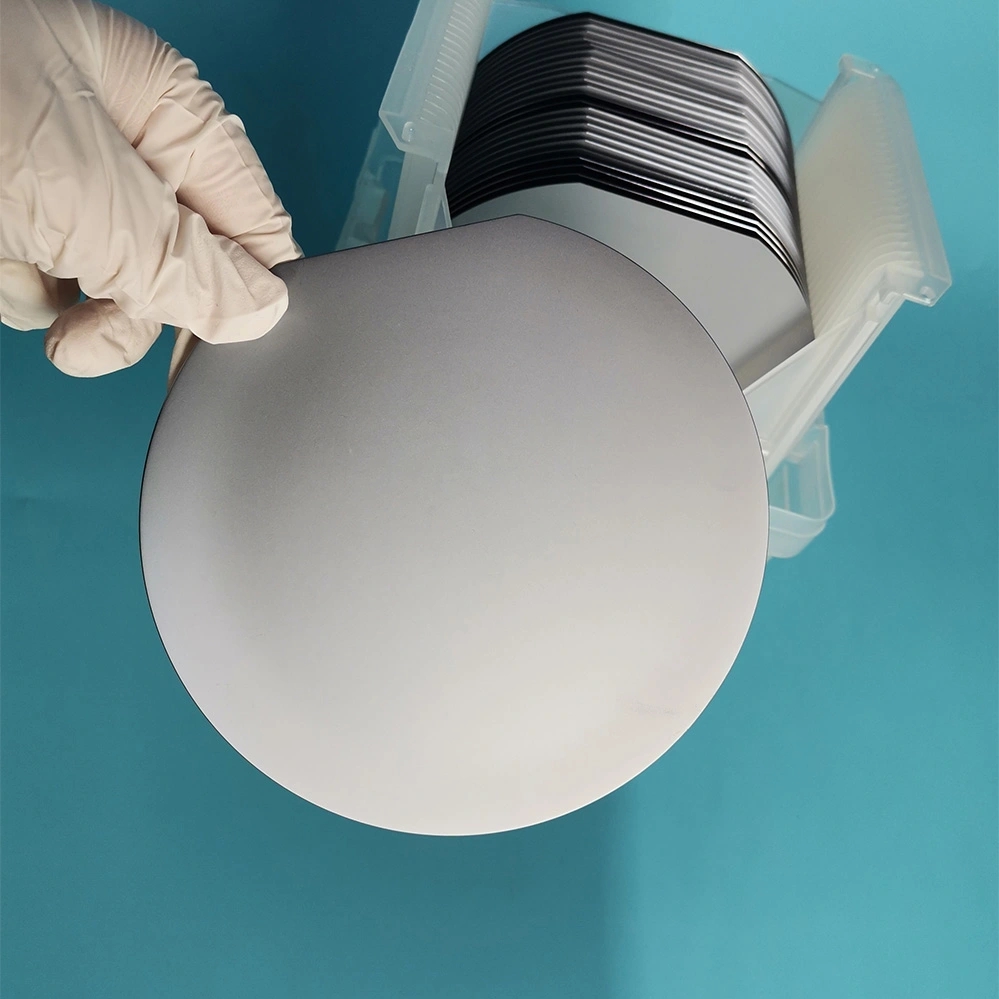

Commonly used sizes of Silicon Wafers include 4, 6, 8, 12 inches. At present, in the application of semiconductors, the mainstream is mainly 8-inch and 12-inch large silicon wafers. The larger the size of the silicon chip, the greater the number of chips that can be manufactured, and the lower the cost of a single chip. Therefore, the current global advanced manufacturing processes all use 12-inch large silicon wafers. Zoolied optical component manufacturing company has been committed to the processing and manufacturing of silicon wafers of various sizes for many years. In addition to 2-10 inch silicon wafers, Zoolied also provides high-quality 12-inch Thin Si Wafers to reduce your production costs.

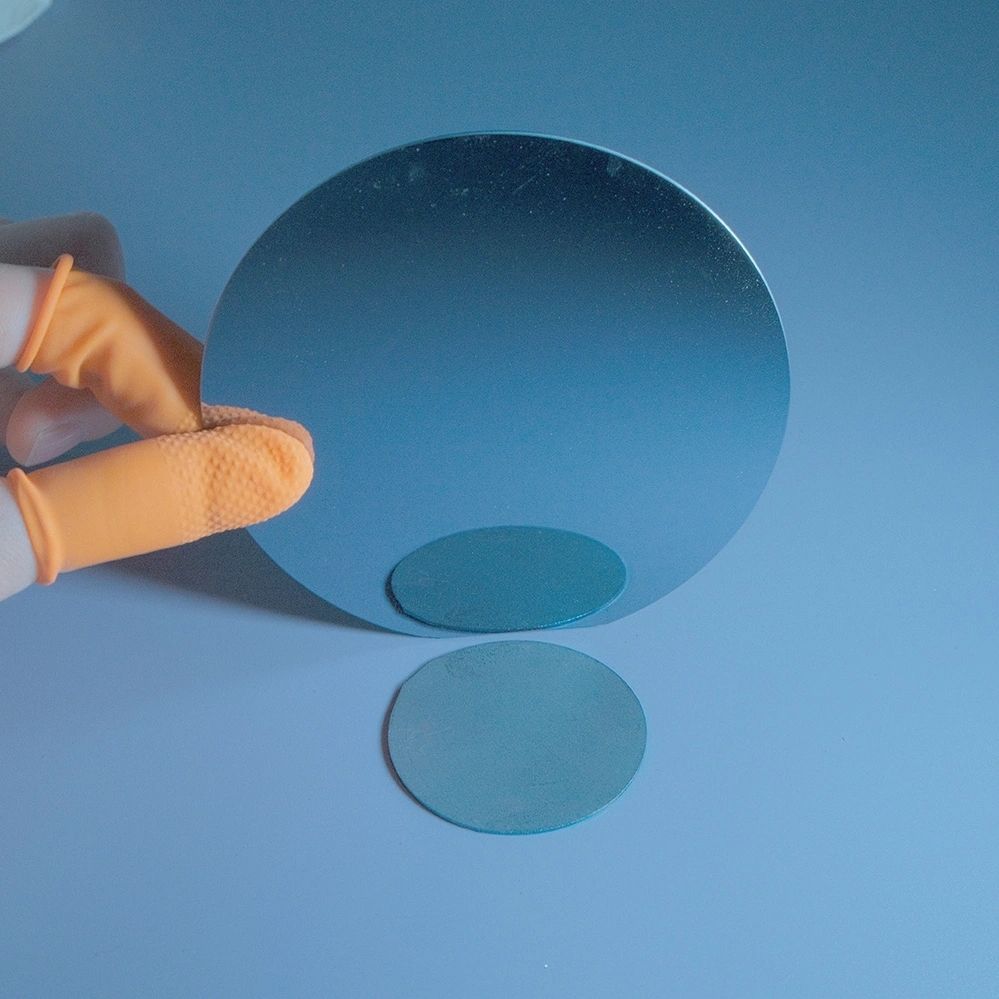

Zoolied Inc. offers a variety of optical Glass Wafers, such as Dummy Silicon Wafers, Jgs1 Wafers, and K9 Wafers, and BK8 wafers. Zoolied provides multiple anti-reflection coating options and also provides uncoated optical glass wafers. Looking for ideal optical si wafers and Ge Wafers Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical glass wafers are quality guaranteed. Zoolied is China Origin Factory of optical Wafers. If you have any question, please feel free to contact us.
Note: Please pay attention to your email at any time after inquiring, we will send you the quotation by email.
| Zoolied Standard Silicon Wafer | |||||||
| Diameter | 2" | 3" | 4" | 5" | 6" | 8" | 12" |
| Grade | Prime/ Test/ Dummy | ||||||
| Growth Method | CZ/FZ | ||||||
| Orientation | < 100 > , < 111 > , < 110 > | ||||||
| Type/Dopant | P/Boron , N /Phos, N /As, N /Sb | ||||||
| Thickness (um) | 279 | 380 | 525 | 625 | 675 | 725 | 775 |
| Thickness Tolerance | Standard ± 25μm | ||||||
| Resistivity | 0.001 - 10,000ohm-cm | ||||||
| Surface Finished | DSP,SSP | ||||||
| TTV (um) | Standard < 10 um | ||||||
| Bow/Warp (um) | Standard <40 um | ||||||
| Particle | Specified by customer | ||||||
